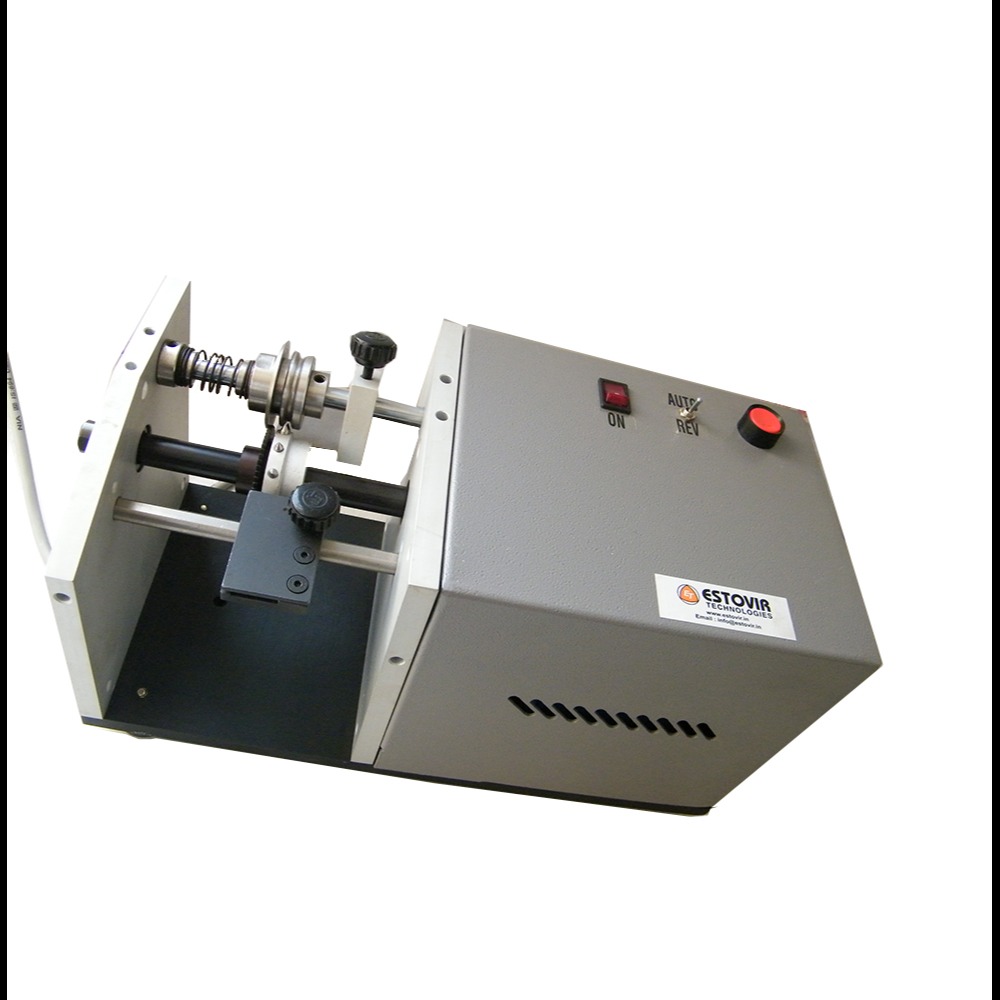

Automatic De-Taping Machine for Taped Radial - UAP 850R
The UAP 850R is a motorized de-taping machine specifically designed to automatically separate (de-tape) radial components from carrier tapes with speed, precision, and consistency. This machine is the automatic version of the MAP 860R, purpose-built for streamlining the de-taping process in high-volume electronics manufacturing environments.
Features:
- Automatic De-Taping for Taped Radials – Motorized system radial components with speed and accuracy.
- Supports Ø 0.4 mm – 0.8 mm Leads – Handles a wide range of soft-wire components with precision.
- High-Speed Automated Output – Delivers up to 18,000 components per hour with minimal operator input.
- Compact Yet Heavy-Duty Build – Measures 330 × 160 × 155 mm and weighs 10 kg for industrial reliability.
- Rugged Coated Metal Finish – Engineered for durability in demanding production environments.
Technical Specifications:
- Model: UAP 850 R
- Component Type: Taped Radial
- Lead Diameter Range: Ø 0.4 mm to Ø 0.8 mm (soft wire)
- Operation Mode: Motorized
- Output Capacity: Up to 14,000 pieces per hour
- Dimensions: 330 X 160 X 155 mm
- Weight: 8 Kg
