Automatic Forming for Taped Axials (Vertical) – UAP 301 V The UAP 301 V by Estovir Technologies is an advanced motorized machine designed for automatic cutting and V-shape forming of taped axial components. Engineered for modern SMT lines, it delivers consistent, high-speed performance with minimal manual intervention, making it ideal for high-volume PCB manufacturing and electronic component processing. Key Features of Automatic Forming for Taped Axials (Vertical) – UAP 301 V • Motorized Automatic Operation Significantly reduces manual effort while increasing output and consistency. • High-Speed Processing Delivers up to 14,000 components per hour, ideal for mass production environments. • Accurate and Repeatable V-Forming Ensures precise bending with consistent pitch and lead spacing for vertical mounting. • Supports Lead Diameters Up to 1.37mm Accommodates various component sizes, making it highly adaptable to different production requirements. • Adjustable Speed Control Fine-tune forming speed to suit varying component types and line speeds. • Compact & Rugged Design Industrial-grade build with a compact footprint (500 × 195 × 195 mm), saving valuable floor space. • Low Power Consumption Runs on 220V AC, 50Hz with minimal power usage (3A–5A) for round-the-clock operation. • Low Maintenance Designed for 24/7 industrial use with simple maintenance routines. Applications • The UAP 301 V is suitable for various electronics manufacturing applications: • SMT production lines • PCB assembly facilities • Automotive and industrial electronics • Component forming for LED and consumer electronics • Component packaging and lead processing units Product Specifications - Model : UAP 301 V Operation Type : Motorized Forming Type : Vertical V-Shape Bend Lead Cutting Diameter : Ø 0.4 mm – Ø 1.37 mm (Soft Wire) Output Capacity : Up to 14,000 pcs/hr Speed Control : Adjustable Power Supply : 220V AC, 50 Hz Power Consumption : 3A – 5A Machine Dimensions : 500 mm × 195 mm × 195 mm Machine Weight : 20 kg Component Forming Parameters: • A (Lead Length): 4–18 mm • B (Lead Spacing from Body): 2.5–10 mm • C (Body Gap): Minimum 3 mm between component body and bend • D (Component Body Diameter): 1.5–8 mm • W (Lead Wire Diameter): 0.35–1 mm • P (Pitch Between Leads): 2.5–13.5 mm • H (Overall Height): A + B + C Why Choose UAP 301 V? • Designed for effortless high-volume forming • Compact, reliable, and energy-efficient • Trusted by professionals for its durability and accuracy • Backed by Estovir Technologies' proven expertise in lead forming systems

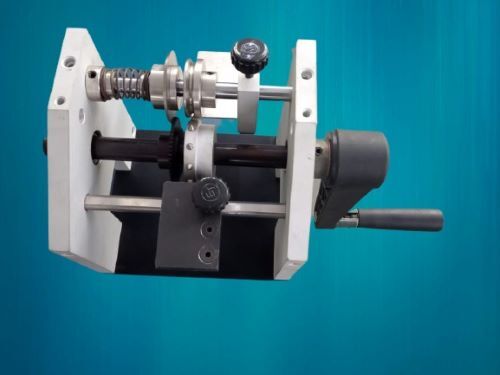

The MAP 860 Manual Cut & Bend Machine for Taped Axial Components is engineered to deliver precision, efficiency, and reliability for electronics manufacturing environments. Designed by Estovir Technologies, the MAP 860 offers superior handling of taped axial components, optimizing production workflows while ensuring consistent component preparation. Key Features: 1. Precision Cutting & Bending: • High-accuracy blade system ensuring uniform cutting lengths. • Adjustable bending angles for tailored component shaping. 2. Ergonomic Design: • User-friendly manual operation reducing operator fatigue. • Compact footprint suitable for diverse workstation setups. 3. Versatile Compatibility: • Supports a wide range of taped axial upto lead Ø 0.8 mm softwire. • Adjustable guides for quick adaptation to varying tape widths. 4. Robust Construction: • Industrial-grade materials for enhanced durability and longevity. • Low-maintenance design with easy access to critical components. 5. Enhanced Throughput: • Streamlined manual operation for higher processing speeds. • Consistent output quality, minimizing rework and waste.

Automatic De-Taping Machine for Taped Radials UAP 850R SPECIFICATIONS : Output 10000 pcs/hr Power 220V AC, 50 Hz Dimensions L-330, W-160, H-155 mm Weight 10 Kg

Manual De-Taping Machine for Taped Radials Output 0000-18000 pcs/hr Dimensions L-3300, W-160, H-155 mm Weight 3 Kg 1 SPECIFICATIONS

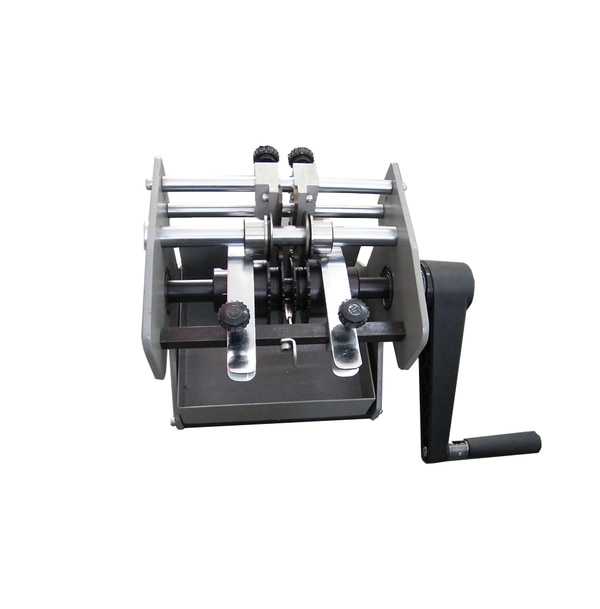

Manual Forming for Taped Axials Horizontal MAP 301H Output 10000-18000 pcs/hr Dimensions L-250 W-250 H-200 mm Weight 5 Kg SPECIFICATIONS A 3.5-40 B 3.6-15 C 1.2 min D 1.5-8 W 0.35-1 P A+2C H A+B+

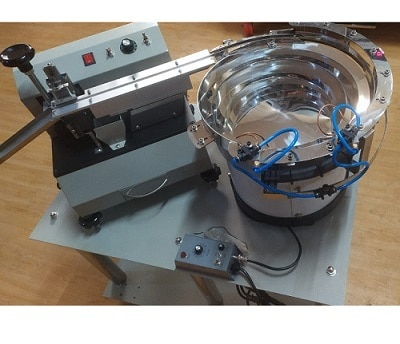

Automatic Loose Radial Lead Cutter with bowl feeder SPECIFICATIONS : Output Power 220V AC, 50 Hz Dimensions L-1100 W-650 H-1050 mm Weight 145 Kg

Automatic De-Taping Machine for Taped Radials Resistance cutting Output 10000 PCS/hr Power 220V AC, 50 Hz Dimensions L-330, W-160, H-155 mm

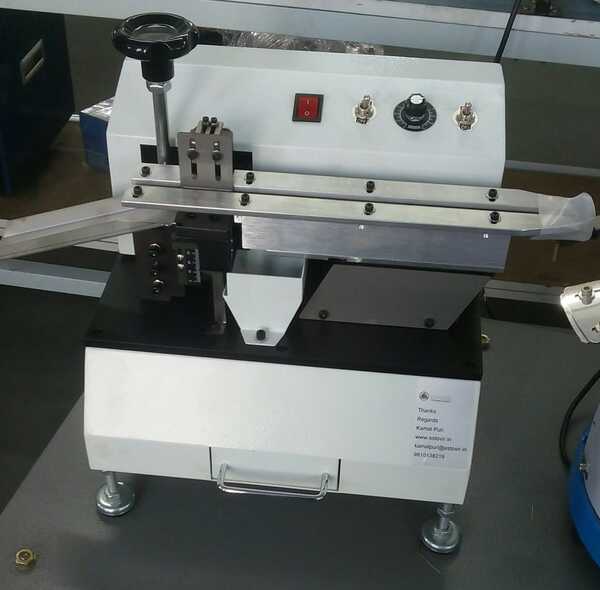

Loose Radial Lead Cutting Machine ARP 360 SPECIFICATIONS Power : 220V AC, 50 Hz Dimensions : L-500, W-400, H-450 mm Weight : 30 Kg

Automatic Dip-Soldering Machine Features & Specifications Digital Temperature Controller for Solder Bath Electronic Timer for setting dwell (solder) time Easy mechanical adjustments for depth setting Versatile PCB Carrier for fixing multiple PCB's Bath Size 14” x 14” 18” x 14” Solder Capacity 35 Kg 45 Kg Power Supply 220 V AC, 50Hz 220 V AC, 50Hz Heater Power 3.2 KW 4.0 KW Heat up Time 35 35 min Bath Depth 50 50mm Dimensions 690 x 460 x 360mm 790 x 460 x 360 Weight(without solder) 45 Kg 50Kg. Standard Accessories PCB Carrier – 1 no PCB Carrier - 1 no Scrapper 1 no Scrapper 1 no L/N Key Kit-1 no L/N Key Kit - 1 no
