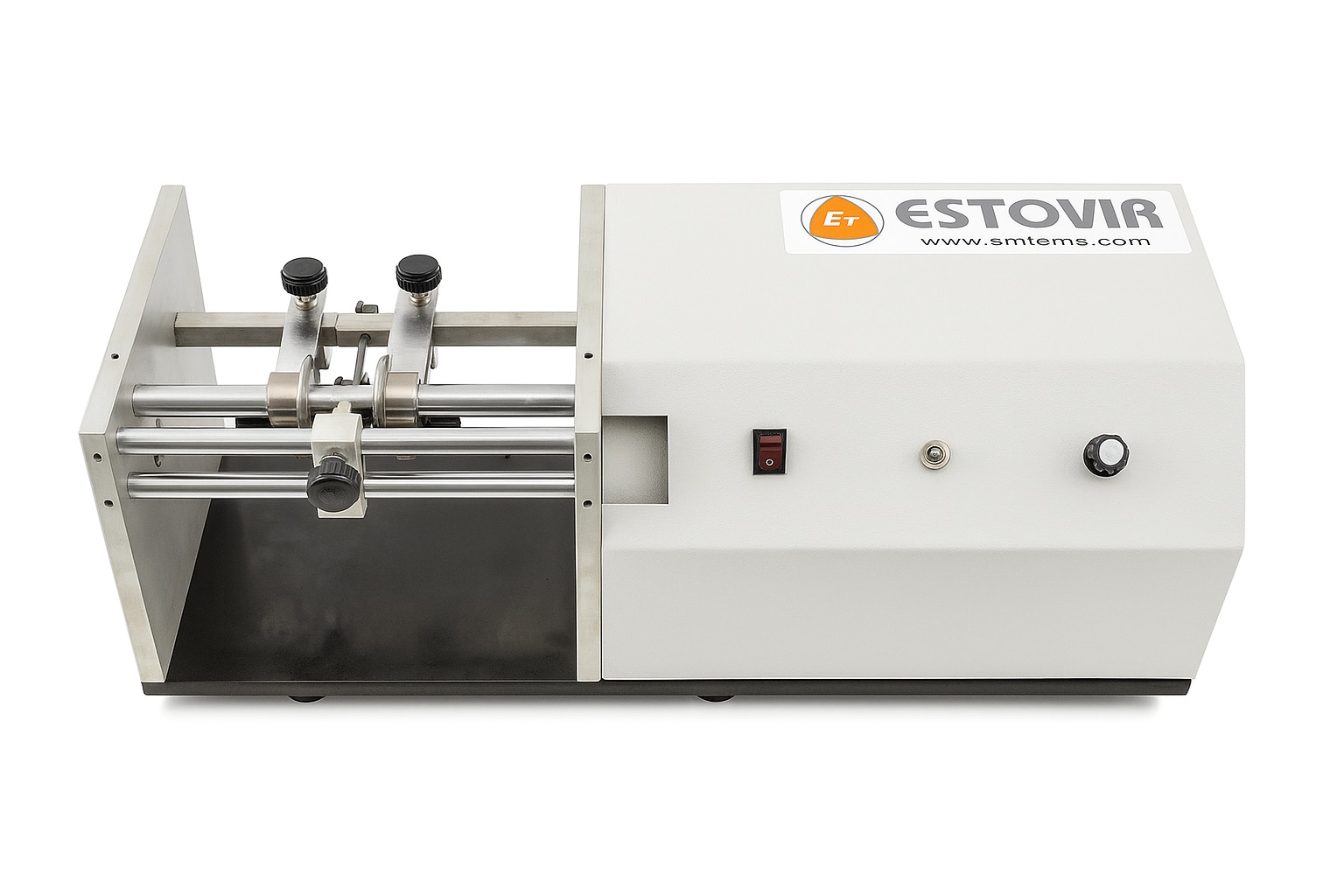

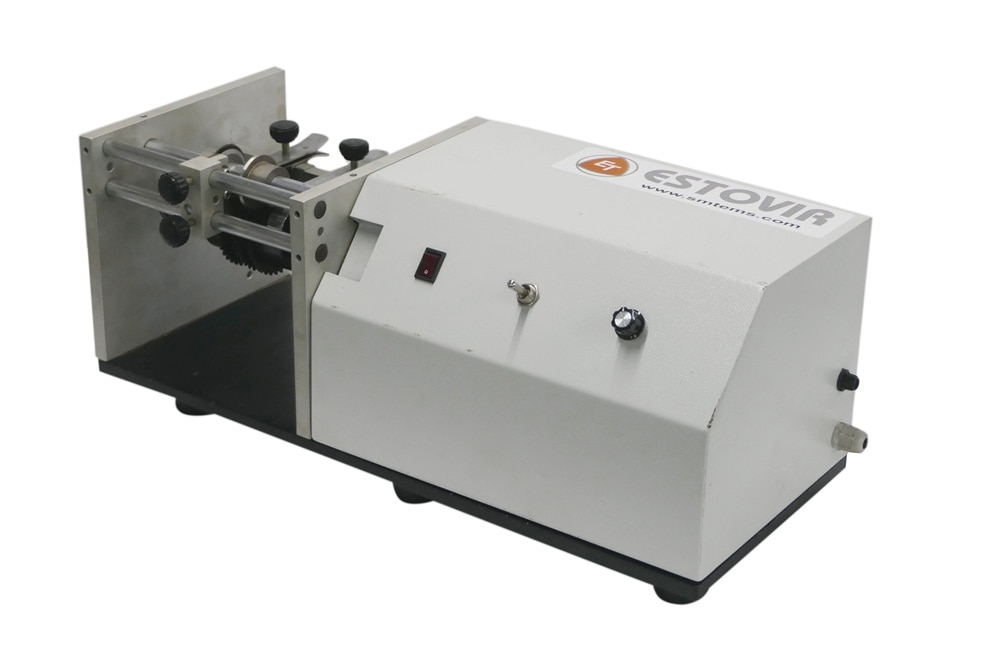

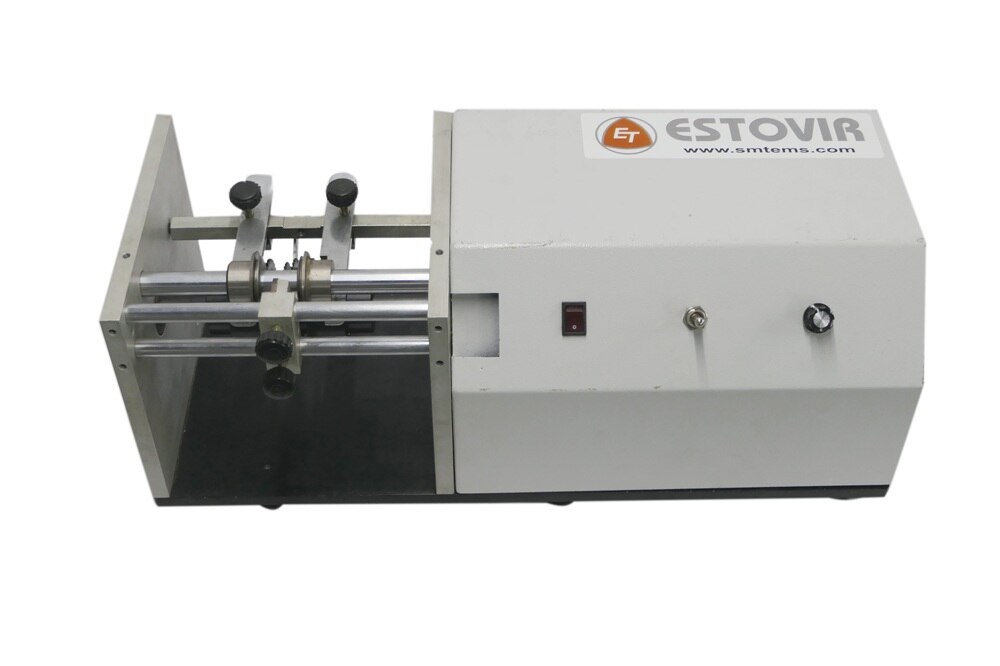

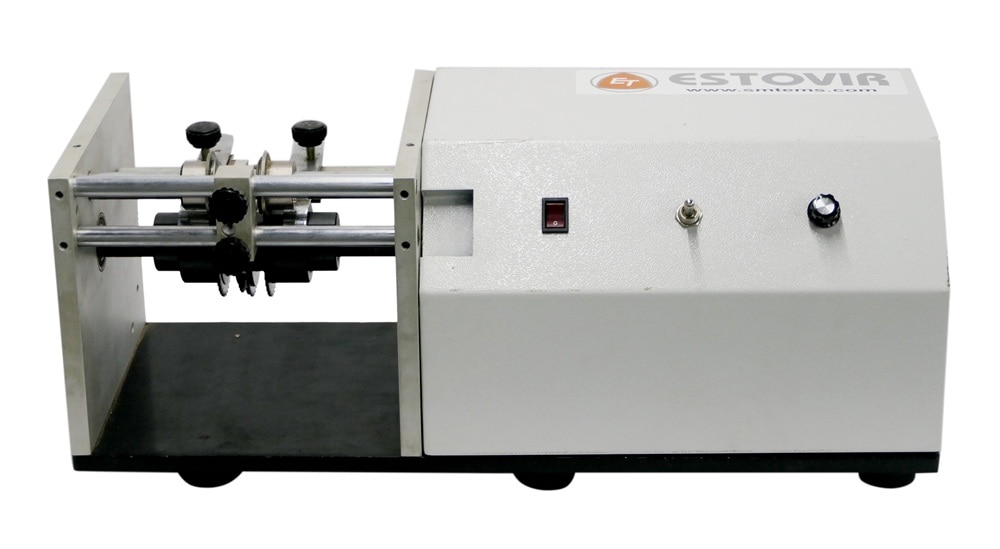

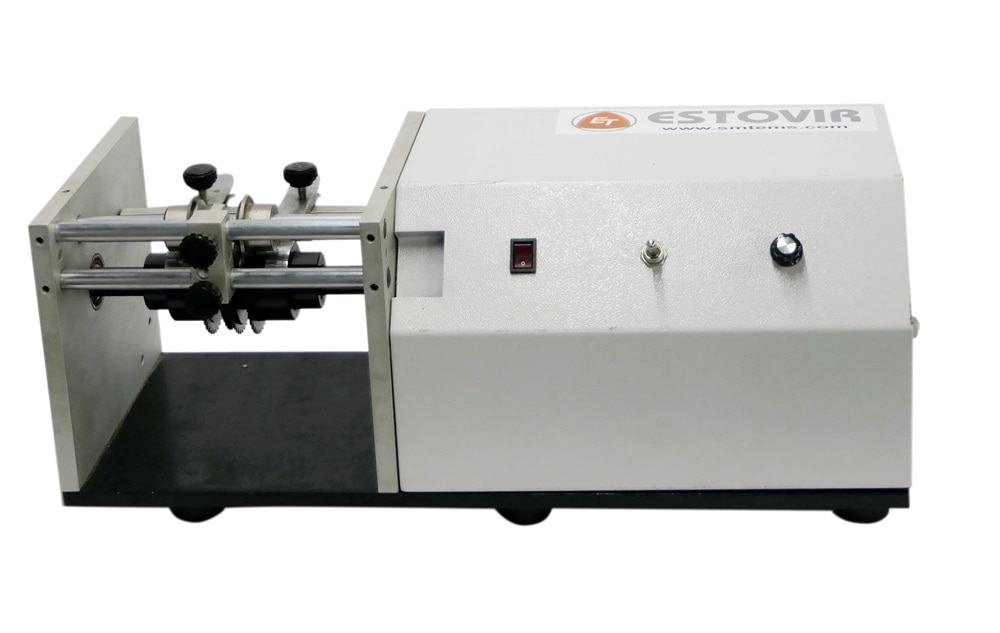

The UAP 301 V by Estovir Technologies is an advanced motorized machine designed for automatic cutting and V-shape forming of taped axial components. Engineered for modern SMT lines, it delivers consistent, high-speed performance with minimal manual intervention, making it ideal for high-volume PCB manufacturing and electronic component processing.

Key Features of Automatic Forming for Taped Axials (Vertical) – UAP 301 V

• Motorized Automatic Operation

Significantly reduces manual effort while increasing output and consistency.

• High-Speed Processing

Delivers up to 14,000 components per hour, ideal for mass production environments.

• Accurate and Repeatable V-Forming

Ensures precise bending with consistent pitch and lead spacing for vertical mounting.

• Supports Lead Diameters Up to 1.37mm

Accommodates various component sizes, making it highly adaptable to different production requirements.

• Adjustable Speed Control

Fine-tune forming speed to suit varying component types and line speeds.

• Compact & Rugged Design

Industrial-grade build with a compact footprint (500 × 195 × 195 mm), saving valuable floor space.

• Low Power Consumption

Runs on 220V AC, 50Hz with minimal power usage (3A–5A) for round-the-clock operation.

• Low Maintenance

Designed for 24/7 industrial use with simple maintenance routines.

Applications

• The UAP 301 V is suitable for various electronics manufacturing applications:

• SMT production lines

• PCB assembly facilities

• Automotive and industrial electronics

• Component forming for LED and consumer electronics

• Component packaging and lead processing units

Product Specifications -

Model : UAP 301 V

Operation Type : Motorized

Forming Type : Vertical V-Shape Bend

Lead Cutting Diameter : Ø 0.4 mm – Ø 1.37 mm (Soft Wire)

Output Capacity : Up to 14,000 pcs/hr

Speed Control : Adjustable

Power Supply : 220V AC, 50 Hz

Power Consumption : 3A – 5A

Machine Dimensions : 500 mm × 195 mm × 195 mm

Machine Weight : 20 kg

Component Forming Parameters:

• A (Lead Length): 4–18 mm

• B (Lead Spacing from Body): 2.5–10 mm

• C (Body Gap): Minimum 3 mm between component body and bend

• D (Component Body Diameter): 1.5–8 mm

• W (Lead Wire Diameter): 0.35–1 mm

• P (Pitch Between Leads): 2.5–13.5 mm

• H (Overall Height): A + B + C

Why Choose UAP 301 V?

• Designed for effortless high-volume forming

• Compact, reliable, and energy-efficient

• Trusted by professionals for its durability and accuracy

• Backed by Estovir Technologies' proven expertise in lead forming systems
