Overview Automatic PCB Lead Cutting Machine LC A66

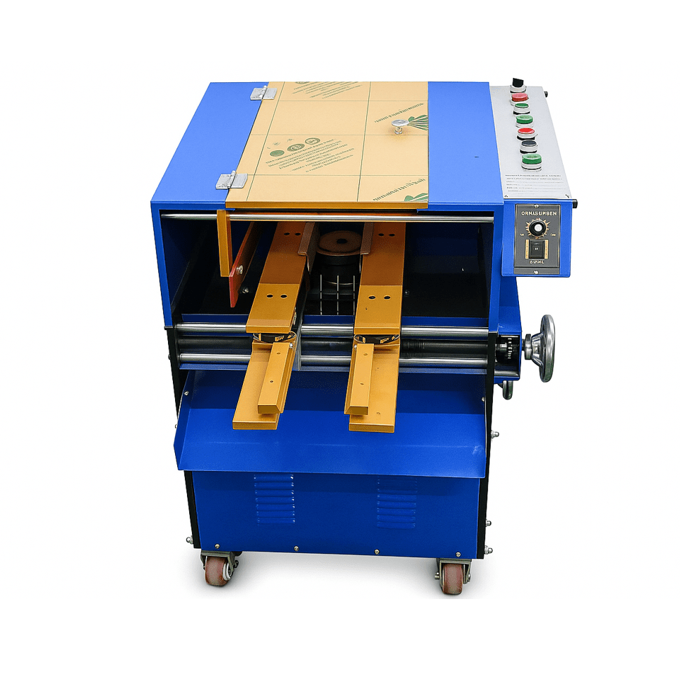

The LC A66 Automatic PCB Lead Cutting Machine by Estovir Technologies is engineered for post-solder lead trimming in high-volume PCB assembly lines. Using a conveyor chain mechanism, the machine automatically clamps and transports PCBs towards a high-speed tungsten carbide blade (LC TC 250) for accurate and uniform lead cutting. Built with a wrap prevention device, it ensures damage-free processing, making it the perfect choice for electronics, consumer goods, and automotive PCB manufacturing. With a spindle speed of 4500 RPM and adjustable conveyor control, the LC A66 delivers unmatched speed, safety, and precision.
Key Features of Automatic PCB Lead Cutting Machine LC A66
- Automatic PCB Transportation
- Conveyor chain clamps securely hold and transport PCBs into the cutting blade.
- Reduces manual handling and boosts efficiency in production lines.
- High-Speed Tungsten Carbide Blade (LC TC 250)
- Equipped with a 250 mm outer diameter, 70 mm ID, 3.5 mm thickness blade.
- Blades are re-sharpenable, ensuring long-term cost savings and consistent performance.
- Wrap Prevention System
- Special device prevents bending or damage to PCBs during cutting.
- Guarantees clean finishing, even on thin and delicate boards.
- Flexible & Adjustable Operation
- Conveyor speed adjustable between 0–3 m/min for different workloads.
- Cutting height as low as 6 mm, suitable for multiple PCB thicknesses (0.8–2.5 mm).
- Durable Industrial Build
- Weighing 115 kg, it is designed for continuous factory-floor operation.
- Rugged body ensures stability and vibration-free cutting.
Technical Specification:
- Model: LC A66
- Operation Type: Automatic (conveyor-based feed)
- Cutting Blade: LC TC 250 Tungsten Carbide (Ø250 mm OD, 70 mm ID, Thickness 3.5 mm)
- PCB Thickness: 0.8 – 2.5 mm
- Max PCB Size: 500 × 300 mm
- Cutting Height: 0.6 mm minimum
- Spindle Speed: 4500 RPM
- Main Motor Power: ¾ HP
- Conveyor Speed: 0–3 m/min (adjustable)
- Power Supply: 220V AC, 50 Hz
- Dimension: 740 X 565 X 755 mm
- Weight: 115 Kg
Cutting Blade Specification:
ModelD (mm)d (mm)T (mm)a°LC TC 250250703.518° to 25°
Why Choose LC A66?
The LC A66 Automatic PCB Lead Cutting Machine combines automation, precision, and durability to streamline PCB post-solder processing. Built for high-volume industrial use, it ensures reduced labor costs, higher accuracy, and faster production cycles.
- Boosts production speed with fully automated PCB handling.
- Guarantees precise, uniform lead cutting for a professional finish.
- Prevents PCB damage with integrated wrap-prevention system.
- Compact, space-saving design ideal for industrial production lines.
- Uses reliable LC TC 250 tungsten carbide blades, ensuring durability.
- Trusted by global electronics manufacturers for quality and efficiency.
Applications of Automatic PCB Lead Cutting Machine LC A66
The LC A66 is a versatile solution suitable for a wide range of electronics manufacturing environments. It is primarily used for trimming extra leads of PCBs after soldering, ensuring smooth and reliable assembly for mass production.
- PCB assembly lines for consumer electronics and LED products.
- Automotive electronic module production.
- High-volume industrial PCB manufacturing.
- Contract electronic assembly services.
- Factories requiring post-solder lead cutting with precision and speed.
Maintenance & Blade Information
- Blade Maintenance – The LC TC 250 tungsten carbide blade can be re-sharpened using the LC G250 blade sharpening machine, ensuring consistent long-term performance.
- Low Maintenance Design – Built with minimal moving parts and a rugged frame, the LC A66 requires very little upkeep.
- Operator Safety – Manual push-handle feeding ensures safe PCB handling during operation.
To further streamline operations, Estovir Technologies offers a complete range of manual and automatic preforming machines to handle different requirements:
- PCB lead Cutting –PCB lead cutting machine with blades (Tungsten Carbide cutting blade)

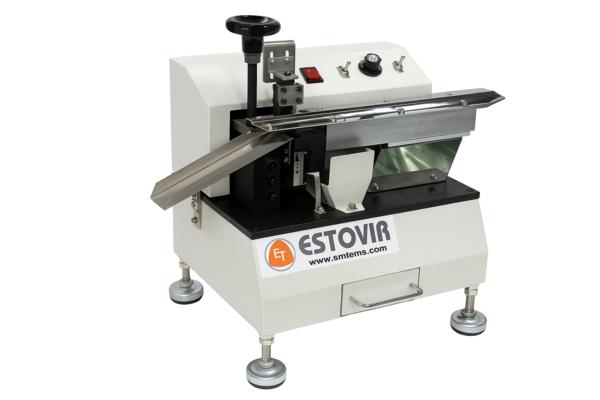

- Manual: Manual Feed PCB Lead Cutting Machine – LC M66
- Automatic: Automatic PCB Lead Cutting Machine – LC A66
- Blades: Tungsten Carbide Cutting Blade – LC TC250
- Sharpening Machines– Blade sharpening machine for Tungsten Carbide cutting blades
- Automatic: Cutting Blade Sharpening Machine – LC G250
- Blades: Tungsten Carbide Cutting Blade – LC TC250
- PCB Cutting Machines – PCB Separator machine for cutting PCB’s with 2 or 6 blades
- Automatic: PCB Separator Machine – V cut 6 blade
- Automatic: PCB Separator Machine – V cut 2 blade
Each of these machines is engineered for high performance and supported by Estovir’s reliable service and fast delivery
