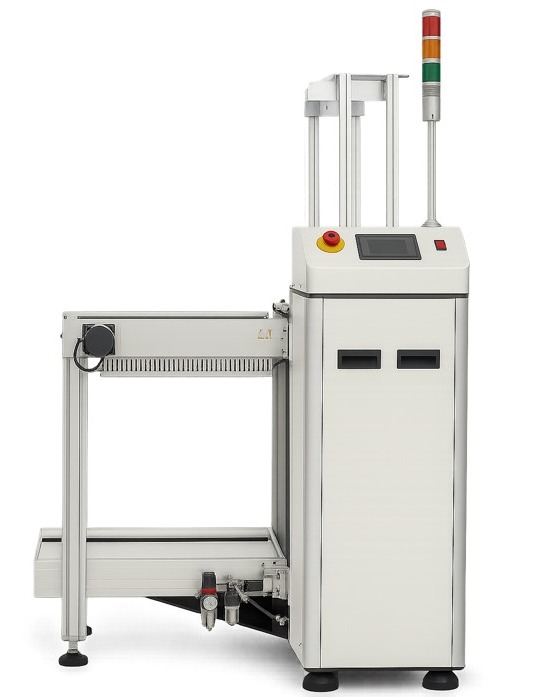

Automatic SMT PCB Magazine Loader – ML 1180
The Automatic SMT PCB Magazine Loader is a high-efficiency board-loading machine designed to automate the initial stage of the SMT (Surface Mount Technology) production line. It is used to load PCBs into the production line directly from ESD-safe magazine racks. By automating this process, it minimizes manual handling, improves production efficiency, and ensures consistent throughput for modern SMT assembly lines.
Specifications:
- Model: ML 1180
- PCB Size: 50 × 50 mm to 330 × 250 mm
- Shelf Size: 355 × 320 × 560 mm (L×W×H)
- Air Supply Requirement: 4–6 kg/cm² (0.4–0.6 MPa), dry and clean air (if pusher uses pneumatic)
- Cycle Time: ≤ 6 seconds per PCB
- Magazine Compatibility: Standard 355 × 320 mm ESD Magazine Rack
- Communication Interface: SMEMA
- Magazine Rack Capacity: 1 magazine (top), 1 loading, 1 standby position
- Control System: PLC or Microcomputer controlled
- Power Supply: Typically AC 220V, 50/60Hz
- Machine Dimensions: 1180 × 800 × 1200 mm (L×W×H)
- Weight: 140 Kg
Features:
- Microcomputer-controlled system ensures stable and reliable PCB loading.
- Built-in push plate mechanism eliminates the need for separate pusher equipment.
- Touchscreen interface enables easy operation and real-time monitoring.
- Compatible with standard ESD PCB magazine racks for flexible use.
- Automatic height adjustment based on PCB thickness for efficient handling.
