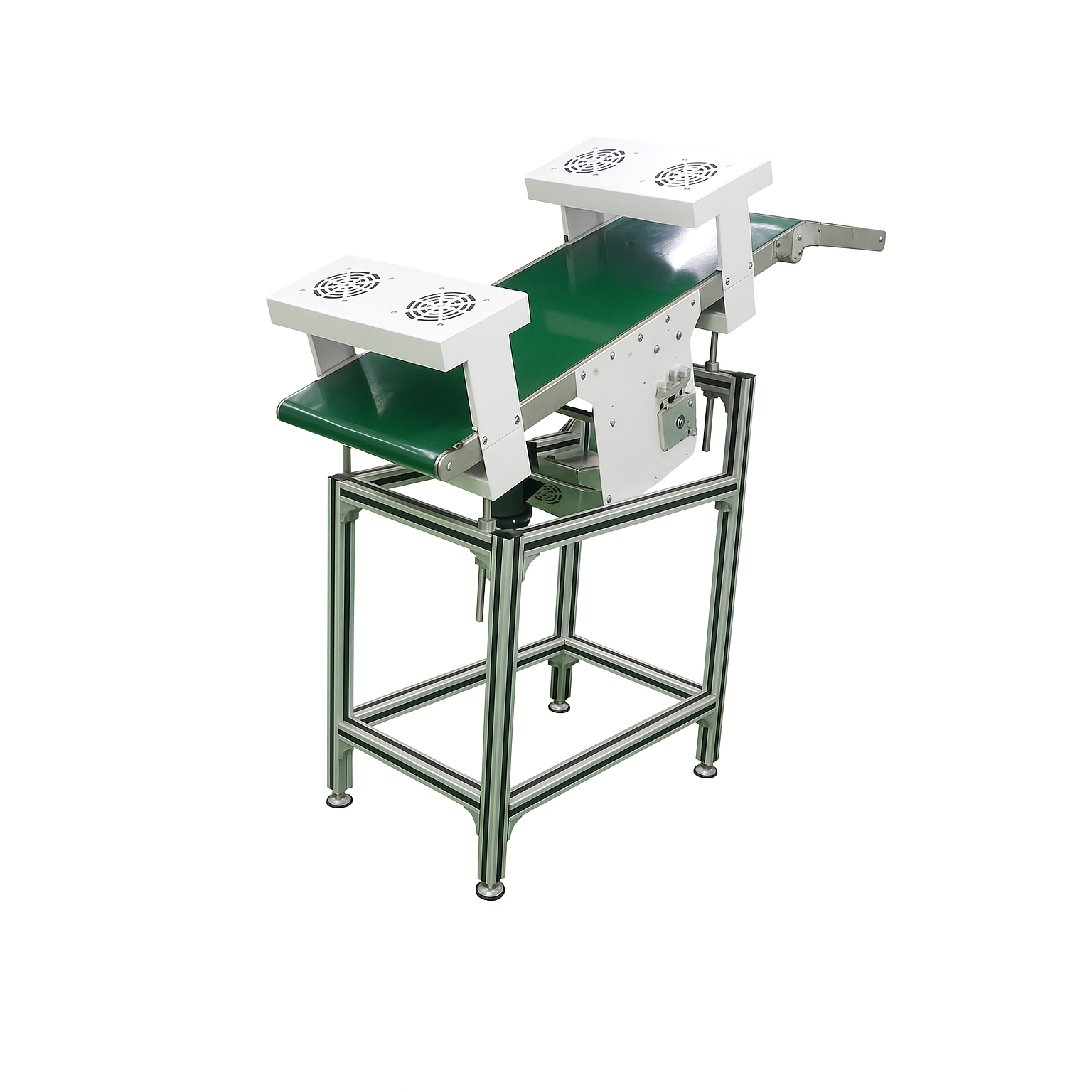

Cooling Conevyor
Cooling Conveyor is a specialized unit designed to be placed after the Soldering Machine in a PCB assembly line. Its primary function is to cooling down freshly soldered PCB boards before they move on to touch-up, inspection, or testing processes.
- Post-Soldering Cooling: 4 high-efficiency fans (2 optional) rapidly cool PCBs post-wave soldering, preventing thermal damage.
- Adjustable Ergonomics: Height-adjustable ends (900–1400 mm) and 250 mm tillable section for compatibility with diverse setups.
- Precision Speed Control: VFD-controlled belt speed ensures optimal PCB flow for testing/touch-up operations.
- Compact & Lightweight: 1350 mm length, 40 kg weight fits seamlessly into production lines without occupying excess space.
- Wave Soldering Lines: Transfers and cools PCBs immediately after soldering, minimizing thermal stress on components.
- Testing & QA Zones: Ensures PCBs reach testing equipment at safe temperatures, avoiding false failures.
- High-Volume PCB Assembly: a Integrates with automated lines for continuous cooling in automotive, consumer electronics, or industrial PCB manufacturing.
Specification:
Model ET 1350 CC
Belt Width 400 mm
Total Length 1350 mm (250 mm tiltable + 1000 mm conveyor)
Height (Receiving End) Adjustable from 1200 to 1400 mm
Height (Delivery End) Adjustable from 900 to 1100 mm
Cooling Fans 4 Nos. (2 Optional)
Motor 90W speed adjustable Gear Motor
Speed Control VFD (Variable Frequency Drive)
Application Cooling of PCBs post wave soldering
Dimensions 1350 X 430 X 1300
Weight 40 Kg
