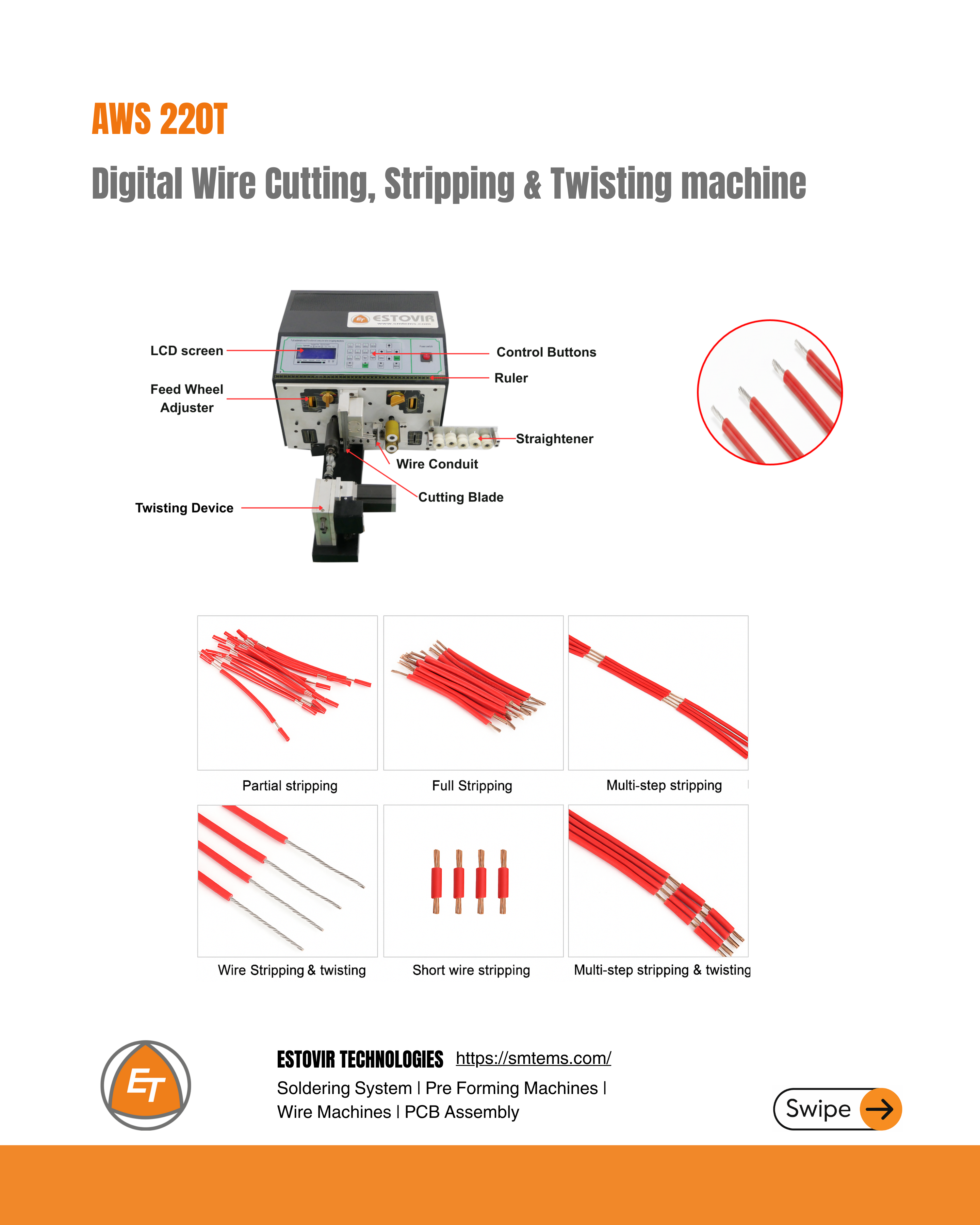

Digital Wire Cutting, Stripping & Twisting machine AWS 220T
Overview of Digital Wire Cutting, Stripping & Twisting machine AWS 220T
The Digital wire cutting, stripping & twisting machine AWS 220T by Estovir Technologies is a high-performance solution for modern wire processing. Engineered for precision, speed, and consistency, it integrates three key operations — cutting, stripping, and twisting — into one compact system.
With support for wire diameters AWG 16 to 32, the AWS 220T offers cutting lengths from 0.1 mm to 9999 mm, stripping lengths up to 99 mm, and twisting lengths up to 99 mm. Its dual-wire processing capability allows two wires to be handled simultaneously, significantly improving productivity without compromising accuracy. Built with a rugged industrial design and compact footprint (570 × 380 × 440 mm, 40 kg), the AWS 220T ensures reliable performance and easy integration into production lines.
Key Features of Digital wire cutting, stripping & twisting machine AWS 220T
- High-Speed Precision
- Flexible Cutting Range: Adjustable from 0.1 to 9999 mm for both short wires and long cable applications.
- Accurate Stripping: Stripping length adjustable from 0.1 to 99 mm, suitable for a variety of insulation types.
- Precise Twisting: Twisting length from 0.1 to 99 mm, ensuring consistent and uniform wire preparation.
- Dual-Wire Operation
- Simultaneous Processing: Cuts, strips, and twists two wires at the same time, doubling throughput.
- Uniform Results: Maintains consistent accuracy even at high processing speeds.
- Durability & Compact Design
- Industrial Build Quality: Equipped with robust components for continuous operation.
- Space-Saving Footprint: Compact structure (570 × 380 × 440 mm) allows easy installation in assembly lines.
- Energy-Efficient Performance
- Low Power Consumption: Operates on 220V AC, 50 Hz, 200W supply.
- Reduced Maintenance: Designed with durable materials to minimize downtime.
- User-Friendly Digital Controls
- Simple Configuration: Easy-to-use digital panel for setting cut, strip, and twist parameters.
- Operator Comfort: Automated process reduces manual effort and fatigue.
Technical Specification
Model AWS 220T
Cutting Length 0.1 – 9999 mm
Stripping Length 0.1 – 99 mm (as per wire material)
Twisting Length 0.1 – 99 mm (as per wire material)
Wire Diameter AWG 16 – 32
Drive Mode 4 Drives
Blade Material Hard tungsten steel
Conduit Diameter 6 mm
Appropriate Wire Types Electrical wires, PVC, Glass fibre cables
Operation Automatic cutting, stripping & twisting(dual-wire supported)
Power Supply 220V AC, 50 Hz, 200W
Dimensions 570 × 380 × 440 mm
Weight 40 kg
Productivity 100 mm wire – 8420 pcs/hr
500 mm wire – 5380 pcs/hr
1000 mm wire – 3720 pcs/hr
Applications of Digital wire cutting, stripping & twisting machine AWS 220T
The AWS 220T is suitable for a wide range of industries where multi-step wire processing is required. Its integrated design reduces handling and improves workflow efficiency, making it ideal for both small-batch and large-scale production.
- Electronics Assembly Lines: Delivers reliable preparation of wires for PCB connections and soldering.
- Cable Manufacturing & Harness Production: Automates multi-step wire processing for efficient harness assembly.
- Industrial Wire Processing: Handles PVC, Teflon, silica gel, and glass fibre insulated wires with accuracy.
- Automation & Precision Work: Ensures repeatable, precise processing in automated production environments.
- Mass Production Environments: Enhances throughput and consistency with dual-wire operation.
Why Choose Digital wire cutting, stripping & twisting machine AWS 220T?
Selecting the AWS 220T means investing in a complete wire processing solution that combines advanced features, energy efficiency, and durable design. It is built to deliver reliable performance for years of continuous operation.
- Proven Performance: High-speed, accurate results across diverse applications.
- Durability Assured: Industrial-grade build ensures long service life.
- Compact & Powerful: Offers cutting, stripping, and twisting in one compact machine.
- Advanced Features: Dual-wire capability and digital control interface for versatility.
- Comprehensive Support: Backed by Estovir Technologies’ technical expertise and after-sales service.
