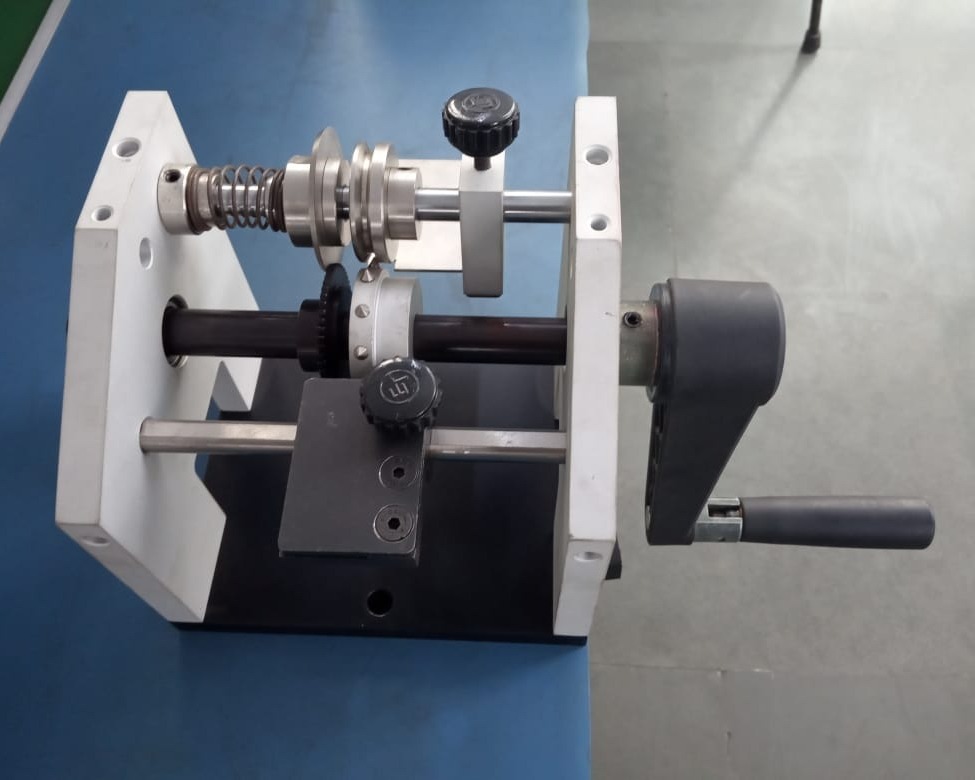

Manual De-Taping Machine for Taped Radials MAP 860 R
When speed, precision, and simplicity matter, Estovir Technologies delivers. Our Manual De-Taping Machine for Taped Radial components – MAP 860 R is expertly engineered to enhance your production line by cutting taped radial and axial components with maximum control and minimal effort.
Built for manufacturers, assemblers, and electronics workshops, this machine ensures high throughput without sacrificing accuracy. It handles delicate components with care and delivers 18,000 pcs/hr with manual precision. Whether you’re operating a small-scale workshop or a high-output production unit, this machine ensures a seamless, efficient de-taping process.
Manual doesn’t mean outdated—it means mastery and control. With MAP 860 R, you’re in charge, supported by precision engineering and Estovir’s trusted build quality.
Why Choose the Manual De-Taping Machine for Taped Radial Components
This machine is a practical solution for industries that demand precision without the cost and complexity of automation. It gives operators full control over lead handling, ensuring clean cuts without damaging delicate components.
Designed to cut radial leads securely taped in carrier reels, the machine is suited for soft wire components with diameters up to 0.8 mm. Its compact size makes it ideal for electronics production floors where space matter.
From training labs to high-volume factories, this machine is a valuable asset in any component preparation process.
Key Features:
- Designed for cutting taped radial components
- Compatible with soft wire lead diameters from Ø 0.4 mm to Ø 0.8 mm
- High-speed manual operation delivering up to 18,000 pcs/hr
- Compact build: 160 mm x 160 mm x 155 mm
- Lightweight and portable: just 3 kg
- Manual mode for full control over cutting operations
- White anodised finish for industrial-grade durability
- Ideal for PCB assembly lines, training centers, and component packaging units
Applications in Electronics Manufacturing
This machine is an ideal fit for the following applications:
- PCB assembly units handling taped radial components
- Electronics workshops with precision de-taping needs
- Aerospace and automotive electronics processing
- Medical device manufacturers
- Contract electronics manufacturing (ECM/EMS)
- Educational and R&D labs for hands-on component processing
Technical Specifications
The MAP 860 R is built to accommodate a variety of standard component sizes used in electronics assembly.
- Product Name: Manual De-Taping Machine for Taped Radials – MAP 860 R
- Output Capacity: 18,000 pcs/hr
- Machine Dimensions: 160 mm (L) x 160 mm (W) x 155 mm (H)
- Machine Weight: 3 kg
- Box Dimensions: Variable — depends on packing method at the time of dispatch.
- Shipping Weight: 4- 5 kg
Supported Component Dimensions (Refer to diagram above)
- A – Component Body Height: 12.7 mm to 15 mm
- The vertical height of the component body. Determines the clearance required during de-taping.
- L – Lead Length: 3 mm to 20 mm
- The length of the wire leads extending from the component body. Crucial for alignment and gripping.
- W – Lead Diameter: Ø 0.4 mm to Ø 0.8 mm
- The thickness of the leads. The machine securely accommodates this range without distortion or damage.
