Manual Forming for Taped Axials (Horizontal) – MAP 301 H by Estovir Technologies
Overview of Manual Forming for Taped Axials (Horizontal) – MAP 301 H

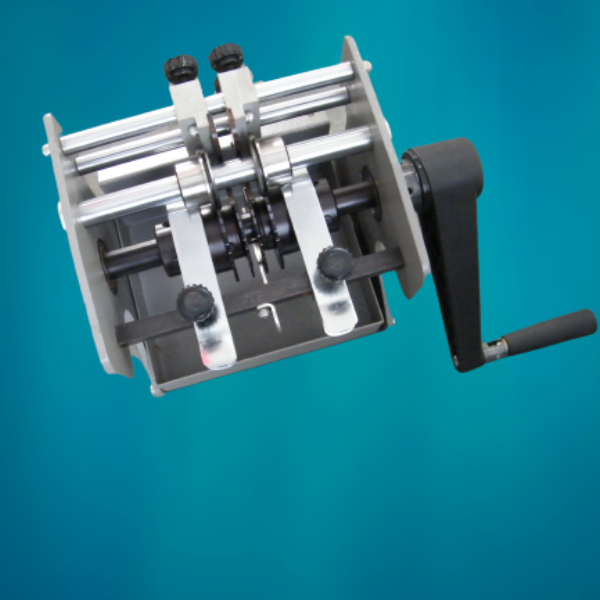

Estovir Technologies introduces the MAP 301 H—a compact, efficient machine designed for manual forming of taped axial components into a vertical U-shape. The unit is ideal for dense PCB assemblies where horizontal mounting is essential. It is manually operated through a crank, ensuring complete control and precise lead formation. The MAP 301 H is best suited for medium-volume production across electronics, automotive, and assembly industries.
Key Features of Manual Forming for Taped Axials (Horizontal) – MAP 301 H
- High-Speed Output
- Delivers an output capacity of up to 18,000 pieces per hour, enabling fast and efficient production.
- Precision H-Shape Lead Forming
- Forms components into a consistent vertical U-shape, ideal for densely populated circuit boards.
- Manual Crank Operation
- Manual operation via crank handle provides enhanced control and accuracy without relying on electricity.
- Supports Lead Diameters Up to 1.37mm
- Accommodates various component sizes, making it highly adaptable to different production requirements.
- Compact Machine Design
- Its compact footprint (250 X 250 X 200 mm) saves space on the production floor.
- Rugged Industrial Build
- Built with durable materials for vibration-free operation and long-term stability in industrial conditions.
- Quick Changeover Capability
- Allows fast pitch and leg length adjustments, significantly reducing downtime during component changeovers.
- Low Maintenance Requirement
- Designed with simplicity in mind, requiring minimal maintenance while maintaining high performance.
Why Choose Manual Forming for Taped Axials (Horizontal) – MAP 301 H?
The MAP 301 H offers the perfect balance of precision, control, and productivity. Its manual crank operation provides the operator with full control, allowing for fine-tuning and customization during forming. Built with a compact, heavy-duty frame, it supports small-to-mid-scale operations that demand consistency and reliability. Whether you’re handling dense PCBs or varied lead sizes, this machine is engineered to perform.
- Perfect for small spaces and mobile workstations
- Eliminates need for electrical setup
- Ideal for continuous use in industrial environments
- Easy to operate, adjust, and maintain
- Designed by Estovir Technologies for long-term value
Applications of Manual Forming for Taped Axials (Horizontal) – MAP 301 H
MAP 301 H is widely used in manufacturing environments that require Horizontal lead forming:
- Electronics and PCB manufacturing lines
- Automotive electronic assembly units
- Industrial component forming and processing setups
- Consumer electronics and LED-based systems
- Component packaging and reshaping facilities
Product Type Compatibility:
- Axial leaded components in taped form
