Manual Forming for Taped Axials (Horizontal)- MAP 301 H

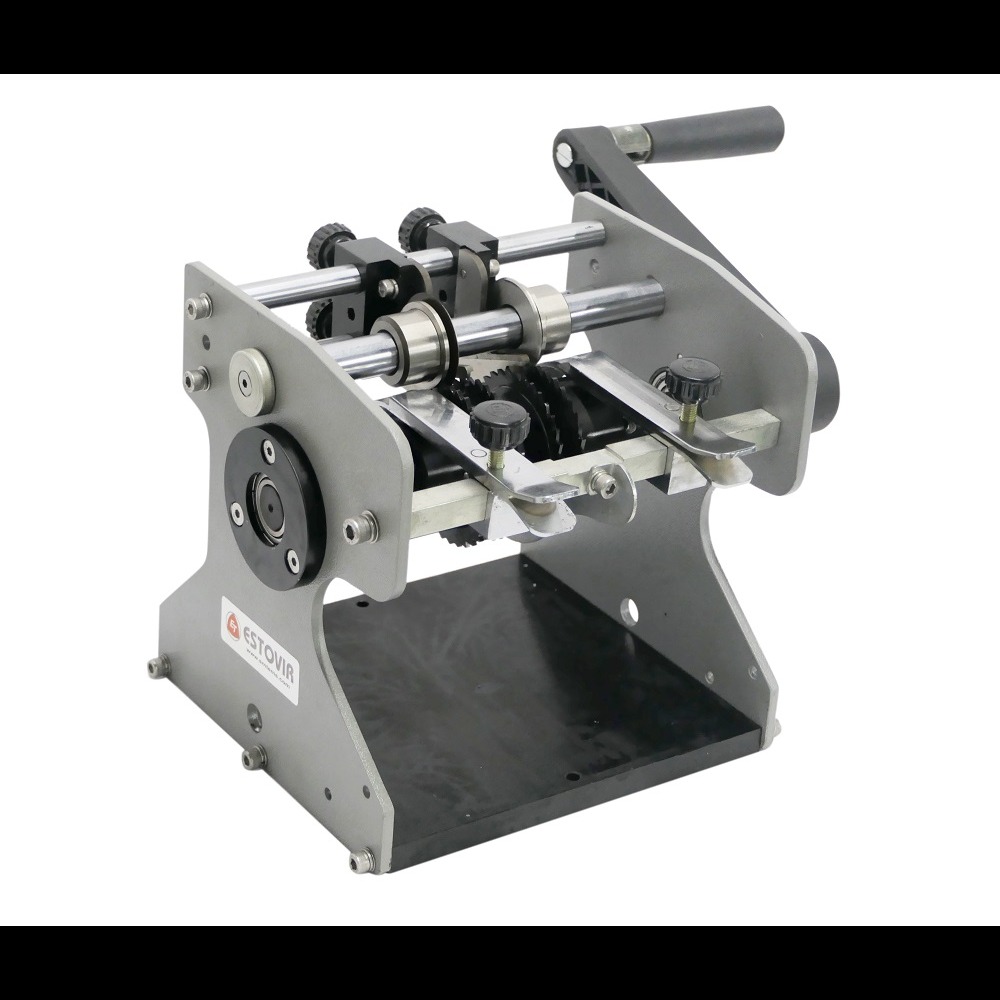

The MAP 301 H is a manually operated machine designed to cut and form taped axial components into U-shapes for horizontal mounting on PCBs. Engineered for speed, precision, and flexibility, it’s an ideal choice for production lines, R&D labs, and educational institutions where automation is not required but accuracy and output still matter.
Specification:
- Model: MAP 301 H
- Operation Type: Manual
- Forming Type: Horizontal U-Shape Bend
- Lead Diameter: Upto 1.37 mm
- Component Power: 3A & 5A Diode
- Output Capacity: 10,000 – 18,000 pcs/hr
- Dimensions: 250 X 250 X 200 mm
- Weight: 5 kg
Features:
- Manual U-Forming for Taped Axials – Cuts and bends components into precise horizontal U-shapes.
- High Throughput – Delivers up to 18,000 components per hour with skilled manual operation.
- Adjustable Bending Dimensions – Flexible forming parameters suit a wide variety of PCB layouts.
- Supports Ø 0.35 – 1 mm Leads – Ideal for a range of soft-wire axial components.
