MI Line Module – 2.4 Mtr | Advanced Industrial PCB Assembly Conveyor System by Estovir Technologies
Overview

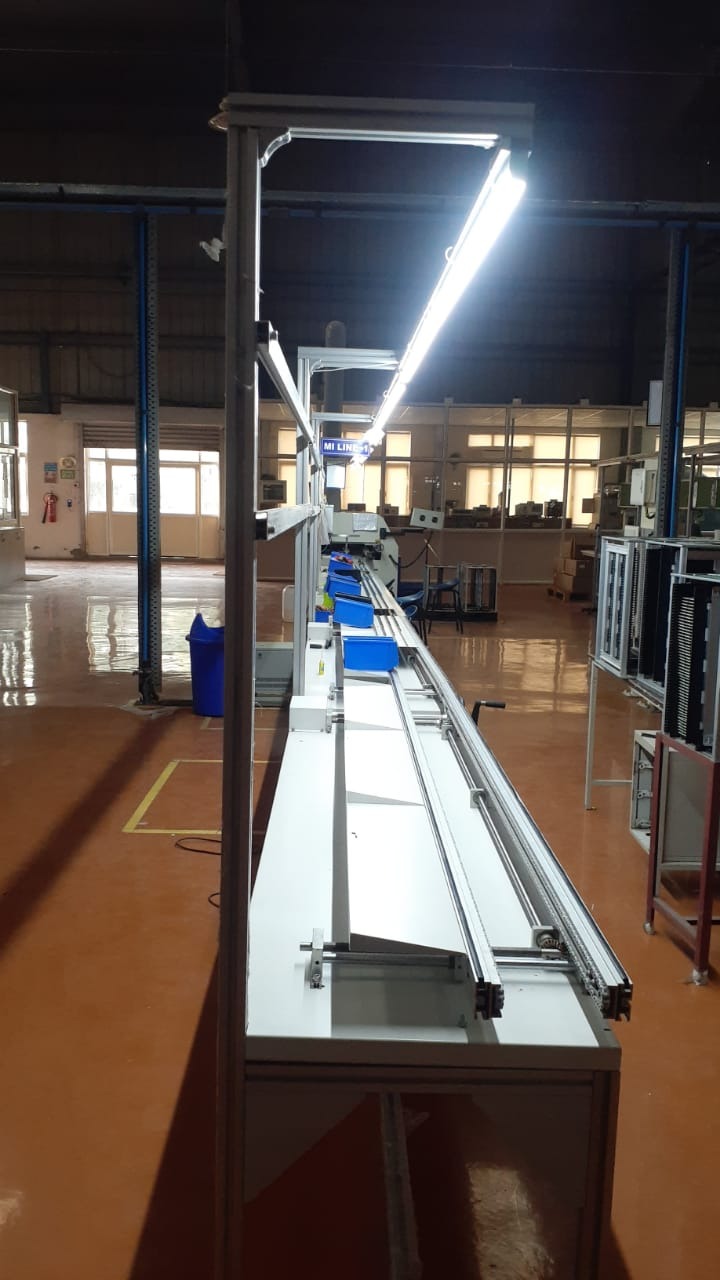

The MI Line Module – 2.4 Mtr is a high-precision single-sided chain conveyor system designed and manufactured by Estovir Technologies, a trusted leader in PCB assembly automation and electronics manufacturing equipment.
This industrial PCB conveyor enhances manual insertion (MI) lines, enabling operators to efficiently insert components into PCBs while maintaining smooth, ESD-safe, and vibration-free workflow during the entire assembly process.
Built with a Aluminium (40×40) or MS Powder-Coated Steel Pipe (40×40), the MI Line Module ensures long service life and corrosion resistance. Its adjustable PCB width (50 mm–350 mm) accommodates diverse production requirements, making it a top choice for automotive, telecom, consumer, and medical electronics manufacturers.
Key Features
- Single-Side Operation for Maximum Efficiency
- Enables smooth PCB handling and manual component insertion from one side.
- Provides optimal working height (840 mm) to minimize operator fatigue and enhance productivity.
- Ergonomic & Adjustable Component Trays
- Features height-adjustable trays for organized component storage.
- Trays accommodate multiple PCB sizes for flexible and efficient assembly.
- Precision Variable Speed Control
- Gear motor with integrated AC speed control for consistent motion.
- Adjustable up to 3 m/min to match insertion, inspection, and wave soldering line speeds.
- Integrated Safety & Electrical Protection
- Equipped with emergency stop switches and power-failure interlock.
- Includes MCB protection and LED lighting for safe, well-lit operation.
- ESD-Safe Construction for Sensitive Components
- Uses anti-static materials to eliminate electrostatic discharge risk.
- Ensures product safety and compliance with international ESD standards.
Applications
The MI Line Module supports multiple stages of PCB manufacturing, inspection, and handling, providing reliable performance in ESD-sensitive environments.
It ensures efficient material transfer between equipment, helping manufacturers maintain continuous production flow and high output quality.
- PCB Assembly & Manual Insertion – Streamlines through-hole component placement during manual operations.
- PCB Testing & Inspection Lines – Provides stable transfer during visual and electrical quality checks.
- Wave Soldering Preparation – Transports populated PCBs directly to soldering systems.
- Integration with SMT/Automation Lines – Works with pick-and-place machines, reflow ovens, and AOI equipment.
- High-Precision Manufacturing – Ideal for automotive, medical, telecom, and consumer electronic assemblies.
Why Choose the MI Line Module – 2.4 Mtr from Estovir Technologies
Estovir Technologies, with over 20+ years of expertise, delivers trusted PCB assembly and automation systems that meet modern manufacturing demands.
The MI Line Module is built for efficiency, scalability, and operator comfort, ensuring superior performance in every production setup.
- Proven Industry Experience – Established in 2005, Estovir is a pioneer in PCB assembly automation.
- Customizable & Scalable Design – Modular construction allows flexible line extensions (10 – 60 ft).
- High Productivity & Workflow Optimization – Boosts efficiency by 15 % with reduced manual handling.
- Cost-Efficient & Low Maintenance – Offers long service life with minimal downtime and energy use.
- Ergonomic & Safe Operation – Optimized working height and ESD protection create a comfortable, risk-free workspace.
Our Complete Conveyor Solutions
At Estovir Technologies, we provide a comprehensive range of conveyor systems tailored to meet diverse production and assembly needs. Each solution is designed to optimize workflow, increase efficiency, and enhance operator comfort while ensuring seamless integration into your existing setup.
- MI Line – Single Side: Compact single-sided conveyor for smooth and reliable PCB handling.
- MI Line – Double Side: Dual-sided configuration that maximizes throughput and saves production floor space.
- MI Line Module – 2.4 Mtr.: Modular conveyor unit for flexible and easily expandable line setups.
- Insertion Work Station with Manual Free Flow Conveyor – MPI 350: Ideal for manual insertion processes, ensuring effortless material flow.
- Work Table Conveyor: Ergonomic workstation conveyors with ESD-safe designs for operator safety and precision work.
- Cooling Conveyor: Specialized design for controlled cooling after soldering or reflow operations.
- SMD Line Conveyor – 1000 mm:Compact conveyor engineered specifically for smooth transfer in SMD assembly lines.
- Work Station Conveyor: Integrated assembly workstation with customizable and adjustable features.
- Inlet Conveyor: Reliable entry-point conveyor for feeding PCBs and components into the assembly line.
All our conveyor systems are built to standard configurations but can also be customized for specific requirements—delivering efficiency, durability, and superior production quality.
