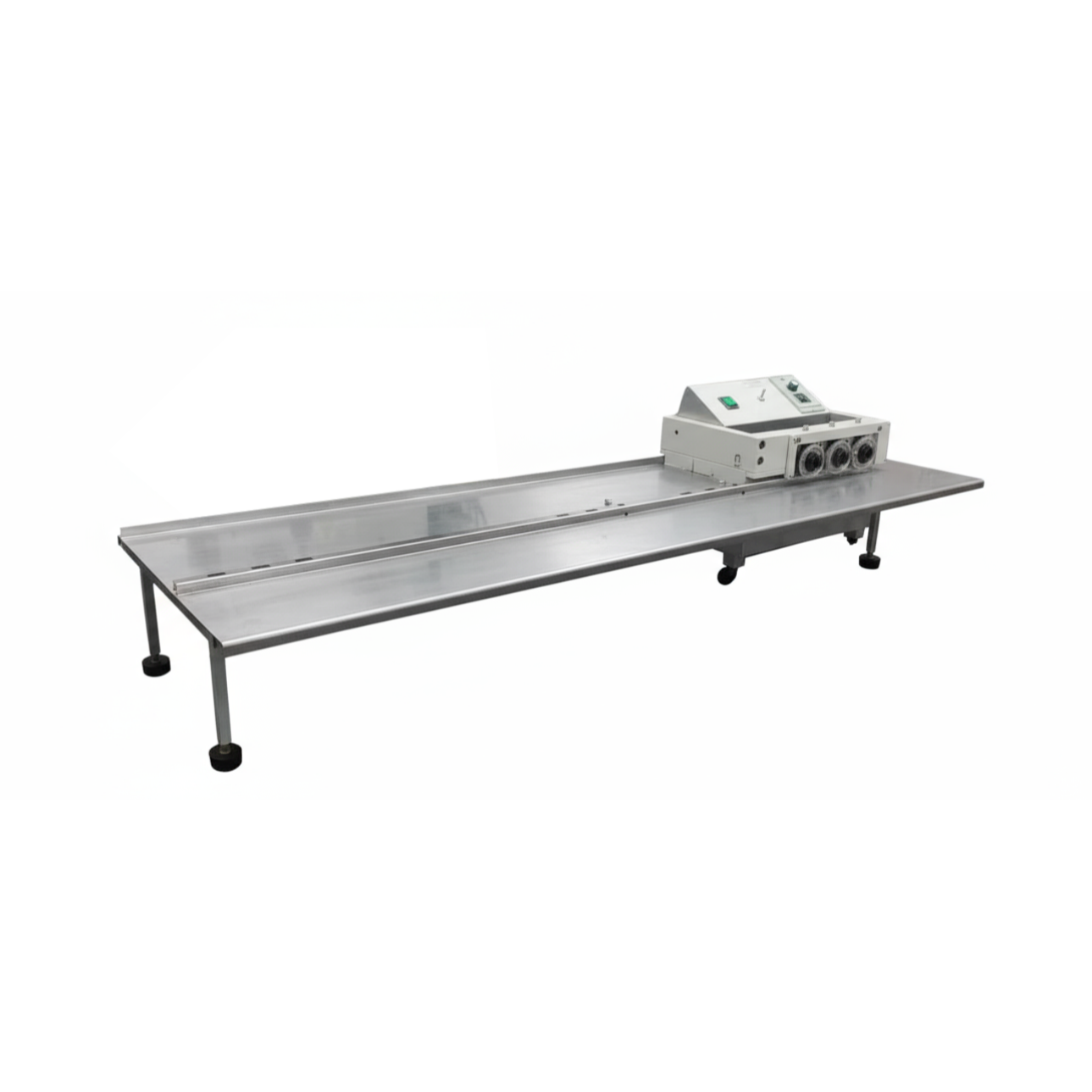

PCB Separator 6 Blade – EMS 1200 V Cut by Estovir Technologies
The EMS 1200 V Cut is an industrial-grade PCB depaneling machine equipped with a 6-blade precision cutting system. Unlike smaller dual-blade machines, the 6 Blade version is designed for high-volume, large-format PCB panels, making it perfect for electronics manufacturers who need speed, accuracy, and scalability. With a cutting speed of up to 20 meters per minute, it can handle even the most demanding production environments. Its straight-line cutting mechanism ensures clean and consistent results, while its adjustable blade speed allows customization based on PCB material and thickness (up to 3 mm). Compact yet powerful, the EMS 1200 V Cut provides stress-free separation, ensuring solder joints and delicate SMT components remain intact.
Key Features of EMS 1200 V Cut PCB Separator
Every feature of this machine has been engineered with electronics manufacturing challenges in mind.
- Six-Blade Precision Cutting
- Equipped with 6 high-quality blades for accurate separation
- Handles large PCB panels with fast cutting lines simultaneously
- Reduces cycle time and increases productivity
- Adjustable Cutting Speed
- Cutting speed up to 20 meters per minute
- Ensures flexibility for diverse manufacturing requirements
- Stress-Free PCB Handling
- Minimizes mechanical stress on PCBs
- Prevents micro-cracks in solder joints and tracks
- Protects sensitive SMT and through-hole components
- Straight-Line Cutting Accuracy
- Provides clean, uniform cuts along V-grooves
- Eliminates rough edges, burrs, or misaligned breaks
- Improves product quality and assembly reliability
- Compact & Durable Build
- Dimensions: 2430 × 375 × 280 mm
- Compact footprint despite handling large PCBs
- Built with industrial-grade materials for long-term durability
- Easy-to-Use Interface
- Simple, intuitive controls for operator-friendly use
- Requires minimal training, reducing skilled labor dependency
- Built-in safety features for secure operation
- Energy-Efficient Design
- Operates on 220V AC, 50 Hz standard power
- Low energy consumption compared to manual/semi-automatic methods
- Cost-effective with reduced operational expenses
Applications of PCB Separator 6 Blade – EMS 1200 V Cut
The EMS 1200 V Cut is versatile and designed for industries that demand bulk production of high-quality PCBs.
- Electronics Manufacturing – Smartphones, telecom equipment, consumer gadgets.
- LED Lighting Industry – Separation of long LED strips, panels, and aluminium PCBs.
- Automotive Electronics – Dashboards, infotainment systems, safety boards.
- Industrial Electronics – Control units, automation boards, industrial sensors.
- Appliances & Consumer Devices – TVs, washing machines, refrigerators, smart appliances.
- EMS & Contract Manufacturing Units – High-volume, multi-client PCB production.
Its six-blade system makes it especially useful for large PCB panels where multiple boards are separated in a single operation.
Why Choose the PCB Separator 6 Blade – EMS 1200 V Cut?
When compared to manual depaneling or smaller machines, the EMS 1200 V Cut offers clear advantages:
- High Productivity
- Six blades enable fast cuts in a single pass
- Handles large PCB panels quickly and efficiently
- Protects Your Investment
- Prevents PCB damage, reducing scrap rates
- Saves money on rework and defective boards
- Flexible & Scalable
- Adjustable speed accommodates different PCB types
- Suitable for both small and high-volume batches
- User-Friendly & Safe
- Easy to operate, reducing training time
- Safety features protect operators in high-speed environments
- Compact Yet Industrial-Grade
- Small footprint with heavy-duty, continuous-use capability
- Ensures consistent performance in demanding production setups
