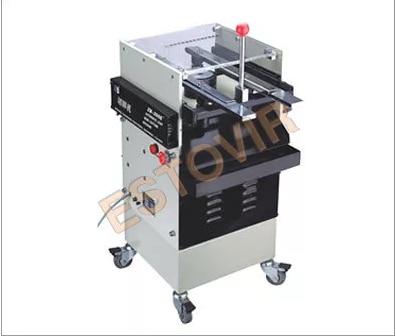

Automatic PCB Lead Cutting Machine

With the assistance of cutting edge technologies, we are able to manufacture and export a wide variety of PCB Leading Cutting MC. Our professionals precisely engineer these machines by utilizing the best quality materials and components. High in performance and durability, these machines are especially incorporated to trim the extra lead in PCBA post soldering activities. To maintain the quality standards, we test the PCB Leading Cutting MC on longevity parameters.

Features:

Smooth operations

Rugged design

Easy to operate

Features & Specifications

The machine is designed to trim the extra leads of PCBA after the soldering process.

The fast turning tungsten caribide blade cuts the wire leads while the PCB are fed on the machine track manually.

For safety, it is absolutely required to push the PCBA by handle.

Tungsten Caribide Blade

ID - 70 mm, OD - 200 mm & 250 mm both size

Thickness of PCB

0.8 mm to 2.5 mm

Max. PCB Size

500 mm (L) x 300 mm (W)

Power

220 V AC, 50 Hz

Main Spindle Speed

4500 RPM

Main Motor Power

1/2 HP

Cutting Height

0.6 mm Minimum

Weight

95 kg
