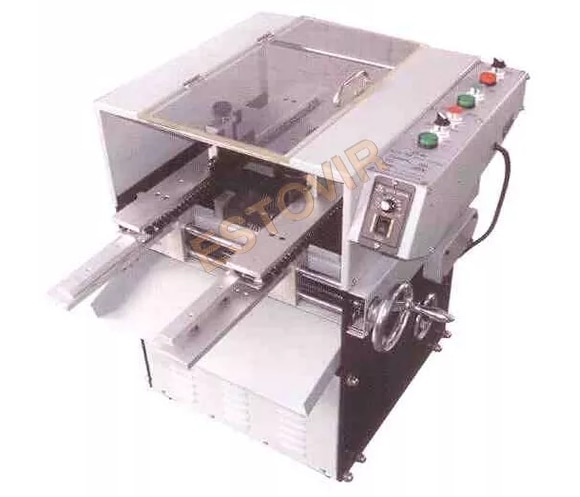

Automatic PCB Lead Cutting Machine
In stock • cod available
Description
Automatic PCB Lead Cutting Machine
Feature & Specifications
The machine is designed automatically to transport the PCBA for trimming the extra leads.
A pair of conveyor chain clamps the PCBA for transporting in to the high speed turning blade.
Wrap prevention device in the equipments ensures no damage on the board
Tungsten Carbide Blade
ID -70 mm, OD - 200 mm & 250mm both size
Thickness of PCB
0.8 mm to 2.5mm
Max. PCB Size
500 mm(L) x 300 mm (W)
Power
220 V AC, 50 Hz
Main Spindle Speed
4500 RPM
Main Motor Power
¾ HP
Conveyor Speed
0-3 M/min adjustable
Cutting Height
0.6 mm Minimum
Weight
115 Kg
