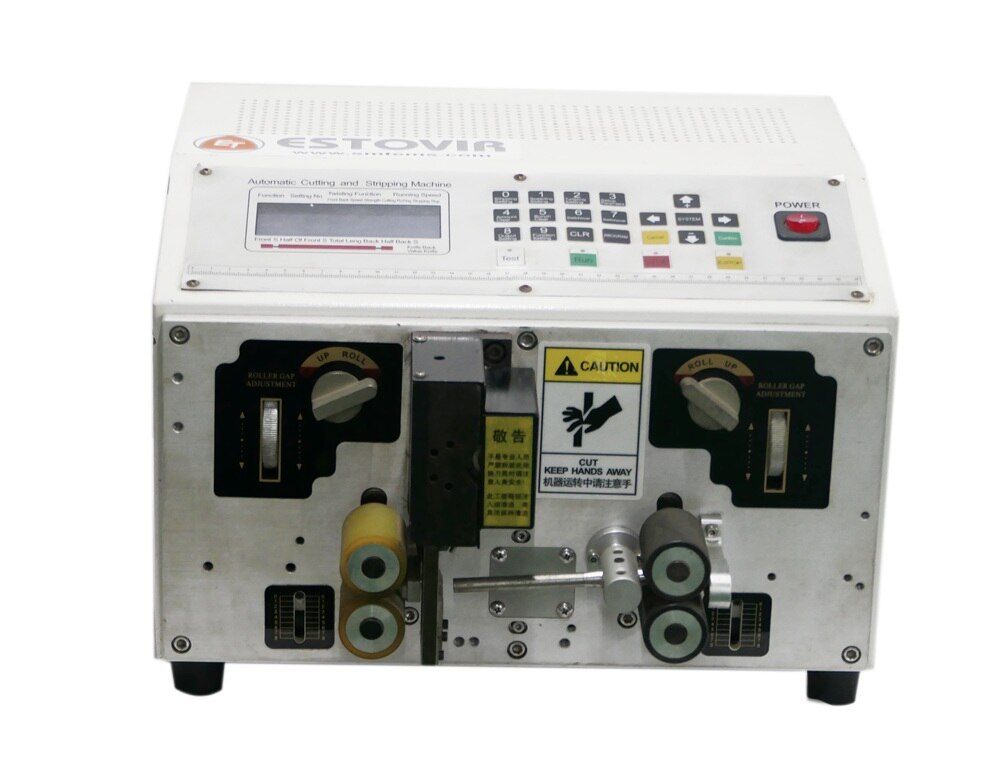

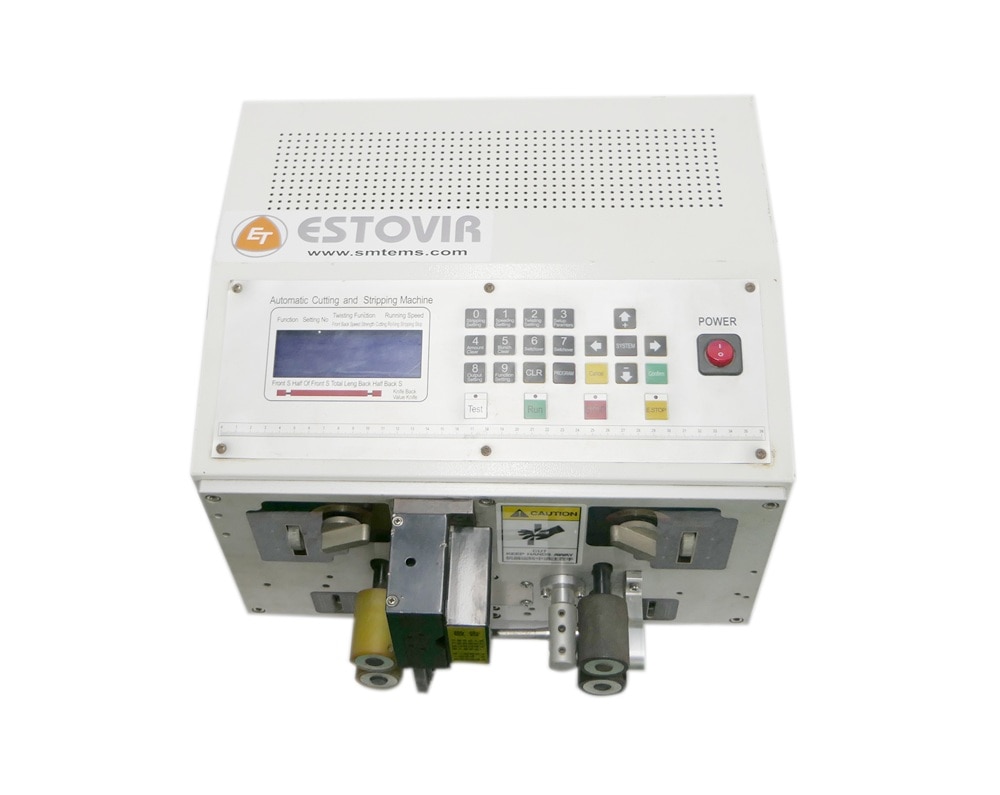

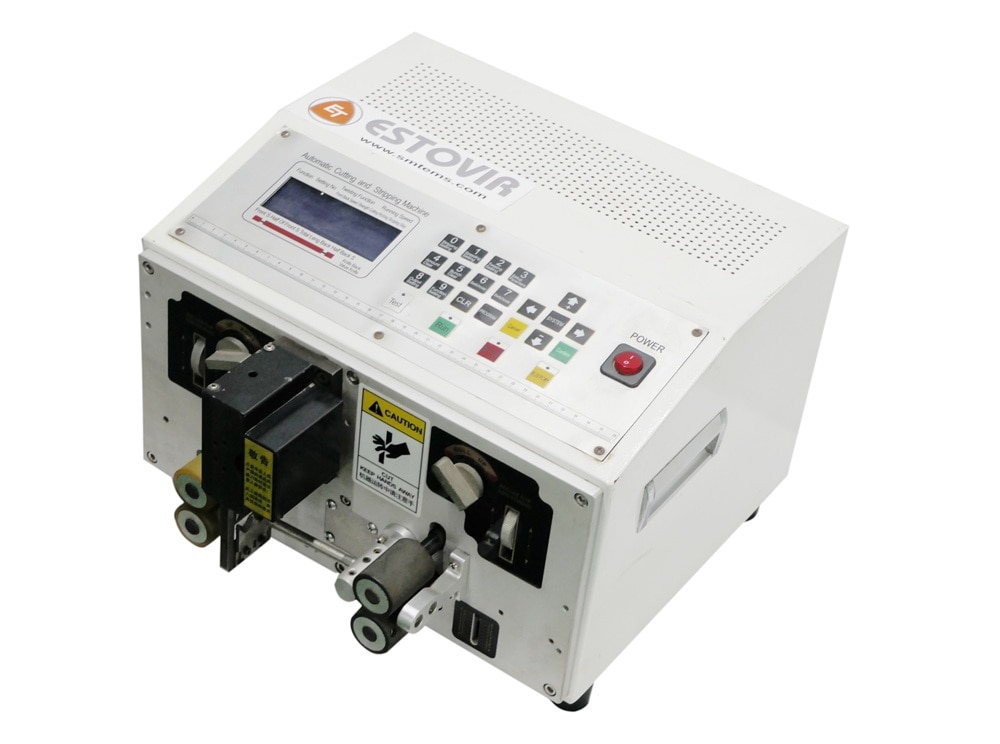

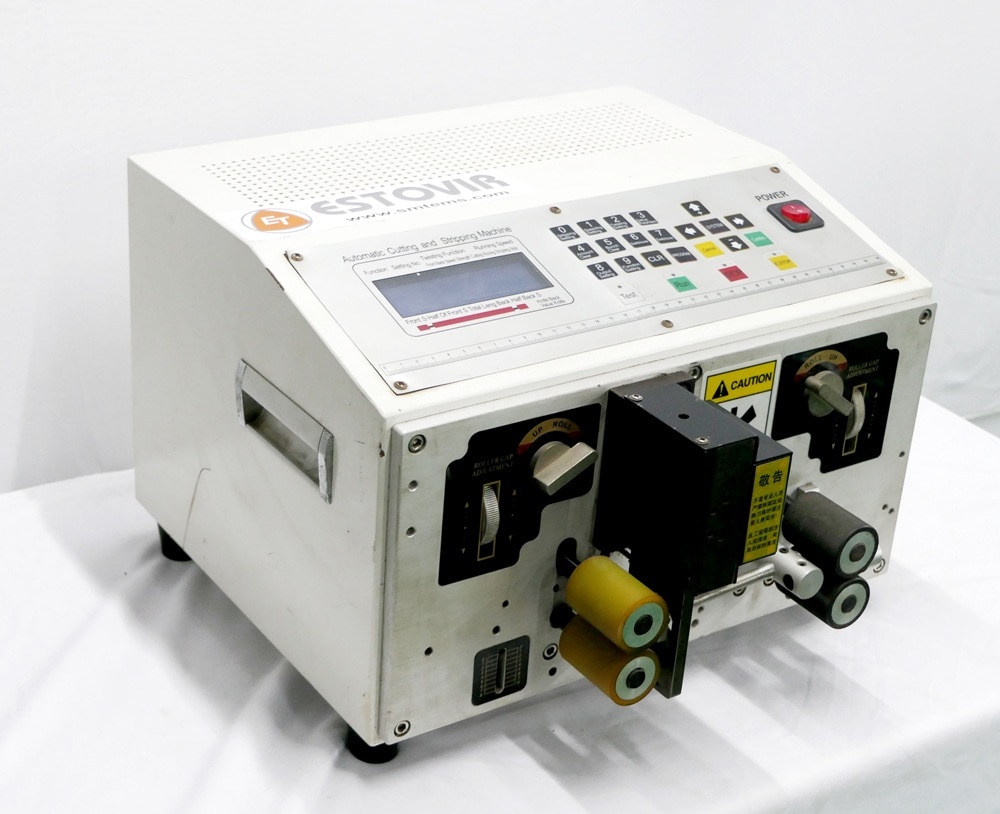

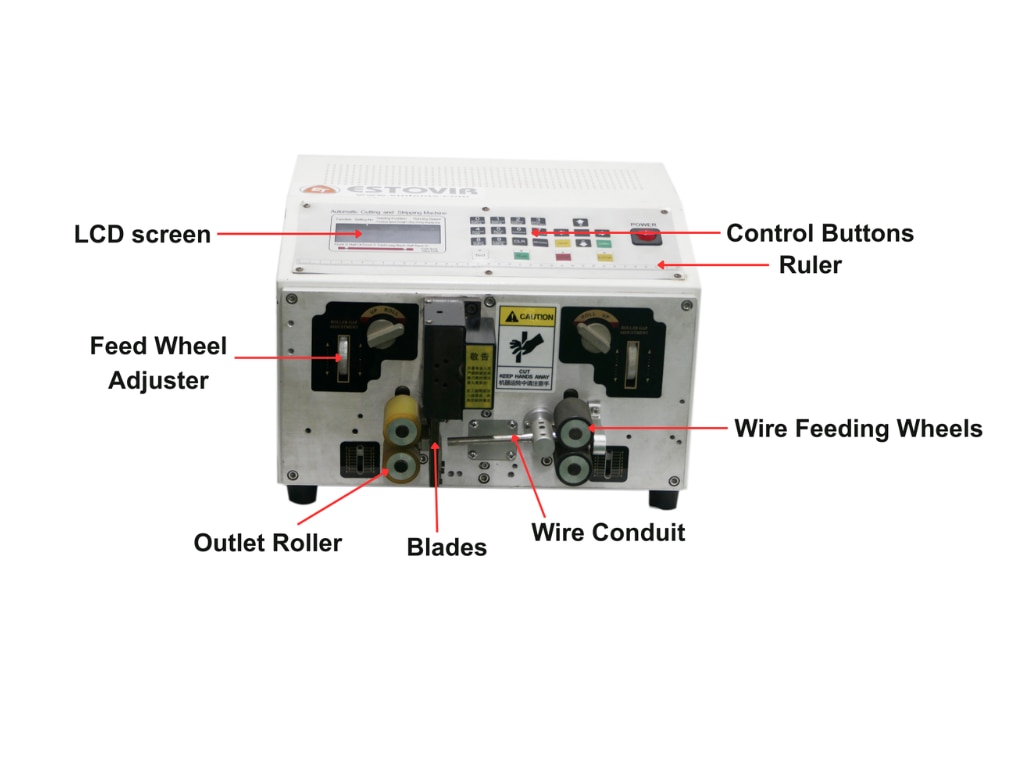

Digital Wire Cutting & Stripping Machine – AWS 220

MI Line Motorized Single-Side Working Conveyor – 7.3 Mtr (24’) Overview of MI Line Motorized Single-Side Conveyor – 7.3 Mtr (24’) The MI Line Motorized Single-Side Working Conveyor – 7.3 Mtr (24’) by Estovir Technologies is a high-performance chain-type conveyor engineered for manual insertion (MI) lines in PCB assembly and electronics manufacturing. Single-sided operation, with operators working on one side, makes it highly efficient for directly transferring PCBs to the Wave Soldering Machine (finger type). In this conveyor line, the PCB moves on a chain conveyor, guided at its edges. As the PCB progresses, operators sequentially insert designated components into their respective locations. By the end of the line, all components are inserted, and the board is ready for soldering. The PCB edges are securely guided, and the conveyor channels are adjustable to accommodate different PCB widths, ensuring smooth and precise handling. Built with a durable aluminium (40×40) or powder-coated steel frame, the MI Line offers an ergonomic working height (900 mm ±25 mm), adjustable bin trays, and variable-speed control (0.75–1.7 m/min) powered by a 3-phase induction motor. Its ESD-safe design, fire-hazard-free construction, and operator-friendly features make it ideal for high-volume production environments, including automotive, medical device, and consumer electronics industries. Key Features of MI Line Motorized Single-Side Working Conveyor – 7.3 Mtr (24’) Single-Side Operation Designed for efficient manual insertion lines where operators work from one side. Ideal for seamless integration with wave soldering machines. Chain Conveyor with Adjustable Channels Special aluminium extrusion channels with low-friction nylon-roller chain ensure smooth PCB transport. Adjustable PCB guide channels for handling PCBs of different sizes (50 mm – 350 mm). Ergonomic & Operator-Friendly Design Comfortable 900 mm ±25 mm working height reduces operator fatigue. Powder-coated steel work platform for durability and stable handling. Precision Speed Control Variable speed range 0.75 – 1.7 m/min for optimal synchronization with component insertion and wave-soldering lines. Integrated AC drive control panel for easy adjustment. Integrated Safety Features Equipped with emergency stop switches at both ends. Power-failure interlock and MCB electrical protection ensure safe operations. Optimized Workflow Accessories Adjustable bin trays for organized component handling. Integrated LED tube lighting (without wiring) for a well-lit working area. Steel display board for magnetic drawings for quick reference. Fire-Hazard-Free Build Made with non-flammable, wood-free materials to meet strict industrial safety standards. Customization Options Every production line is unique, and the MI Line Motorized Single-Side Working Conveyor – 7 Mtr (24’) is designed to adapt seamlessly to your specific needs. We provide extensive customization to ensure the conveyor integrates perfectly with your workflow, improves productivity, and maximizes operational efficiency. From adjusting dimensions to fine-tuning speed controls and adding operator-friendly features, the conveyor can be tailored for a wide range of industrial environments. Length & Height: Customizable conveyor length (standard 7 m / 24’) and adjustable height to fit your layout. PCB Width: Adjustable guide channels accommodate PCB sizes from 50 mm to 350 mm. Structure Material: Choice of aluminium (40×40) for lightweight durability or powder-coated steel for added strength and corrosion resistance. Speed Control: Fine-tuned speed adjustments to synchronize with different stages of assembly or soldering processes. Lighting & Electrical Setup: Optional integrated wiring for LED lighting, power sockets, and tool connections. Accessories: Add-ons like adjustable bin trays, tool sliders, magnetic display boards, and shelving to improve productivity and workflow organization. Applications of MI Line Motorized Single-Side Working Conveyor – 7 Mtr (24’) The MI Line Motorized Single-Side Conveyor is built to optimize efficiency in manual insertion and pre-soldering assembly lines. Its reliable chain conveyor, adjustable PCB channels, and ergonomic design ensure smooth and precise component handling, even in demanding manufacturing environments. From small-scale PCB assembly to high-volume industrial production, it provides dependable support across multiple industries. Manual Component Insertion: Efficiently supports resistors, capacitors, connectors, and other through-hole components. PCB Inspection & Testing: Offers stable and safe PCB transfer during critical quality control and inspection stages. Wave-Soldering Preparation: Moves fully populated PCBs seamlessly from the MI line to the wave-soldering machine. High-Precision Manufacturing: Suitable for automotive, consumer electronics, and medical device production where precision handling is essential. ESD-Sensitive Assembly Lines: Protects sensitive components from static discharge during transfer and assembly. Flexible Industrial Applications: Adapts to diverse workflows in electronics, aerospace, and other high-tech manufacturing sectors. Why Choose MI Line Motorized Single-Side Working Conveyor – 7 Mtr (24’) from Estovir Technologies Choosing the right conveyor system is crucial for maintaining productivity, reducing downtime, and ensuring long-term operational reliability. With Estovir Technologies, you gain a partner that delivers advanced engineering, robust quality, and excellent after-sales support tailored to your production needs. Our focus on operator comfort, product durability, and process efficiency makes the MI Line conveyor the preferred choice for leading manufacturers. Proven Expertise: Backed by decades of experience in PCB assembly line automation with successful installations across industries. Operator-Centric Design: Ergonomically designed with organized bins, adjustable trays, and easy-to-use controls for maximum productivity. Reliable & Durable Build: Manufactured using high-quality materials and components to ensure long-term, low-maintenance performance. ESD-Safe & Fire-Resistant: Safeguards sensitive electronic components and complies with global safety standards. Comprehensive Support: Full range of services, including installation, calibration, preventive maintenance, and quick spare-part availability. Custom-Fit Solutions: Flexible customization options to align perfectly with specific production line requirements.

Manual PCB Insertion Conveyor – MPI 350D (Double Side) Overview of Manual PCB Insertion Conveyor – MPI 350D (Double Side) – by Estovir Technologies The Manual PCB Insertion Conveyor – MPI 350D (Double Side) by Estovir Technologies is an advanced manual PCB assembly conveyor designed for efficient double-sided insertion, inspection, and testing of printed circuit boards in ESD-sensitive environments. Its central free-flow conveyor allows operators to work from both sides simultaneously, enabling faster throughput and optimized production workflow. Equipped with adjustable PCB width (50–350 mm), ESD-safe trays, and modular accessories, the MPI 350D is built to enhance productivity while maintaining safety and ergonomics. Key Features of Manual PCB Insertion Conveyor – MPI 350D (Double Side) Double-Side Workstation Central conveyor allows operators to work from both sides for higher productivity. Improves assembly line flow by reducing idle time and handling effort. Both-Side Bin Strip for Efficient Component Handling Equipped with bin strips on both sides of the conveyor, allowing organized storage and quick access to components. Each side supports 16 bins (total 32 bins capacity), and the conveyor is supplied with 16 standard bins for use. Adjustable PCB Width (50–350 mm) Quick manual adjustment supports various PCB sizes without complex tools. Ensures seamless changeovers for multi-product manufacturing lines. Enhanced ESD-Safe Design ESD mats and grounding points on both sides protect sensitive components. Minimizes static-related defects during assembly and testing. Optimized Material Handling Dual trays, bin strips, and shelves keep components organized and accessible. Reduces operator movement and speeds up component insertion. Ergonomic Operator-Friendly Layout Comfortable working height (850 mm) helps reduce operator fatigue. Wide access zones on both sides improve accuracy and ease of use. Durable & Reliable Structure Rugged aluminium (40×40) or powder-coated steel frame ensures long service life. Designed to withstand continuous industrial use with minimal maintenance. Integrated Productivity Accessories Display steel boards on both sides allow easy placement of drawings and instructions. Optional add-ons like task lighting, cooling fans, and power sockets enhance usability. Applications of Manual PCB Insertion Conveyor – MPI 350D (Double Side) The MPI 350D is engineered to streamline manual through-hole assembly and inspection workflows in modern electronics manufacturing. Its central conveyor design allows operators to work efficiently from both sides, boosting productivity and reducing handling time. The ergonomic layout and ESD-safe construction make it ideal for high-precision environments such as automotive, aerospace, and consumer electronics. Double-Side Through-Hole PCB Assembly Manual Component Insertion (resistors, capacitors, connectors) Inspection & Quality Control Stations Testing and Verification Lines Automotive & Aerospace PCB Assembly Consumer Electronics Manufacturing Industrial PCB Assembly Workflows Why Choose the Manual PCB Insertion Conveyor – MPI 350D (Double Side) from Estovir Technologies? Selecting the right conveyor system is crucial for ensuring efficiency, operator comfort, and component protection. Estovir Technologies combines ergonomic engineering, durable construction, and ESD protection to deliver conveyors that boost productivity. The MPI 350D is designed for high-demand assembly lines requiring double-sided operations and provides unmatched customization and after-sales support. Specialized for Double-Side Manual PCB Insertion & Assembly ESD-Safe Construction for Sensitive Electronics Strong Aluminium/Steel Build for Long-Term Durability Optimized Workflow for Faster Production Output Ergonomic Design for Operator Comfort and Efficiency Fully Customizable Dimensions & Accessories Reliable Support from Estovir Technologies’ Expertise

Manual PCB Insertion Conveyor (MPI 350) Overview of Manual PCB Insertion Conveyor (MPI 350) – by Estovir Technologies Manual PCB Insertion Conveyor (MPI 350 from Estovir Technologies is a manual PCB assembly conveyor specifically engineered for the insertion, inspection, and testing of printed circuit boards in ESD-sensitive environments. It features an adjustable PCB width range of 50 to 350 mm, ESD-protected trays, and modular accessories to ensure efficient operator workflow, safe handling of electronic components, and a well-organized assembly process. Its robust aluminium/steel structure, ergonomic working height, and customizable features make it a reliable solution for automotive, consumer electronics, and industrial PCB manufacturing. Key Features of Manual PCB Insertion Conveyor (MPI 350) 1. Adjustable PCB Width (50–350 mm) o Supports a wide range of PCB formats for flexible operations. o Enables quick setup changeover for varied production requirements. 2. ESD-Safe Design o Integrated antistatic mats and grounding protect sensitive circuits. o Prevents component failure caused by static discharge. 3. Optimized Material Handling o Fixed trays, movable bins, and hanging strips for organized storage. o Reduces handling time and boosts assembly line efficiency. 4. Ergonomic Operator-Friendly Design o Comfortable working height (850 mm) minimizes fatigue during long shifts. o Easy access to components and PCBs ensures higher accuracy. 5. Durable & Reliable Structure o Aluminium (40×40) or powder-coated steel frame ensures long life. o Withstands industrial wear and heavy-duty usage. 6. Integrated Accessories for Productivity o Includes display steel board for magnetic drawings and instructions. o Optional add-ons like lighting, sockets, and cooling fans enhance usability. ________________________________________   Applications of Manual PCB Insertion Conveyor (MPI 350) The Insertion Conveyor is engineered to serve through-hole assembly, manual insertion, and testing lines where reliability and static protection are critical. Its ergonomic design and flexible structure make it suitable for a wide variety of electronics manufacturing environments. Whether used for inspection, component handling, or integration with other conveyors, it streamlines operations and ensures consistent results. • Through-Hole PCB Assembly • Manual Component Insertion (resistors, capacitors, connectors) • Inspection & Quality Control Stations • Testing and Verification Lines • Automotive & Aerospace PCB Assembly • Consumer Electronics Manufacturing • Industrial PCB Assembly Workflows ________________________________________ Why Choose of Manual PCB Insertion Conveyor (MPI 350) from Estovir Technologies? Selecting the right conveyor is essential for ensuring long-term performance, operator comfort, and component safety. At Estovir Technologies, we combine durability, ergonomic engineering, and ESD protection to deliver conveyors that truly add value to your assembly lines. With full customization options and strong after-sales support, our Insertion Conveyor is a proven solution for demanding production environments. • Specialized for Manual PCB Insertion & Assembly • ESD-Safe Construction for Sensitive Electronics • Strong Aluminium/Steel Build for Long Life • Ergonomic Operator Design to Reduce Fatigue • Fully Customizable Dimensions & Accessories • Backed by Estovir Technologies’ Expertise & Support
