Description

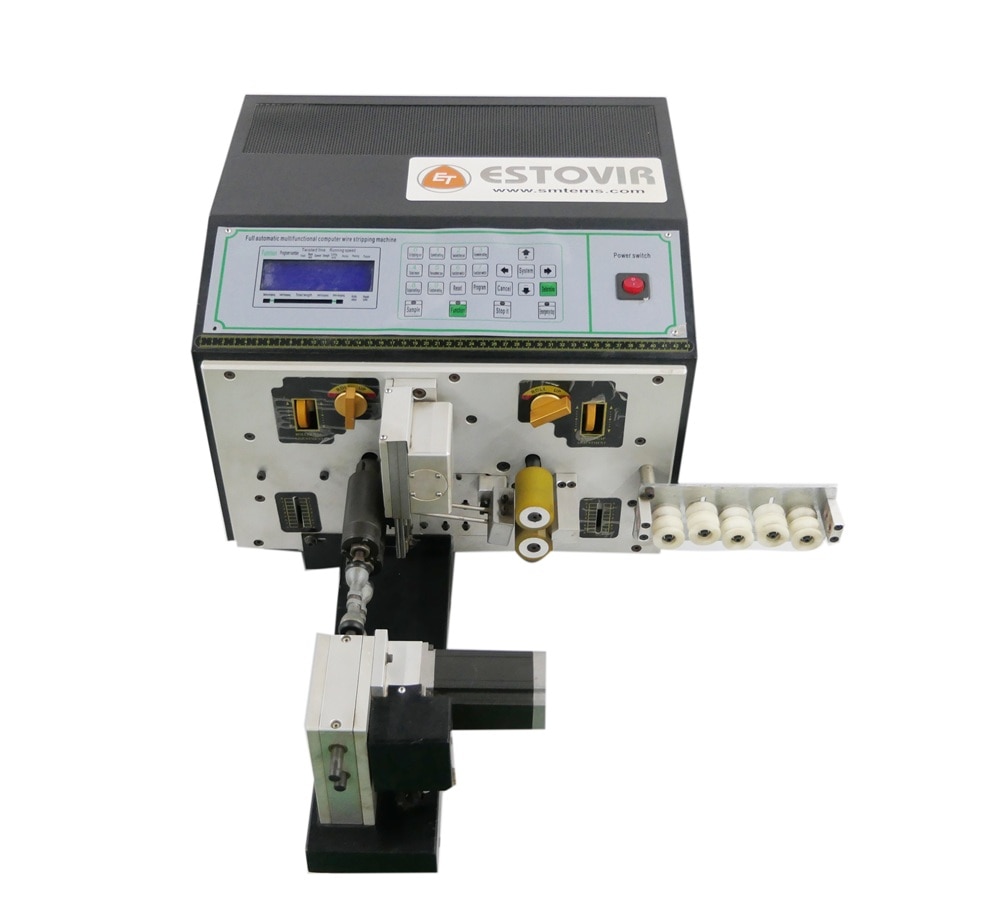

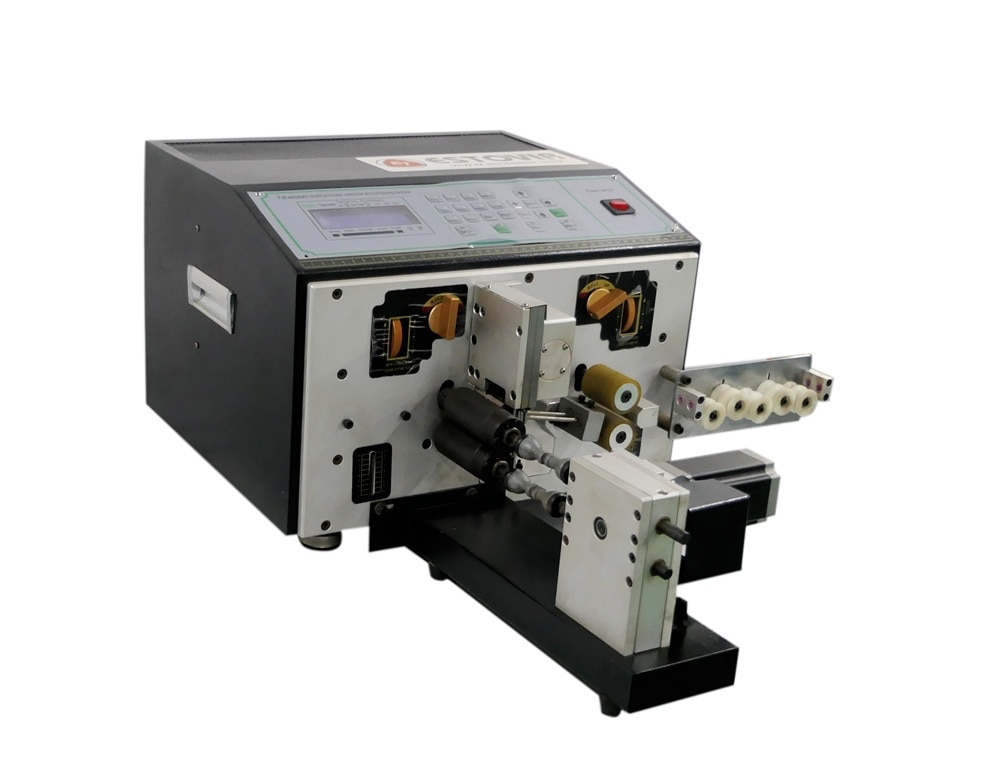

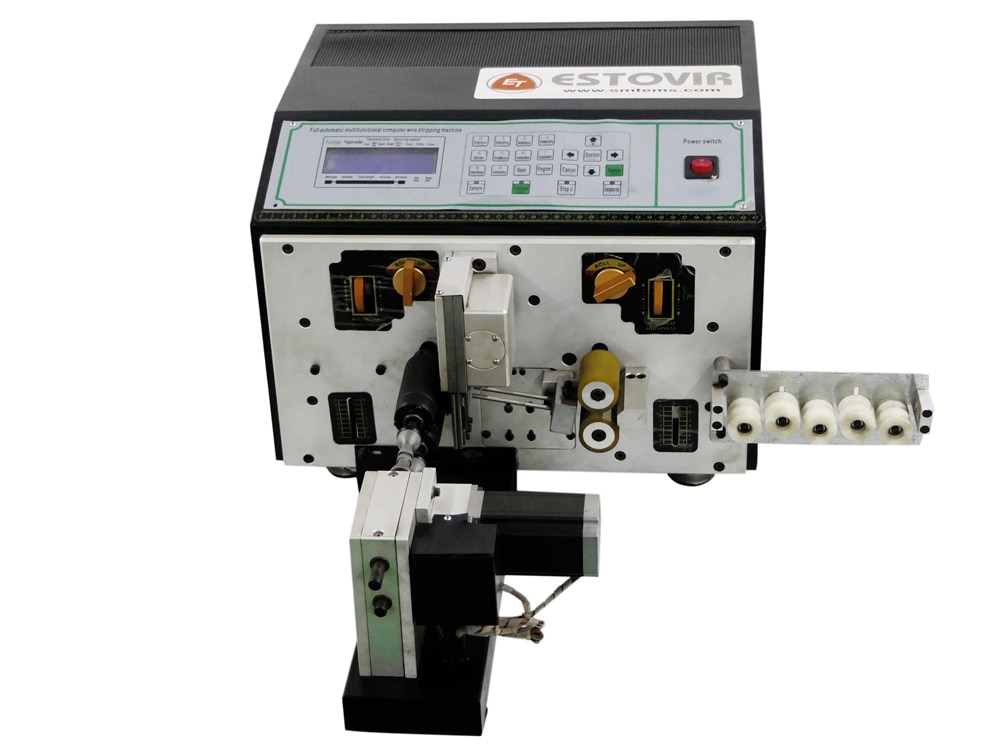

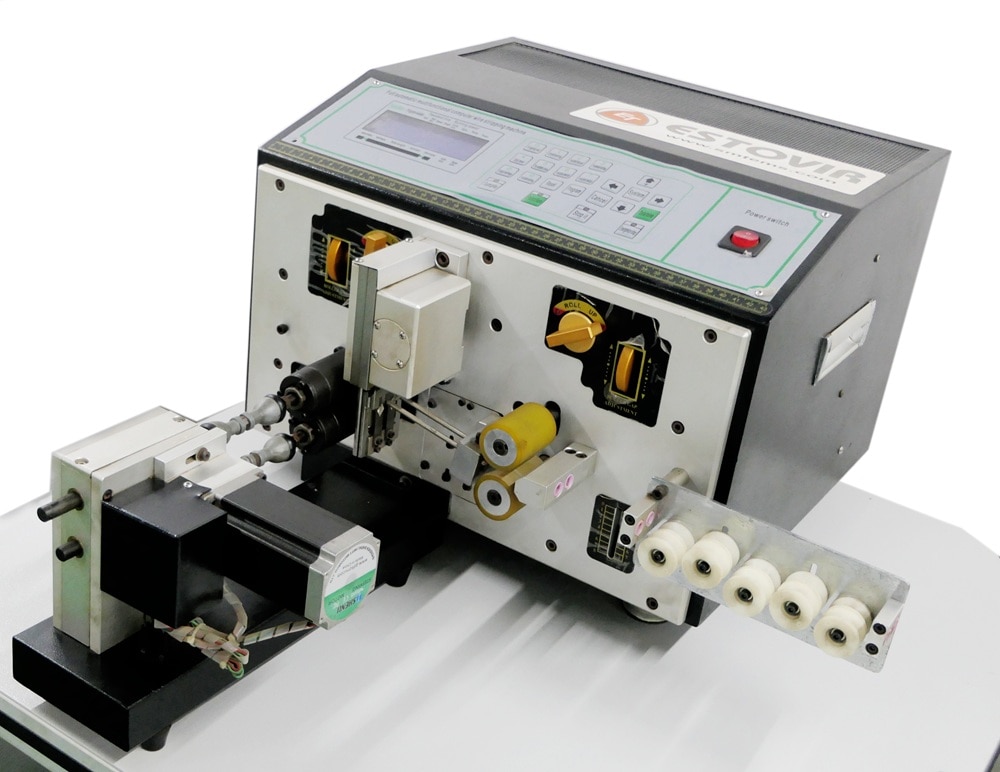

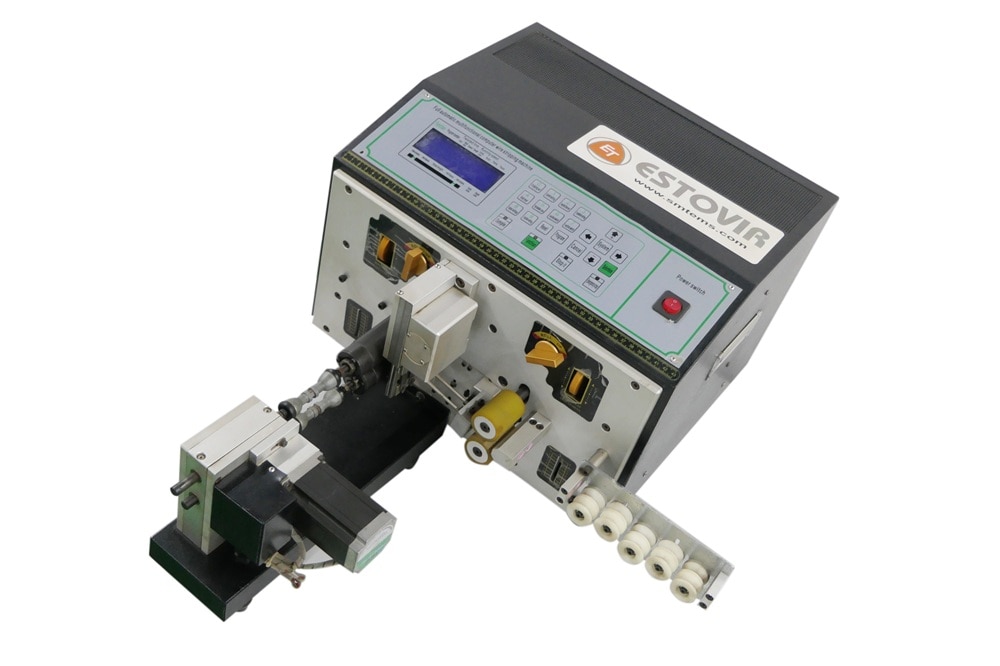

Key Features of Digital wire cutting, stripping & twisting machine AWS 220T
High-Speed Precision
Flexible Cutting Range: Adjustable from 0.1 to 9999 mm for both short wires and long cable applications.

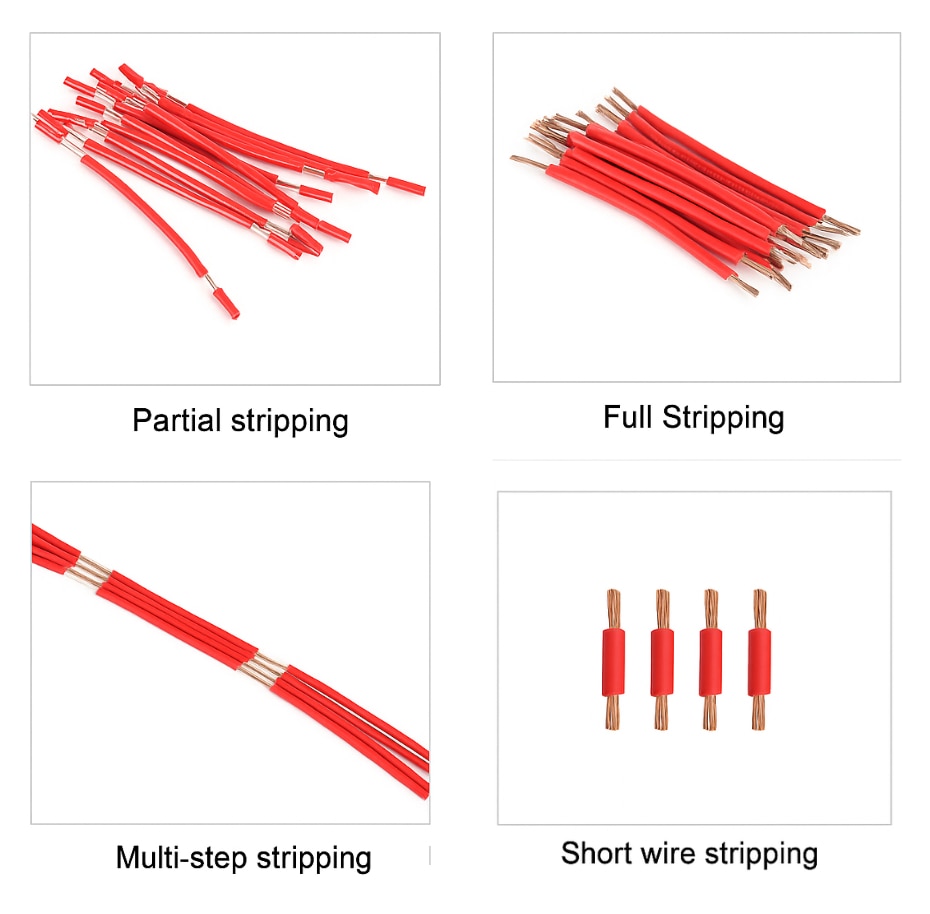

Accurate Stripping: Stripping length adjustable from 0.1 to 99 mm, suitable for a variety of insulation types.
Precise Twisting: Twisting length from 0.1 to 99 mm, ensuring consistent and uniform wire preparation.
Dual-Wire Operation
Simultaneous Processing: Cuts, strips, and twists two wires at the same time, doubling throughput.
Uniform Results: Maintains consistent accuracy even at high processing speeds.
Durability & Compact Design
Industrial Build Quality: Equipped with robust components for continuous operation.
Space-Saving Footprint: Compact structure (570 × 380 × 440 mm) allows easy installation in assembly lines.
Energy-Efficient Performance
Low Power Consumption: Operates on 220V AC, 50 Hz, 200W supply.
Reduced Maintenance: Designed with durable materials to minimize downtime.
User-Friendly Digital Controls

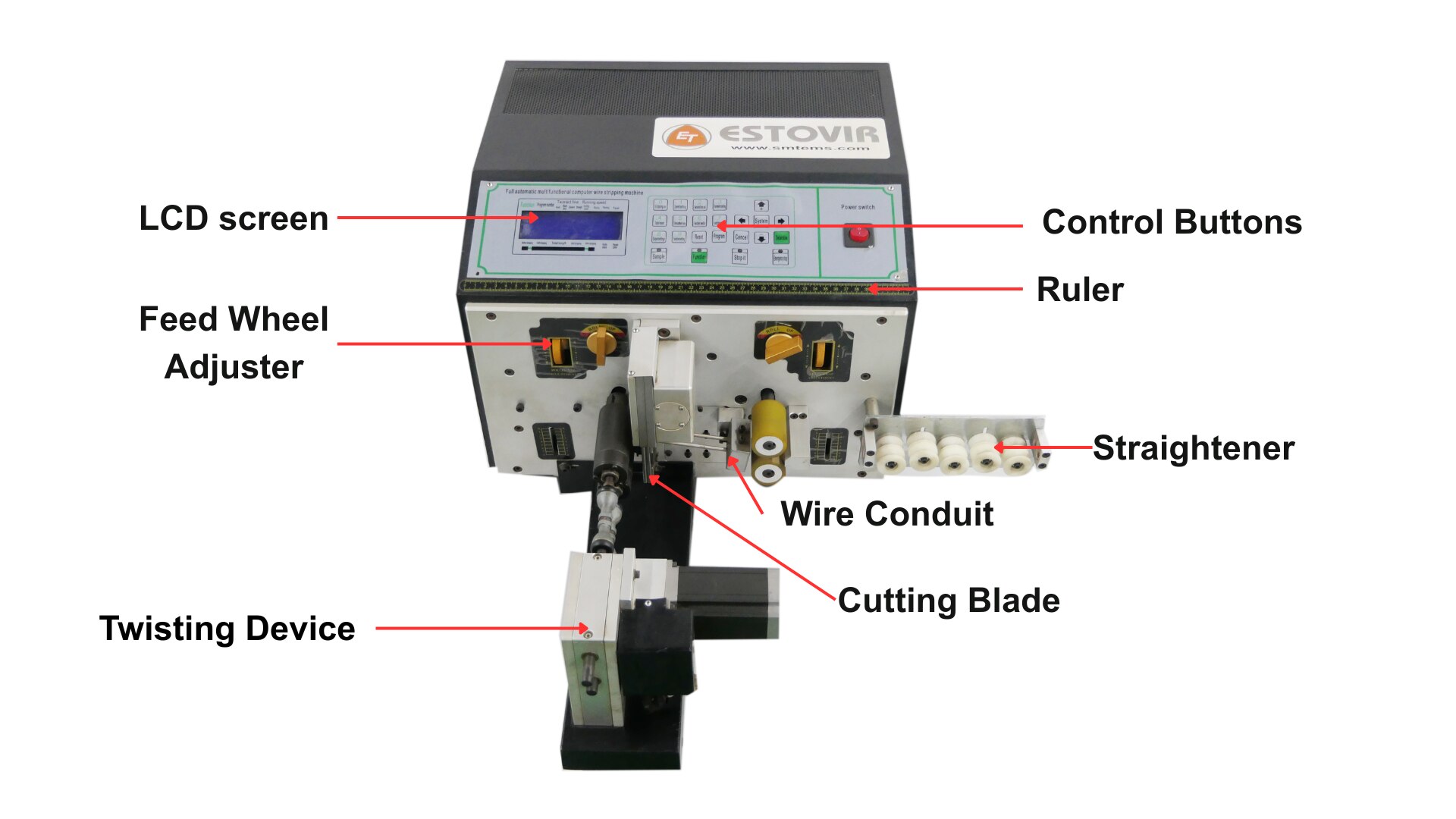

Simple Configuration: Easy-to-use digital panel for setting cut, strip, and twist parameters.
Operator Comfort: Automated process reduces manual effort and fatigue.
Applications of Digital wire cutting, stripping & twisting machine AWS 220T
Electronics Assembly Lines: Delivers reliable preparation of wires for PCB connections and soldering.
Cable Manufacturing & Harness Production: Automates multi-step wire processing for efficient harness assembly.
Industrial Wire Processing: Handles PVC, Teflon, silica gel, and glass fibre insulated wires with accuracy.
Automation & Precision Work: Ensures repeatable, precise processing in automated production environments.
Mass Production Environments: Enhances throughput and consistency with dual-wire operation.
Why Choose Digital wire cutting, stripping & twisting machine AWS 220T?
Proven Performance: High-speed, accurate results across diverse applications.
Durability Assured: Industrial-grade build ensures long service life.
Compact & Powerful: Offers cutting, stripping, and twisting in one compact machine.
Advanced Features: Dual-wire capability and digital control interface for versatility.
Comprehensive Support: Backed by Estovir Technologies' technical expertise and after-sales service.
Specifications
| Model | AWS 220T |
|---|---|
| Drive Mode | 4 Drives |
| Wire Diameter | AWG 16 – 32 |
| Productivity | 100 mm wire – 8420 pcs/hr 500 mm wire – 5380 pcs/hr 1000 mm wire – 3720 pcs/hr |
| Twisting Length | 0.1 – 99 mm (as per wire material) |
| Weight | 40 kg |
| Blade Material | Hard tungsten steel |
| Dimensions | 570 × 380 × 440 mm |
| Cutting Length | 0.1 – 9999 mm |
| Dimensions | 570 × 380 × 440 mm |
| Stripping Length | 0.1 – 99 mm (as per wire material) |
| Weight | 40 kg |
| Productivity | 100 mm wire – 8420 pcs/hr 500 mm wire – 5380 pcs/hr 1000 mm wire – 3720 pcs/hr |
| Conduit Diameter | 6 mm |
| Twisting Length | 0.1 – 99 mm (as per wire material) |
| Drive Mode | 4 Drives |
| Wire Diameter | AWG 16 – 32 |
| Appropriate Wire Types | Electrical wires, PVC, Glass fibre cables |
| Weight | 40 kg |
| Dimensions | 570 × 380 × 440 mm |
| Operation | Automatic cutting, stripping & twisting (dual-wire supported) |
| Power Supply | 220V AC, 50 Hz, 200W |
| Productivity | 100 mm wire – 8420 pcs/hr 500 mm wire – 5380 pcs/hr 1000 mm wire – 3720 pcs/hr |
