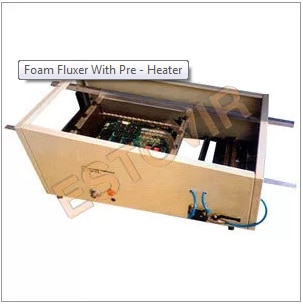

Foam Fluxer With Pre – Heater

For fluxing and pre heating the PCB before Dip Soldering. The foam fluxer applies a uniform layer of flux to the PCB through a foaming tube. The air knife smoothens up the flux, and removes the axcess flux. The pre heater activates the flux, and prepares the assembly for soldering.

Carrier supplied compatible with Model DIP 905

Foam Fluxer with plastic foaming tube.

Digital temperature controller for pre heater.

Independent Flow Control valve for air knife and fluxer.

One touch pneumatic fittings for external air supply.

Manual carrier movement on conveyor rails.

General

Dimensions

L-775 W-525 H-375

Weight

20 kg

Flux Bath & Air Knife

Flux Bath capacity

4.0ltrs

Foam width

14

Foam Height

10mm

Air Consumption

20cfm at 30psi

Pre Heater

Power supply

220 V AC, 50Hz, 1.6 KW

Standard Accessories

PCB Carrier

1 No

Utilities

Power Connection

15 Amp Power Point

Air supply

Compressed Air with FR
