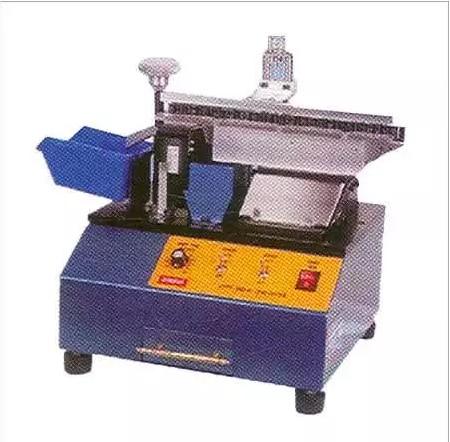

Automatic De-Taping Machine for Taped Radials – UAP 850 R High-Speed, Precise & Reliable De-Taping Solution The Automatic De-Taping Machine for Taped Radials – UAP 850 R by Estovir Technologies is an advanced motorized solution designed for fast and accurate cutting of taped radial components. As the upgraded version of the MAP 860 R, this de-taping machine delivers superior speed, consistency, and efficiency for high-volume electronics and PCB manufacturing. Technical Specification: Model: UAP 850 R Output Capacity: Up to 10,000 pcs/hr Lead Diameter: Ø 0.4 mm – Ø 0.8 mm (soft wire) Power Source: 220V AC, 50 Hz Operation Type: Motorized / Automatic Dimensions: 370 mm × 160 mm × 205 mm Weight: 8 kg Component Forming Specification A (Lead Body Length): 3.5 – 40 mm B (Lead Length): 3.6 – 15 mm W (Lead Wire Diameter): Ø 0.4 – Ø 0.8 mm Key Features of UAP 850 R Automatic De-Taping Machine Motorized Automatic Operation – Minimizes manual intervention for reliable, consistent output. High-Speed Performance – Processes up to 10,000 components per hour, ideal for large-scale manufacturing. Precision Cutting Mechanism – Handles soft wire leads up to 0.8 mm with clean and uniform cuts. Compact & Space-Saving Design – Dimensions: 370 × 160 × 205 mm, perfect for small workspaces. Energy Efficient – Runs on less than 100 W power consumption. Low Maintenance & Long Life – Built with industrial-grade durability for extended use. Applications of the Automatic De-Taping Machine The Automatic De-Taping Machine for Taped Radials – UAP 850 R is versatile and widely used across industries where precision and high-speed output are critical: Electronics manufacturing – De-taping resistors, capacitors, and other radial components. Automotive electronics – Ensures accurate preparation of large-volume components. Consumer electronics assembly – Handles small, delicate taped parts with precision. PCB manufacturing – Streamlines taped component processing. Appliance & device production – Ideal for bulk taped radial leads. Why Choose Estovir Technologies' UAP 850 R? Engineered for Speed & Accuracy – Consistent results with every cycle. Adaptable & Space-Saving – Compact size with adjustable speed control. Reliable & Energy-Efficient – Consumes minimal power while delivering maximum output. Built for Durability – Industrial-grade construction with minimal maintenance requirements. If your production demands speed, precision, and reliability, the Automatic De-Taping Machine for Taped Radials – UAP 850 R is the perfect solution. With its compact size, high output capacity, and low energy usage, this machine significantly improves productivity while maintaining long-term dependability. Upgrade your assembly line with the UAP 850 R from Estovir Technologies – where precision meets productivity.

Manual Forming for Taped Axials (Vertical) – MAP 301 V by Estovir Technologies Estovir Technologies introduces the MAP 301 V—a compact, efficient machine designed for manual forming of taped axial components into a vertical V-shape. The unit is ideal for dense PCB assemblies where vertical mounting is essential. It is manually operated through a crank, ensuring complete control and precise lead formation. The MAP 301 V is best suited for medium-volume production across electronics, automotive, and assembly industries. Technical Specification: Model: MAP 301 V Operation Type: Manual Forming Type: Vertical V-Shape Bend Lead Diameter: Ø 0.4 mm to Ø 1.37 mm (soft wire) Component Power: 3A & 5A Diode Output Capacity: 10,000 – 18,000 pcs/hr Dimensions: 250 × 250 × 200 mm Weight: 5 kg Component Forming Parameters: A (Lead Length) 4–18 mm B (Lead Spacing from Body) 5–10 mm C (Body Gap (Min. distance between component body and bend) Minimum 3 mm D (Component Body Diameter) 5–8 mm W (Lead Wire Diameter) 0.35–1 mm P (Pitch Between Leads) 5–13.5 mm H (Overall Height) A + B + C Key Features of Manual Forming for Taped Axials (Vertical) – MAP 301 V High-Speed Output: Delivers an output capacity of up to 18,000 pieces per hour, enabling fast and efficient production. Precision V-Shape Lead Forming: Forms components into a consistent vertical V-shape, ideal for densely populated circuit boards. Manual Crank Operation: Manual operation via crank handle provides enhanced control and accuracy without relying on electricity. Supports Lead Diameters Up to 1.37mm: Accommodates various component sizes, making it highly adaptable to different production requirements. Compact Machine Design: Its compact footprint (190 mm × 175 mm × 190 mm) saves space on the production floor. Rugged Industrial Build: Built with durable materials for vibration-free operation and long-term stability in industrial conditions. Quick Changeover Capability: Allows fast pitch and leg length adjustments, significantly reducing downtime during component changeovers. Low Maintenance Requirement: Designed with simplicity in mind, requiring minimal maintenance while maintaining high performance.

Manual Forming for Taped Axials (Horizontal) – MAP 301 H by Estovir Technologies Estovir Technologies introduces the MAP 301 H—a compact, efficient machine designed for manual forming of taped axial components into a vertical U-shape. The unit is ideal for dense PCB assemblies where horizontal mounting is essential. It is manually operated through a crank, ensuring complete control and precise lead formation. The MAP 301 H is best suited for medium-volume production across electronics, automotive, and assembly industries. Key Features of Manual Forming for Taped Axials (Horizontal) – MAP 301 H High-Speed Output: Delivers an output capacity of up to 18,000 pieces per hour, enabling fast and efficient production. Precision H-Shape Lead Forming: Forms components into a consistent vertical U-shape, ideal for densely populated circuit boards. Manual Crank Operation: Manual operation via crank handle provides enhanced control and accuracy without relying on electricity. Supports Lead Diameters Up to 1.37mm: Accommodates various component sizes, making it highly adaptable to different production requirements. Compact Machine Design: Its compact footprint (250 X 250 X 200 mm) saves space on the production floor. Rugged Industrial Build: Built with durable materials for vibration-free operation and long-term stability in industrial conditions. Quick Changeover Capability: Allows fast pitch and leg length adjustments, significantly reducing downtime during component changeovers. Low Maintenance Requirement: Designed with simplicity in mind, requiring minimal maintenance while maintaining high performance. Why Choose Manual Forming for Taped Axials (Horizontal) – MAP 301 H? The MAP 301 H offers the perfect balance of precision, control, and productivity. Its manual crank operation provides the operator with full control, allowing for fine-tuning and customization during forming. Built with a compact, heavy-duty frame, it supports small-to-mid-scale operations that demand consistency and reliability. Whether you’re handling dense PCBs or varied lead sizes, this machine is engineered to perform. Perfect for small spaces and mobile workstations Eliminates need for electrical setup Ideal for continuous use in industrial environments Easy to operate, adjust, and maintain Designed by Estovir Technologies for long-term value Applications of Manual Forming for Taped Axials (Horizontal) – MAP 301 H MAP 301 H is widely used in manufacturing environments that require Horizontal lead forming: Electronics and PCB manufacturing lines Automotive electronic assembly units Industrial component forming and processing setups Consumer electronics and LED-based systems Component packaging and reshaping facilities Product Type Compatibility: Axial leaded components in taped form Automatic Grade: Manual (non-electric, fully mechanical)
