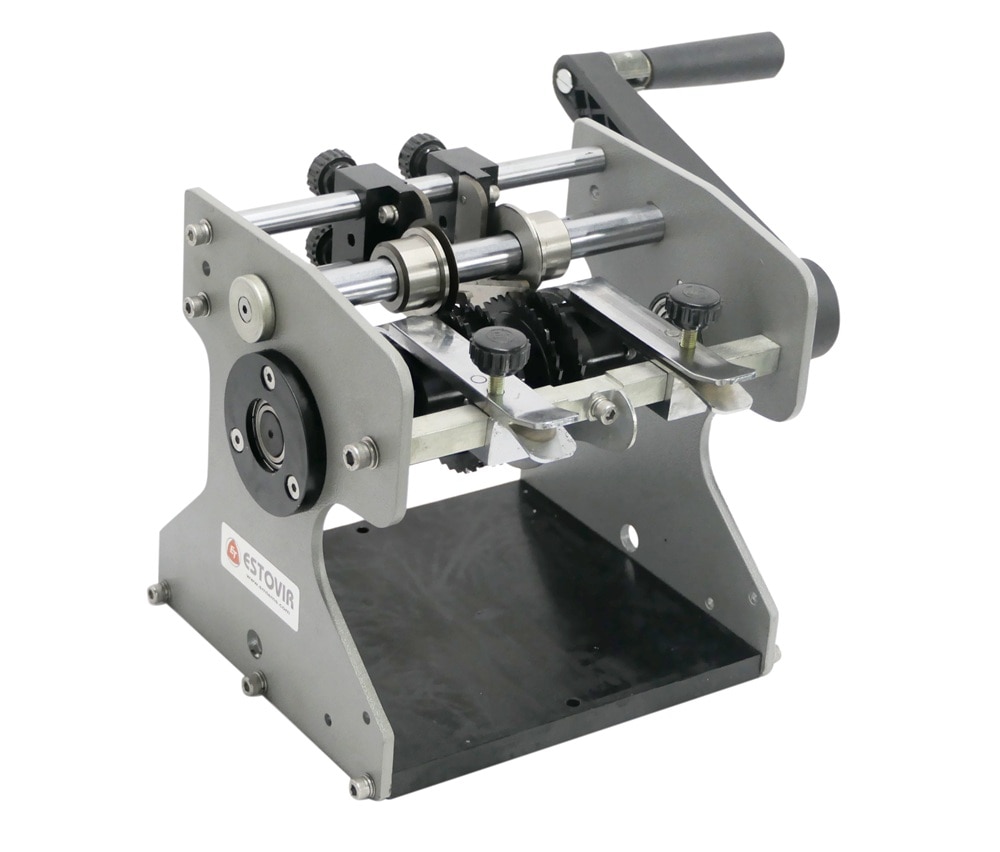

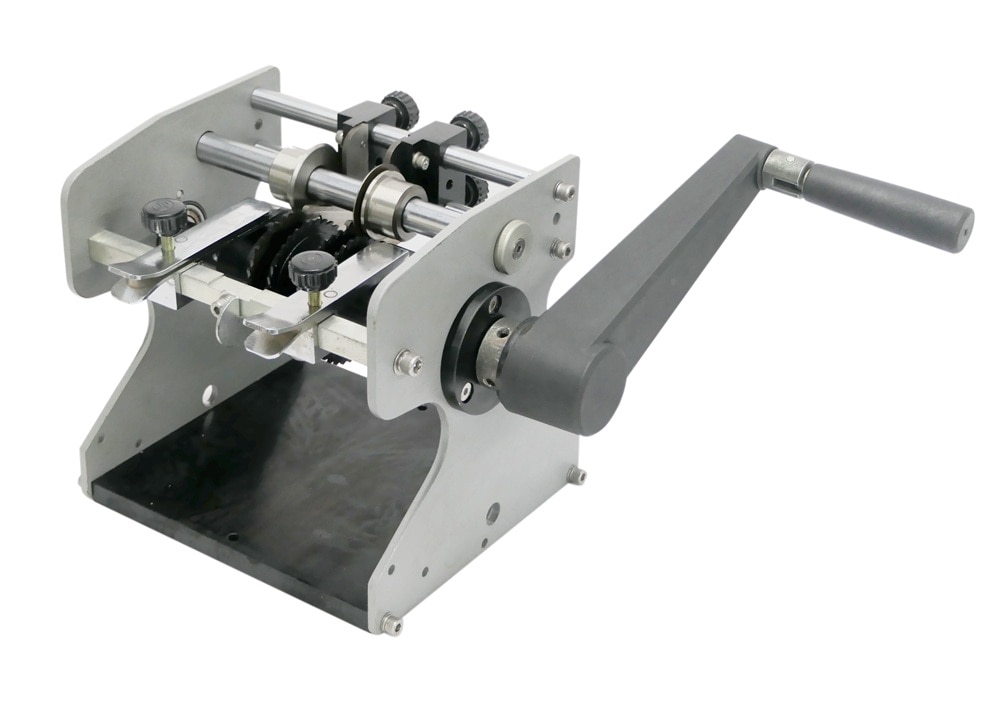

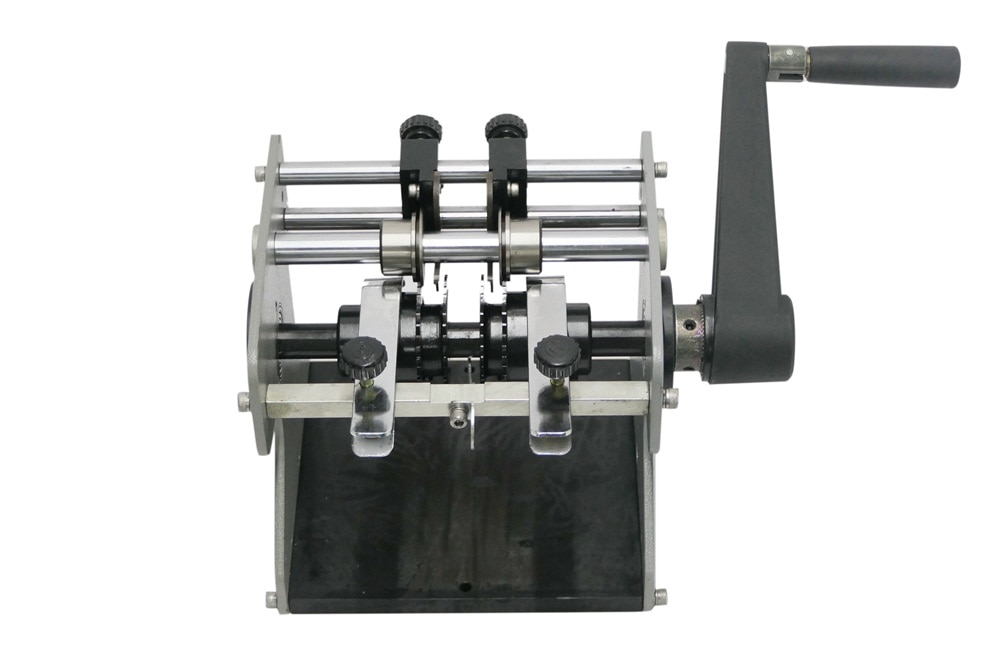

Estovir Technologies introduces the MAP 301 H—a compact, efficient machine designed for manual forming of taped axial components into a vertical U-shape. The unit is ideal for dense PCB assemblies where horizontal mounting is essential. It is manually operated through a crank, ensuring complete control and precise lead formation. The MAP 301 H is best suited for medium-volume production across electronics, automotive, and assembly industries.

Key Features of Manual Forming for Taped Axials (Horizontal) – MAP 301 H

High-Speed Output: Delivers an output capacity of up to 18,000 pieces per hour, enabling fast and efficient production.

Precision H-Shape Lead Forming: Forms components into a consistent vertical U-shape, ideal for densely populated circuit boards.

Manual Crank Operation: Manual operation via crank handle provides enhanced control and accuracy without relying on electricity.

Supports Lead Diameters Up to 1.37mm: Accommodates various component sizes, making it highly adaptable to different production requirements.

Compact Machine Design: Its compact footprint (250 X 250 X 200 mm) saves space on the production floor.

Rugged Industrial Build: Built with durable materials for vibration-free operation and long-term stability in industrial conditions.

Quick Changeover Capability: Allows fast pitch and leg length adjustments, significantly reducing downtime during component changeovers.

Low Maintenance Requirement: Designed with simplicity in mind, requiring minimal maintenance while maintaining high performance.

Why Choose Manual Forming for Taped Axials (Horizontal) – MAP 301 H?

The MAP 301 H offers the perfect balance of precision, control, and productivity. Its manual crank operation provides the operator with full control, allowing for fine-tuning and customization during forming. Built with a compact, heavy-duty frame, it supports small-to-mid-scale operations that demand consistency and reliability. Whether you’re handling dense PCBs or varied lead sizes, this machine is engineered to perform.

Perfect for small spaces and mobile workstations

Eliminates need for electrical setup

Ideal for continuous use in industrial environments

Easy to operate, adjust, and maintain

Designed by Estovir Technologies for long-term value

Applications of Manual Forming for Taped Axials (Horizontal) – MAP 301 H

MAP 301 H is widely used in manufacturing environments that require Horizontal lead forming:

Electronics and PCB manufacturing lines

Automotive electronic assembly units

Industrial component forming and processing setups

Consumer electronics and LED-based systems

Component packaging and reshaping facilities

Product Type Compatibility:

Axial leaded components in taped form

Automatic Grade:

Manual (non-electric, fully mechanical)
