Description

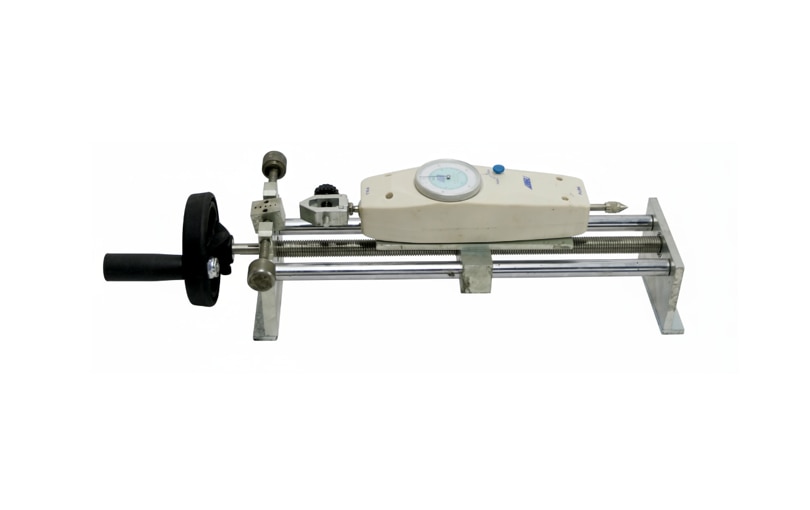

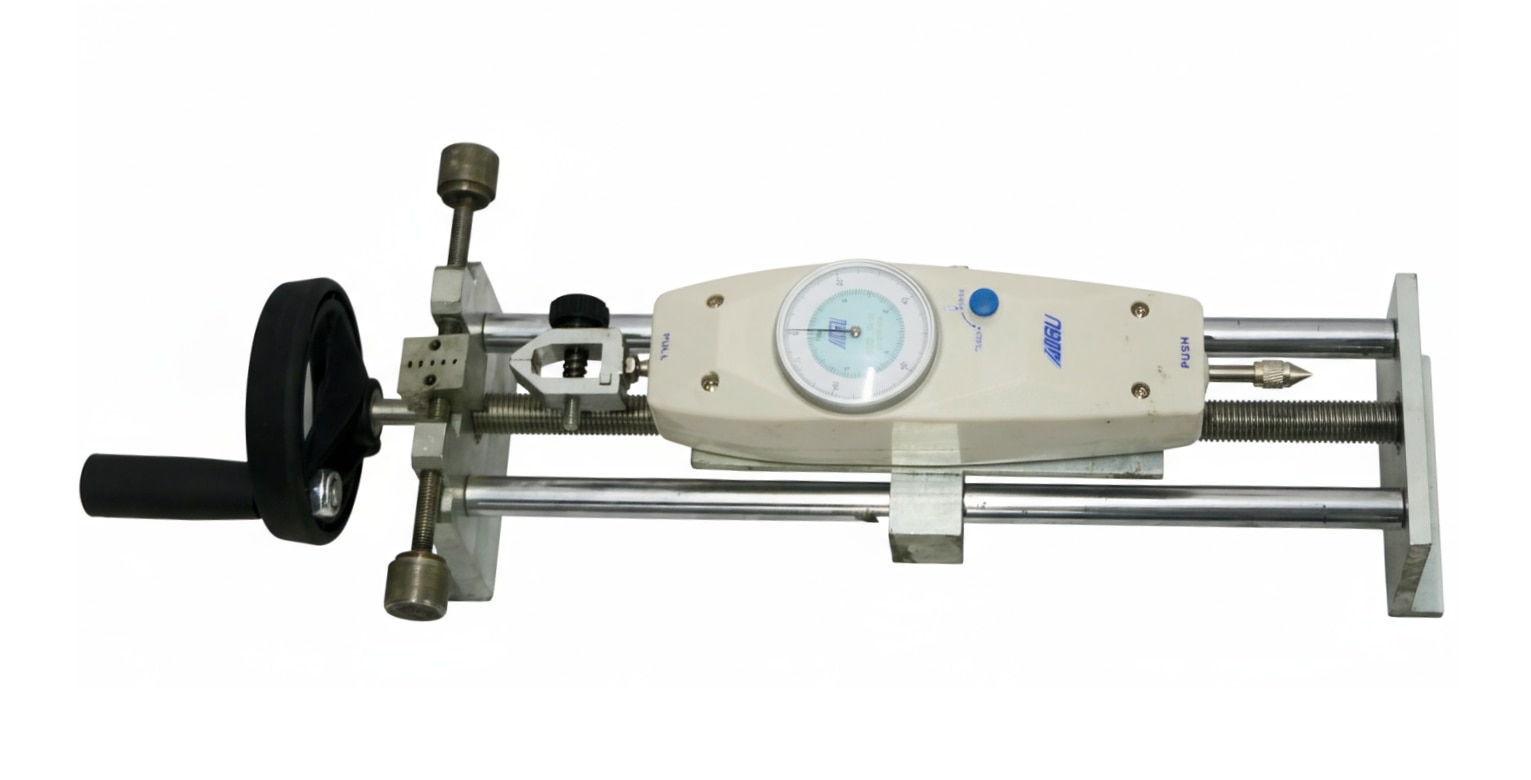

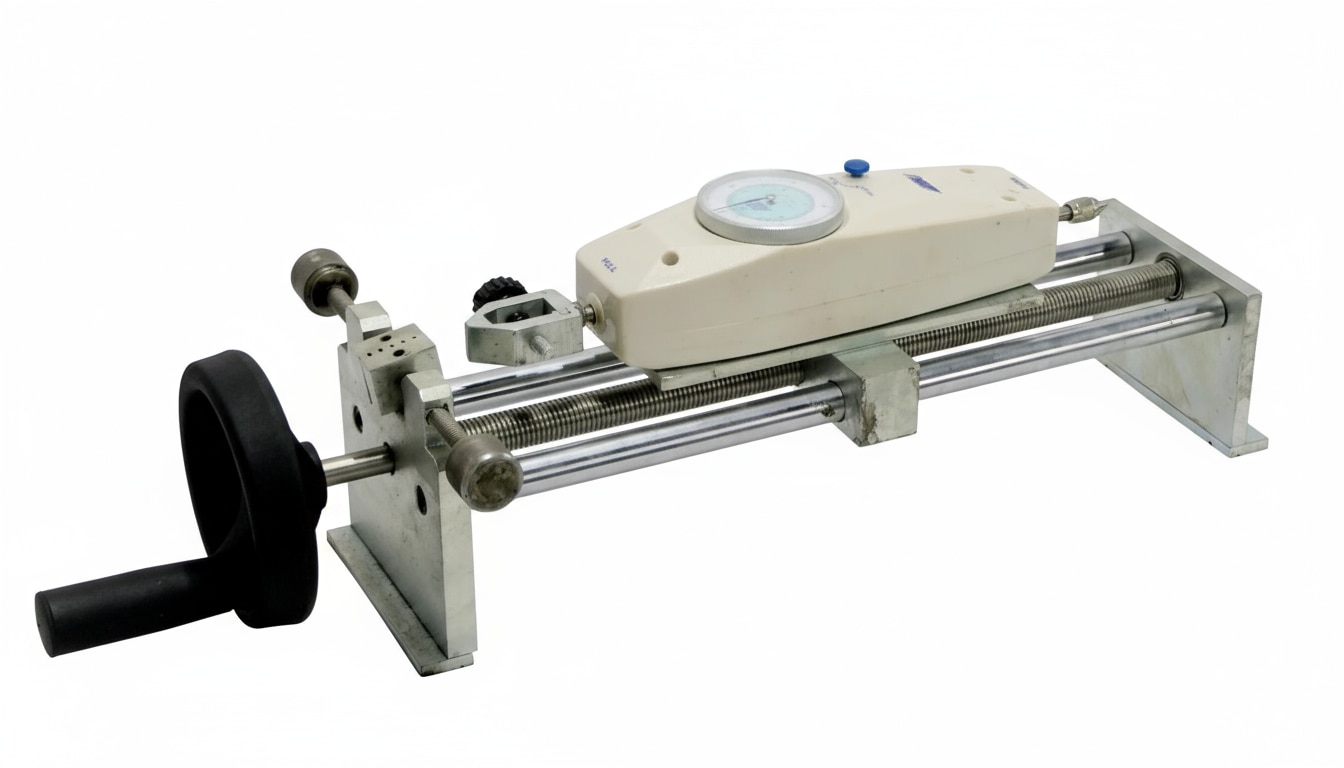

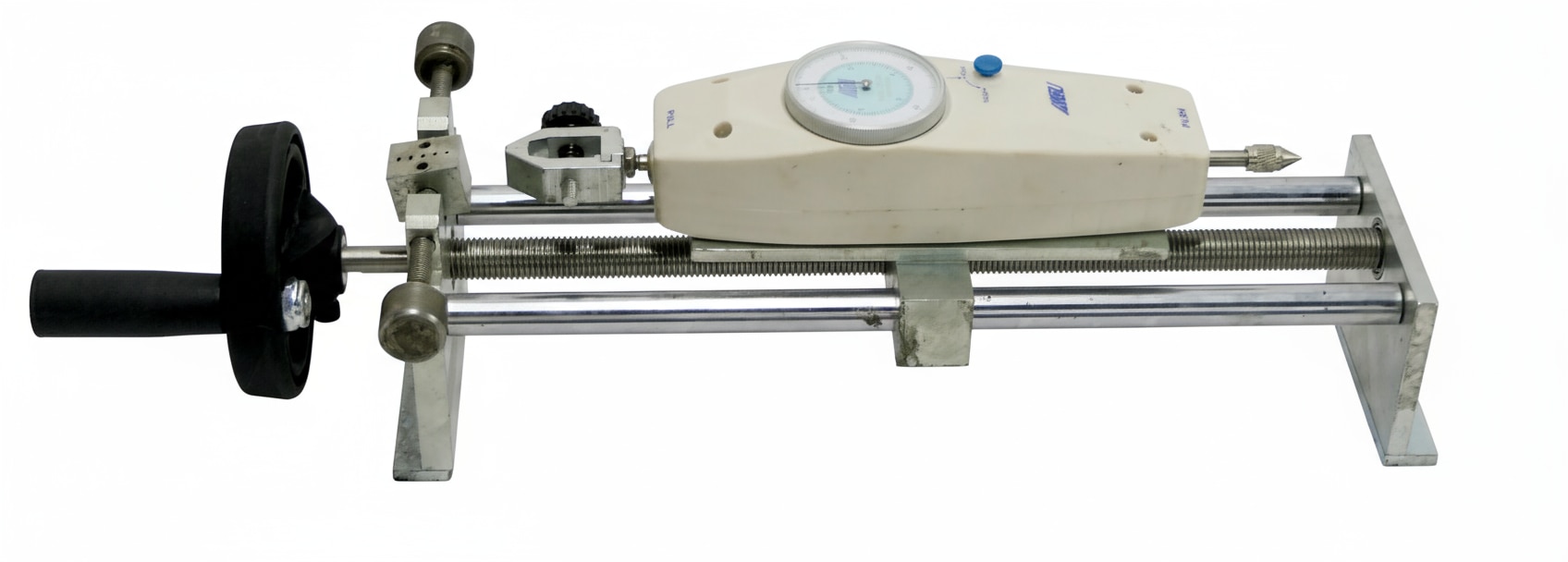

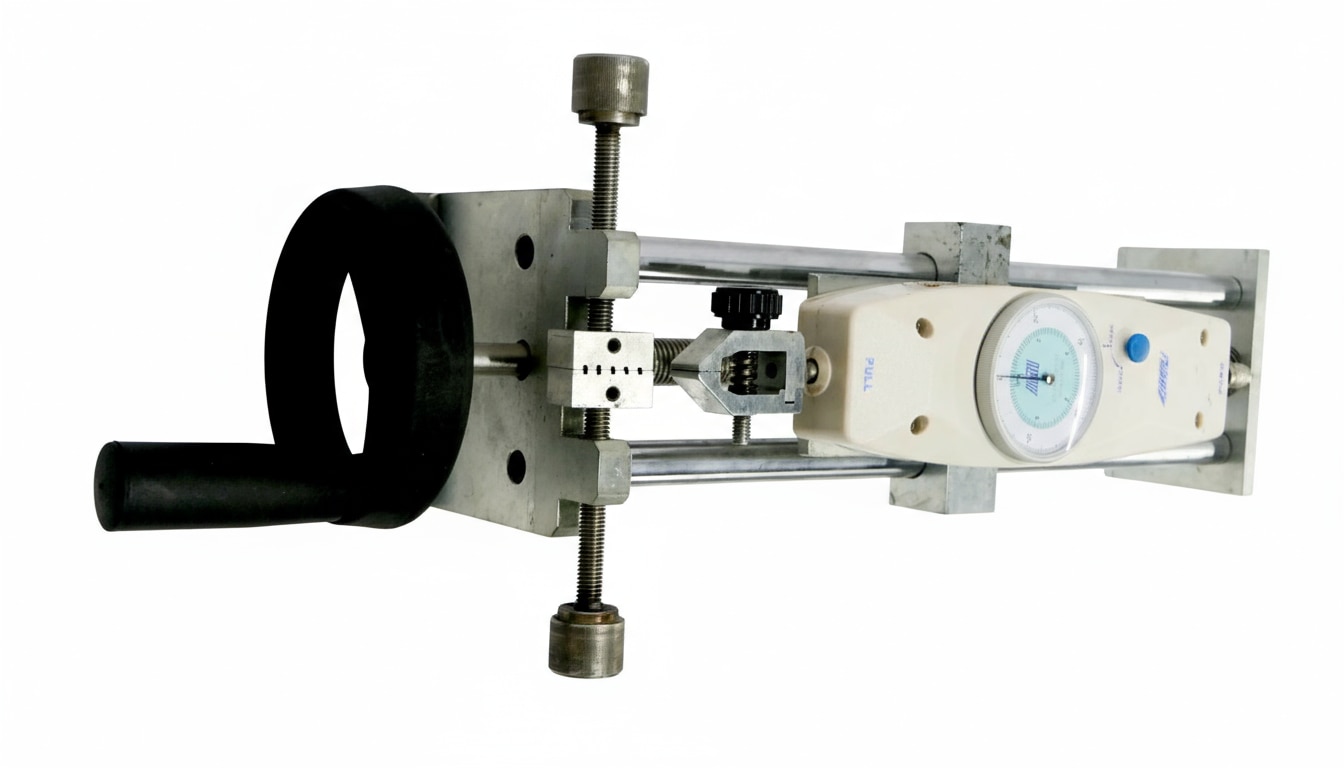

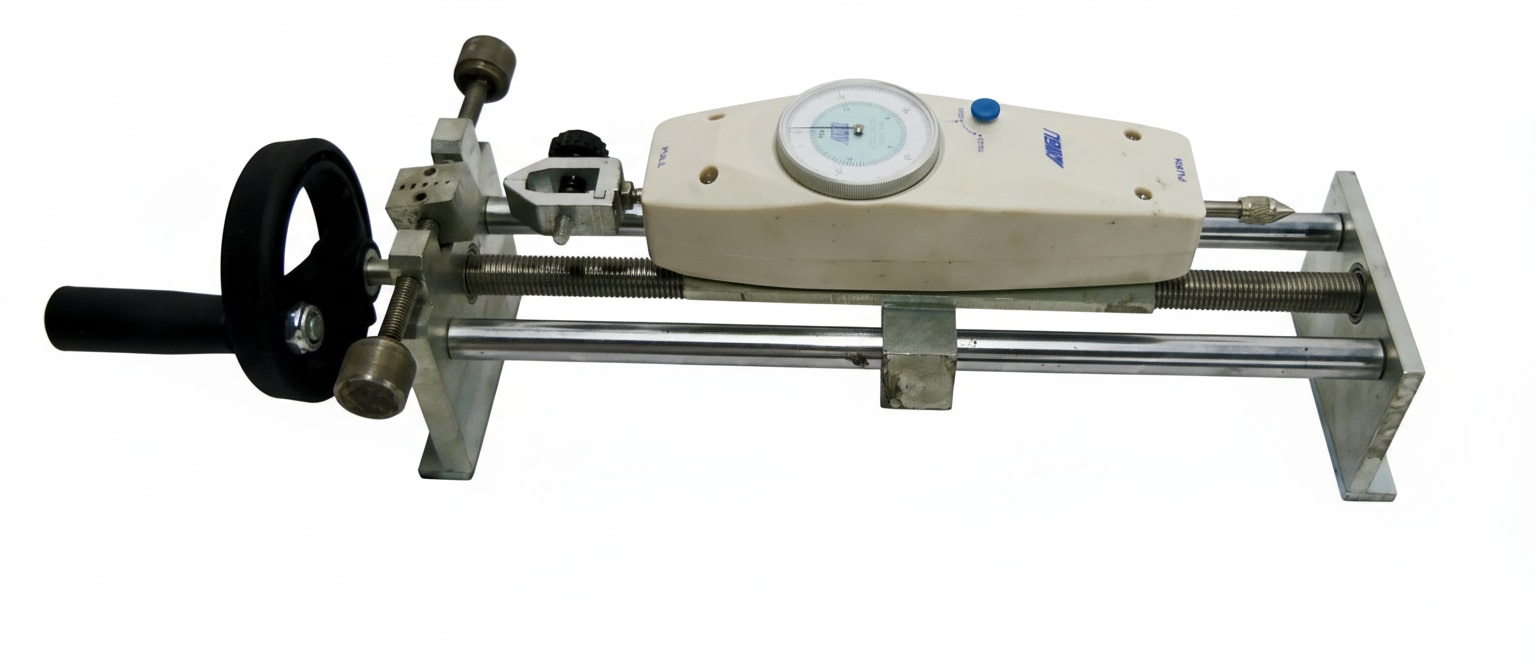

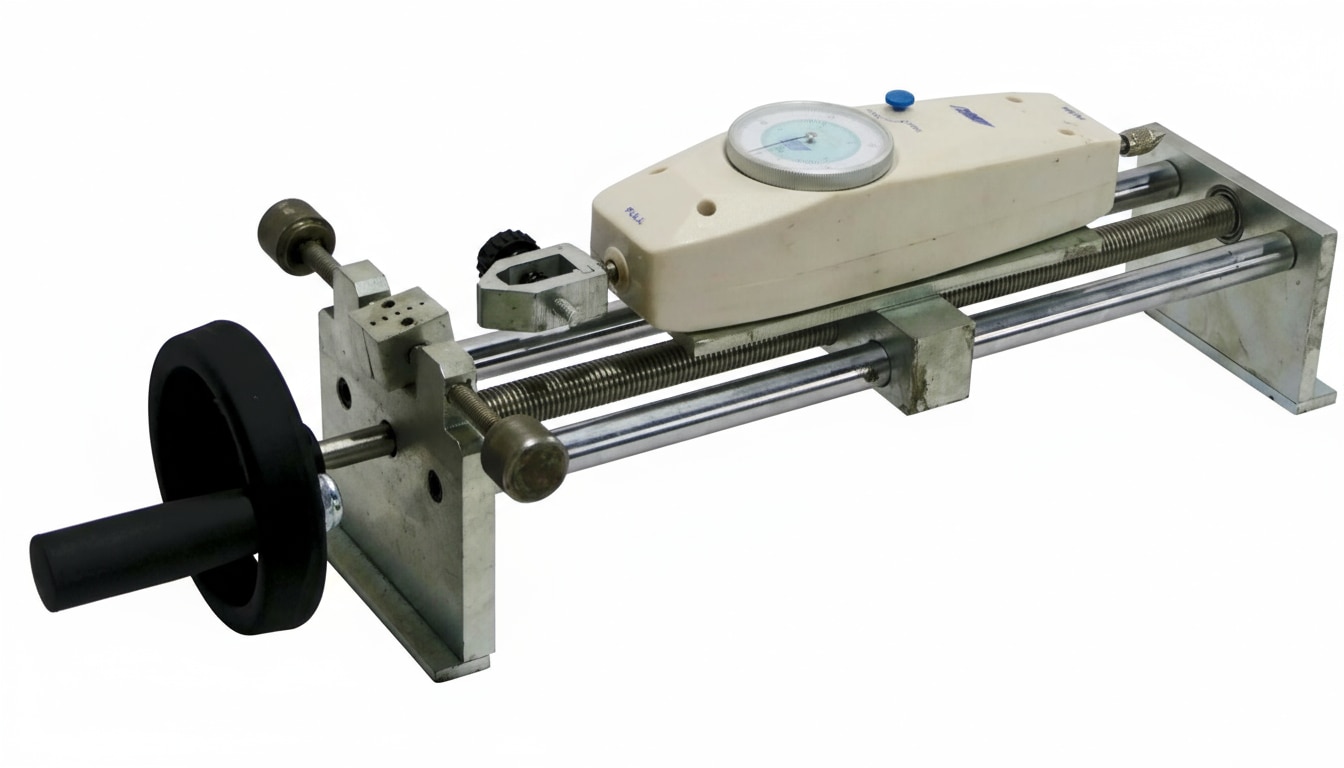

Manual Wire Crimp Pull Tester – 100 (10Kg)
The Manual Wire Crimp Pull Tester – 100 (10Kg) is a precision-engineered, hand-operated device designed for accurate measurement of crimp strength, tensile force, and pull force in wires and terminals. Ideal for quality control, production validation, and laboratory testing, this compact instrument ensures reliable verification of crimped connections in electrical components.
With a maximum capacity of 100 N (10 kg), it enables users to evaluate terminal retention, wire integrity, and crimp strength to prevent connection failures and improve product reliability. Engineered for industries such as electronics, automotive, appliance manufacturing, and wire harness production, this tester provides consistent, repeatable, and traceable results as per international testing standards.
Durable, portable, and maintenance-free, the MPT 100N delivers dependable performance for both destructive and non-destructive crimp testing applications.
Key Features
High-Accuracy Measurement
Measures crimp strength, tensile force, and pull-off force up to 100 N (10Kg) with excellent repeatability and precision.
Manual Operation
Simple and reliable manual mechanism eliminates the need for power, ensuring low maintenance and zero downtime.
Rugged & Portable Design
Compact aluminium construction makes it lightweight (4.75 kg) yet durable, suitable for bench-top and field testing.
Quick Fixture Adjustment
Tool-free, fast fixture and grip adjustment enable easy operation and secure wire clamping for repeatable testing.
Universal Grip Compatibility
Supports various terminal grips and wire sizes for flexible application across multiple cable and connector types.
Maintenance-Free Operation
No electrical or pneumatic systems—ideal for long-term, low-cost use in production and QC environments.
Applications
Wire Harness & Cable Assembly
Used in production lines to test crimped wire terminals for quality assurance and batch validation.
Electronics Manufacturing
Ensures reliable crimped joints in PCB assemblies, connectors, and small electronic components.
Automotive Industry
Verifies wire terminal integrity in vehicle wiring harnesses and sensor connectors.
Research & Laboratory Testing
Used in R&D labs for studying terminal retention, tensile performance, and material reliability.
Appliance & Industrial Equipment Manufacturing
Ideal for auditing crimp quality in small-scale or contract assembly operations.
Why Choose Manual Wire Crimp Pull Tester – 100 (10Kg)?
Proven Precision
Delivers accurate and repeatable results, ideal for production audits and laboratory analysis.
Durable & Compact
Built with a sturdy metal frame for longevity while maintaining a compact form factor.
Customizable Fixtures
Optional grips and accessories are available for specialized terminal types or wire configurations.
Comprehensive Support
Includes product calibration, service, and after-sales technical assistance from Estovir Technologies.
Cost-Effective Quality Control
Combines affordability with professional-grade precision for small and medium enterprises.
Specifications
| Model | MPT 100N |
|---|---|
| Measurement Range | 0 – 100 N (0 – 10 Kg) |
| Applications | Crimp pull force and tensile testing for wires & terminals |
| Weight | 4.75 Kg |
| Capacity | 100 N (10 Kg) |
| Terminal Grip | 9.0 mm |
| Wire Grip Length | 70 mm |
| Dimensions | 490 × 190 × 140 mm |
| Operation Type | Manual |
