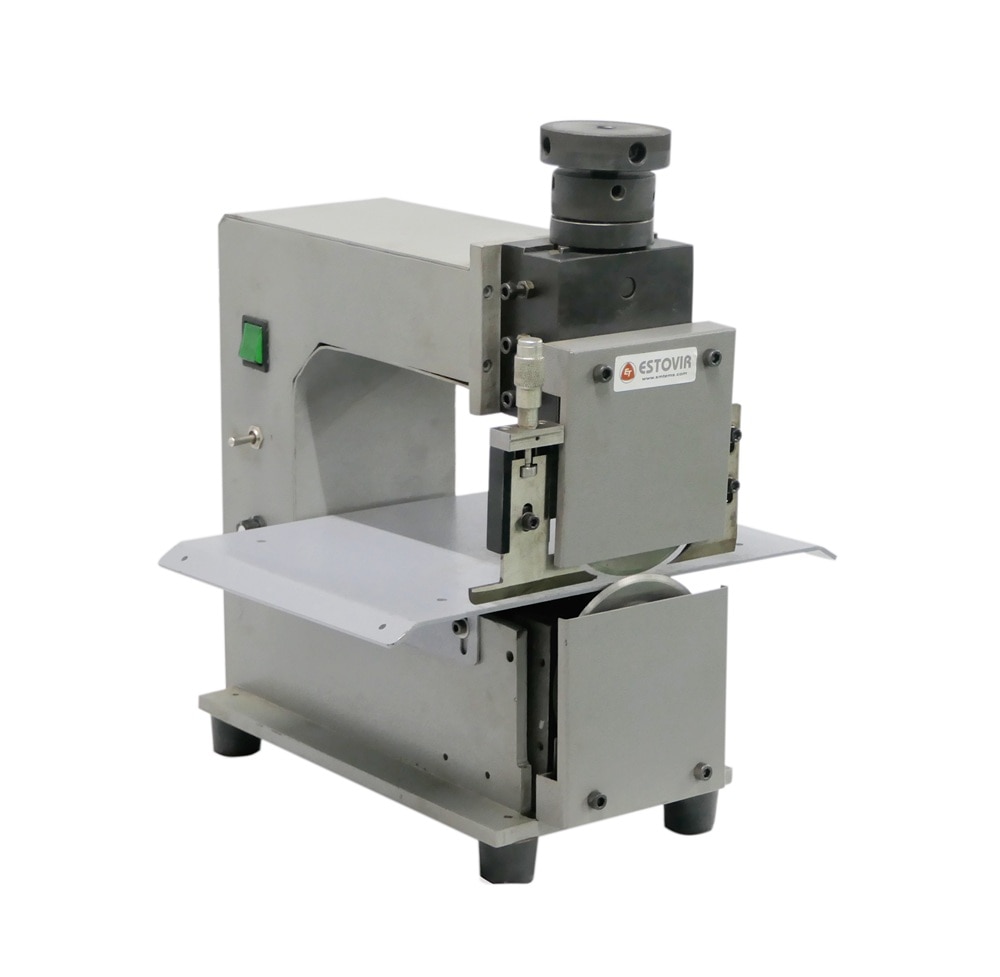

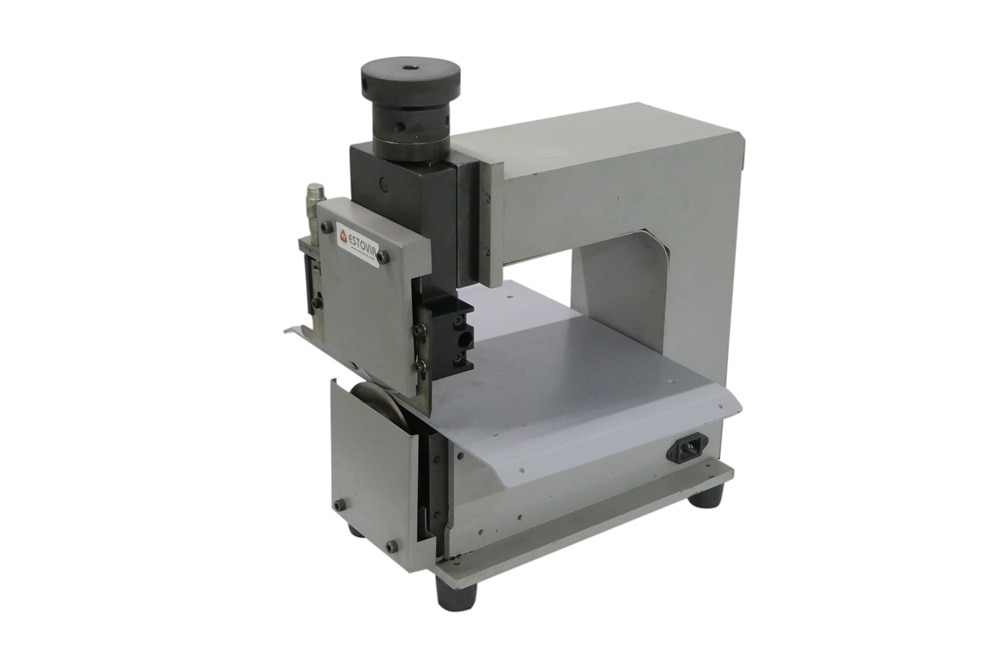

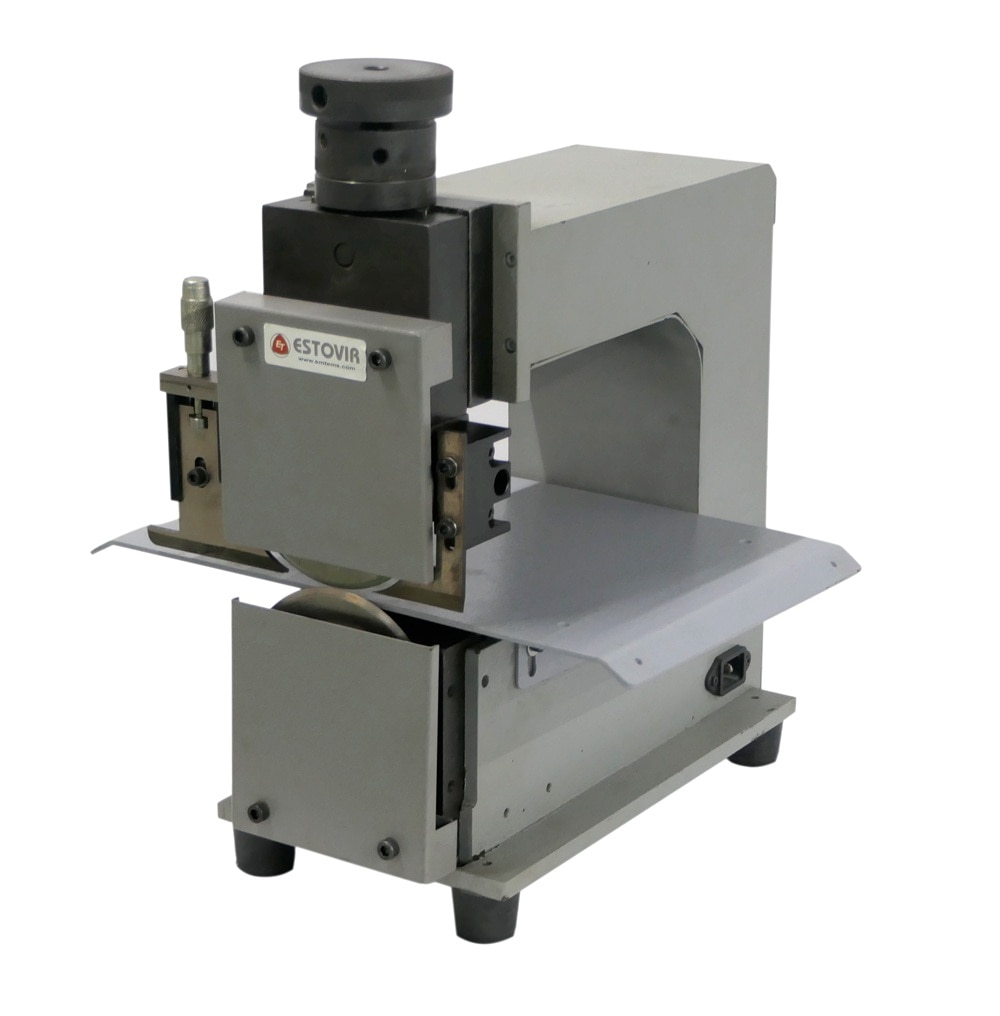

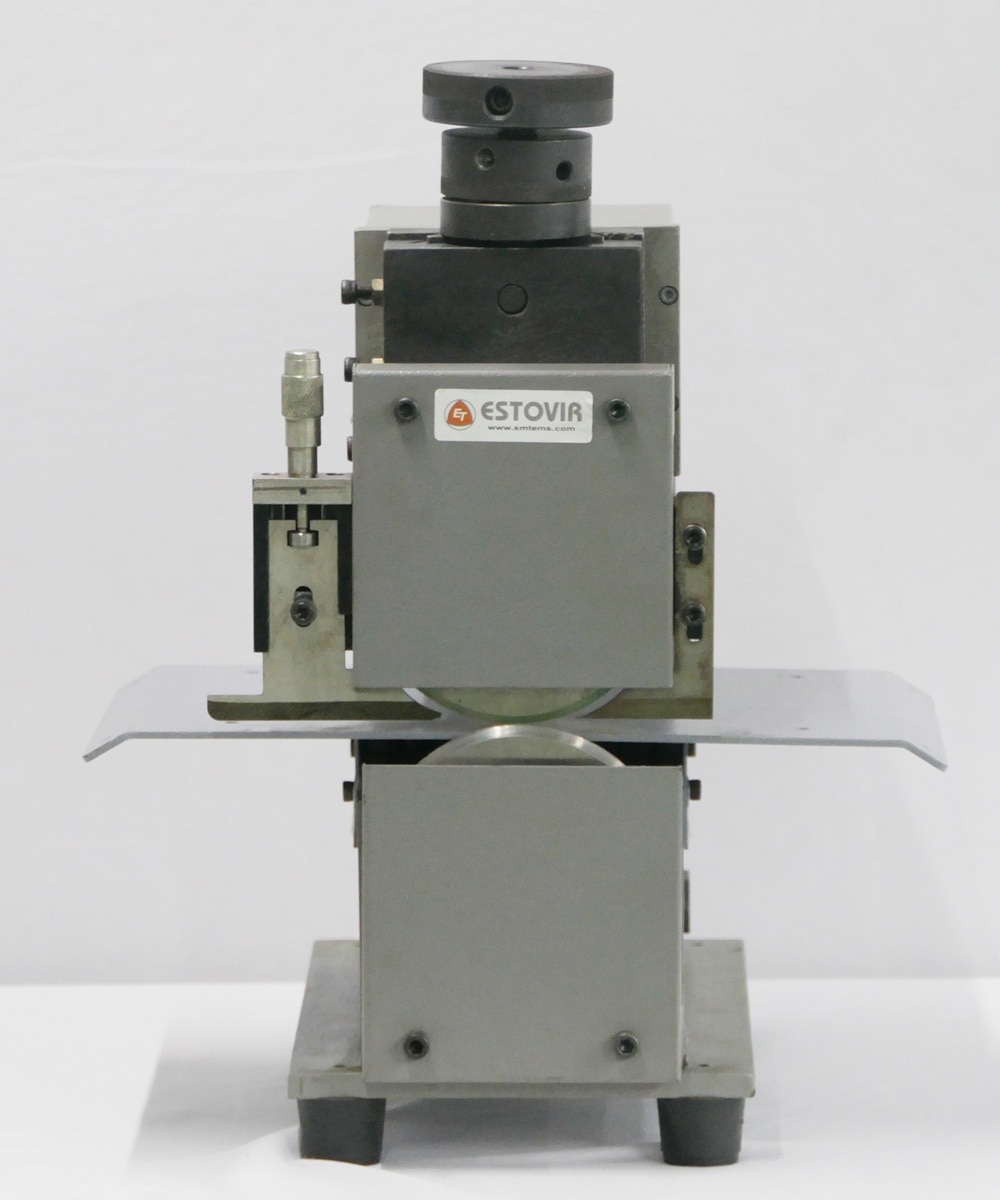

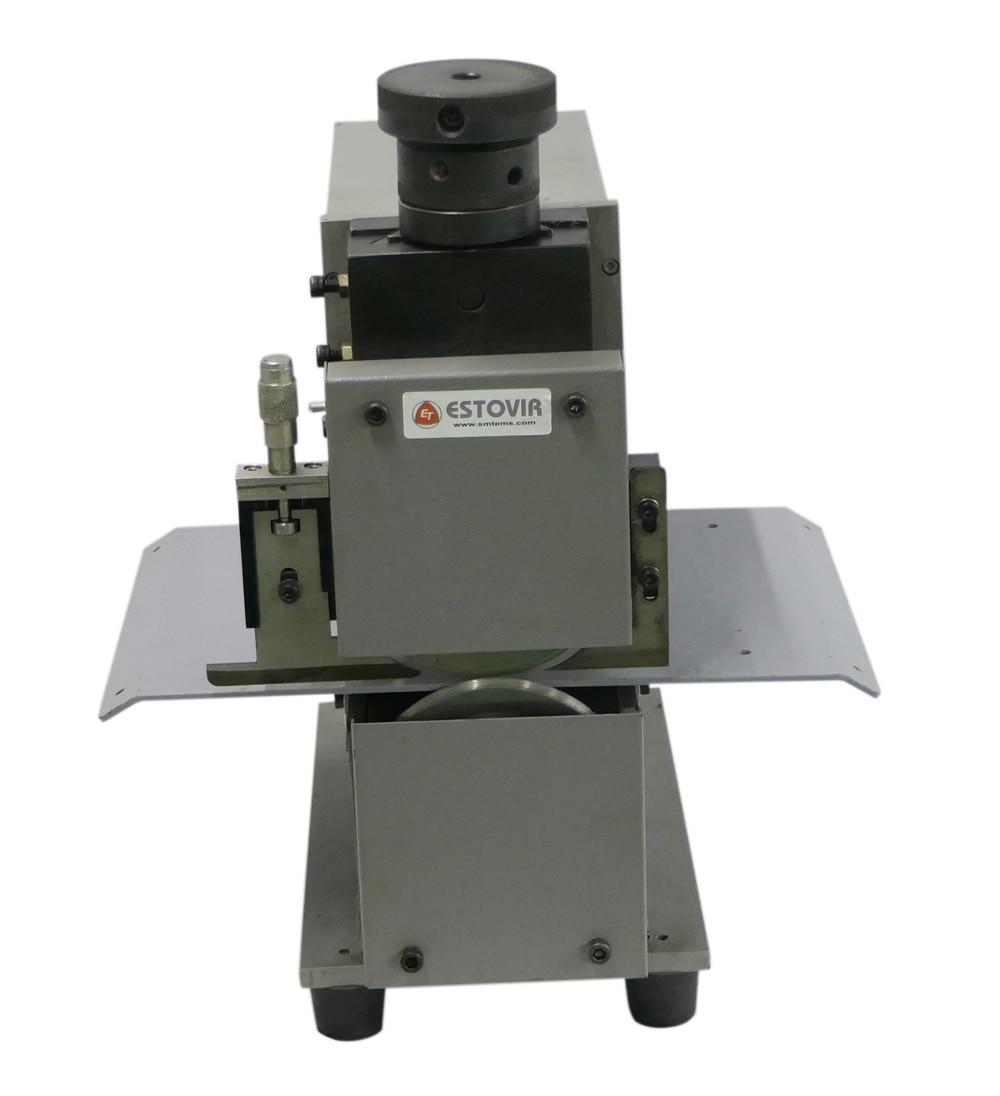

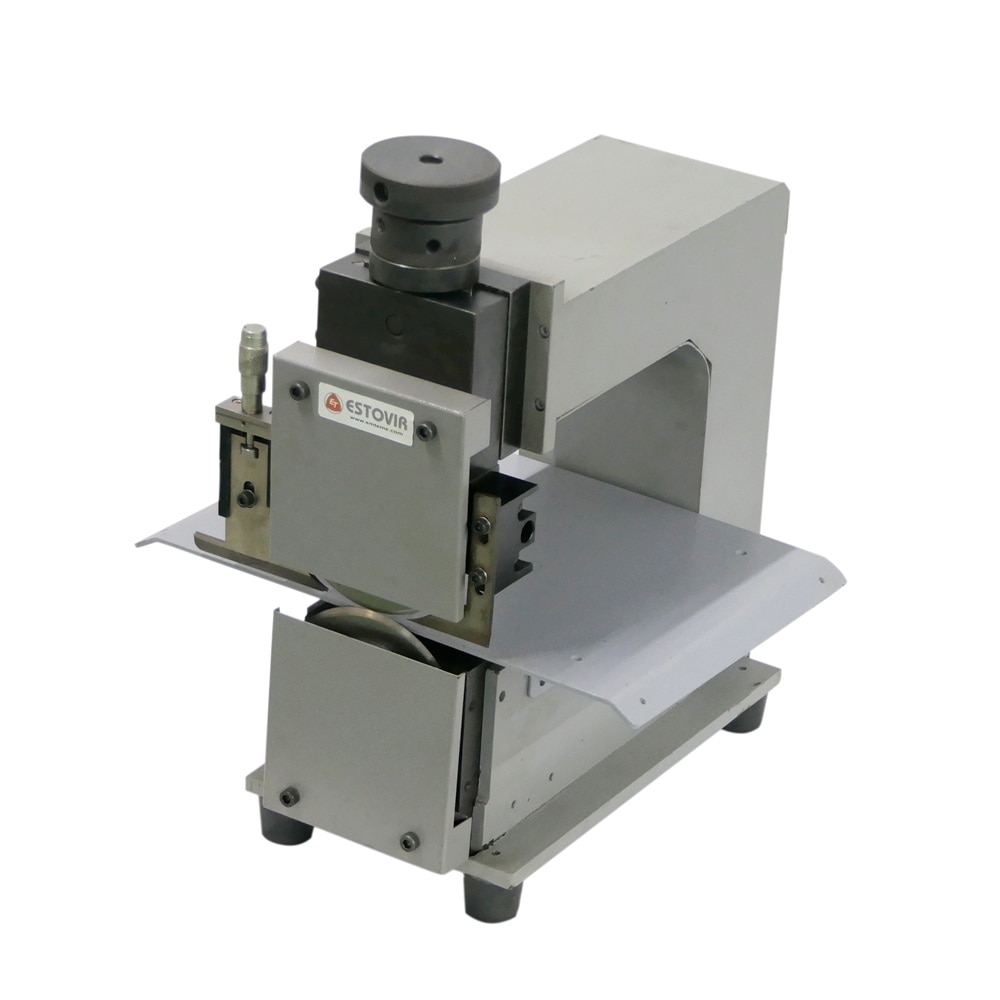

PCB Separator 2 Blade – EMS 806 V Cut by Estovir Technologies
Overview PCB Separator 2 Blade – EMS 806 V Cut
The PCB Separator 2 Blade – EMS 806 V Cut by Estovir Technologies is an industrial-grade solution engineered for precision PCB depaneling. Designed specifically for V-groove and SMT boards, it delivers stress-free separation without damaging solder joints, delicate components, or PCB substrates.
With its adjustable dual-blade system, compact footprint, and low-noise operation, this separator ensures consistent performance across high-volume PCB assembly lines. Built for speed, durability, and operator safety, the EMS 806 V Cut is a trusted choice for manufacturers aiming to increase output while maintaining top-quality standards.
Key Features of PCB Separator 2 Blade – EMS 806 V Cut
Each feature of the EMS 806 V Cut is designed with manufacturers’ challenges in mind.
Dual-Blade Precision Cutting
The dual-blade system guarantees clean, burr-free separation of PCBs.
Ensures uniform cuts across long production runs.
Adjustable Blade Depth Control
Operators can fine-tune blade height for different PCB thicknesses (up to 3 mm).
Prevents overcutting, ensuring safe handling of sensitive SMT components.
Stress-Free PCB Handling
Reduces mechanical strain on boards.
Protects solder joints, preventing cracks or micro-fractures during cutting.
High-Speed, Low-Noise Operation
Cutting speed up to 15 meters per minute, ideal for large batches.
Low operational noise meets industrial safety standards.
Universal PCB Compatibility
Handles V-cut, scored, and SMT PCBs of various lengths.
Suitable for LED PCBs, telecom boards, consumer devices, and automotive electronics.
Compact, Ergonomic Design
Occupies minimal floor space (350 × 330 × 410 mm).
Easy to install, move, and operate in busy production lines.
Energy-Efficient and Durable
Operates on standard 220V AC, 50 Hz
Consumes minimal energy while ensuring long-term reliability.
Applications of PCB Separator 2 Blade – EMS 806 V Cut
The EMS 806 V Cut is versatile, making it ideal for industries that demand fast, precise PCB depaneling.
Electronics Manufacturing → Clean separation of PCBs for consumer devices, telecom equipment, and industrial electronics.
LED Lighting Industry → Depaneling LED PCBs without stress or component damage.
Automotive Electronics → Ensures robust separation for advanced driver-assist systems, dashboards, and control boards.
Appliances & Consumer Devices → Reliable depaneling for mass production of household and smart devices.
EMS & PCB Assembly Lines → Widely used by contract manufacturers (EMS companies) for batch processing.
Its versatility makes it a core machine in modern SMT production setups.
Why Choose the PCB Separator 2 Blade – EMS 806 V Cut?
Engineered for Speed & Accuracy
With a cutting speed of 15 m/min, it boosts productivity while maintaining precision.
Protects Your Investment
By preventing PCB stress and component damage, it reduces scrap rates and saves costs.
Compact & Operator-Friendly
Lightweight and ergonomic, requiring minimal training for operators.
Reliable & Long-Lasting
Rugged industrial construction designed for continuous production cycles.
Low Maintenance
Simple design means minimal downtime and lower operating costs.
To further streamline operations, Estovir Technologies offers a complete range of manual and automatic preforming machines to handle different requirements:
Specifications
| Model | EMS 806 V Cut |
|---|---|
| Cutting Path | Straight Line |
| Cutting Speed | 15 m/min |
| Max PCB Thickness | 3 mm |
| Power Consumption | 220V AC, 50Hz |
| Blade Dimensions | ID: 28 mm | OD: 116 mm | Thickness: 2 mm |
| Weight | 40 Kg |
| Dimensions | 350 x 330 x 410 mm |
