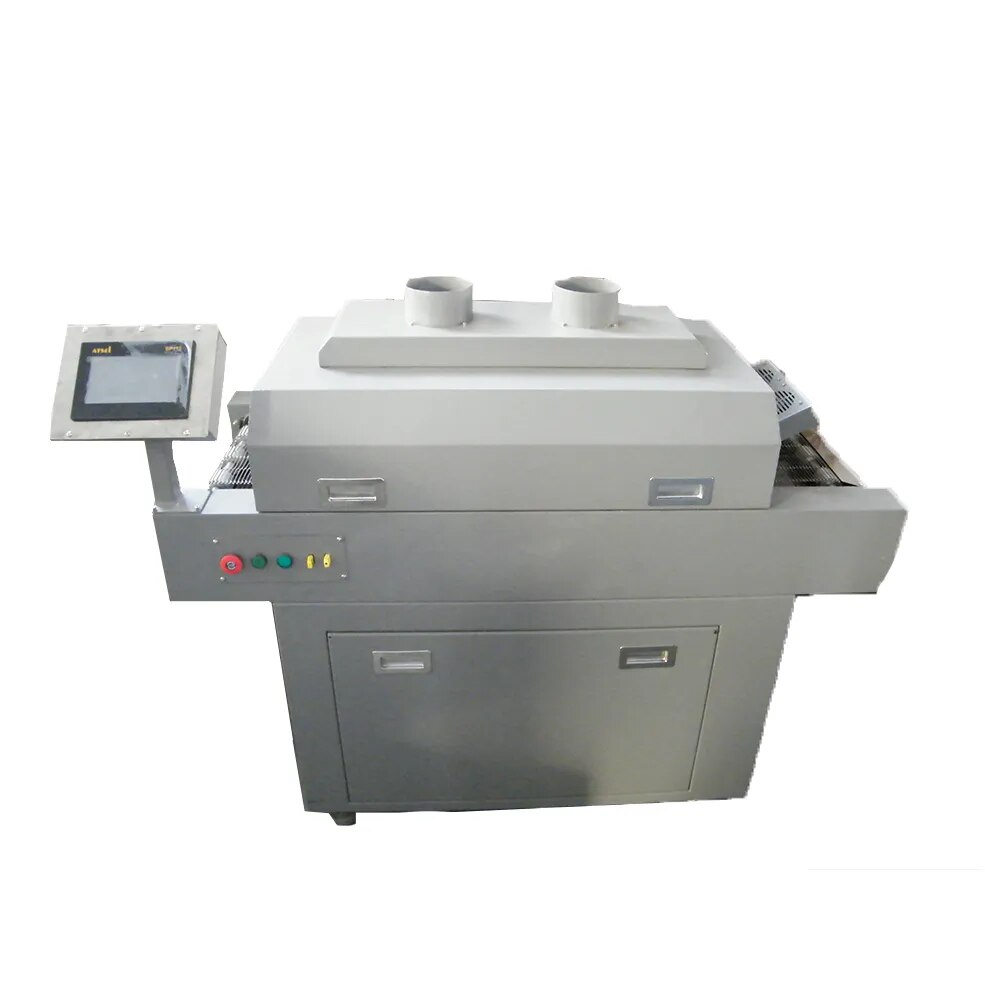

Reflow Oven Conveyorised ET 960 RO

Reflow Oven Conveyorised

Heating Zone 3 Upper & 2 bottom

Length of Heating Zone 960 mm

Heating Type Intelligent convection and rapid infrared heating

Cooling zone 1

Max PCB size 280 mm

Operation direction Left to Right

Transport of PCB Mesh conveyor transmission

Speed conveyor 0 – 1500 mm/min

Power 3ø 5 line 380 V AC 50Hz

Peak Power 4.5 KW

Power Operator 2.3KW

Initial Heat up time 15 minutes

Temperature range Room temperature to 300°C

Control Mode PID closed loop

Control Accuracy ±1°C

PCB temperature deviation ±2°C

Dimension 1500x630x470 mm

Weight 90 Kg approx
