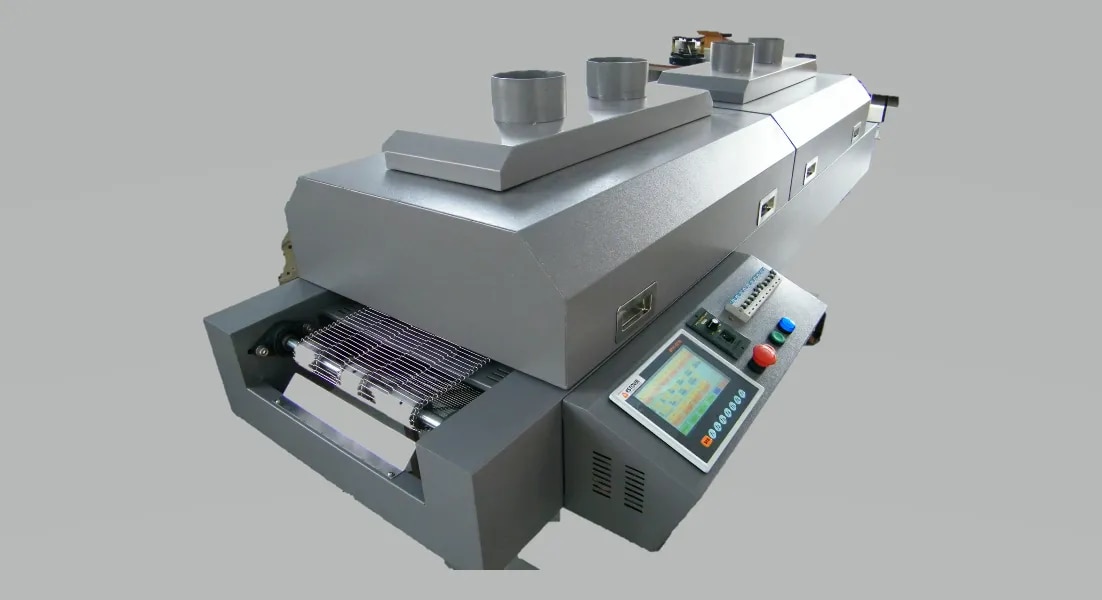

Reflow Oven Conveyorised
In stock • cod available
Description
Product Details:
Air-Flow Direction Duel Air Flow
Capacity 100-500 Kg
Display Analog
We are manufacturer of Reflow Oven Conveyorised
Specifications:
Heating Zone: 3 upper and 2 bottom
Length of heating zone: 960mm
Heating type: intelligent convection and rapid infrared heating
Cooling zone: 1max PCB size 300mm
Operation direction : Left to right
Transport of PCB : Mesh Conveyor transmission
Speed Conveyor : 0-1500 mm/min
Power: 3 theta 5 line 380 V AC 50 Hz
Peak power: 4.5 KW
Initial Heat Up time: 15 min
Temperature Range : room temp to 300 degree C
Control Mode: PID closed loop
Control Accuracy: +-1 C
PCB temperature deviation: +-2C
Dimension: 1500*630*470 mm
Weight: 90Kg approx
