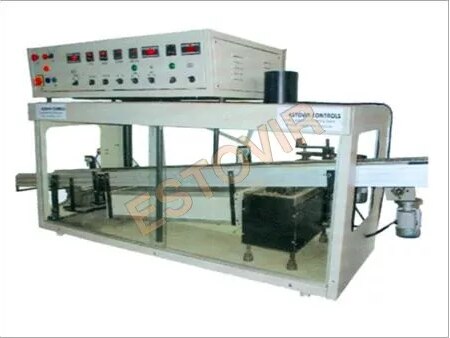

Wave Soldering Machine
Description
We are specialized in the industry by manufacturing and supplying a wide range of Wave Soldering Machine. These are especially assembled for high mass and volume manufacturing in industry. Offered range of Wave Soldering Machine is developed in compliance with defined international standards of quality and durability. In addition to this, we stringently inspect the entire series on the parameters of service life and functionality.
Features:
Consumes less floor space
Long functional life
Convenient operation
Technical Specifications:
Features
Model
WSM 200 (Single Wave)
WSM 300 S (Single Wave)
WSM 300D (Dual Wave)
General
Power Supply
220V AC, 50 Hz 1 Ph, 20A
440V AC, 50 Hz 3 Ph, 27A
440V AC, 50 Hz 3 Ph, 42A
Dimensions(With Vonv. Length)
L-2900 W-850
H-1100 mm
L-3500 W-900
H-1800 mm
L-3500 W-900
H-1800 mm
Weight
180 Kg
320 Kg
380 Kg
Construction
Table Top1
Floor Model
Floor Model
SOLDER BATH
Wave Width
200 mm
300mm
300mm
Solder Bath Capacity
95 Kg
115
115 x 2 = 230Kg
Max. Wave Height
0-8mm
0-8mm
0-8mm
Warm up Time.
60min
70min
70min
Solder Bath Power
2.4Kw
3.0 Kw
3.0 x 2=6.0Kw
FLUXER
Flux Capacity
3 Ltr
4 Ltr
4 Ltr
Air Consumption
3.5 cfm(30 PSI)
4.0cfm(30 PSI)
4.0cfm(30 PSI)
CONVEYOR
Conveyor Speer
0-2.5 M/min
0-2.5 M/min
0-2.5 M/min
Conveyor Angle
5,6,7 degree in Steps
4-10 degree step - less
4-10 degree step - less
PRE-HEATER
Pre Heater Length
800 mm
900 mm
900 mm
Pre Heater Power
2.0 KW
3.0 KW
3.0 KW
