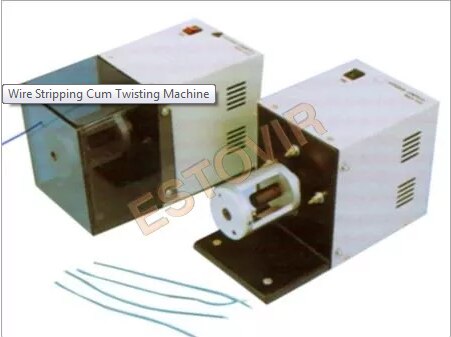

Wire Stripping Cum Twisting Machine

Wire Stripping Cum Twisting Machine

Model AWZ 460

For stripping the insulation of round cables and twisting the strands (of multi strand wires), simultaneously

Inserting the wire in the collect and withdrawing it completes the operation

Simple and fast change over from one wire diameter to another is done by changing the collect according to the wire diameter

Easy adjustment of stripping length

Nick free stripping as the tool does not touch the conductor

Special grade tool steel blade

High quality motor, rated for continues &uninterrupted operation

Dimension (l x w x h)

250 x 130 x 180 mm

Weight

4.0 Kg

Power

220V AC, 50Hz, 50 W

Wire Diameter

1.2 mm to 3.5 mm

Stripping Length

3.0 mm to 25.0

Collect Size available

From 1.4 to 6.0 mm in

step of 0.1 mm

Standard Accessories

Collets : 4 no

Spare Sprin : 5 no

Spare Toold : Bit 1 no

Tool Kit
