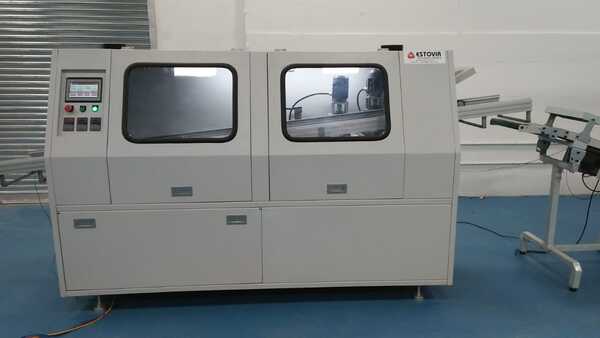

Wave Soldering Machine WSM 300D FEATURES :- GENERAL-  Available in Lead Free Version  Choice of Single or Dual Wave  Independent Controllers  Power Efficient Design Solder Bath –  High Grade Rohs Solder Pot  Solder pump driven by AC 3 ø Motor  Wave Height Control through VFD  PID controller for accurate temperature control  Interval sensor with Digital Timer PRE-HEATER-  Ceramic Glass top for high efficiency IR transfer  PID controller for 2 stage accurate temperature control FOAM FLUXER WITH AIR KNIFE-  High Grade construction with air knife  Special 2-micron Foaming Tube  Interval sensor with Digital Timer  Fitted with Air filter, regulator & indicator  External air supply required CONVEYOR-  Chain Type Conveyor  High Grade aluminium profile  Conveyor driven by AC 3 ø Motor  Conveyor speed Control through VFD  Step less angle adjustment

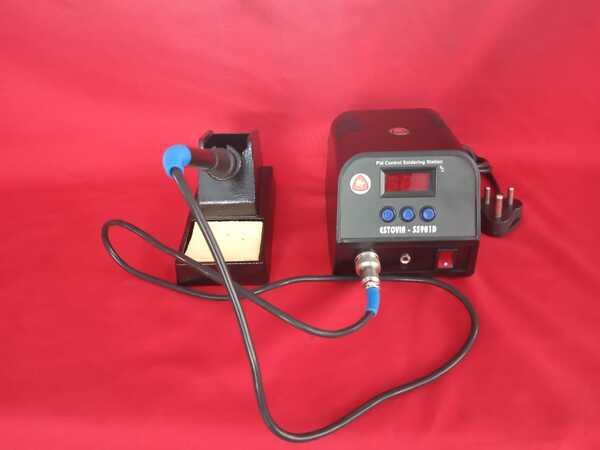

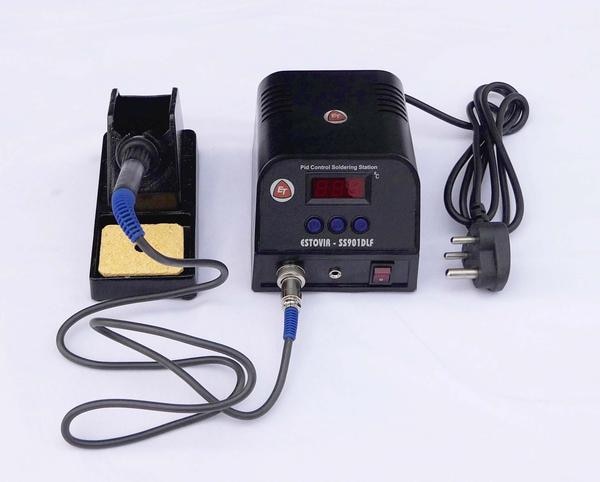

Digital Display Lead-Free Soldering Station 60W The Digital Soldering Station 60W by Estovir Technologies ensures precision and efficiency in electronics repair and PCB assembly. Designed for durability and accuracy, it features advanced temperature control, rapid ceramic heating, and an easy-to-read LED display. Ideal for DIY electronics projects and professional use. Specifications: • Model: SS60W • Weight: 5 kg • Input Voltage: 220V AC ±10% 50Hz • Power Consumption: 60W (Max.) • Temperature Control Range: 150°C to 450°C (302°F to 842°F) • Output Voltage: 28V AC • Temperature Stability: ±1°C (Static) • Display: 7-Segment LED Display • Max. Surrounding Temperature: 40°C • Calibration Method: Digital Calibration • Calibration Temperature Range: 50°C to -50°C (122°F to -58°F) • Ground Impedance: < 2Ω • Ground Voltage: < 2mV • Heating Element: Ceramic Heating Core Product Features: • 7-Segment LED Display: Displays temperature clearly for easy monitoring. • Efficient Heating: Ceramic heating core ensures fast heat-up times and stable operation. • Precision Control: Uses PID power control and MCU-based temperature regulation for accuracy. • Durable Construction: High-temperature braided material enhances longevity and performance. • User-Friendly Display: Temperature shown in Celsius for operator convenience. • Rapid Calibration: Computerized Temperature Calibration corrects discrepancies quickly.

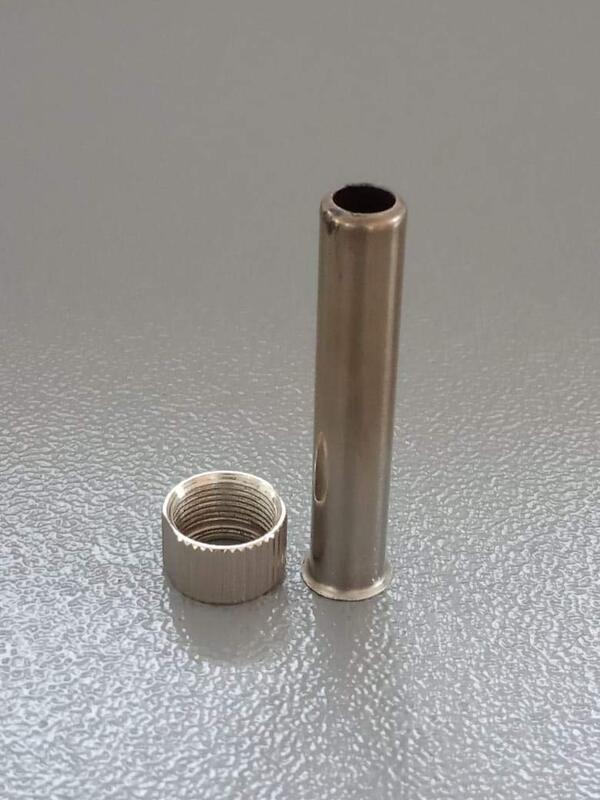

Nut Barrel For Soldering Station 60W Specifications for this item Brand Name - Generic Part Number - NB 60W Size - 60 Watt

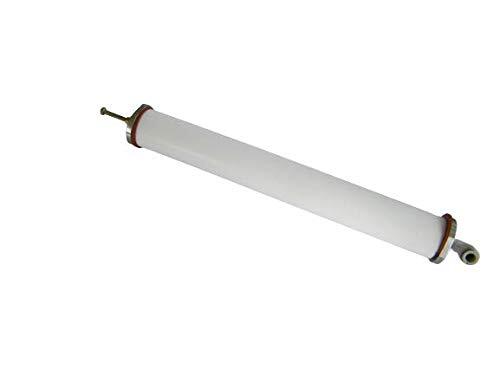

FLUX FOAMING Candle (FLUX AERATOR) FOR WAVE SOLDERING MACHINE Can be used with all brands of soldering machine Air hole size 10 micron, Flux bulb diameter is around 1 mm. Long working life, short time delivery Standard length 300 mm. and 500 mm. The length can be cut according to your requirement (Max. 500 mm.) The Caps and Air Connector can be designed to be ease and convenience for your maintenance

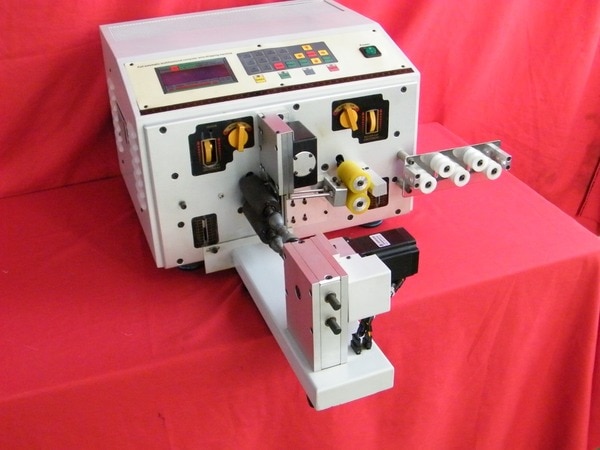

FEATURES & SPECIFICATIONS : Suitable for Cutting and Stripping operation Twisting option available in Model AWS 220 T Can feed & cut two wires High Speed and accuracy Cutting Length 0.1 to 9999mm Stripping Length 0.1 to 99 mm (As per wire material) Twisting Length 0.1 to 99 mm (As per wire material) Wire Diameter AWG 16 to 32 Power 220 V AC, 50 Hz, 200W Dimensions L-570mm W- 380mm H-440mm Weight 40 Kg Productivity Wire Length 100mm - 8420pcs/hr, 500mm-5380pcs/hr, 1000mm-3720pcs/hr

We are the Manufacture of Digital Display SMD Rework Station in Gurgaon.

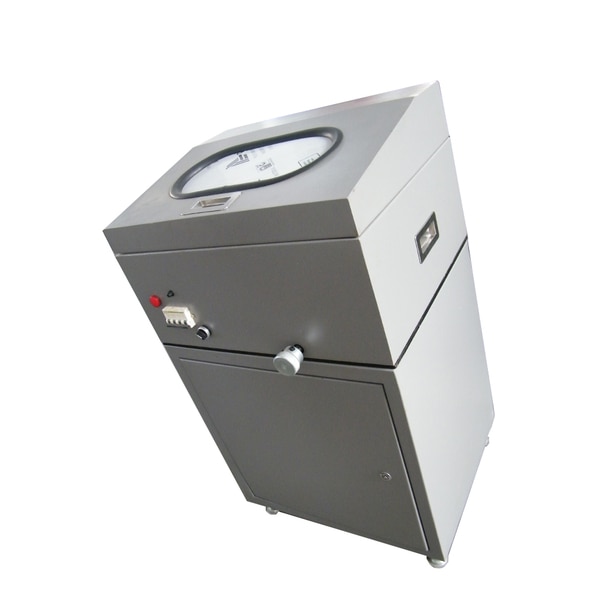

BLADE Sharping Machine LC G250 Features & Specifications Blade cutter grinder is a grinding equipment for tungsten steel blades of circuit board cutting machine. Complete enclosed design, grinding dust to be discharged and collected. Use of high precision parts, Diamond grinding wheel, good grinding consistency. Adjustable grinding angle, smooth speed, low noise and high efficiency. Angle of sharpening 18o - 25o Dimension of blade Max. Ø250 Speed of blade revolving 2500 RPM Grinding Wheel Type Diamond Wheel Power Supply AC 220V, 50Hz Weight 125 Kg.

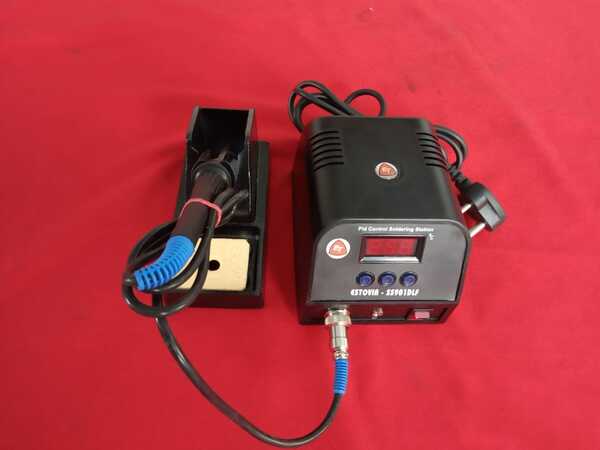

We are the Manufacture of Digital Display Lead Free Soldering in Gurgaon.

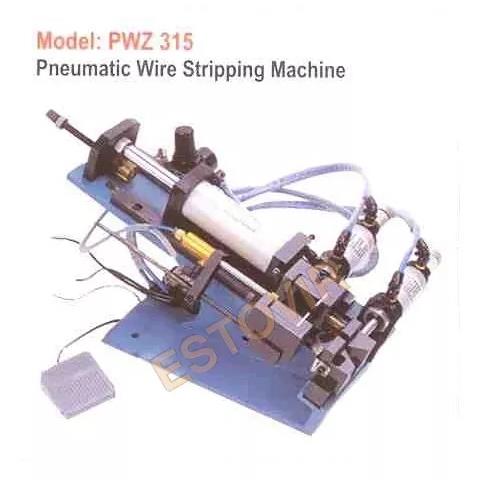

Pneumatic Wire Stripping Machine Model AWZ 305 AWZ 310 AWZ 315 Stoke Length 50mm 100mm 150mm Wire Stripping Cap. Max 5.0 mm Max 15.0 mm Max 20.0 mm Power 220V AC, 50 Hz 220V AC, 50 Hz 220V AC, 50 Hz Air Pressure 3-7 Kg/cm sq 3-7 Kg/cm sq 3-7 Kg/cm sq Output Power 31-73 Kg 49-115 Kg 84-196 Kg Air Cylinder Dial 40.0 mm Dial 50.0 mm Dial 63.0 mm Dimensions(mm) L-400 W-300 H-270 L-480 W-330 H-280 L-600 W-420 H-360 Weight 20 Kg 25 Kg 45 Kg
