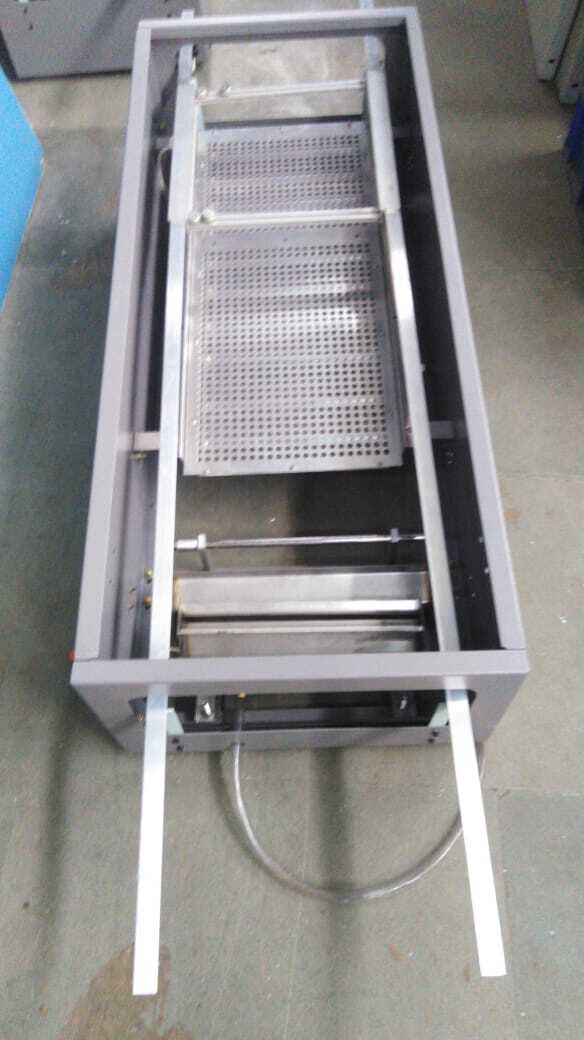

FEATURES & SPECIFICATIONS : For fluxing and Pre heating PCB's before soldering Carrier supplied compatible with Model DIP 905 Manual carrier movement on conveyor rails Digital Temperature controller for pre-heater General Dimensions in mm : L-775 W-525 H-375 Weight : 20 Kg Flux Bath Capacity : 4.0 ltrs Foam Width : 14” Foam Height : 10mm Flux Bath & Air Knife Air Consumption : 40 cfm at 30psi Pre-Heater Power Supply : 220 V AC, 50 Hz, 1.6 KW Standard Accessories PCB Carrier : 1 No Utilities Power Connection : 15 Amp Power Point Air Supply Compressed Air with FR

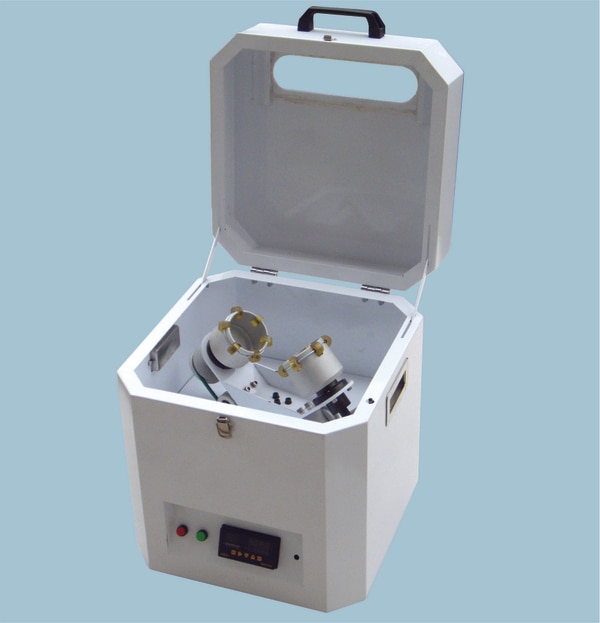

Solder Paste Mixer EMS 500 SM • Unique contoured shape,generous appearance and practical which is made by advanced coating process workmanship. • Mixing principalis on the basis of motor rotation and revolution, no need to defrost the paste. Paste needs to berecovered in short time,then the solder can beusedafterstirnng well anddeforming. • Okay for allbrandsof 500 gm paste,mixingwith two cansat a time, making the process efficient. • Paste box does not need to be opened during stirring. This prevents oxidation and water vapour absorption. • Closed stirring can fix running time,ensure softness of paste,andstirringold andnew paste makes new active paste. • High degree of automation, stable performance, easy to operate, high safety factor and easy maintenance. • Applies to Omrontime relay controller, reliable andeasy to operate. Revolution speed 600 rpm Rotation speed 350 rpm Motor 1P AC 220 V 50/60 Hz,40 W Power 1P AC 220 V 50/60 Hz Mixing method Centrifugalmixing Mixing angle 45 (oblque) Mixing capacity Two cans 500 gm each Weight 40 kg approx. Dimensions 400x400x480 mmTlme0-9 hr

Wave Soldering Machine WSM 300D FEATURES :- GENERAL-  Available in Lead Free Version  Choice of Single or Dual Wave  Independent Controllers  Power Efficient Design Solder Bath –  High Grade Rohs Solder Pot  Solder pump driven by AC 3 ø Motor  Wave Height Control through VFD  PID controller for accurate temperature control  Interval sensor with Digital Timer PRE-HEATER-  Ceramic Glass top for high efficiency IR transfer  PID controller for 2 stage accurate temperature control FOAM FLUXER WITH AIR KNIFE-  High Grade construction with air knife  Special 2-micron Foaming Tube  Interval sensor with Digital Timer  Fitted with Air filter, regulator & indicator  External air supply required CONVEYOR-  Chain Type Conveyor  High Grade aluminium profile  Conveyor driven by AC 3 ø Motor  Conveyor speed Control through VFD  Step less angle adjustment

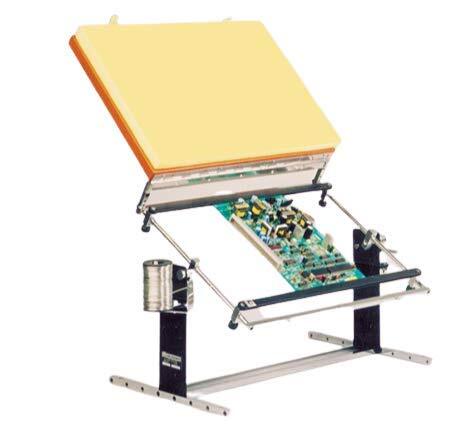

PCB Assembly Jig PAJ 450 400X300mm

Nut Barrel For Soldering Station 60W Specifications for this item Brand Name - Generic Part Number - NB 60W Size - 60 Watt
