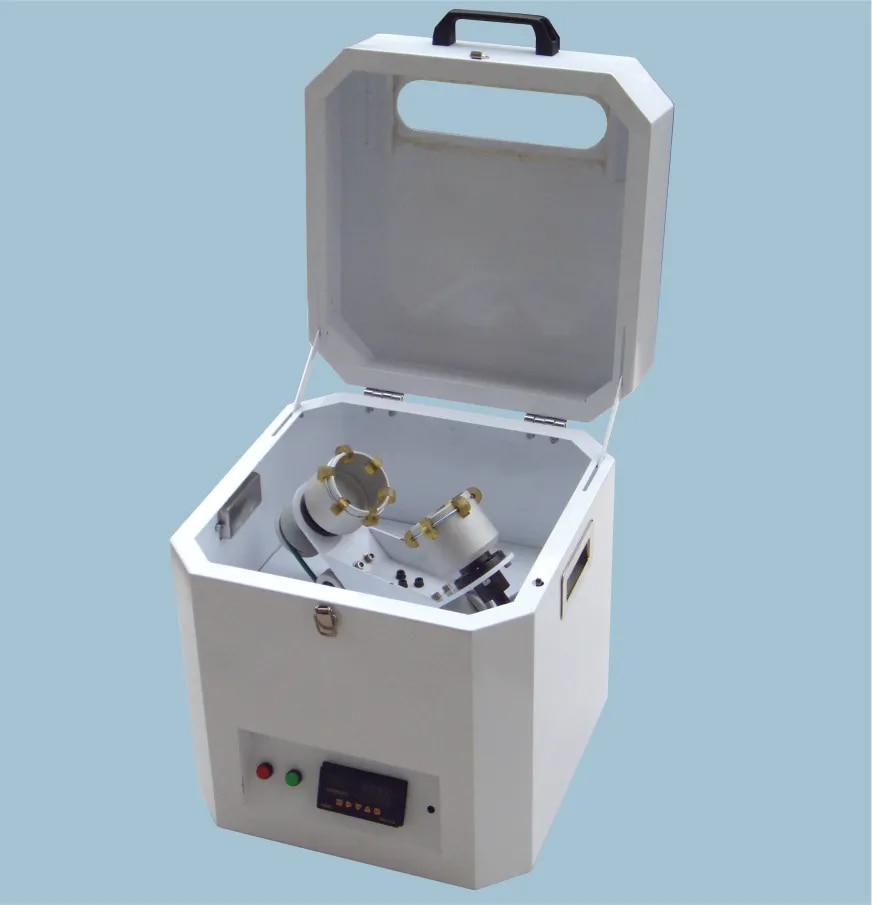

Solder Paste Mixer EMS 500 SM

Solder Paste Mixer EMS 500 SM

• Unique contoured shape,generous appearance and practical which is made by advanced coating process workmanship.

• Mixing principalis on the basis of motor rotation and revolution, no need to defrost the paste. Paste needs to berecovered in short time,then the solder can beusedafterstirnng well anddeforming.

• Okay for allbrandsof 500 gm paste,mixingwith two cansat a time, making the process efficient.

• Paste box does not need to be opened during stirring. This prevents oxidation and water vapour absorption.

• Closed stirring can fix running time,ensure softness of paste,andstirringold andnew paste makes new active paste.

• High degree of automation, stable performance, easy to operate, high safety factor and easy maintenance.

• Applies to Omrontime relay controller, reliable andeasy to operate.

Revolution speed 600 rpm

Rotation speed 350 rpm

Motor 1P AC 220 V 50/60 Hz,40 W

Power 1P AC 220 V 50/60 Hz

Mixing method Centrifugalmixing

Mixing angle 45 (oblque)

Mixing capacity Two cans 500 gm each

Weight 40 kg approx.

Dimensions 400x400x480 mmTlme0-9 hr
