Wave Soldering Machine WSM 300D FEATURES :- GENERAL-  Available in Lead Free Version  Choice of Single or Dual Wave  Independent Controllers  Power Efficient Design Solder Bath –  High Grade Rohs Solder Pot  Solder pump driven by AC 3 ø Motor  Wave Height Control through VFD  PID controller for accurate temperature control  Interval sensor with Digital Timer PRE-HEATER-  Ceramic Glass top for high efficiency IR transfer  PID controller for 2 stage accurate temperature control FOAM FLUXER WITH AIR KNIFE-  High Grade construction with air knife  Special 2-micron Foaming Tube  Interval sensor with Digital Timer  Fitted with Air filter, regulator & indicator  External air supply required CONVEYOR-  Chain Type Conveyor  High Grade aluminium profile  Conveyor driven by AC 3 ø Motor  Conveyor speed Control through VFD  Step less angle adjustment

FEATURES & SPECIFICATIONS : Suitable for Cutting and Stripping operation Twisting option available in Model AWS 220 T Can feed & cut two wires High Speed and accuracy Cutting Length 0.1 to 9999mm Stripping Length 0.1 to 99 mm (As per wire material) Twisting Length 0.1 to 99 mm (As per wire material) Wire Diameter AWG 16 to 32 Power 220 V AC, 50 Hz, 200W Dimensions L-570mm W- 380mm H-440mm Weight 40 Kg Productivity Wire Length 100mm - 8420pcs/hr, 500mm-5380pcs/hr, 1000mm-3720pcs/hr

We are the Manufacture of Digital Display Lead Free Soldering in Gurgaon.

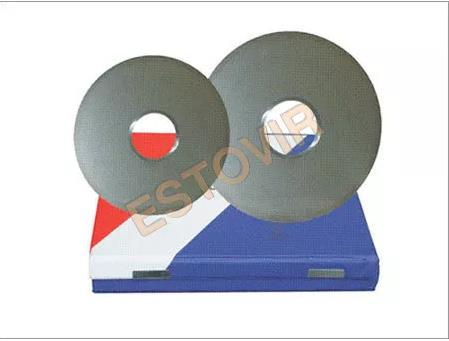

PCB Leading Cutting MC Model D (mm) D (mm) T (mm) Ao LC TC 200 200 70 3.5 18o to 25o LC TC 250 250 70 3.5 18o to 25o
