Automatic Loose Radial Lead Cutter – ARP 366

Automatic Loose Radial Lead Cutter – ARP 366 by Estovir Technologies

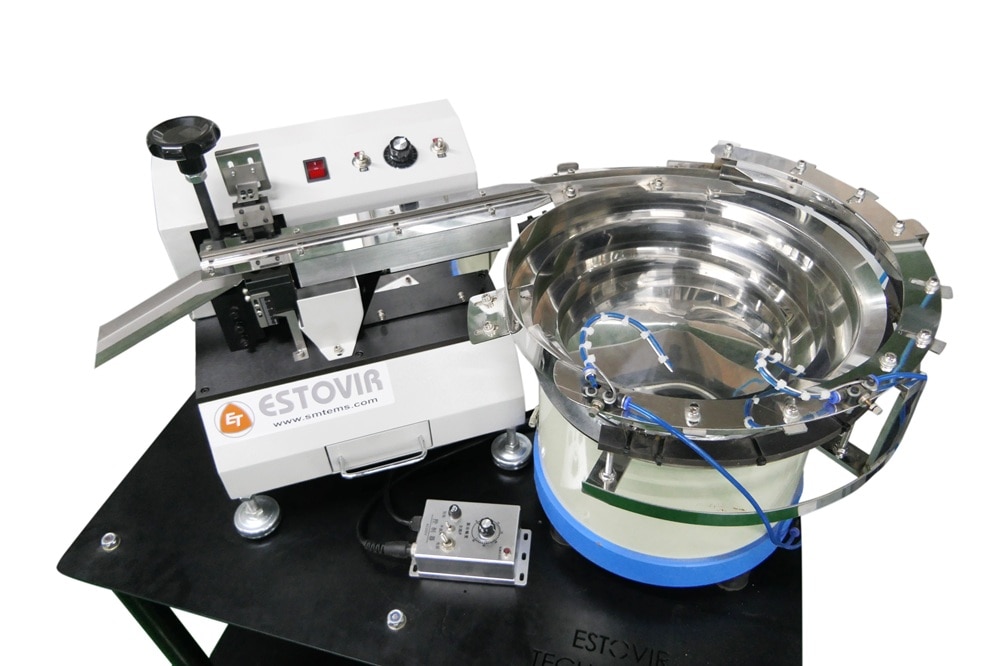

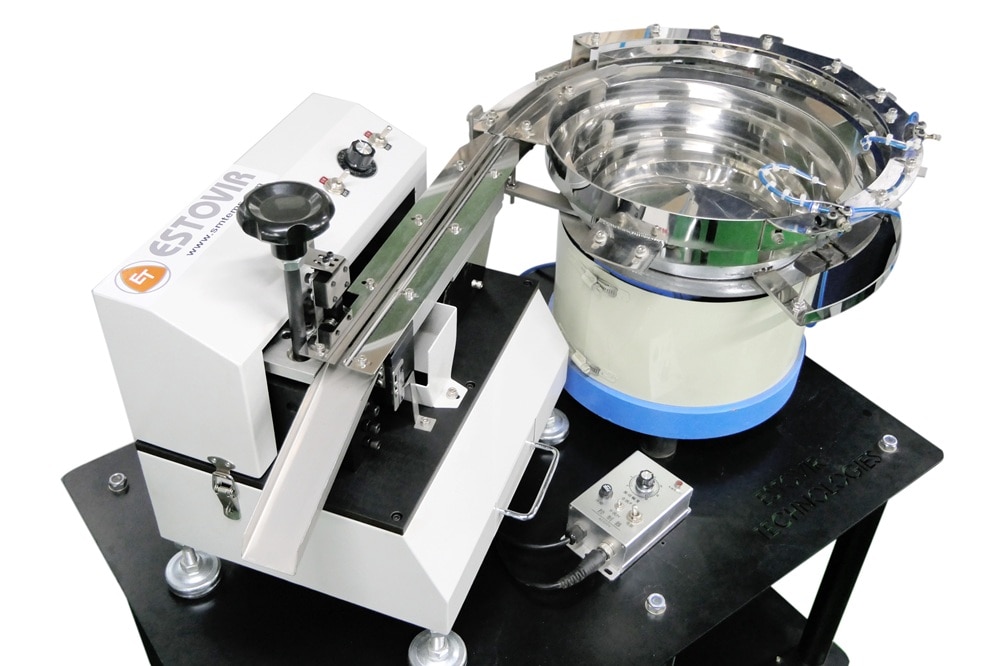

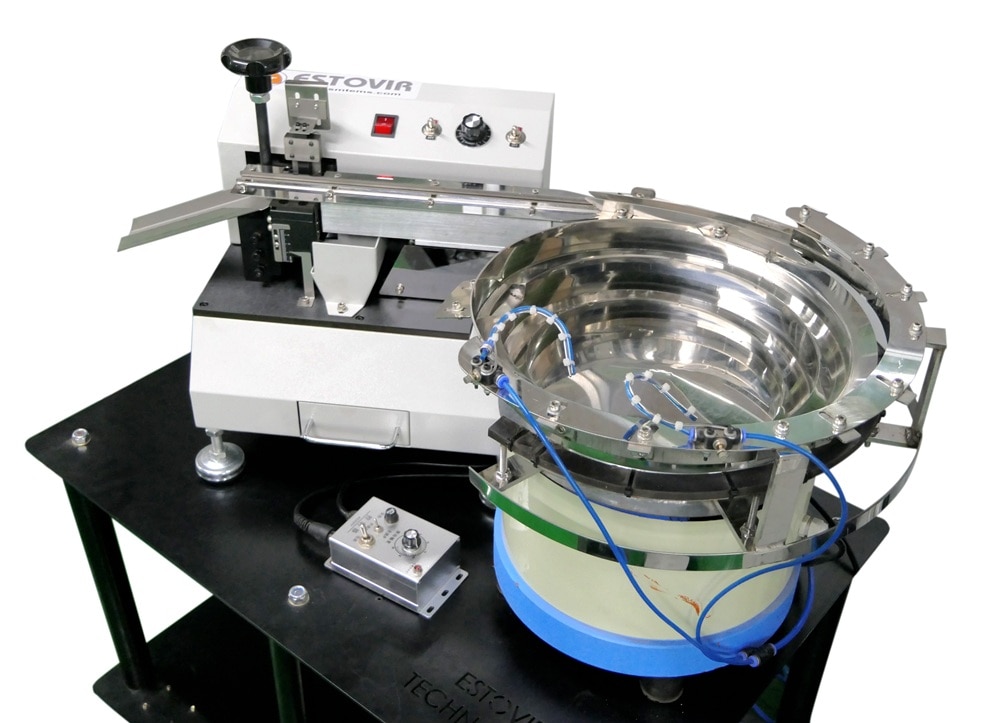

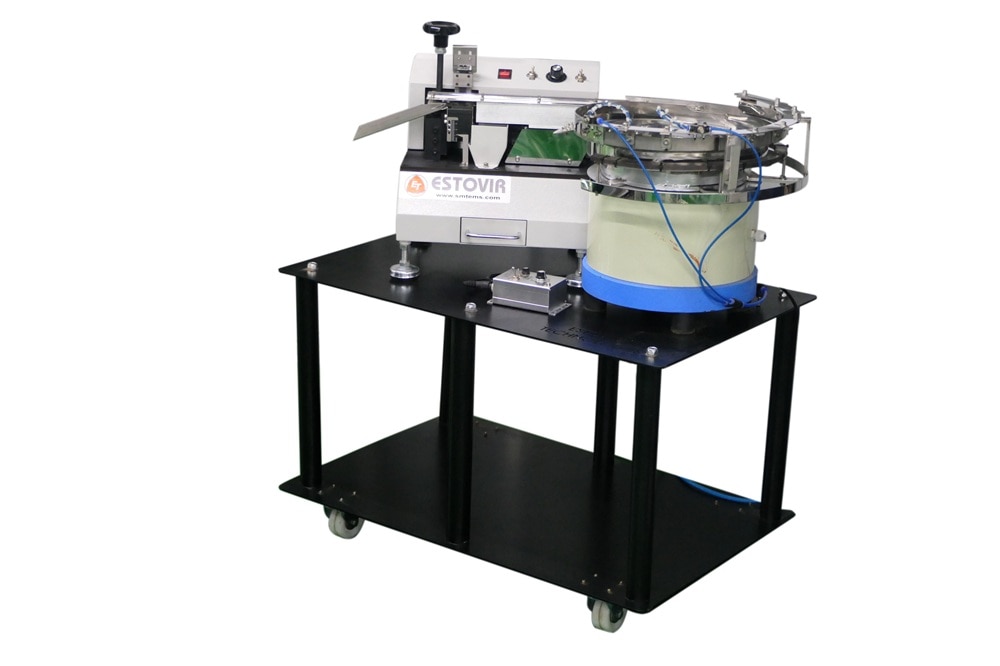

The ARP 366 Automatic Loose Radial Lead Cutter by Estovir Technologies is a high-performance machine engineered for capacitor and loose radial component processing. Designed for mass production environments, it automates the trimming of radial component leads with remarkable precision. With an impressive output capacity of 2500–4000 pcs/hr, the ARP 366 boosts productivity while maintaining accuracy and reliability. Built with a sturdy industrial-grade frame, this 145 kg unit is ideal for factory floor integration in large-scale electronics manufacturing.

Technical Specfication

Model: ARP 366

Component Types: Capacitors, LED & Loose Radial Components

Component Body Diameter: 3–15 mm

Component Height: 3–18 mm

Lead Diameter: Ø0.4 – Ø1.0 mm

Output Capacity: 2500–4000 pcs/hr

Bowel Feeder Diameter: Ø 380 mm

Air Pressure: 30 PSI

Power Supply: 220V AC, 50 Hz

Dimensions: 830 × 550 × 1100 mm

Weight: 145 Kg

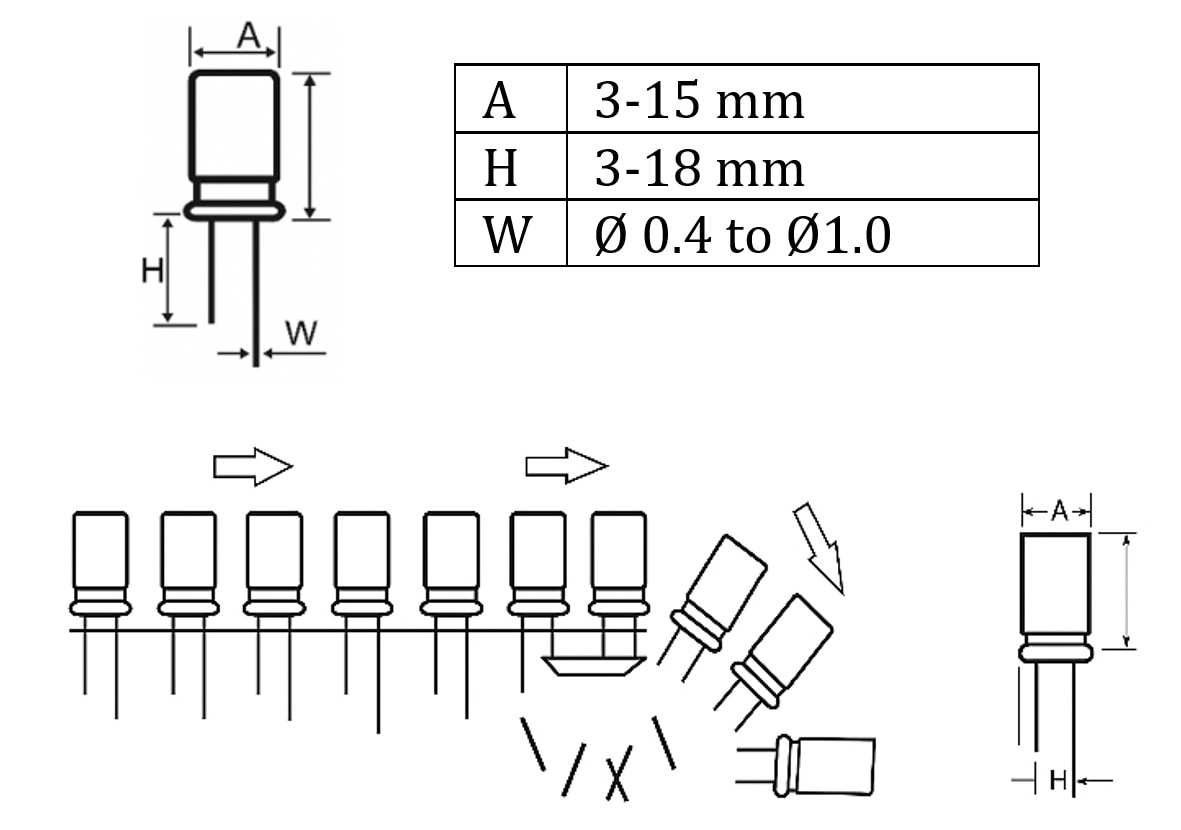

Components Forming Specification:

A (Component Body Diameter): 3–15 mm

H (Component Height): 3–18 mm

W (Lead Diameter): Ø 0.4 – Ø1.0 mm

Key Features of Automatic Loose Radial Lead Cutter – ARP 366

High-Speed Cutting

Consistent output of 2500–4000 pcs/hr.

Maintains precision without slowing down production.

Wide Compatibility

Handles body diameters of 3–15 mm and height of 3–18 mm.

Supports lead diameters from Ø0.4 – Ø1.0 mm.

Precision Mechanism

Ensures uniform, damage-free cuts.

Optimized for delicate components like capacitors.

Heavy-Duty Design

Industrial-grade structure for continuous use.

Withstands long production cycles without performance drop.

Compact & Efficient Integration

Small footprint (830 × 550 × 1100 mm) saves space.

Easy relocation and setup on existing production lines.

Advanced Bowl Feeder System

Ø 380 mm feeder bowl ensures stable feeding.

Reduces downtime by automating component flow.

User-Friendly Operation

Equipped with a simple control panel.

Quick adjustments with minimal operator training.

Applications of Automatic Loose Radial Lead Cutter – ARP 366

Capacitor and loose radial component processing in mass production.

PCB and electronics manufacturing lines requiring precise trimming.

Consumer electronics component preparation and lead cutting.

Industrial electronic assembly units with continuous operations.

Automated capacitor packaging and sorting facilities.

Automated capacitor packaging facilities

Why Choose Automatic Loose Radial Lead Cutter – ARP 366

High-speed cutting with 2500-4000pcs/hrs output.

Precise, uniform cuts without component damage.

Heavy-duty design for continuous industrial use.

Compact footprint for easy production line integration.

User-friendly controls for quick setup and operation.

Trusted by global electronics manufacturers.
