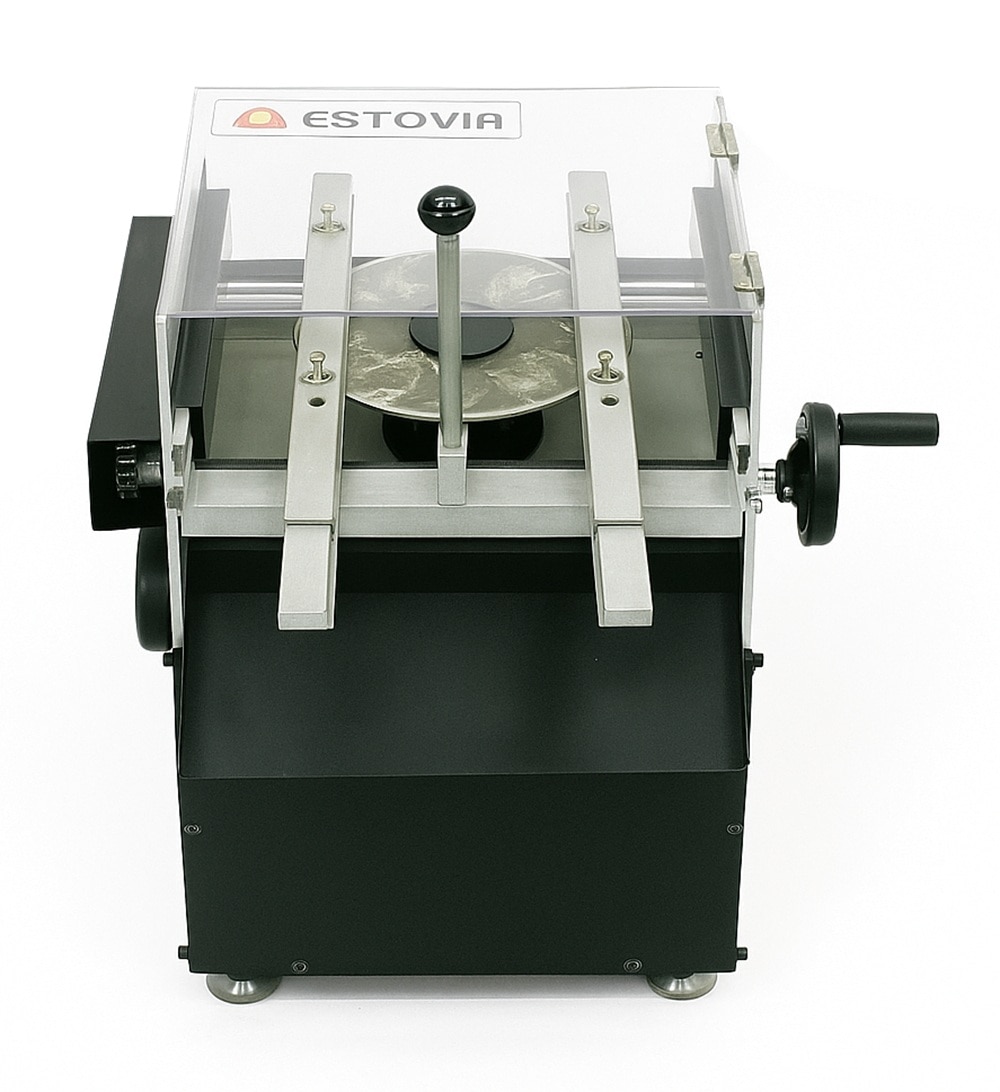

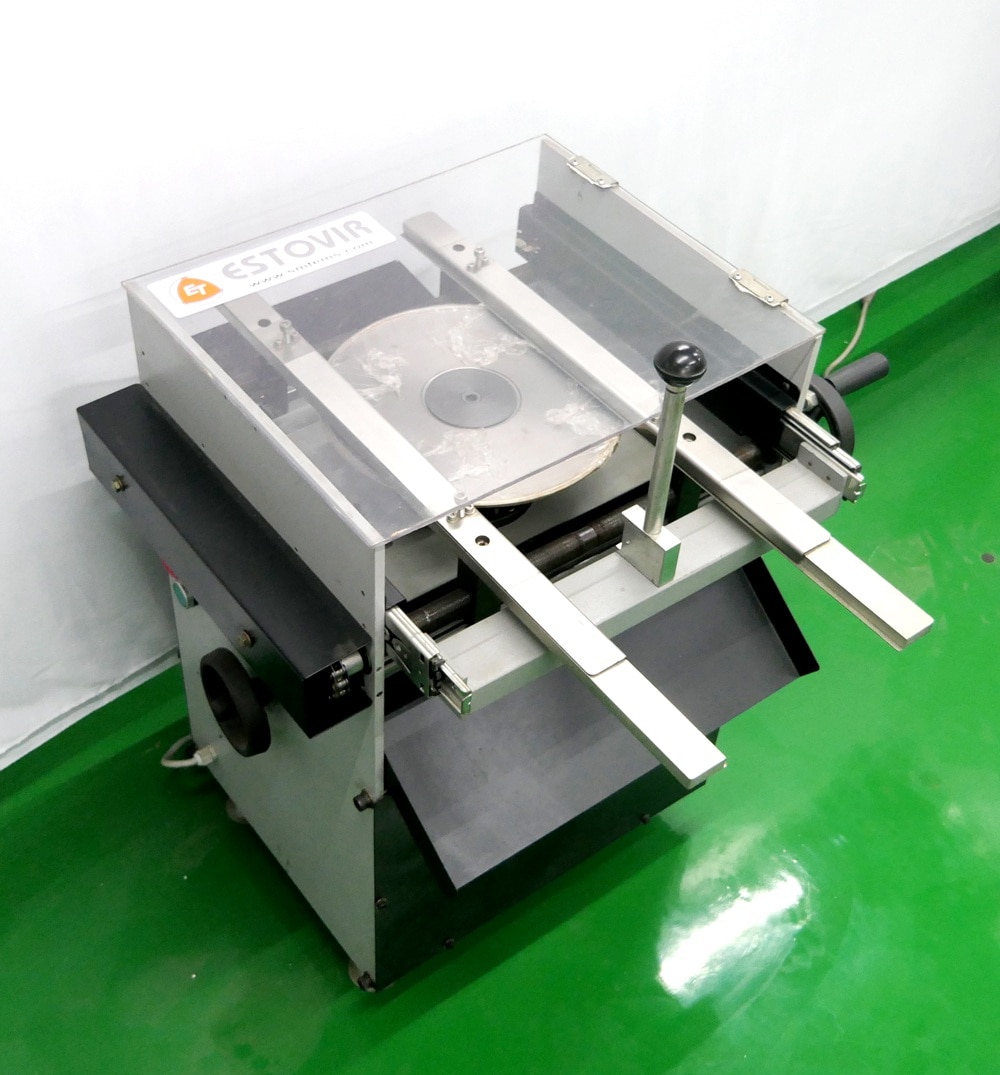

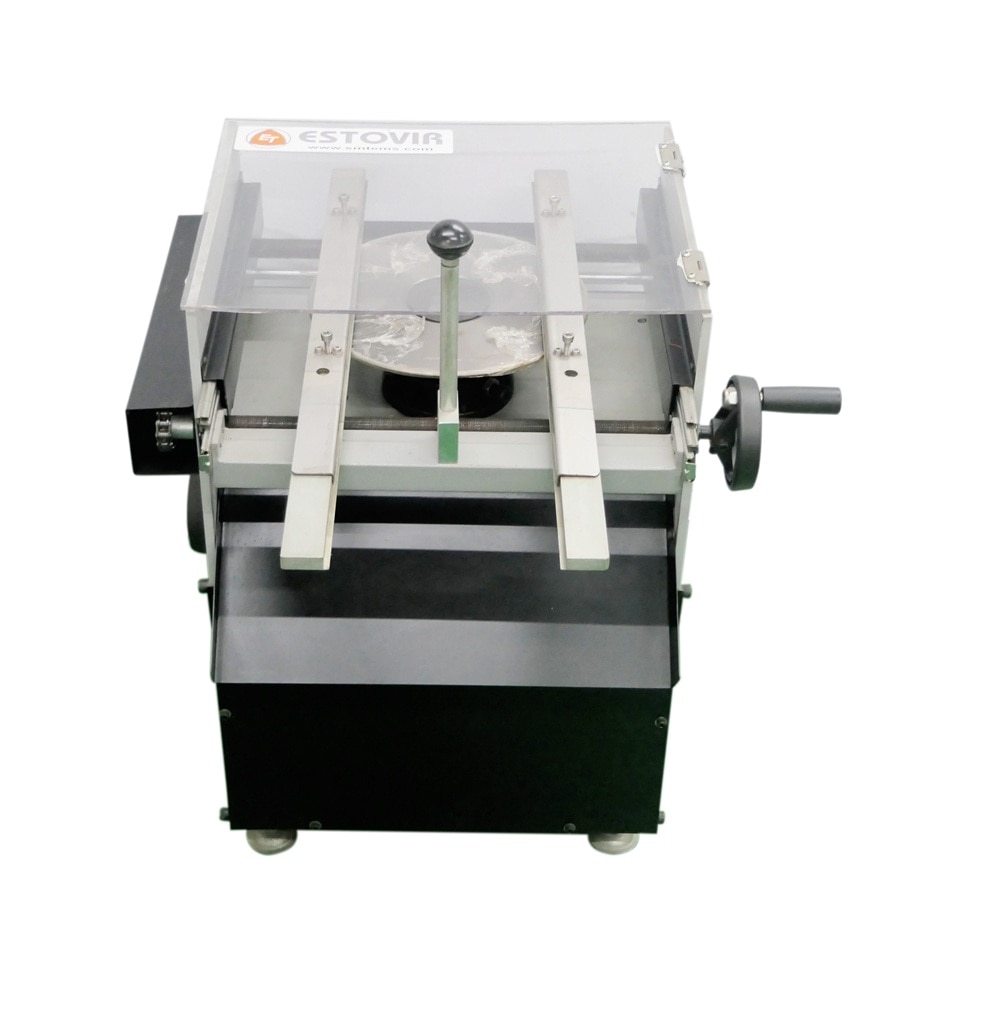

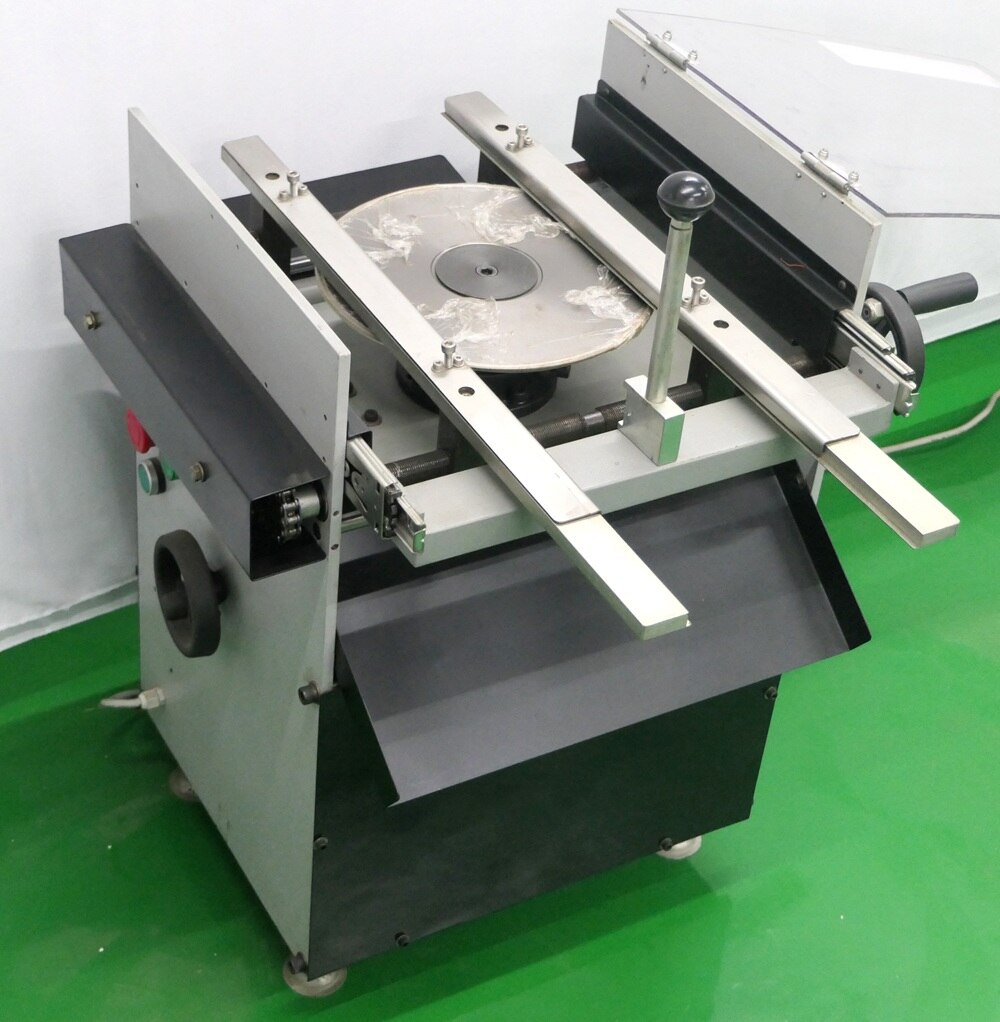

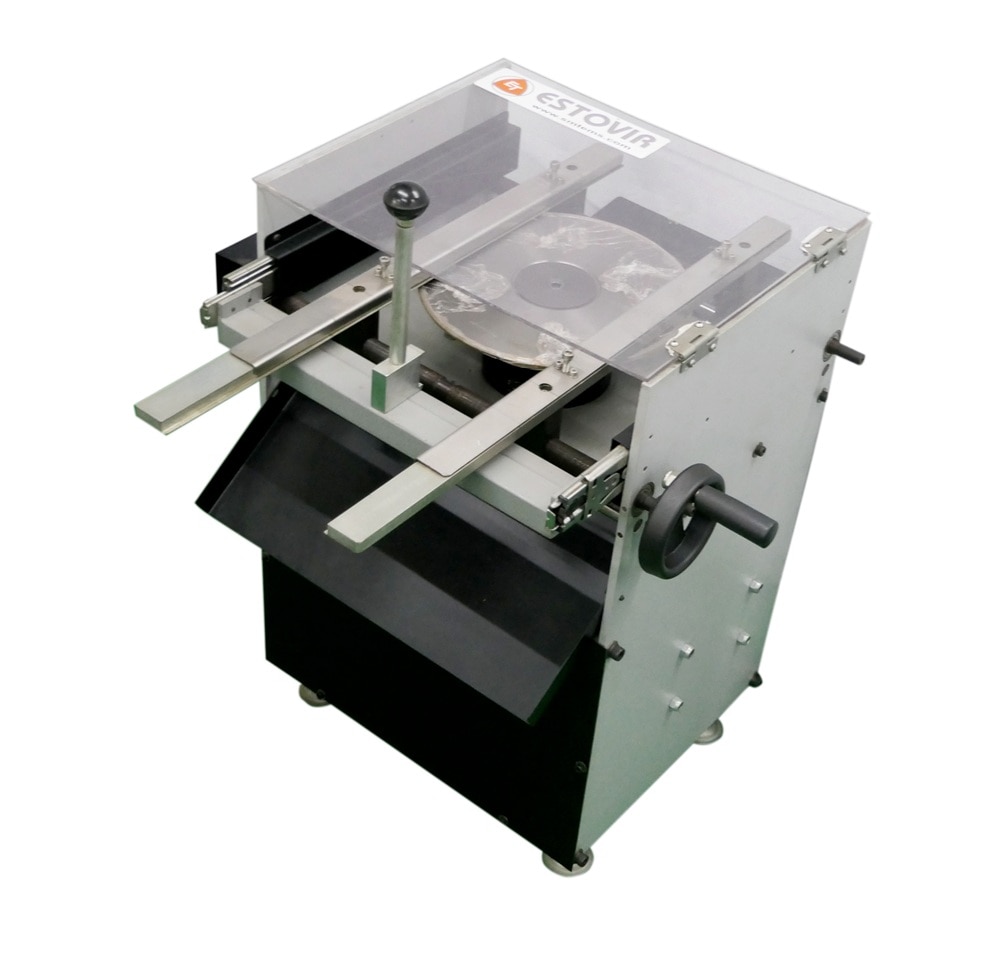

Manual Feed PCB Lead Cutting Machine - LC M66 by Estovir Technologies
Overview Manual Feed PCB Lead Cutting Machine - LC M66
The LC M66 Manual Feed PCB Lead Cutting Machine by Estovir Technologies is specially designed for trimming excess leads from printed circuit boards (PCBs) after the soldering process. Operated manually with a push handle, it ensures safe, accurate, and consistent cutting. Equipped with a high-speed tungsten carbide blade (LC TC 250), the LC M66 delivers smooth, damage-free cutting performance for PCB sizes up to 500 × 300 mm and thicknesses of 0.8–2.5 mm. Compact and efficient, this machine is ideal for small to medium-scale PCB assembly units.
Technical Specification
Model: LC M66
Operation Type: Manual Feed (push-handle)
Cutting Blade: LC TC 250 Tungsten Carbide (Ø250 mm OD, 70 mm ID, Thickness 3.5 mm)
PCB Thickness: 0.8 – 2.5 mm
Max PCB Size: 500 × 300 mm
Cutting Height: 0.6 mm minimum
Spindle Speed: 4500 RPM
Main Motor Power: ½ HP
Power Supply: 220V AC, 50 Hz
Machine Weight: 95 Kg
Key Features of Manual Feed PCB Lead Cutting Machine - LC M66
Manual Feed Design
Operators can easily guide PCBs using the push-handle, ensuring safe, consistent, and controlled cutting.
Tungsten Carbide Blade (LC TC 250)
Equipped with a high-performance carbide blade (Ø250 mm) that delivers clean cuts and can be re-sharpened for longer service life.
Accurate Post-Solder Cutting
Guarantees uniform lead trimming without damaging solder joints or PCB surfaces, making it suitable for delicate boards.
Durable Industrial Build
With a strong 95 Kg frame, the LC M66 offers vibration-free operation and long-lasting reliability.
Cost-Effective & Easy to Operate
Compact, low-maintenance design with minimal power requirement (½ HP motor) makes it ideal for small to medium-scale manufacturers.
Why Choose LC M66?
Reliable cutting performance with manual control.
Ensures clean, accurate trimming of soldered PCBs.
Safe operation with push-handle feed design.
Uses long-life, re-sharpenable LC TC 250 blades.
Applications of Manual Feed PCB Lead Cutting Machine - LC M66
PCB assembly lines (small & mid-scale)
Consumer electronics manufacturing
LED and lighting PCB processing
Automotive electronics assembly
Specifications
| LC | LC M66 |
|---|---|
| Max PCB Size | 0.6 mm minimum |
| Max PCB Size | 500 × 300 mm |
| LC TC 250 Tungsten Carbide (Ø250 mm OD, 70 mm ID, Thickness 3.5 mm) | 0.8 – 2.5 mm |
| Cutting Blade | LC TC 250 Tungsten Carbide (Ø250 mm OD, 70 mm ID, Thickness 3.5 mm) |
| Operation Type | Manual Feed (push-handle) |
| Power Supply | 220V AC, 50 Hz |
| Dimension | 680 X 600 X 650 mm |
| 4500 RPM | ½ HP |
| Spindle Speed | 4500 RPM |
| Weight | 95 Kg |
