Automatic PCB Lead Cutting Machine – LC A66

Automatic PCB Lead Cutting Machine – LC A66

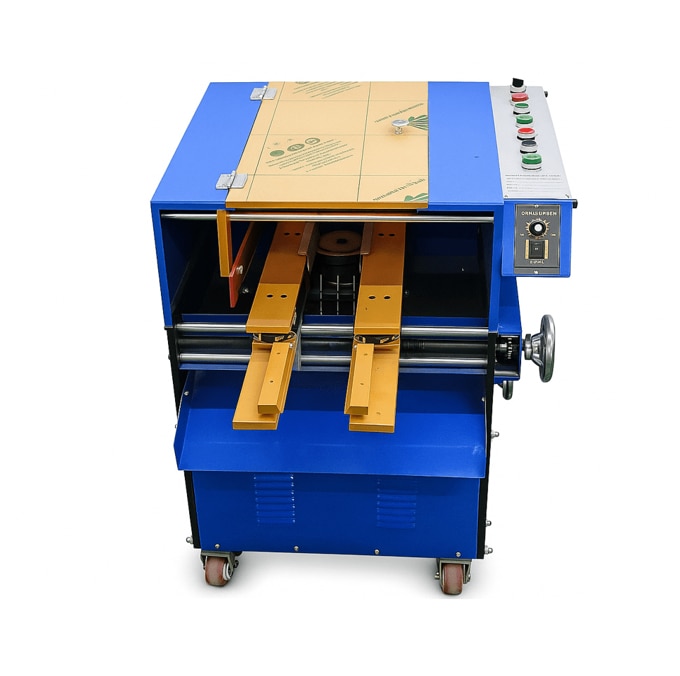

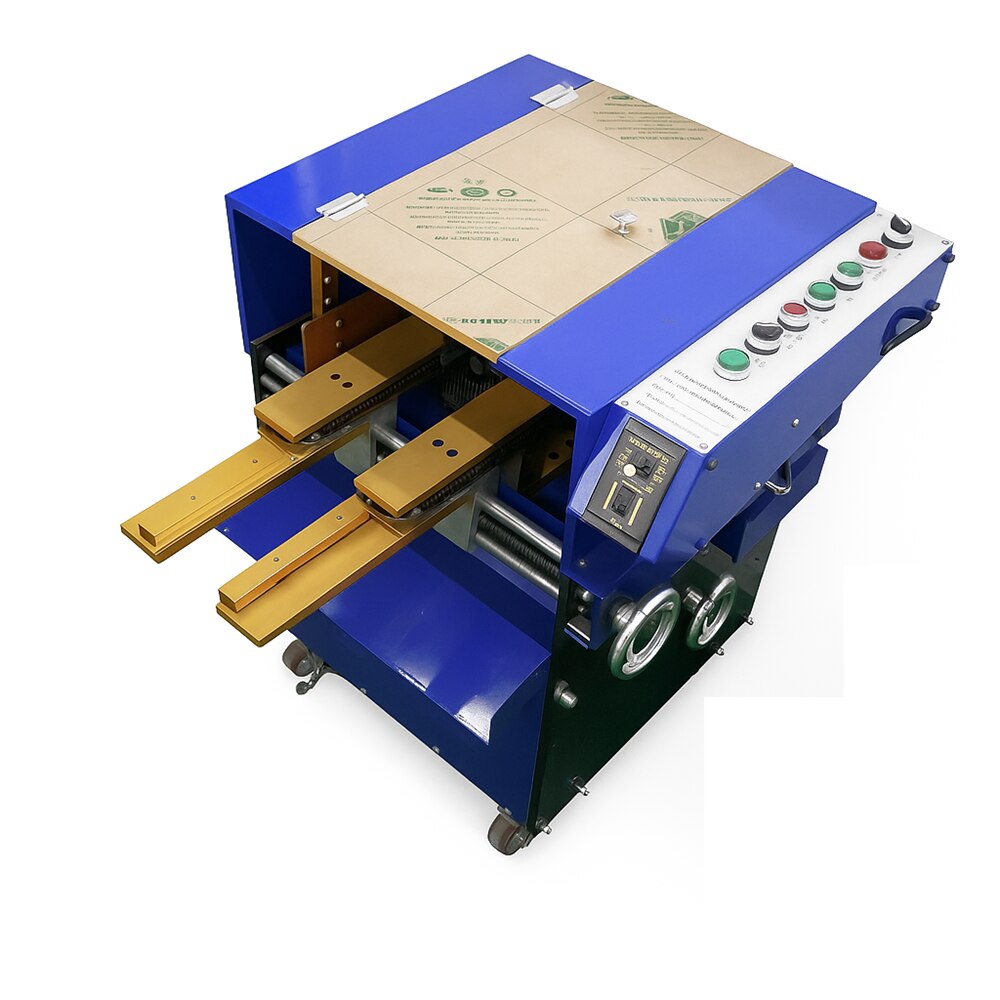

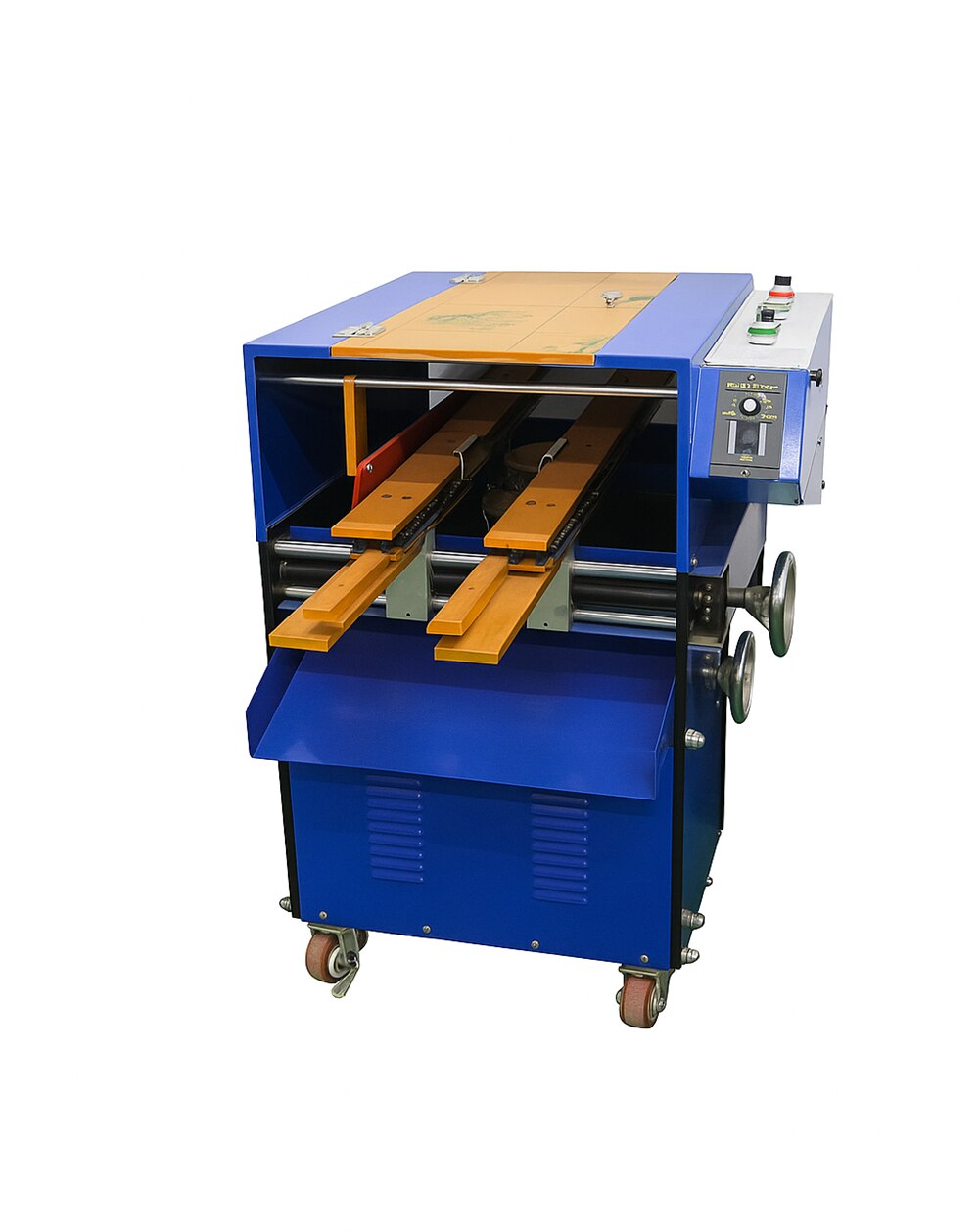

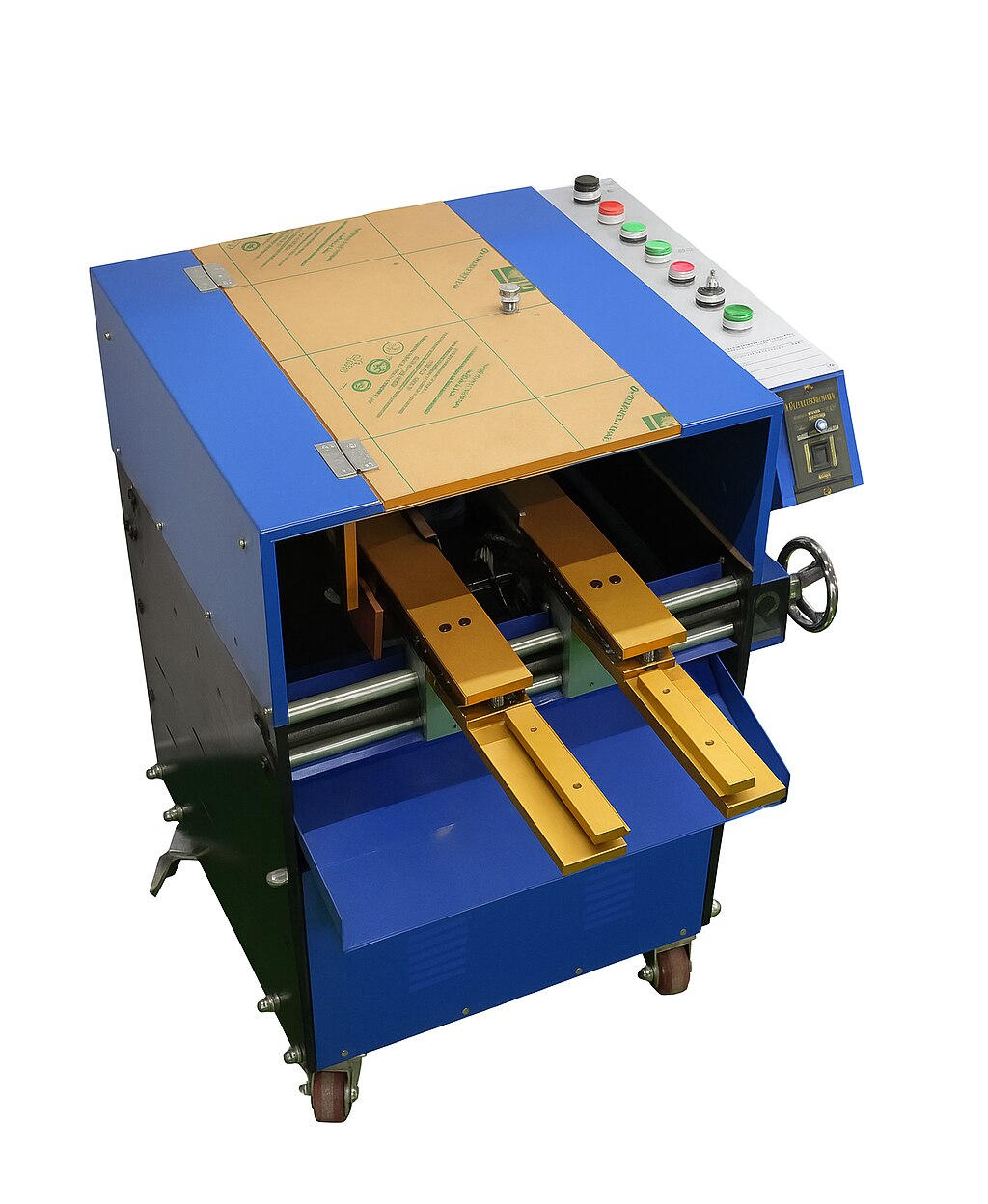

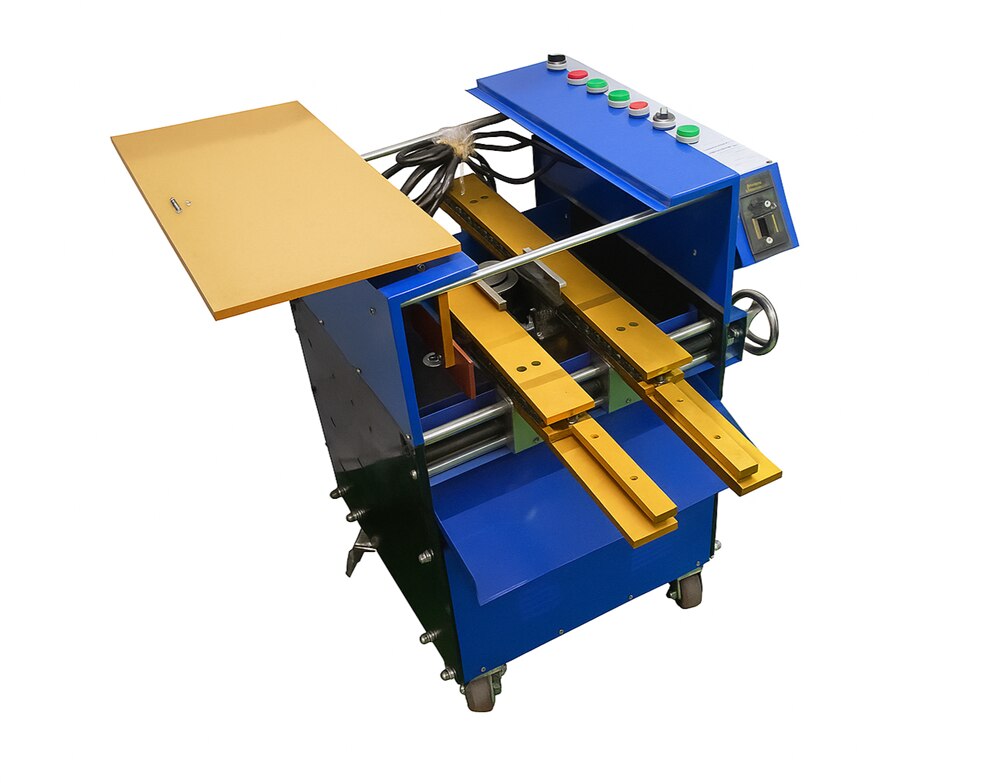

The LC A66 Automatic PCB Lead Cutting Machine by Estovir Technologies is engineered for post-solder lead trimming in high-volume PCB assembly lines. Using a conveyor chain mechanism, the machine automatically clamps and transports PCBs towards a high-speed tungsten carbide blade (LC TC 250) for accurate and uniform lead cutting. Built with a wrap prevention device, it ensures damage-free processing, making it the perfect choice for electronics, consumer goods, and automotive PCB manufacturing. With a spindle speed of 4500 RPM and adjustable conveyor control, the LC A66 delivers unmatched speed, safety, and precision.

Specifications

Model: LC A66

Operation Type: Automatic (conveyor-based feed)

Cutting Blade: LC TC 250 Tungsten Carbide (Ø250 mm OD, 70 mm ID, Thickness 3.5 mm)

PCB Thickness: 0.8 – 2.5 mm

Max PCB Size: 500 × 300 mm

Cutting Height: 0.6 mm minimum

Spindle Speed: 4500 RPM

Main Motor Power: ¾ HP

Conveyor Speed: 0–3 m/min (adjustable)

Power Supply: 220V AC, 50 Hz

Dimensions: 740 X 565 X 755 mm

Machine Weight: 115 Kg

Key Features of Automatic PCB Lead Cutting Machine LC A66

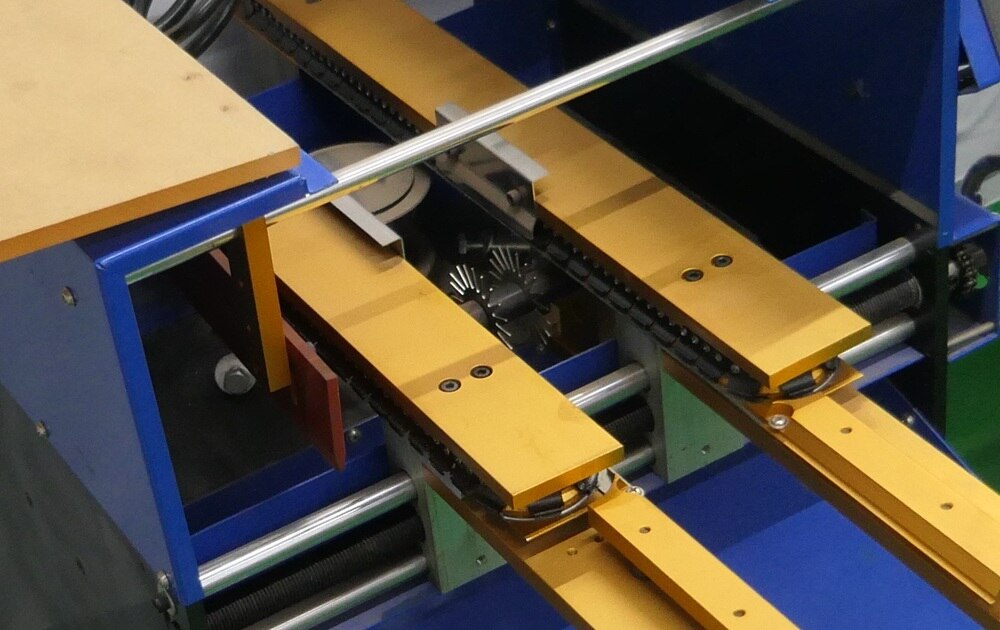

Automatic PCB Transportation

Conveyor chain clamps securely hold and transport PCBs into the cutting blade.

Reduces manual handling and boosts efficiency in production lines.

High-Speed Tungsten Carbide Blade (LC TC 250)

Equipped with a 250 mm outer diameter, 70 mm ID, 3.5 mm thickness blade.

Blades are re-sharpenable, ensuring long-term cost savings and consistent performance.

Wrap Prevention System

Special device prevents bending or damage to PCBs during cutting.

Guarantees clean finishing, even on thin and delicate boards.

Flexible & Adjustable Operation

Conveyor speed adjustable between 0–3 m/min for different workloads.

Cutting height as low as 6 mm, suitable for multiple PCB thicknesses (0.8–2.5 mm).

Durable Industrial Build

Weighing 115 kg, it is designed for continuous factory-floor operation.

Rugged body ensures stability and vibration-free cutting.

Why Choose LC A66?

Boosts production speed with fully automated PCB handling.

Guarantees precise, uniform lead cutting for a professional finish.

Prevents PCB damage with integrated wrap-prevention system.

Compact, space-saving design ideal for industrial production lines.

Uses reliable LC TC 250 tungsten carbide blades, ensuring durability.

Trusted by global electronics manufacturers for quality and efficiency.

Applications of Automatic PCB Lead Cutting Machine LC A66

PCB assembly lines for consumer electronics and LED products.

Automotive electronic module production.

High-volume industrial PCB manufacturing.

Contract electronic assembly services.

Maintenance & Blade Information

Blade Maintenance – The LC TC 250 tungsten carbide blade can be re-sharpened using the LC G250 blade sharpening machine, ensuring consistent long-term performance.

Low Maintenance Design – Built with minimal moving parts and a rugged frame, the LC A66 requires very little upkeep.

Operator Safety – Manual push-handle feeding ensures safe PCB handling during operation.
