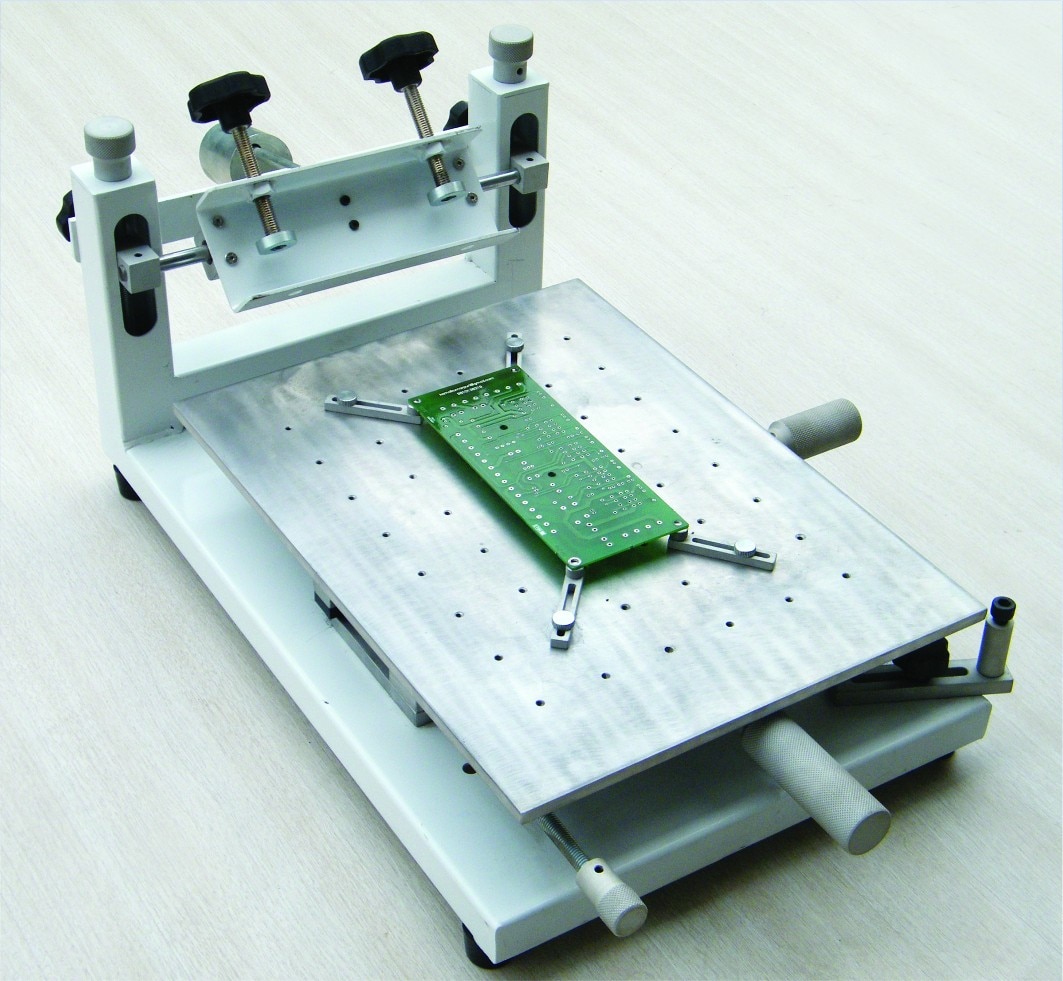

Manual Solder Paste & Glue Printer – EMS 3040 MP

Description: The EMS 3040 MP Manual Solder Paste & Glue Printer is a high-precision, flexible solution designed for the application of solder paste and glue on various types of printed circuit boards (PCBs). It features a honeycomb base, similar to those found in semi-automatic solder paste printers, ensuring enhanced stability and precise operation. This printer supports both single and double-sided PCBs, making it versatile for a range of applications. The stencil movement mechanism is counterbalanced for smooth operation, and the printing platform is highly adjustable, with fine-tuned control over the X-axis, Y-axis, and theta angle for accurate positioning. Built with superior materials, the EMS 3040 MP is durable and designed to last in demanding environments.

Specifications:

• Base Type: Honeycomb base (similar to semi-automatic solder paste printers)

• Adjustability: High precision and flexible adjustments for different board types

• PCB Compatibility: Can process double-sided PCBs

• Stencil Movement: Up and down with counterbalance

• Platform Adjustments: Precise adjustments for X-axis, Y-axis, and theta angle

• Material: Made of superior materials for durability

• Dimensions: 560 x 390 x 350 mm

• Platform Size: 300 x 400 mm

• PCB Size: 250 x 350 mm

• PCB Thickness: 0-100 mm

• PCB Tuning Range: Front/Side ± 10 mm

• Platform Height: 100 mm

• Repeatability: ±0.01 mm for high precision printing

• Positioning Mode: Side/Reference hole positioning for accurate placement

• Weight: Approx. 30 kg

• Category: SMT Machines (Surface Mount Technology)

Key Features :

• Precision: High precision solder paste and glue printing with repeatability of ±0.01 mm.

• Adjustability: Fine adjustments in X-axis, Y-axis, and theta angle for flexible board handling.

• Dual-Sided PCB Support: Capability to handle double-sided PCBs.

• Durability: Constructed with superior materials for long-lasting performance.

• Compact Design: Efficient design with a footprint of 560 x 390 x 350 mm.

• Easy Setup: Simple and quick adjustments for different board sizes and configurations.

• Counterbalance Stencil Movement: Ensures smooth and consistent stencil movement.

• Precision Platform: Allows accurate tuning for optimal paste application.

This machine is ideal for SMT manufacturing lines looking for a manual solder paste printer that combines high precision with flexibility for various PCB types and sizes.
