Description

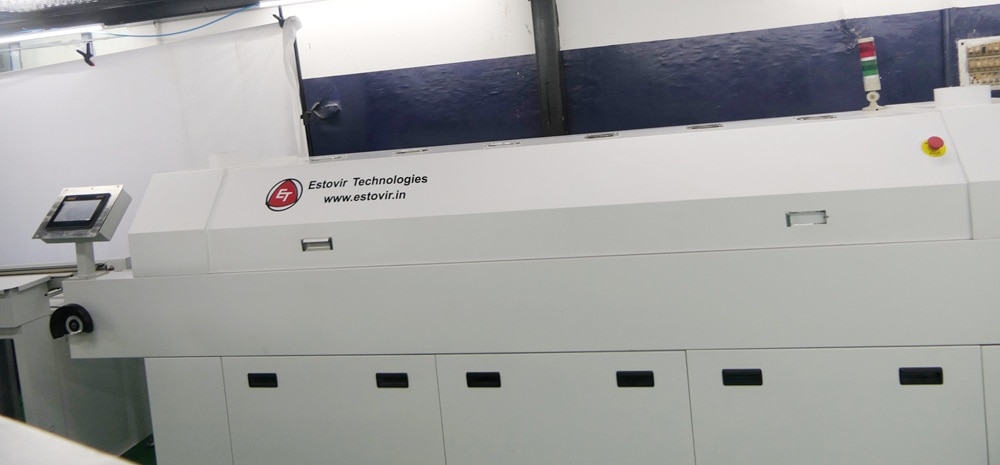

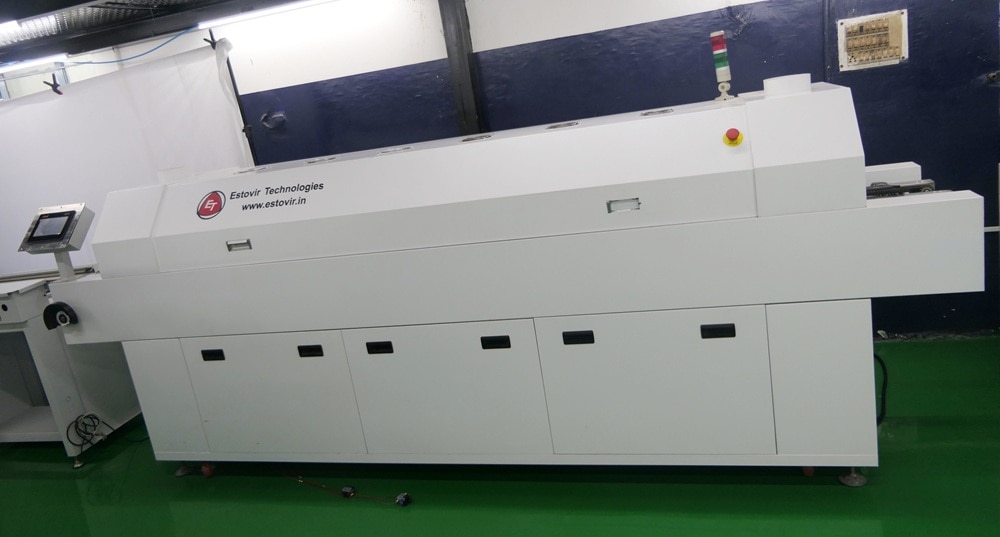

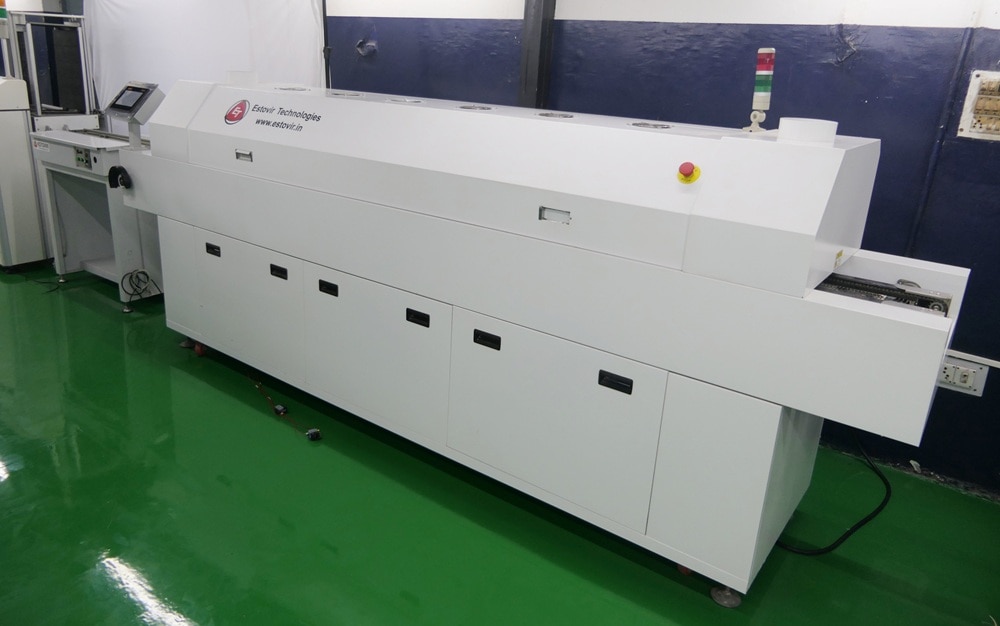

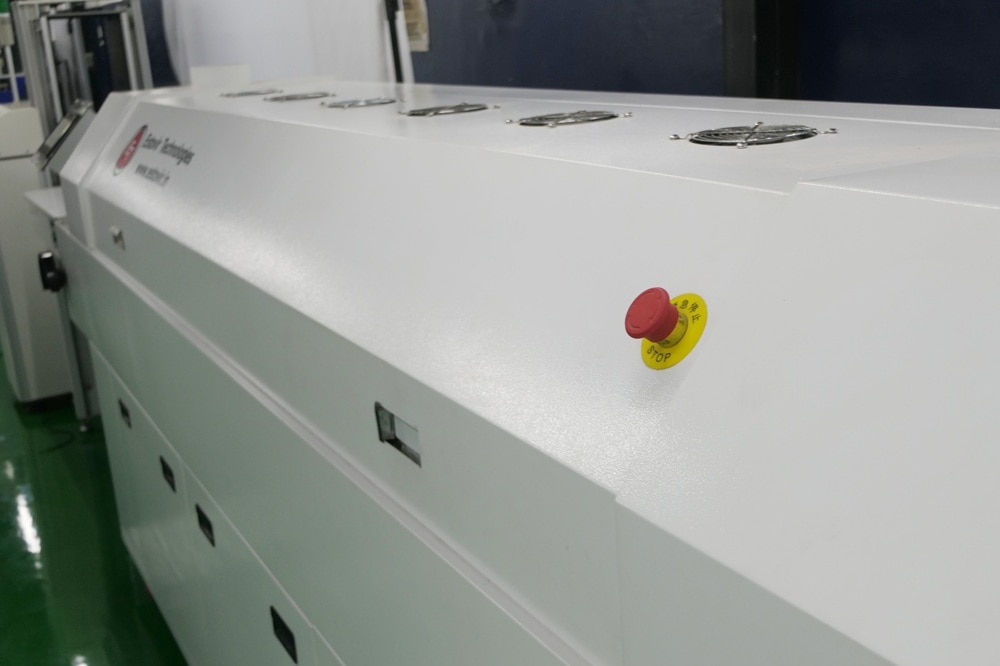

Reflow Oven Conveyorized – 6 Zone
Overview
The Reflow Oven Conveyorized – 6 Zone is a high-performance, inline soldering system designed for consistent, lead-free and leaded PCB soldering. It features HMI + PLC control, forced hot-air convection, and a stainless-steel mesh with pin-chain conveyor system, ensuring even heat distribution and minimal board distortion.
Built for industrial electronics, automotive, and consumer product assembly lines, this six-zone reflow oven ensures superior process reliability, faster throughput, and energy-efficient performance. Its closed-loop temperature control and precision airflow design guarantee uniform soldering quality, making it an ideal solution for demanding SMT manufacturing environments.
Key Features
Advanced HMI + PLC Control System
Intuitive touchscreen interface simplifies setup, operation, and process monitoring.
Closed-loop PID + SSR control ensures stable, repeatable temperature regulation in every zone.
6-Zone Forced Hot-Air Convection Heating
Independent top and bottom heating zones provide precise thermal profiles for each PCB layer.
Jet-nozzle micro-circulation system ensures consistent airflow, reducing cold joints and solder voids.

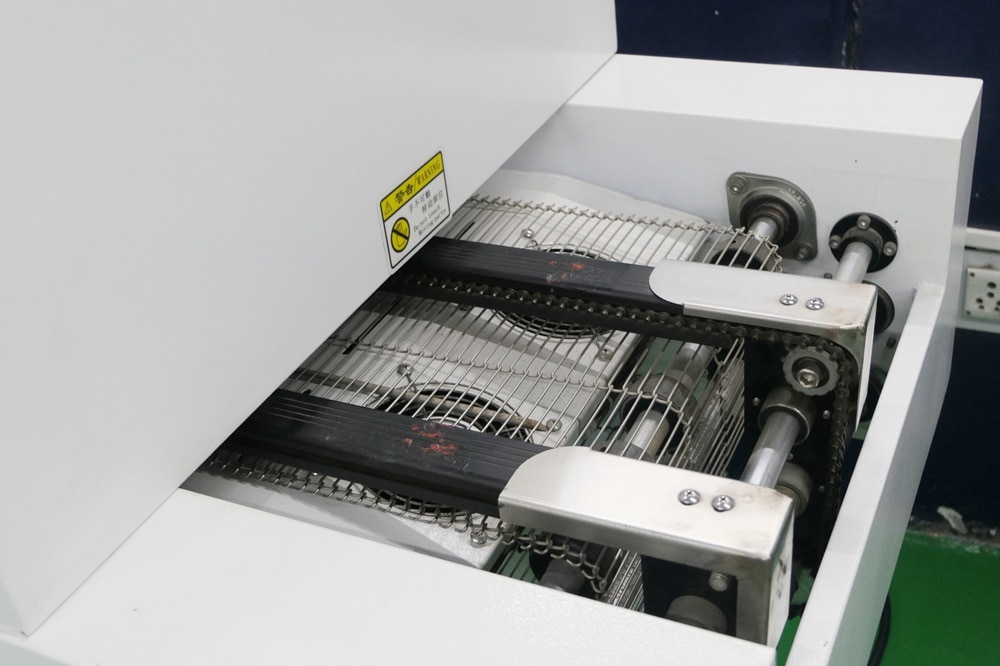

Dual Conveyor System (Mesh + Pin Chain)
Stainless-steel wire mesh combined with pin-chain conveyor ensures rigidity and smooth board transport.
Aluminium-alloy profiles reduce vibration and distortion for high-precision soldering.
Energy-Efficient Performance
Quick startup (≈ 20 minutes) with optimized 34 kW startup and 8 kW operational power.
High thermal efficiency minimizes energy loss and reduces long-term operating costs.

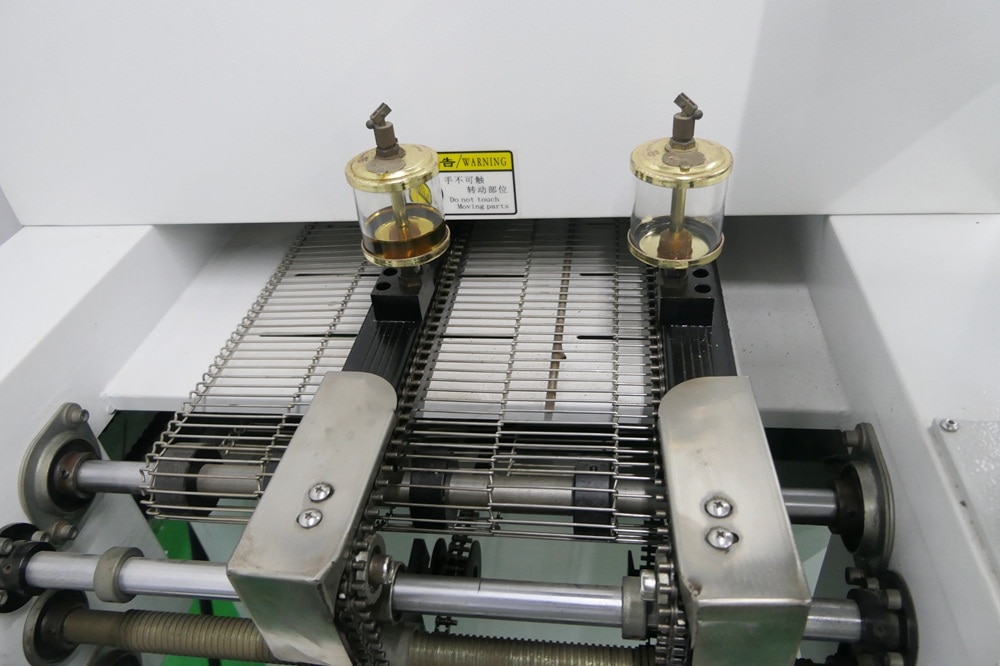

Centralized Lubrication System
Built-in oil reservoir automatically lubricates the chain for smooth, reliable operation.
Minimizes manual maintenance and extends equipment lifespan.
Temperature Accuracy & Stability
Operates up to 350 °C with ±2 °C accuracy for repeatable solder joints.
Uniform top/bottom convection reduces thermal stress on sensitive components.
Flexible Production Capability
Adjustable conveyor speed (0 – 1.8 m/min) accommodates various PCB sizes (50–300 mm).
Supports both lead-free and leaded solder types for wide process compatibility.
Applications
The Reflow Oven Conveyorized – 6 Zone is designed for modern PCB production lines where accuracy, reliability, and throughput are essential. Its six-zone heating configuration and uniform convection make it ideal for both prototype and mass-production environments.
Consumer electronics (mobile devices, TVs, wearables)
Automotive ECU and sensor PCB soldering
Industrial automation control boards
LED lighting modules and driver boards
IoT and communication hardware assemblies
Research and development prototyping labs
Contract electronics manufacturing (EMS/ODM)
Why Choose Reflow Oven Conveyorized – 6 Zone?
Ensures stable, defect-free soldering with uniform thermal profiles.
High structural rigidity minimizes PCB distortion during reflow.
PLC + HMI control simplifies operation and process tuning.
Low maintenance with automatic chain lubrication system.
Compatible with both lead-free and leaded solder types.
Efficient power consumption for reduced operational costs.
Ideal for SMT lines seeking repeatability and long-term reliability.
Specifications
| Heating Zone | 6 Top + 6 Bottom |
|---|---|
| Solder Type | Lead-Free / Leaded |
| Conveyor Height | 900 mm ± 20 mm |
| PCB Clearance Height | 25 mm |
| Cooling | 1 Zone Cooling Fan |
| Conveyor Type | Stainless Steel Mesh Belt + Pin Chain |
| Conveyor Speed | 0 – 1.8 m/min |
| Temperature Range | Ambient – 350 °C |
| PCB Size | 50 – 300 mm |
| Temperature Accuracy | ± 2 °C |
| Belt Width | 400 mm |
| Solder Type | Lead-Free / Leaded |
| Temperature Range | Ambient – 350 °C |
| PCB Clearance Height | 25 mm |
| PCB Size | 50 – 300 mm |
| Cooling | 1 Zone Cooling Fan |
| Conveyor Speed | 0 – 1.8 m/min |
| Conveyor Height | 900 mm ± 20 mm |
| Conveyor Type | Stainless Steel Mesh Belt + Pin Chain |
| Temperature Accuracy | ± 2 °C |
| Belt Width | 400 mm |
| Power – Start Up | 34 kW |
| Temperature Control | Closed-Loop PID + SSR |
| Power Supply | 440 V AC 50 Hz 3 Phase |
| Heating Time | ≈ 20 Minutes |
| Heat Type | Forced Hot-Air Convection (Top + Bottom) |
| Heating Zone Length | 2,400 mm |
| Weight | 1,400 kg |
| Dimensions | 3,800 mm × 900 mm × 1650 mm |
| Control Type | HMI + PLC Control |
| Power – Operation | 8 kW |
