Description

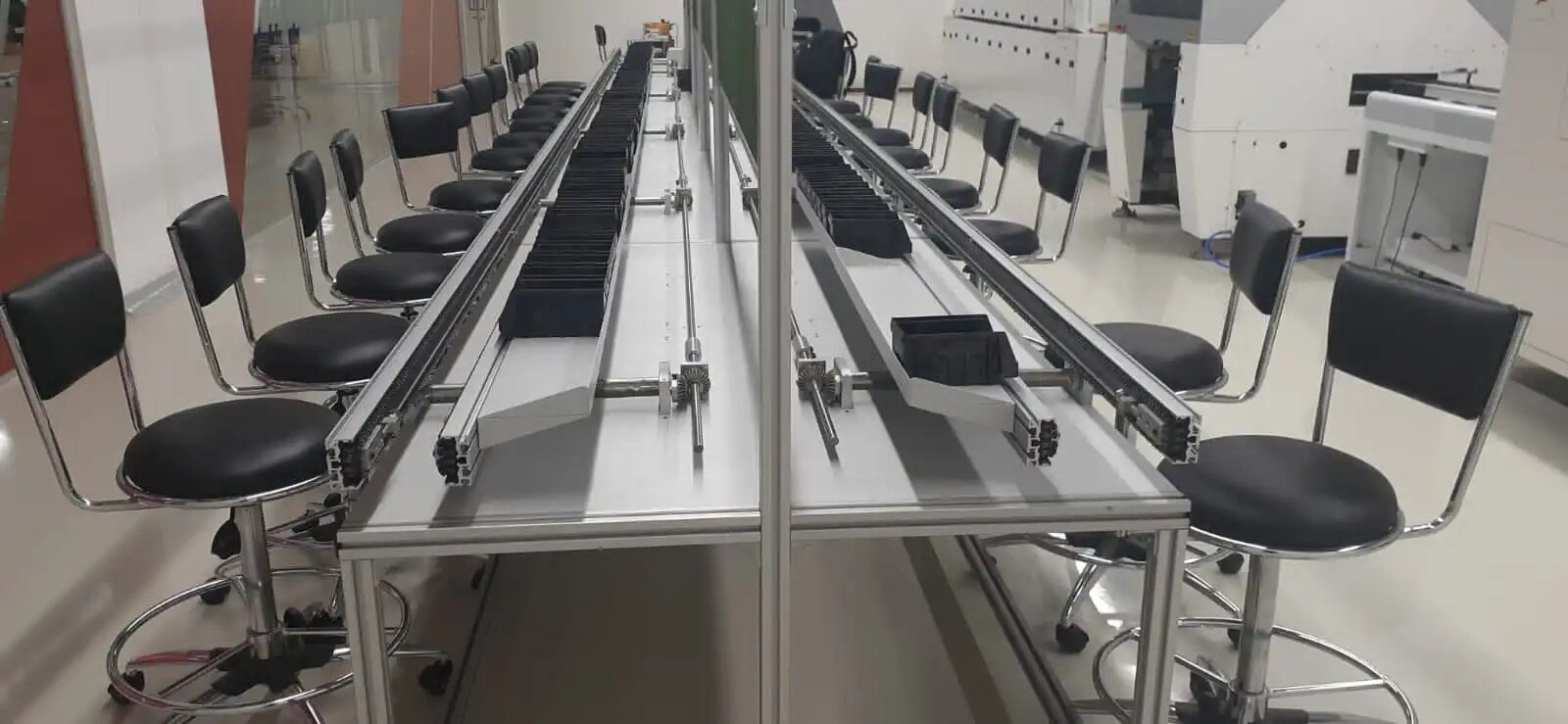

MI Line Motorized Double-Side Working Conveyor – 7.3 Mtr (24’) Overview of MI Line Motorized Double-Side Conveyor – 7.3 Mtr (24’) The MI Line Motorized Double-Side Working Conveyor – 7.3 Mtr (24’) by Estovir Technologies is a robust, high-performance chain-type conveyor designed for manual insertion (MI) lines in PCB assembly and electronics manufacturing. With operators working from both sides of the conveyor, it maximizes efficiency, throughput, and operator utilization. This makes it ideal for transferring populated PCBs directly to the Wave Soldering Machine (finger type). In this conveyor system, PCBs are transported on a chain conveyor with secure edge guidance. Operators on both sides sequentially insert designated components into their respective positions, ensuring faster and more balanced production. By the end of the conveyor line, boards are fully populated and ready for soldering. Adjustable channels support various PCB sizes, while smooth transfer and secure handling ensure consistent quality. Built with a strong aluminium (40×40) or powder-coated steel frame, the MI Line Double-Side Conveyor provides an ergonomic working height (900 mm ±25 mm), adjustable bin trays on both sides, and variable speed control (0.75–1.7 m/min) driven by a 3-phase induction motor. Its ESD-safe design, operator-centric features, and fire-hazard-free construction make it ideal for high-volume production across automotive, medical device, and consumer electronics sectors. Key Features of MI Line Motorized Double-Side Working Conveyor – 7.3 Mtr (24’) Double-Side Operation Operators work from both sides for balanced and high-throughput assembly. Optimized for seamless integration with wave soldering machines. Chain Conveyor with Adjustable Channels Low-friction aluminium extrusion with nylon-roller chain ensures smooth PCB transfer. PCB guide channels adjustable for 50 mm – 350 mm width. Ergonomic & Operator-Friendly Design Comfortable 900 mm ±25 mm working height on both sides reduces fatigue. Durable powder-coated steel work platforms with stable handling. Precision Speed Control Variable speed range 0.75 – 1.7 m/min. AC drive-based control panel for accurate synchronization. Integrated Safety Features Emergency stop switches at both ends. Electrical protection with MCB and power-failure interlock. Optimized Workflow Accessories Adjustable bin trays on both sides for efficient component placement. Integrated LED tube lighting (optional wiring). Magnetic steel display board for quick reference drawings. Fire-Hazard-Free Build Non-flammable, wood-free structure designed for industrial safety. Customization Options The MI Line Motorized Double-Side Working Conveyor – 7.3 Mtr (24’) can be customized to match your production workflow. Options include: Length & Height: Custom conveyor lengths (standard 7.3 m / 24’) and adjustable height. PCB Width: Adjustable guide channels (50 mm – 350 mm). Structure: Choice of aluminium (40×40) for lightweight design or powder-coated steel for heavy-duty strength. Speed Control: Fine-tuned speed settings for different insertion or soldering processes. Lighting & Power: Optional LED wiring, power sockets, and tool connections. Accessories: Extra trays, tool sliders, magnetic display boards, or shelving to boost productivity. Applications of MI Line Motorized Double-Side Working Conveyor – 7.3 Mtr (24’) The MI Line Motorized Double-Side Conveyor is engineered to optimize throughput and efficiency in manual insertion and pre-soldering assembly lines. With operators working from both sides, it ensures faster population of PCBs, reliable handling, and seamless preparation for wave soldering. Its flexible design and ESD-safe structure make it suitable for a wide range of industries. Manual Component Insertion: Enables simultaneous dual-side assembly of resistors, capacitors, connectors, and other through-hole components. PCB Inspection & Testing: Provides a stable, ergonomic platform for quality control and inspection from both sides. Wave-Soldering Preparation: Transfers fully assembled PCBs efficiently to wave soldering machines. High-Volume Manufacturing: Ideal for automotive, consumer electronics, telecom, and medical device production lines. ESD-Sensitive Assembly: Protects delicate components from electrostatic discharge during handling. Flexible Industrial Use: Adaptable for aerospace, defense, and high-tech manufacturing environments requiring precision and durability. Why Choose MI Line Motorized Double-Side Working Conveyor – 7.3 Mtr (24’) from Estovir Technologies Selecting the right conveyor system is essential for maintaining productivity, reducing downtime, and ensuring long-term operational reliability. At Estovir Technologies, we deliver robust engineering, operator-focused designs, and comprehensive support that align perfectly with modern PCB assembly needs. Proven Expertise: Backed by decades of experience in PCB assembly line automation with successful installations across industries. Operator-Centric Design: Ergonomic dual-side setup with organized bins, adjustable trays, and easy-to-use controls for maximum efficiency. Reliable & Durable Build: High-quality aluminium or steel structure ensures long-lasting, low-maintenance performance. ESD-Safe & Fire-Resistant: Protects sensitive electronic components and fully complies with global safety standards. Comprehensive Support: From installation and calibration to preventive maintenance and spare parts availability. Custom-Fit Solutions: Flexible customization options to match specific production layouts and operational needs.
