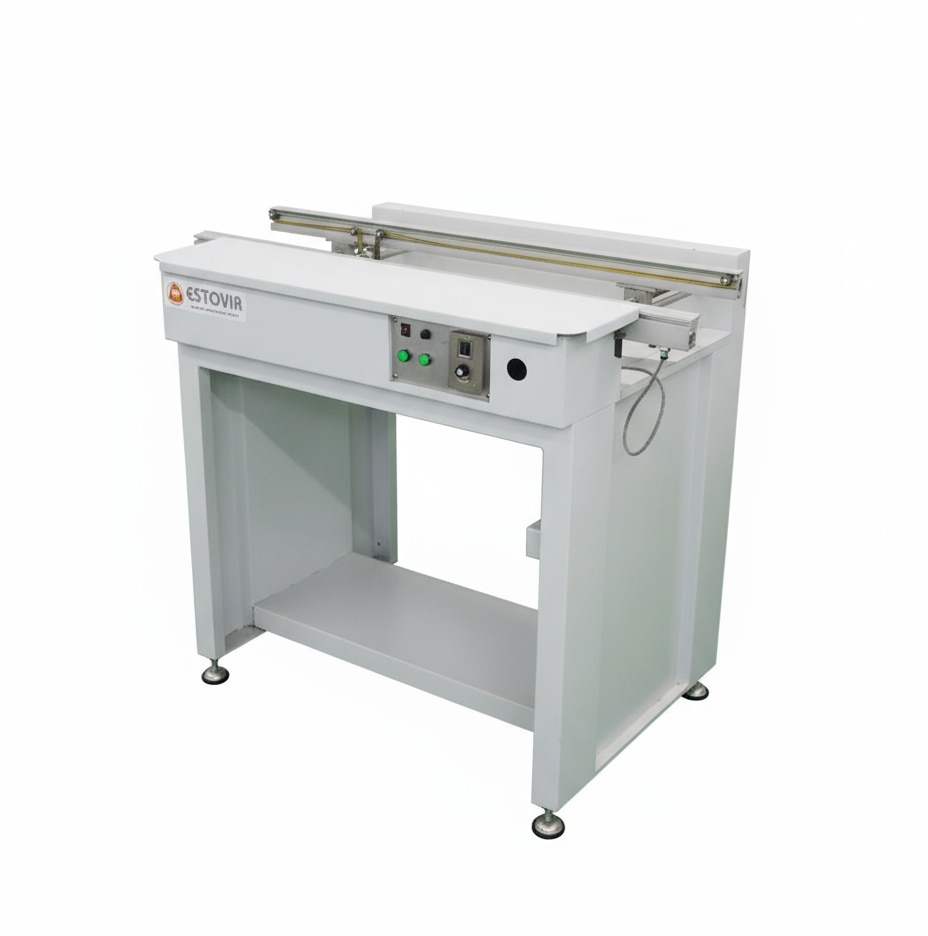

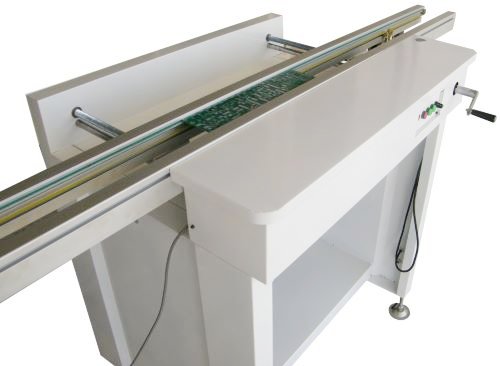

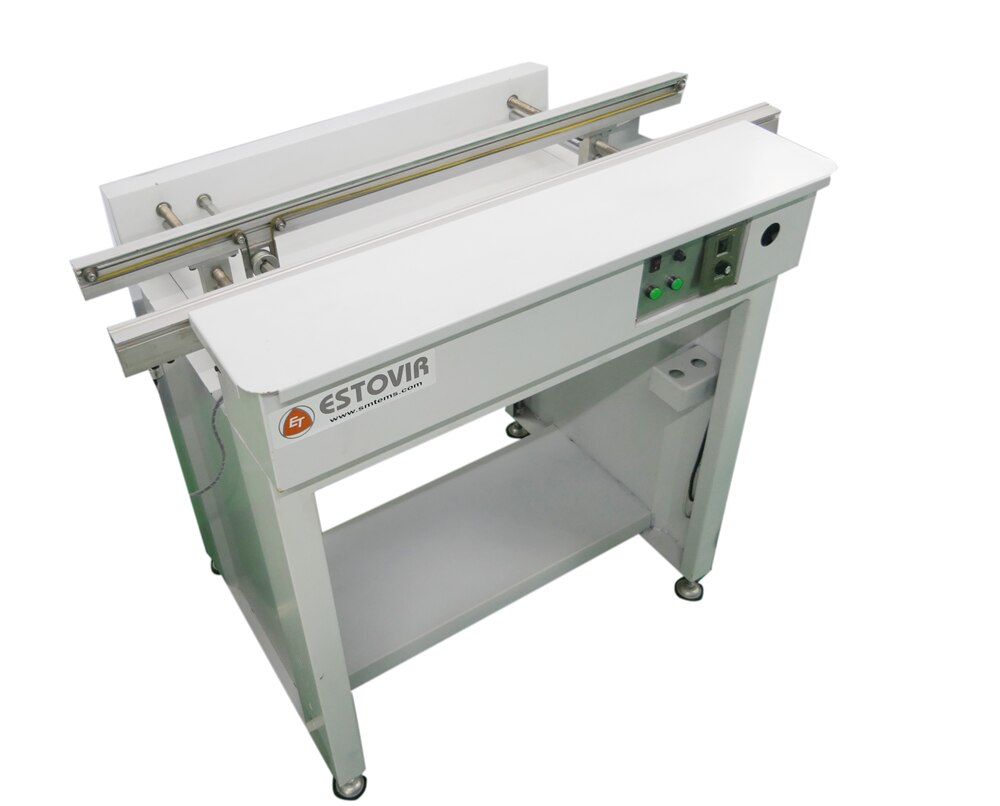

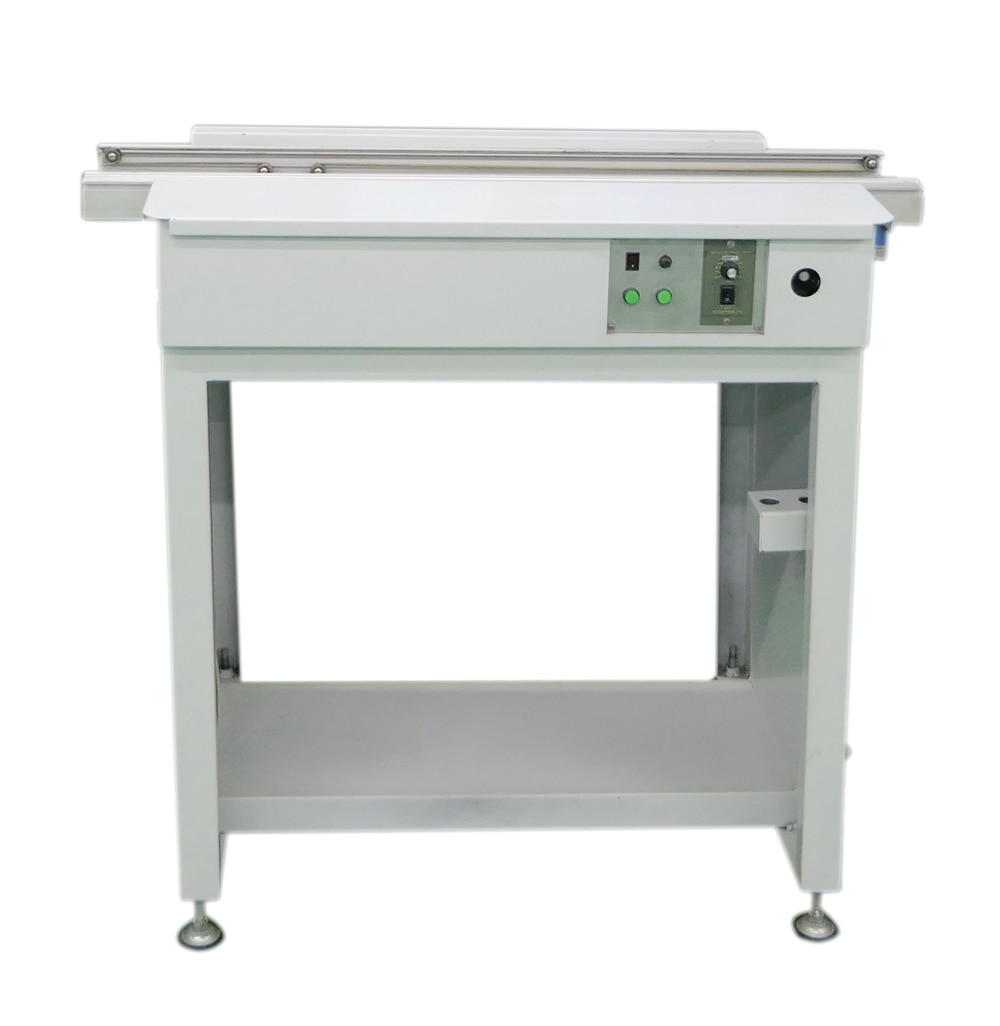

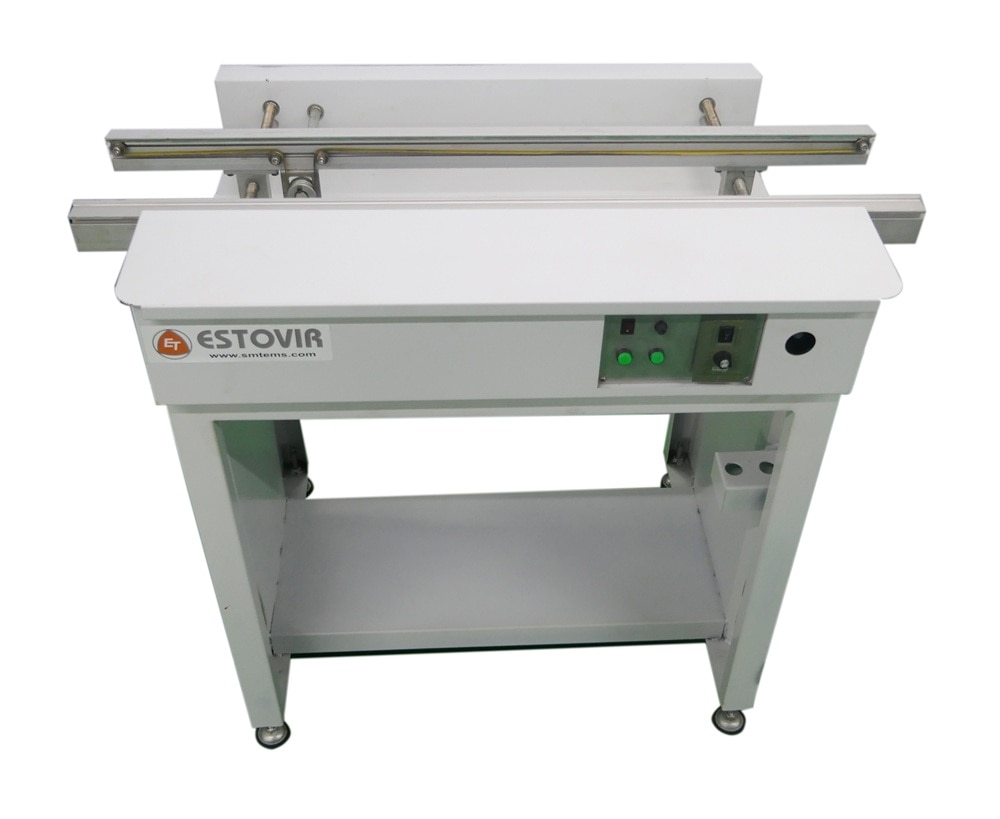

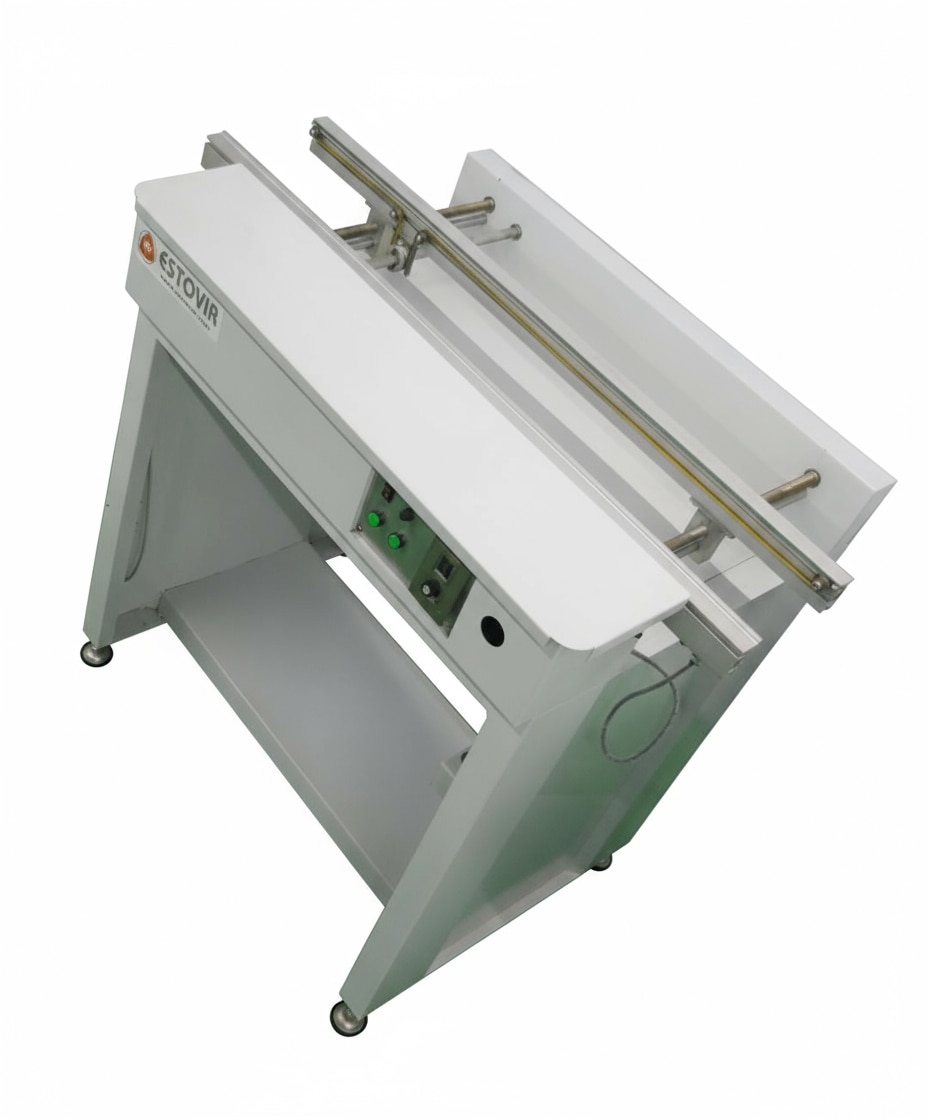

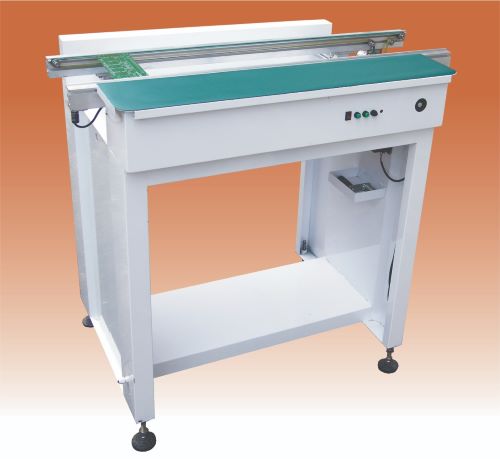

SMT Line Conveyor - ET 1000C | Inspection & Linking Conveyor System
The SMT Line Conveyor - ET 1000C is a high-performance inspection and buffer conveyor engineered for SMT production lines, ensuring seamless PCB transport and consistent production flow. Designed with antistatic belt technology, precise rail width adjustment, and SMEMA communication compatibility, it provides reliable connectivity across stencil printers, pick & place machines, and reflow ovens — making it an essential asset in every modern electronics assembly environment.
Constructed from industrial-grade MS or SS, the - ET 1000C ensures long-term stability, high accuracy, and smooth PCB handling. With a conveyor height of 900 mm ± 20 mm and adjustable width from 50 mm to 350 mm, it integrates effortlessly into SMT lines, providing efficient inspection, linking, and buffering between process stages.
Key Features of SMT Line Conveyor - ET 1000C
Advanced Construction & Durability
Precision-engineered MS or SS frame ensures accurate rail width alignment and structural rigidity.
Antistatic belt and alloy MS or SS parts extend operational life while protecting sensitive PCBs.
SMEMA Communication Integration
Fully compatible with SMEMA interface standards for easy linking with other SMT equipment.
Supports synchronized PCB flow between upstream and downstream machines, minimizing downtime.
Precision PCB Handling

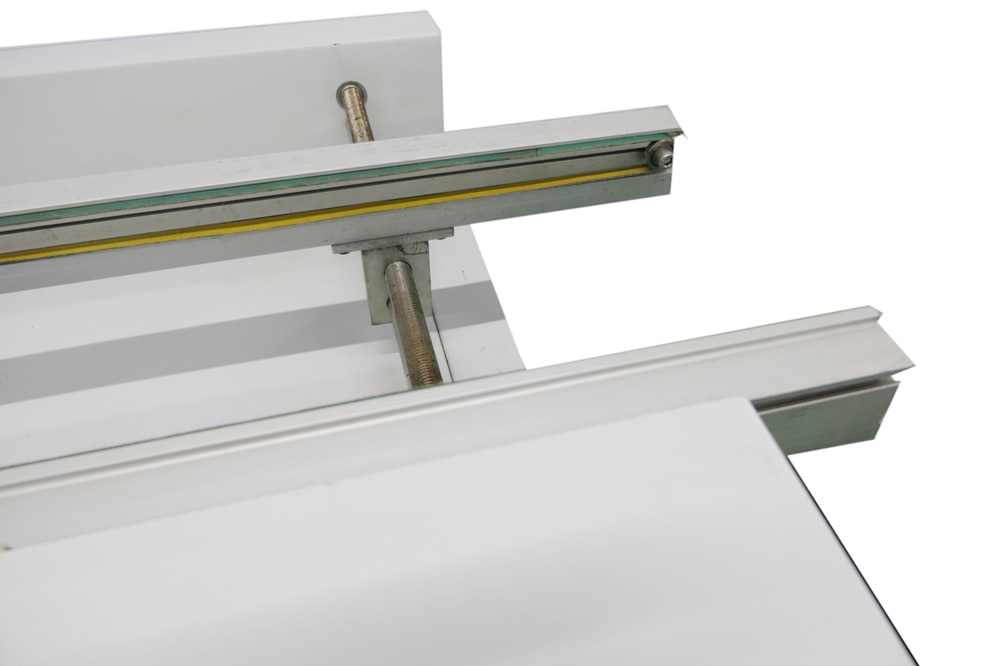

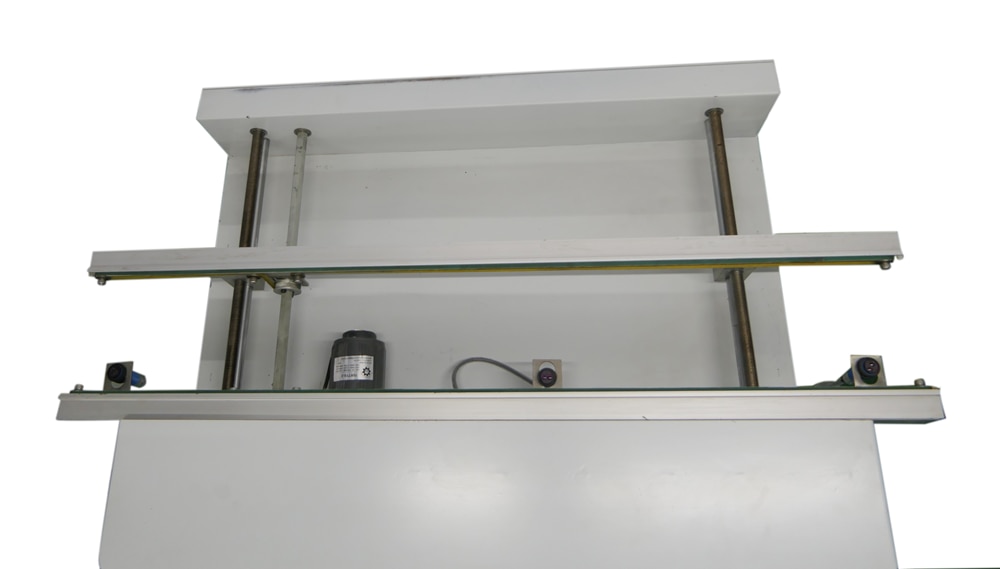

Adjustable rail width system accommodates PCB sizes ranging from 50 mm to 350 mm.
Stable 900 mm ± 20 mm conveyor height ensures accurate line alignment and smooth transfers.
Control & Customization
Optional PLC control system allows automated operation and variable speed (0.5 – 20 m/min).
Custom add-ons such as lighting, inspection modules, or cooling fans enhance versatility.
Compact & Modular Design
Available in 1000 mm standard and 500 mm compact lengths for varied production layouts.
Modular design enables multi-unit configurations for extended buffering or inspection zones.
Customization
Length variants: 500 mm / 1000 mm / 1500 mm / custom sizes
Adjustable conveyor width for different PCB formats
Optional lighting, cooling, or inspection modules
PLC control and speed customization (0.5–20 m/min)
Structural modifications for line integration or multi-unit linking
Structure Material: MS or SS.
Applications of SMT Line Conveyor - ET 1000C
Linking between stencil printers, pick & place machines, and reflow ovens
Buffer storage during speed variation or equipment maintenance
Visual inspection and quality control stations with lighting options
PCB testing and verification in assembly lines
Integration with AI assembly systems for through-hole insertion and mixed production setups
Why Choose SMT Line Conveyor - ET 1000C from by Estovir Technologies
Engineered by experts in PCB handling and SMT automation
ESD-safe and SMEMA-compatible for safe and synchronized operations
Rugged aluminium/steel structure for durability and accuracy
Modular, space-saving options (500 mm & 1000 mm)
Customizable features with PLC and inspection enhancements
Backed by Estovir Technologies' support and service assurance
Specifications
| Model | ET 1000C |
|---|---|
| Conveyor Type | SMT Buffer / Inspection Conveyor |
| Structure Material | MS or SS |
| Length | 1000 mm |
| Dimensions | 1000 × 734 × 910 mm |
| Optional Add-Ons | Lighting, Shelves, Sockets, Cooling System, PLC Integration |
| PCB Width Range | 50 mm – 350 mm |
| Conveyor Height | 900 mm ± 20 mm |
| Weight | 45 kg |
| Communication | SMEMA Standard Interface |
| Speed Control | 0.5 – 20 m/min (Variable) |
