Wave Soldering Machine WSM 300D FEATURES :- GENERAL-  Available in Lead Free Version  Choice of Single or Dual Wave  Independent Controllers  Power Efficient Design Solder Bath –  High Grade Rohs Solder Pot  Solder pump driven by AC 3 ø Motor  Wave Height Control through VFD  PID controller for accurate temperature control  Interval sensor with Digital Timer PRE-HEATER-  Ceramic Glass top for high efficiency IR transfer  PID controller for 2 stage accurate temperature control FOAM FLUXER WITH AIR KNIFE-  High Grade construction with air knife  Special 2-micron Foaming Tube  Interval sensor with Digital Timer  Fitted with Air filter, regulator & indicator  External air supply required CONVEYOR-  Chain Type Conveyor  High Grade aluminium profile  Conveyor driven by AC 3 ø Motor  Conveyor speed Control through VFD  Step less angle adjustment

FLUX FOAMING Candle (FLUX AERATOR) FOR WAVE SOLDERING MACHINE Can be used with all brands of soldering machine Air hole size 10 micron, Flux bulb diameter is around 1 mm. Long working life, short time delivery Standard length 300 mm. and 500 mm. The length can be cut according to your requirement (Max. 500 mm.) The Caps and Air Connector can be designed to be ease and convenience for your maintenance

FEATURES & SPECIFICATIONS : Suitable for Cutting and Stripping operation Twisting option available in Model AWS 220 T Can feed & cut two wires High Speed and accuracy Cutting Length 0.1 to 9999mm Stripping Length 0.1 to 99 mm (As per wire material) Twisting Length 0.1 to 99 mm (As per wire material) Wire Diameter AWG 16 to 32 Power 220 V AC, 50 Hz, 200W Dimensions L-570mm W- 380mm H-440mm Weight 40 Kg Productivity Wire Length 100mm - 8420pcs/hr, 500mm-5380pcs/hr, 1000mm-3720pcs/hr

We are the Manufacture of Digital Display Lead Free Soldering in Gurgaon.

Pneumatic Wire Stripping Machine Model AWZ 305 AWZ 310 AWZ 315 Stoke Length 50mm 100mm 150mm Wire Stripping Cap. Max 5.0 mm Max 15.0 mm Max 20.0 mm Power 220V AC, 50 Hz 220V AC, 50 Hz 220V AC, 50 Hz Air Pressure 3-7 Kg/cm sq 3-7 Kg/cm sq 3-7 Kg/cm sq Output Power 31-73 Kg 49-115 Kg 84-196 Kg Air Cylinder Dial 40.0 mm Dial 50.0 mm Dial 63.0 mm Dimensions(mm) L-400 W-300 H-270 L-480 W-330 H-280 L-600 W-420 H-360 Weight 20 Kg 25 Kg 45 Kg

PCB Leading Cutting MC Model D (mm) D (mm) T (mm) Ao LC TC 200 200 70 3.5 18o to 25o LC TC 250 250 70 3.5 18o to 25o

We are well established in the industry as the foremost manufacturer and supplier of Solder Pot. Effective in functionality, these pots are specifically integrated for excellent tinning of components like wire ends, PCBs and leads. Our machines are technically assorted under the firm supervision of expert engineers. In addition, our respected customers can acquire the Solder Pot from us at competitive prices. Features: Reduces risk in soldering Convenient to operate Easy temperature adjustment Further Details: Meant for tinning of component leads, wire ends and PCB's Digital Temperature controller with Display Separate housings for solder Pot and controller MCB protection for short circuit and overload Pot Size Dimension mm Weight Power Solder Cap. Dia 4.0" 510 x 210 x 228 10 Kg. 220V, 50 Hz, 600W 10 Kg 4.0" x 4.0" 510 x 200 x 228 10 Kg 220V, 50 Hz, 600W 4 Kg. 6.0" x 6.0" 555 x 255 x 230 13 Kg 220V, 50Hz, 900W 8 Kg 8.0" x 8.0" 610 x 300 x 230 15 Kg 220V, 50Hz, 1200W 13 Kg. 10.0" x 10.0" 770 x 210 x 230 22 Kg. 220V, 50 Hz, 1400W 20 Kg.

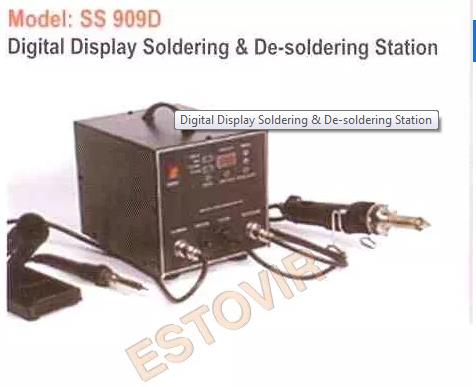

We are the manufacture of Digital Display Soldering & De-soldering Station in Gurgaon.

We are specialized in the industry by manufacturing and supplying a wide range of Wave Soldering Machine. These are especially assembled for high mass and volume manufacturing in industry. Offered range of Wave Soldering Machine is developed in compliance with defined international standards of quality and durability. In addition to this, we stringently inspect the entire series on the parameters of service life and functionality. Features: Consumes less floor space Long functional life Convenient operation Technical Specifications: Features Model WSM 200 (Single Wave) WSM 300 S (Single Wave) WSM 300D (Dual Wave) General Power Supply 220V AC, 50 Hz 1 Ph, 20A 440V AC, 50 Hz 3 Ph, 27A 440V AC, 50 Hz 3 Ph, 42A Dimensions(With Vonv. Length) L-2900 W-850 H-1100 mm L-3500 W-900 H-1800 mm L-3500 W-900 H-1800 mm Weight 180 Kg 320 Kg 380 Kg Construction Table Top1 Floor Model Floor Model SOLDER BATH Wave Width 200 mm 300mm 300mm Solder Bath Capacity 95 Kg 115 115 x 2 = 230Kg Max. Wave Height 0-8mm 0-8mm 0-8mm Warm up Time. 60min 70min 70min Solder Bath Power 2.4Kw 3.0 Kw 3.0 x 2=6.0Kw FLUXER Flux Capacity 3 Ltr 4 Ltr 4 Ltr Air Consumption 3.5 cfm(30 PSI) 4.0cfm(30 PSI) 4.0cfm(30 PSI) CONVEYOR Conveyor Speer 0-2.5 M/min 0-2.5 M/min 0-2.5 M/min Conveyor Angle 5,6,7 degree in Steps 4-10 degree step - less 4-10 degree step - less PRE-HEATER Pre Heater Length 800 mm 900 mm 900 mm Pre Heater Power 2.0 KW 3.0 KW 3.0 KW
