Automatic Forming for Taped Axials (Horizontal) – UAP 301 H

Automatic Forming for Taped Axials (Horizontal) – UAP 301 H by Estovir Technologies

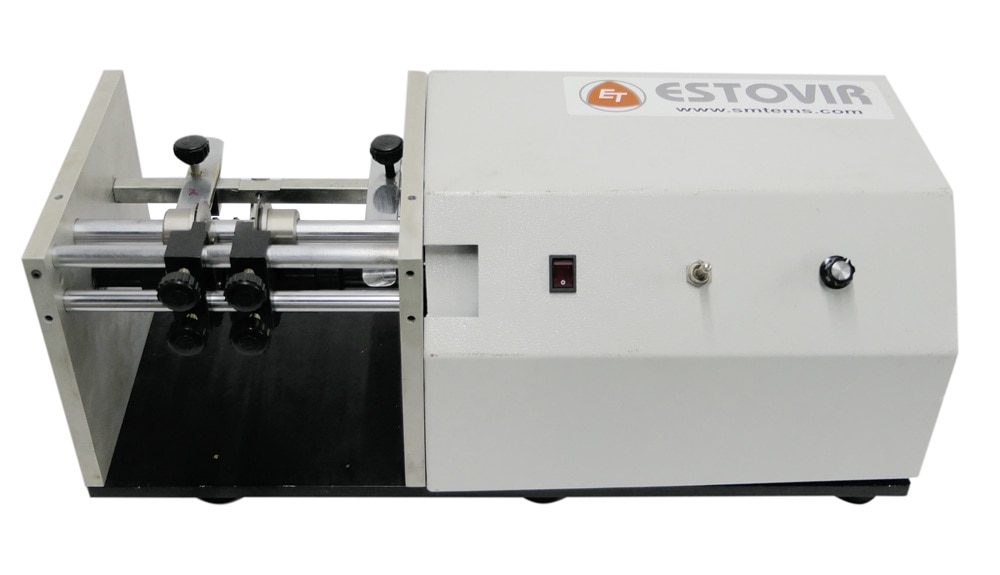

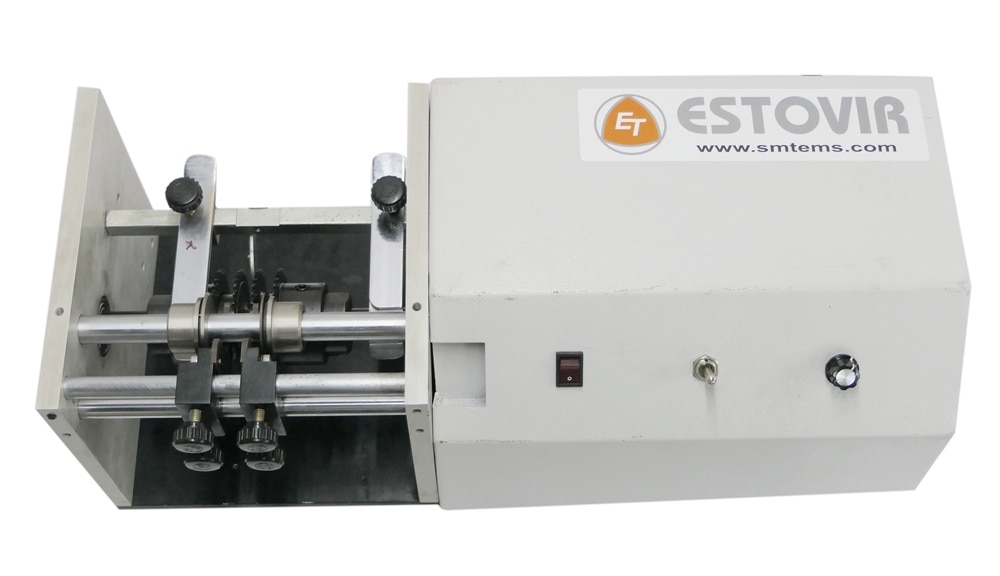

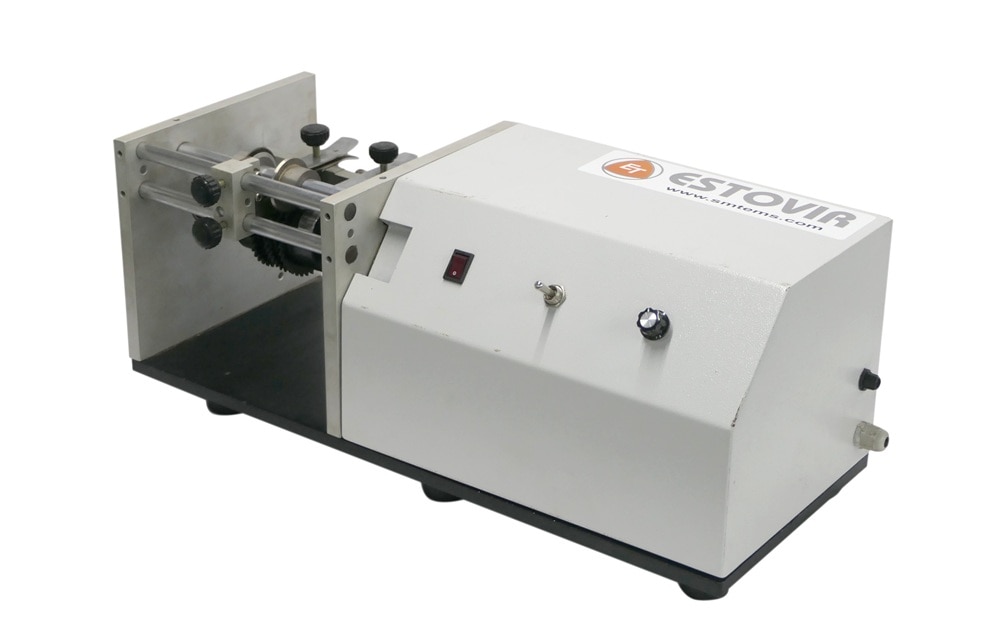

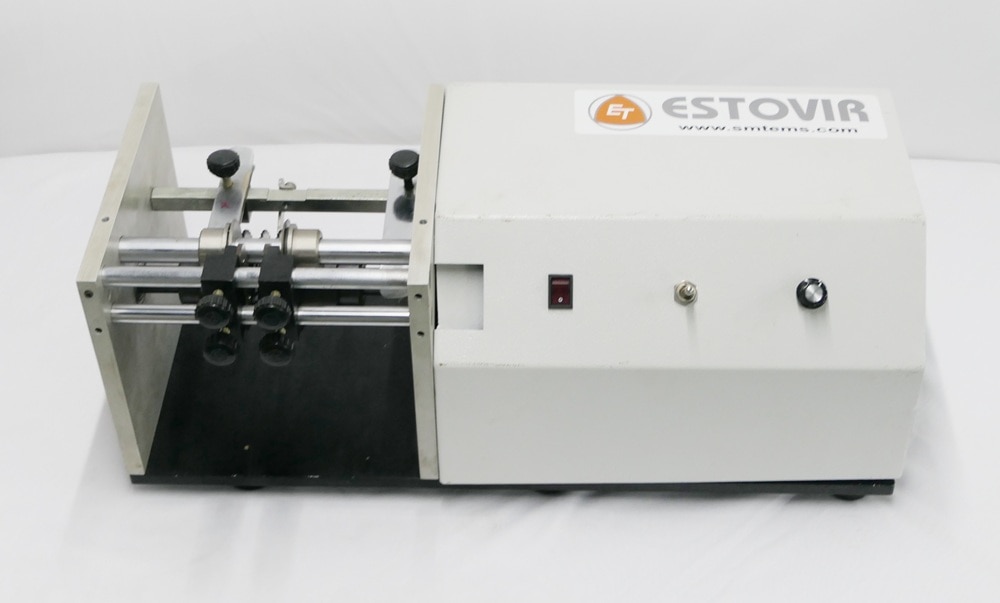

The UAP 301 H (Automatic Forming for Taped Axial Components) by Estovir Technologies is an advanced motorized machine designed for automatic cutting and U-shape forming of taped axial components. Engineered for modern SMT lines, it delivers consistent, high-speed performance with minimal manual intervention, making it ideal for high-volume PCB manufacturing and electronic component processing.

Key Features of Automatic Forming for Taped Axials (Horizontal) - UAP 301 H

Motorized Automatic Operation:Significantly reduces manual effort while increasing output and consistency.

High-Speed Processing: Delivers up to 14,000 components per hour, ideal for mass production environments.

Accurate and Repeatable U-Forming: Ensures precise U-shape forming with consistent pitch and lead spacing for horizontal mounting.

Supports Lead Diameters Up to 1.37mm: Accommodates various component sizes, making it highly adaptable to different production requirements.

Adjustable Speed Control: Fine-tune forming speed to suit varying component types and line speeds.

Compact & Rugged Design: Industrial-grade build with a compact footprint (500 × 195 × 195 mm), saving valuable floor space.

Low Power Consumption: Runs on 220V AC, 50Hz with minimal power usage (3A–5A) for round-the-clock operation.

Low Maintenance: Designed for 24/7 industrial use with simple maintenance routines.

Technical Specifications

Model: UAP 301 H

Operation Type: Motorized

Forming Type: Horizontal U-Shape Bend

Lead Diameter: 0.4 mm to 1.37 mm (soft wire)

Component Power: 3A & 5A Diode

Output Capacity: 14000 pcs/hr

Speed Control: Adjustable

Power Supply: 220V AC, 50 Hz

Power Consumption: 3A – 5A

Dimensions: 500 X 195 X 195 mm

Weight: 20 kg
