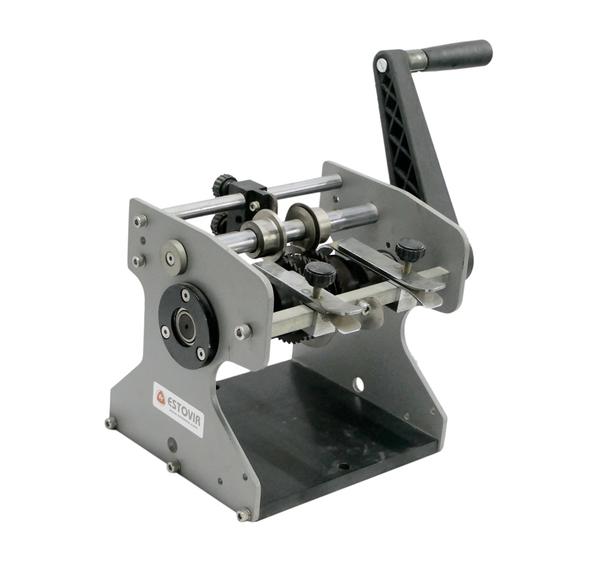

Manual Forming for Taped Axials (Vertical) – MAP 301 V by Estovir Technologies Estovir Technologies introduces the MAP 301 V—a compact, efficient machine designed for manual forming of taped axial components into a vertical V-shape. The unit is ideal for dense PCB assemblies where vertical mounting is essential. It is manually operated through a crank, ensuring complete control and precise lead formation. The MAP 301 V is best suited for medium-volume production across electronics, automotive, and assembly industries. Technical Specification: Model: MAP 301 V Operation Type: Manual Forming Type: Vertical V-Shape Bend Lead Diameter: Ø 0.4 mm to Ø 1.37 mm (soft wire) Component Power: 3A & 5A Diode Output Capacity: 10,000 – 18,000 pcs/hr Dimensions: 250 × 250 × 200 mm Weight: 5 kg Component Forming Parameters: A (Lead Length) 4–18 mm B (Lead Spacing from Body) 5–10 mm C (Body Gap (Min. distance between component body and bend) Minimum 3 mm D (Component Body Diameter) 5–8 mm W (Lead Wire Diameter) 0.35–1 mm P (Pitch Between Leads) 5–13.5 mm H (Overall Height) A + B + C Key Features of Manual Forming for Taped Axials (Vertical) – MAP 301 V High-Speed Output: Delivers an output capacity of up to 18,000 pieces per hour, enabling fast and efficient production. Precision V-Shape Lead Forming: Forms components into a consistent vertical V-shape, ideal for densely populated circuit boards. Manual Crank Operation: Manual operation via crank handle provides enhanced control and accuracy without relying on electricity. Supports Lead Diameters Up to 1.37mm: Accommodates various component sizes, making it highly adaptable to different production requirements. Compact Machine Design: Its compact footprint (190 mm × 175 mm × 190 mm) saves space on the production floor. Rugged Industrial Build: Built with durable materials for vibration-free operation and long-term stability in industrial conditions. Quick Changeover Capability: Allows fast pitch and leg length adjustments, significantly reducing downtime during component changeovers. Low Maintenance Requirement: Designed with simplicity in mind, requiring minimal maintenance while maintaining high performance.

Manual Forming for Taped Axials (Horizontal) – MAP 301 H by Estovir Technologies Estovir Technologies introduces the MAP 301 H—a compact, efficient machine designed for manual forming of taped axial components into a vertical U-shape. The unit is ideal for dense PCB assemblies where horizontal mounting is essential. It is manually operated through a crank, ensuring complete control and precise lead formation. The MAP 301 H is best suited for medium-volume production across electronics, automotive, and assembly industries. Key Features of Manual Forming for Taped Axials (Horizontal) – MAP 301 H High-Speed Output: Delivers an output capacity of up to 18,000 pieces per hour, enabling fast and efficient production. Precision H-Shape Lead Forming: Forms components into a consistent vertical U-shape, ideal for densely populated circuit boards. Manual Crank Operation: Manual operation via crank handle provides enhanced control and accuracy without relying on electricity. Supports Lead Diameters Up to 1.37mm: Accommodates various component sizes, making it highly adaptable to different production requirements. Compact Machine Design: Its compact footprint (250 X 250 X 200 mm) saves space on the production floor. Rugged Industrial Build: Built with durable materials for vibration-free operation and long-term stability in industrial conditions. Quick Changeover Capability: Allows fast pitch and leg length adjustments, significantly reducing downtime during component changeovers. Low Maintenance Requirement: Designed with simplicity in mind, requiring minimal maintenance while maintaining high performance. Why Choose Manual Forming for Taped Axials (Horizontal) – MAP 301 H? The MAP 301 H offers the perfect balance of precision, control, and productivity. Its manual crank operation provides the operator with full control, allowing for fine-tuning and customization during forming. Built with a compact, heavy-duty frame, it supports small-to-mid-scale operations that demand consistency and reliability. Whether you’re handling dense PCBs or varied lead sizes, this machine is engineered to perform. Perfect for small spaces and mobile workstations Eliminates need for electrical setup Ideal for continuous use in industrial environments Easy to operate, adjust, and maintain Designed by Estovir Technologies for long-term value Applications of Manual Forming for Taped Axials (Horizontal) – MAP 301 H MAP 301 H is widely used in manufacturing environments that require Horizontal lead forming: Electronics and PCB manufacturing lines Automotive electronic assembly units Industrial component forming and processing setups Consumer electronics and LED-based systems Component packaging and reshaping facilities Product Type Compatibility: Axial leaded components in taped form Automatic Grade: Manual (non-electric, fully mechanical)

Automatic Forming for Taped Axials (Horizontal) – UAP 301 H by Estovir Technologies The UAP 301 H (Automatic Forming for Taped Axial Components) by Estovir Technologies is an advanced motorized machine designed for automatic cutting and U-shape forming of taped axial components. Engineered for modern SMT lines, it delivers consistent, high-speed performance with minimal manual intervention, making it ideal for high-volume PCB manufacturing and electronic component processing. Key Features of Automatic Forming for Taped Axials (Horizontal) - UAP 301 H Motorized Automatic Operation:Significantly reduces manual effort while increasing output and consistency. High-Speed Processing: Delivers up to 14,000 components per hour, ideal for mass production environments. Accurate and Repeatable U-Forming: Ensures precise U-shape forming with consistent pitch and lead spacing for horizontal mounting. Supports Lead Diameters Up to 1.37mm: Accommodates various component sizes, making it highly adaptable to different production requirements. Adjustable Speed Control: Fine-tune forming speed to suit varying component types and line speeds. Compact & Rugged Design: Industrial-grade build with a compact footprint (500 × 195 × 195 mm), saving valuable floor space. Low Power Consumption: Runs on 220V AC, 50Hz with minimal power usage (3A–5A) for round-the-clock operation. Low Maintenance: Designed for 24/7 industrial use with simple maintenance routines. Technical Specifications Model: UAP 301 H Operation Type: Motorized Forming Type: Horizontal U-Shape Bend Lead Diameter: 0.4 mm to 1.37 mm (soft wire) Component Power: 3A & 5A Diode Output Capacity: 14000 pcs/hr Speed Control: Adjustable Power Supply: 220V AC, 50 Hz Power Consumption: 3A – 5A Dimensions: 500 X 195 X 195 mm Weight: 20 kg
