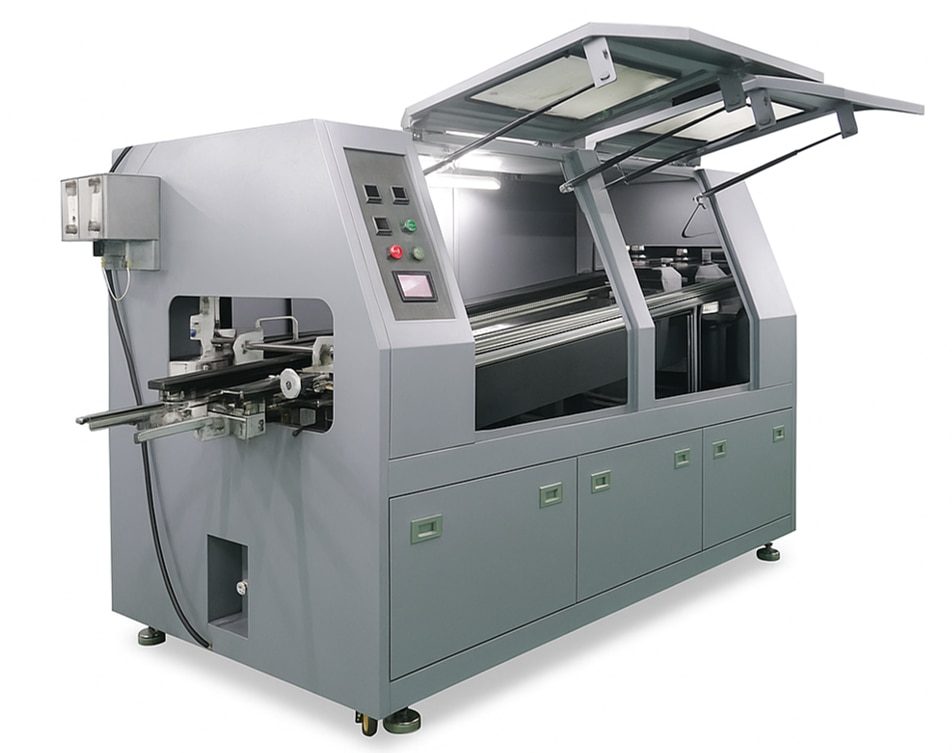

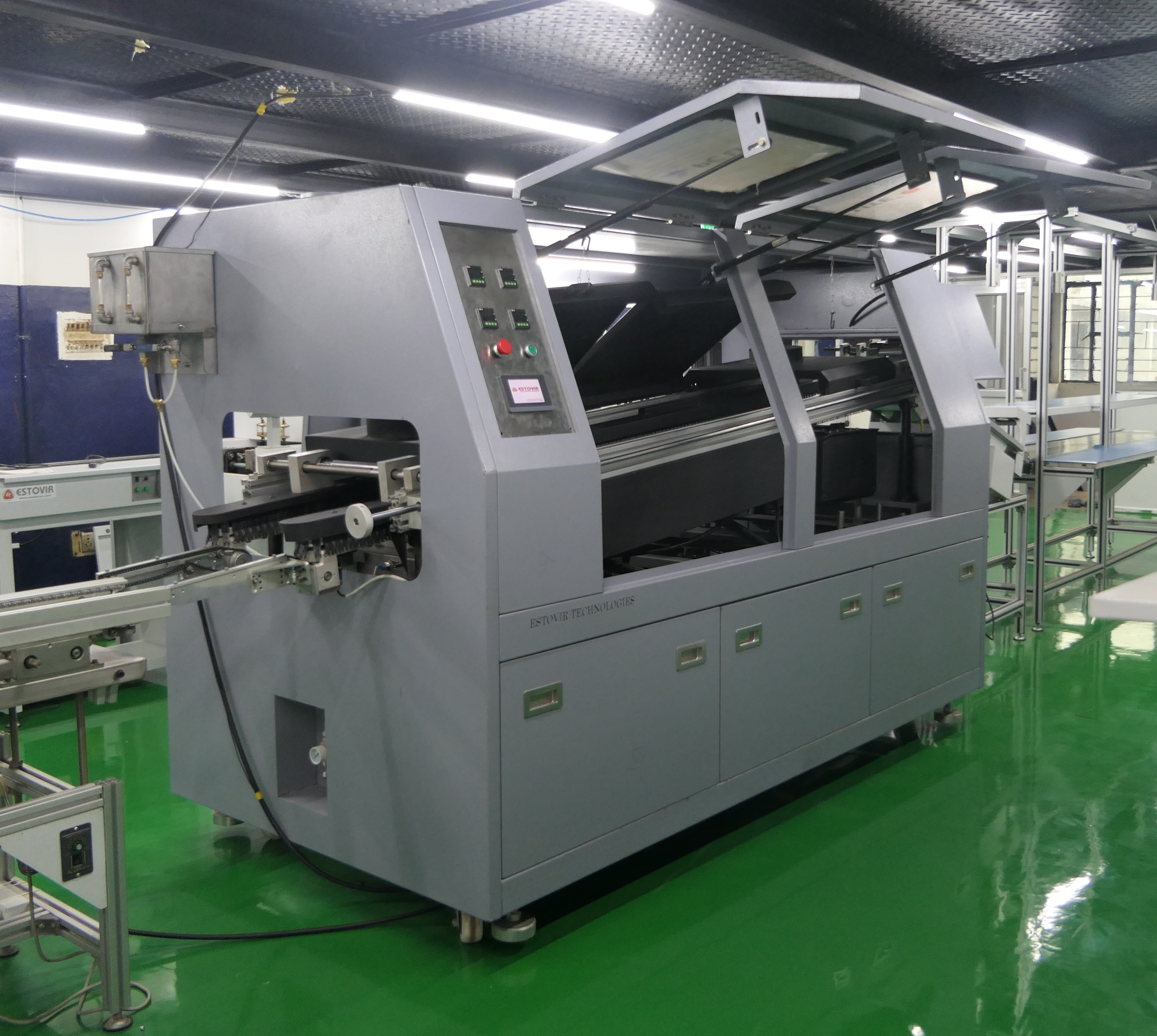

Overview of Wave Soldering Machine – WSM 350 DF (Finger Type)

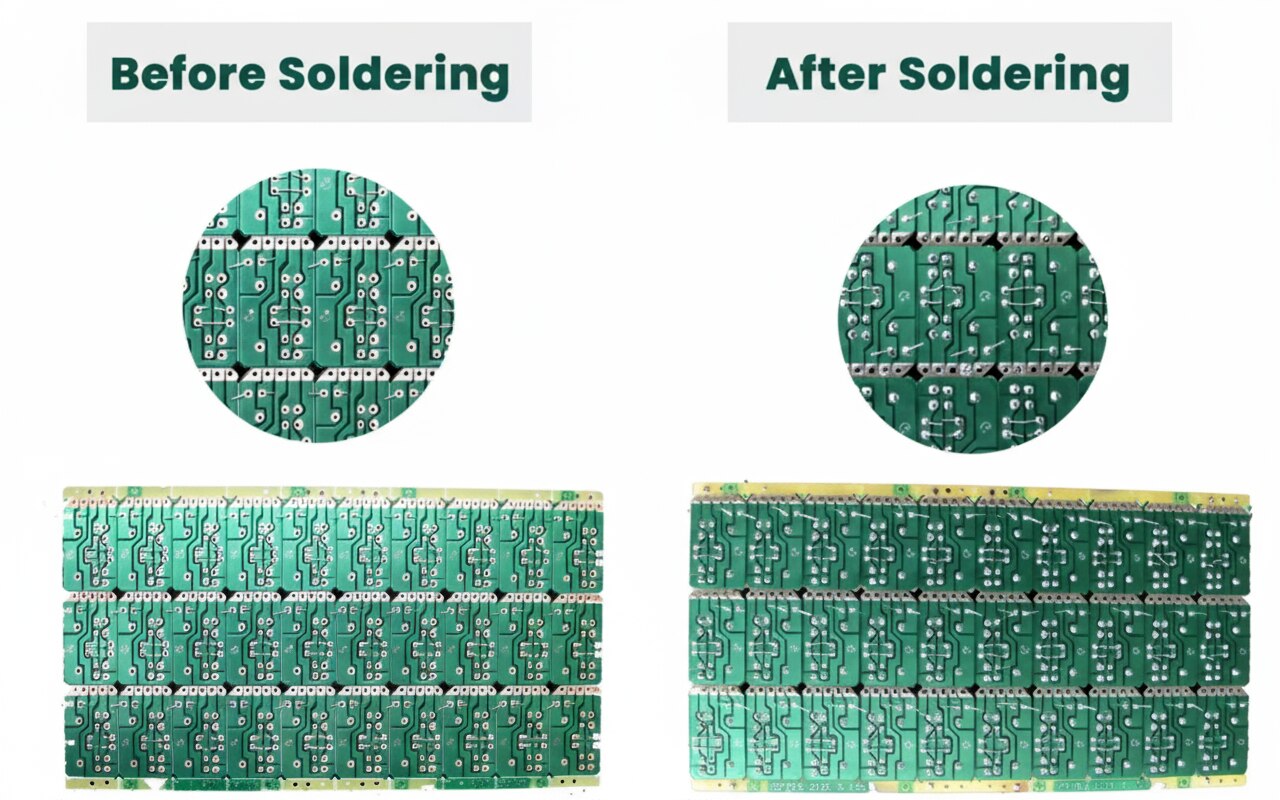

The Wave Soldering Machine – WSM 350 DF (Finger Type) is a next-generation, high-performance dual wave soldering system designed for automatic PCB soldering in modern assembly lines. Unlike manual carrier-type systems, the WSM 350 DF features an automatic chain conveyor with Special Steel fingers, eliminating the need for manual PCB feeding. Simply load PCBs through linking conveyors or inline modules, and the system handles the rest, ensuring faster throughput, reduced labor, and consistent soldering quality.

Built with dual wave solder baths, advanced spray fluxing with large preheater, and an integrated cooling fans, the WSM 350 DF is the ultimate solution for high-volume, lead-free, and defect-free PCB soldering. Its robust design, energy efficiency, and low-maintenance features make it a preferred choice across industries like automotive, consumer electronics, telecommunications, and industrial automation.

Fully Automatic Operation – Chain conveyor with Special Steel fingers ensures seamless inline PCB soldering without manual handling.

Dual Wave Solder Bath with Advanced Fluxing – spray fluxing, preheater, and dual wave solder bath guarantee defect-free solder joints for mass production.

High Reliability & Low Maintenance – Self-cleaning system, lead-free solder compatibility, and robust design deliver long-term performance with reduced downtime.

Key Features of Wave Soldering Machine – WSM 350 DF (Finger Type)

The WSM 350 DF comes with advanced features designed to enhance automation, precision, and productivity while reducing operational costs.

Dual Wave Soldering Technology

Ensures complete solder coverage with minimal bridging and defects.

Dual solder bath design improves throughput for high-density boards.

Advanced PLC + HMI Touchscreen Control System

Easy-to-use interface for real-time monitoring and adjustments

Digital control of conveyor speed, solder wave height, and temperature

Energy-Efficient PID + SSR Heating Control

Maintains precise solder bath and preheater temperatures

Reduces power consumption while ensuring stable soldering

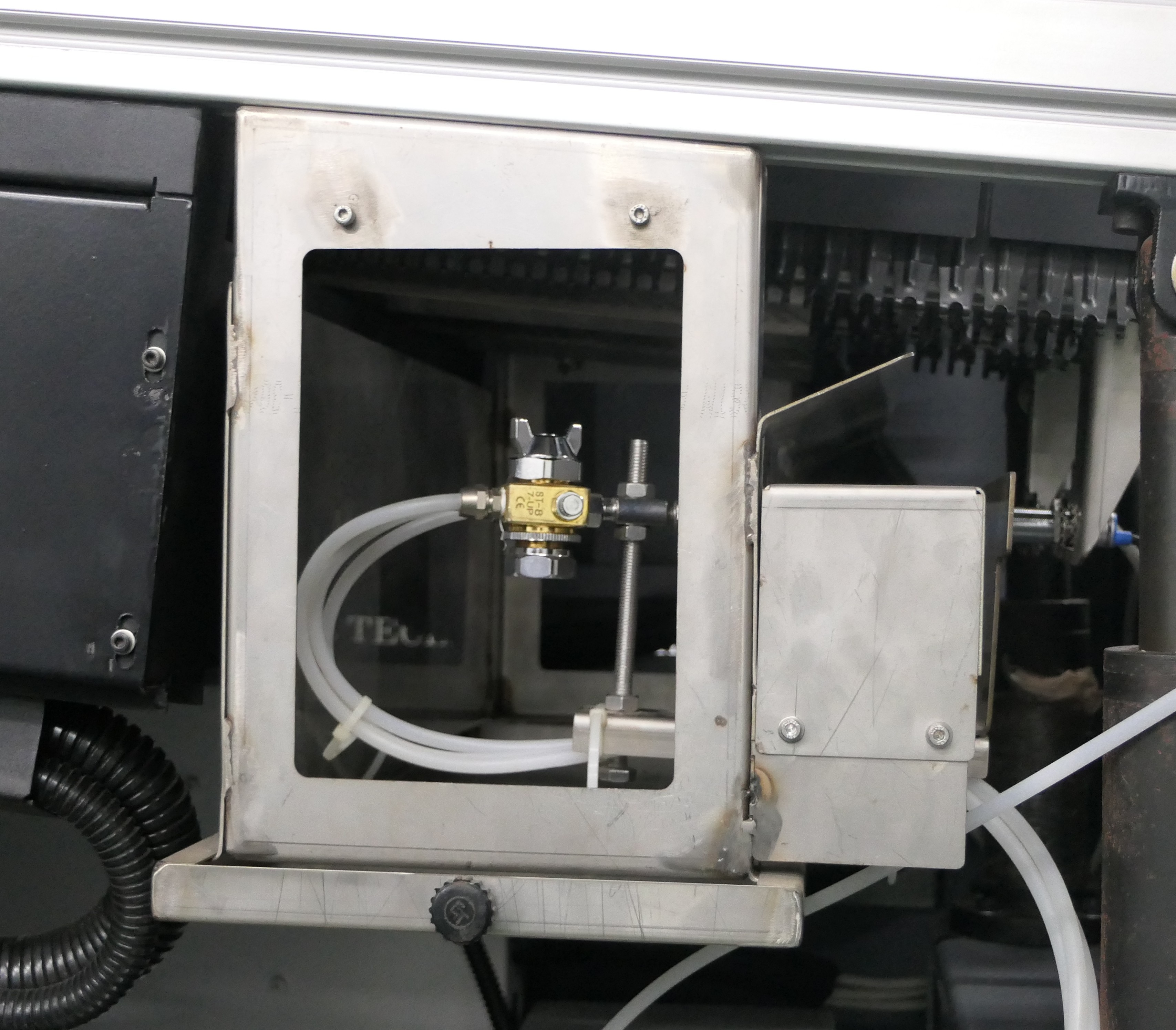

Spray Fluxing

Integrated spray fluxer with flux tank ensures uniform coverage.

Compatible with RMA, RA, alcohol-based, low solids, and VOC-free fluxes.

Foam Flux with Preheater

Foam flux + ceramic preheater prevent thermal shock and improve adhesion.

Automatic Chain Conveyor with Special Steel fingers (Titanium Fingers Optional)

Eliminates manual PCB loading – fully automatic inline operation.

High-grade Special Steel fingers provide durability and precision.

Compatible with linking conveyors, inline modules, and multi-line setups.

Special Steel Alloy Solder Pot for Lead-Free Compatibility

Resistant to corrosion and ensures long service life

260 kg solder capacity with temperature up to 300°C

Self-Cleaning System

Automatic cleaning tools minimize downtime and maintenance.

Ensures stable solder wave quality and reduces dross formation.

Flexible Solder Bath Options

Standard manual solder bath adjustment.

Optional motorized solder bath control for ease of operation.

High-grade RoHS-compliance solder pot with PID control.

Advanced Control System

Independent controllers for solder pot, preheater, and conveyor.

Touchscreen + PLC control with real-time monitoring.

VFD for conveyor speed and wave height adjustment.

Precision Pneumatic Control with Pressure Gauge

Features an accurate pressure gauge and solenoid valve for reliable flux spraying.

Allows for fine-tuning of air pressure to ensure perfect flux application every time.

Energy-Efficient Heating

Ceramic glass preheater with uniform heat transfer by infra-red (IR) and by convection

PID + SSR controlled heating reduces power consumption.

Integrated Cooling Fan

Integrated cooling Fan system ensures proper solidification of solder joints.

Reduces stress, cracks, and warpage in PCBs after soldering.

Main Parts of Wave Soldering Machine – WSM 350 DF

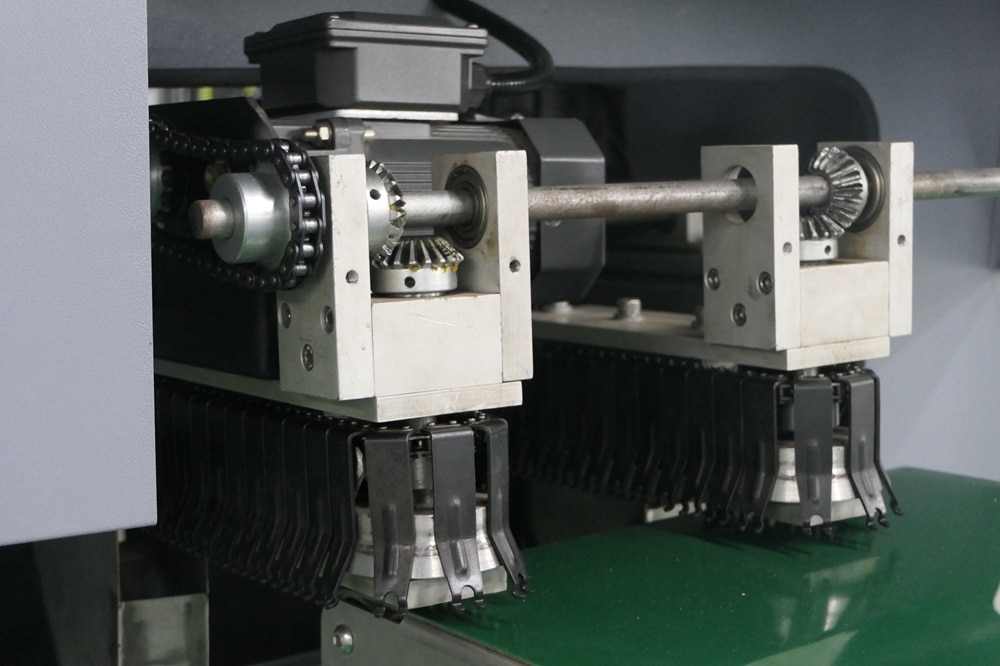

Chain Conveyor with Special Steel fingers (Titanium Fingers Optional)

Solder Bath (Dual Design)

Preheater System

Spray Fluxer System (Standard )

Conveyor Width & Height Adjustment

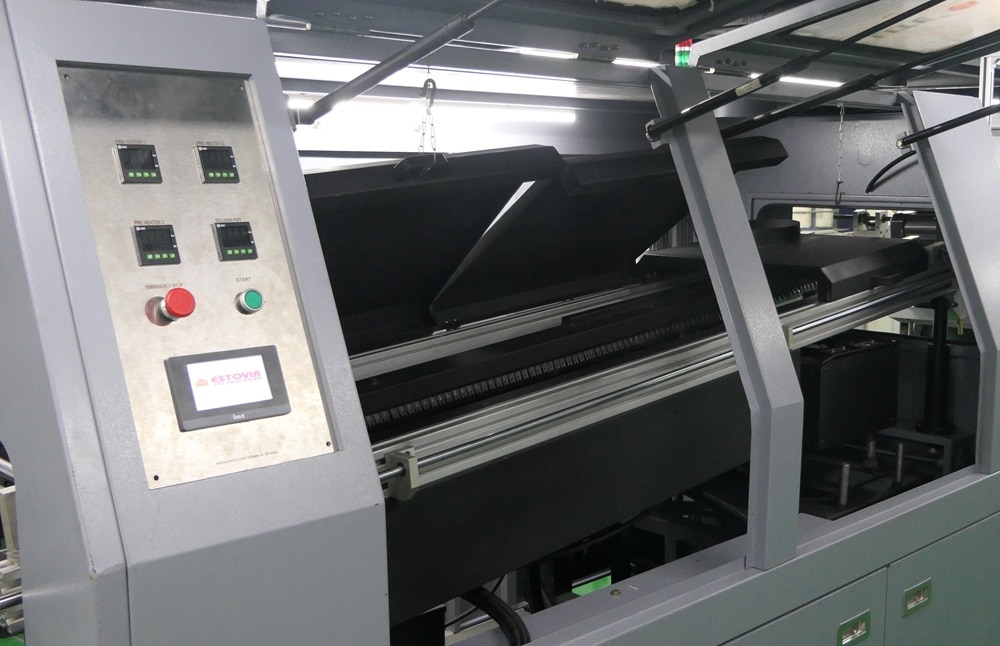

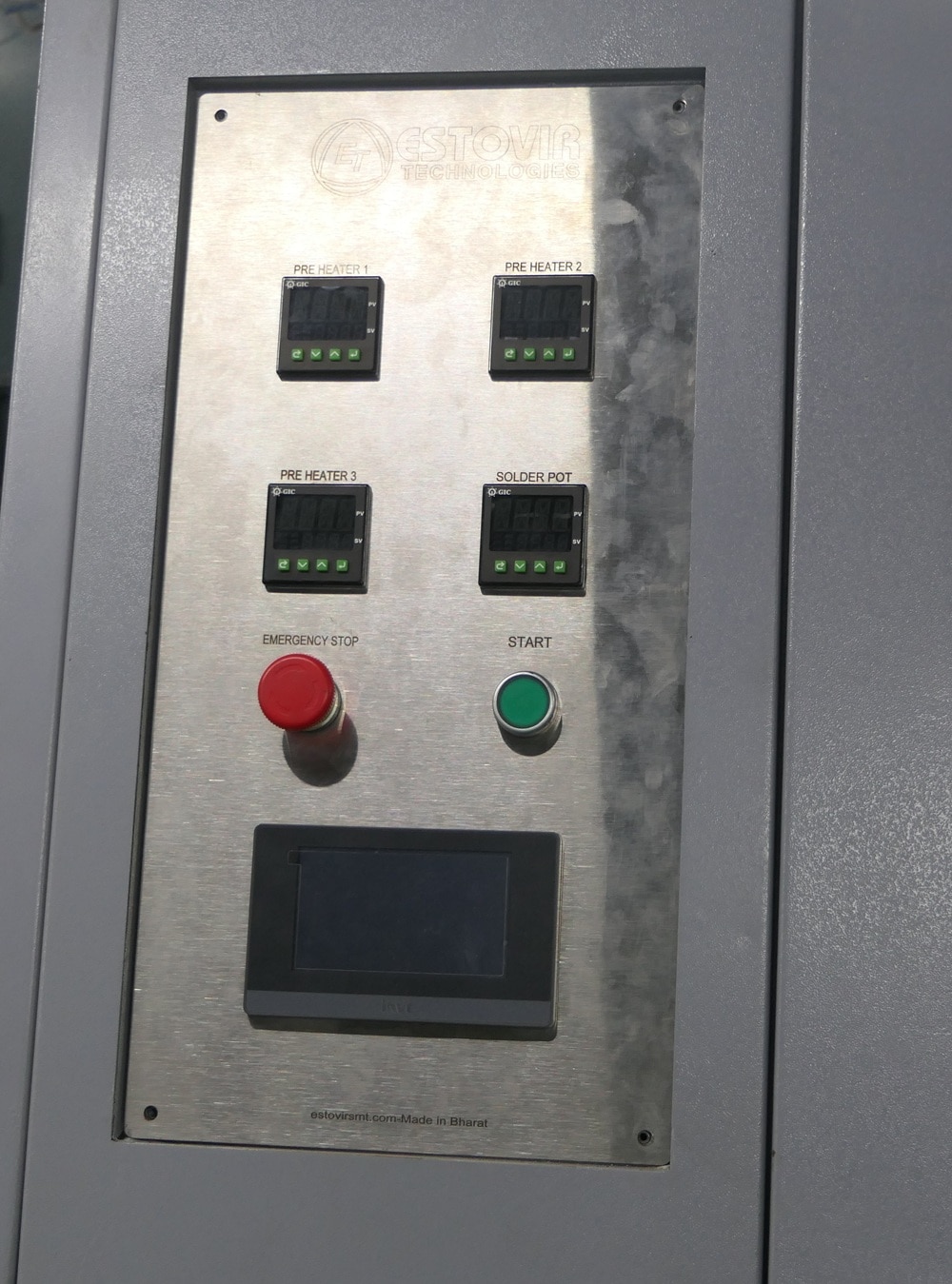

Control Panel

PLC Control System

Self-Cleaning Tool for Fingers

Pneumatic System & Air Flow and Flux Flow control with Solenoid Valve

Applications of Wave Soldering Machine – WSM 350 DF

PCB Assembly Lines – Fully automatic soldering for inline mass production.

Consumer Electronics – TVs, radios, and home appliances with high-quality joints.

Automotive Electronics – Dashboards, ECUs, sensors, and control modules.

Industrial Equipment – Automation controllers, power supplies, and PCB boards.

Telecommunication Devices – Routers, switches, and networking equipment.

Advantages of Wave Soldering Machine – WSM 350 DF

Automatic Operation – Eliminates manual handling with inline conveyor.

Faster Production – Dual solder bath and inline design improve efficiency.

Consistent Quality – Titanium fingers ensure stable PCB handling.

Energy Efficiency – PID-controlled heating and optimized power use.

Reduced Maintenance – Self-cleaning system lowers downtime.

Lead-Free Compatibility – RoHS-compliant solder pot for future-proofing.

Flexible Integration – Compatible with linking conveyors and inline setups.

High Reliability – Ensures defect-free soldering across industries.
