Product Details: Air-Flow Direction Duel Air Flow Capacity 100-500 Kg Display Analog We are manufacturer of Reflow Oven Conveyorised Specifications: Heating Zone: 3 upper and 2 bottom Length of heating zone: 960mm Heating type: intelligent convection and rapid infrared heating Cooling zone: 1max PCB size 300mm Operation direction : Left to right Transport of PCB : Mesh Conveyor transmission Speed Conveyor : 0-1500 mm/min Power: 3 theta 5 line 380 V AC 50 Hz Peak power: 4.5 KW Initial Heat Up time: 15 min Temperature Range : room temp to 300 degree C Control Mode: PID closed loop Control Accuracy: +-1 C PCB temperature deviation: +-2C Dimension: 1500*630*470 mm Weight: 90Kg approx

We offer a wide range of conveyor that are designed especially for stone crushing applications. TYPES: Flat Bed Conveyor Roller Conveyor-Gravity/Power Slat Band / Slat Conveyor Modular Plastic Conveyor Free Flow Conveyor Work Station Low Cost Automation Flat Top Chain Conveyor Wire Mesh Conveyor APPLICATION INDUSTRIES: Electronics Assembly PCB Assembly Light Engineering Industry Automotive Industry Wiring Harness Pharmaceutical Food Processing Packaging & Warehousing Garment Fabrication

Innovation is our forte and we strive to design and develop a precision engineered range of Powered Roller Conveyor. This range is utilized for the purpose of transferring drums and allied material in different fronts. These roller conveyors works automatically to ensure easy operation and can withstand the capacity from 100kg to 1 ton. Manufactured by making use of premium-grade MS and SS, these conveyors are available in different specifications as per the demands of clients. Features: Modular design for fast and convenient assembly. MS or SS Rollers Also available - 90 degree curve tapered rollers to ensure smooth flow. Accessories: Deflectors, pop up units for assembly lines Cross transfer for perpendicular transfer lifters Spur to merge loads in to main streams. Stoppers (pneumatic / electro-pneumatic) Application Areas: Packaging line Assembly and testing Warehousing

Conveyor for SMD line 1000mm • EMS 1000 C is a buffer conveyor for SMT line • Rugged structure to ensure the adjustment of rail width parallelism • Antistatic durable belt for PCB transport with alloy aluminum for long life • EMS 1000 C buffer conveyor can communicate with others devices by SMEMA • signal • This Smt conveyor is used in production line of SMT and AI and it is easy to connect with other machine in SMT line like Stencil printer, Pick & Place Machine and Reflow Oven Dimension 1000x734x910 mm (LxW xH) PCB size 50 – 350 mm Conveyor height 900mm ±20mm Guide rail length 1000mm (other size on request) Control system Customized and Reliable Light Optional Communication SMEMA signal Weight 45 Kg

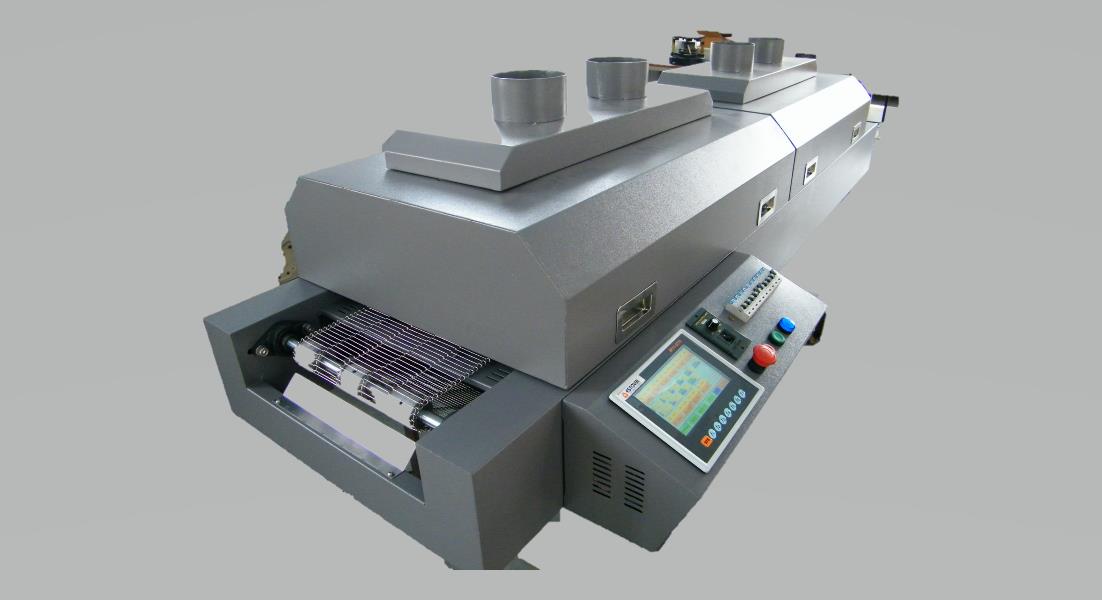

Reflow Oven Conveyorised Heating Zone 3 Upper & 2 bottom Length of Heating Zone 960 mm Heating Type Intelligent convection and rapid infrared heating Cooling zone 1 Max PCB size 280 mm Operation direction Left to Right Transport of PCB Mesh conveyor transmission Speed conveyor 0 – 1500 mm/min Power 3ø 5 line 380 V AC 50Hz Peak Power 4.5 KW Power Operator 2.3KW Initial Heat up time 15 minutes Temperature range Room temperature to 300°C Control Mode PID closed loop Control Accuracy ±1°C PCB temperature deviation ±2°C Dimension 1500x630x470 mm Weight 90 Kg approx

Product Description For solving the purpose of various industrial applications, we are providing to our esteemed customers a large array of Motorised Free Flow Insertion Conveyor. All these conveyors are valued as the ideal assembly line solutions that allow the pallets to move in line in a forward direction and further separated with the help of separators. Highly operational and reliable, our range of Motorised Free Flow Insertion Conveyor is delivered to the clients within stipulated time frames. Features: Enable easy moving Consistent functioning Saves time and labor Further Details: Model CPI 400 Width adjustment to accommodate 25mm to 400mm PCB''s Extended pin chain with plastic rollers for PCB transport Specially designed aluminum profile for jerk free transport Driven by high quality induction motor and reduction gear Speed adjustment by variable frequency drive Detachable Bins for component storage Industrial florescent lighting and instructions display board

Product Description With the aid of our deep market understanding, we are capable of manufacturing and exporting a broad gamut of Belt Conveyor. All these conveyors are well integrated by making use of quality assured material that has been sourced from reliable market vendors. Our belts are extensively used for high volume production applications where fast change over is required. Our series of Belt Conveyor is available in fixed and portable type specifications. Features: Sturdy design Highly functional Resistant to high temperature

Product Details: Manual Insertion Conveyors / Insertion Work Station Conveyors With Manual Free Flow for PCB stuffing Additional Information: Item Code: MPI-350

Motorized Conveyor offered finds extensive usage in different industrial applications and are valued as suitable assembly line allowing pallets to move inline in forward direction and allow further separation with help of separators. These conveyors are also known as Motorized FREE Flow Manual Nirlon Conveyor. Providing for superior operational and process reliability, these come with features like allow for easy moving and consistent functioning; allow width adjustment to accommodate 25mm to 400mm PCB; extended pin chain with plastic rollers for PCB transport; driven by quality induction motor and reduction gear; speed adjustment by variable frequency drive among others. Additional Information: Item Code: CPI400
