Insertion Work Station Insertion work station with manual free flow conveyor and Bin Holding Fixture

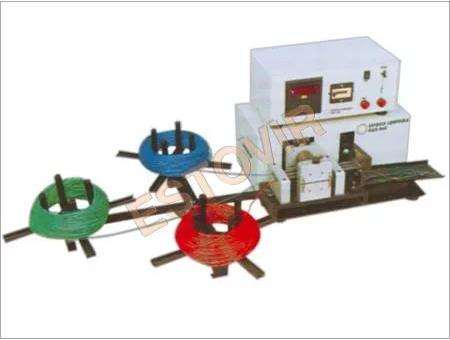

Model: AWS 540 Automatic Wire Sizing Machine FEATURES & SPECIFICATIONS : Optional feed guides for flat cables Length measurement through closed loop circuit with encoder feed back Special grade tool steel cutting blades Capable to feed 3 wires at a time Suitable for round & flat cables, sleeves etc Wire Diameter 1.0mm to 3.5mm Length Setting Min 10mm to Max 9999mm Time (T) for cutting Length (L) mm T= (L/132 + 1) sec. Output per Hr for 3600/T Length L mm Cutting Tolerance + 2.0 mm Dimensions L-420 W-320 H-360 mm Weight 24 Kg Power 220V AC, 50 Hz, 100W

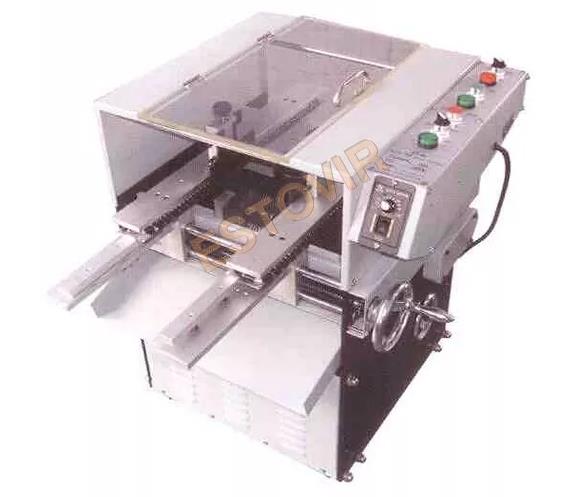

Automatic PCB Lead Cutting Machine Feature & Specifications The machine is designed automatically to transport the PCBA for trimming the extra leads. A pair of conveyor chain clamps the PCBA for transporting in to the high speed turning blade. Wrap prevention device in the equipments ensures no damage on the board Tungsten Carbide Blade ID -70 mm, OD - 200 mm & 250mm both size Thickness of PCB 0.8 mm to 2.5mm Max. PCB Size 500 mm(L) x 300 mm (W) Power 220 V AC, 50 Hz Main Spindle Speed 4500 RPM Main Motor Power ¾ HP Conveyor Speed 0-3 M/min adjustable Cutting Height 0.6 mm Minimum Weight 115 Kg

Product Details: Manual Insertion Conveyors / Insertion Work Station Conveyors With Manual Free Flow for PCB stuffing Additional Information: Item Code: MPI-350

Manual Forming for Taped Axials (Horizontal) – MAP 301 H by Estovir Technologies Estovir Technologies introduces the MAP 301 H—a compact, efficient machine designed for manual forming of taped axial components into a vertical U-shape. The unit is ideal for dense PCB assemblies where horizontal mounting is essential. It is manually operated through a crank, ensuring complete control and precise lead formation. The MAP 301 H is best suited for medium-volume production across electronics, automotive, and assembly industries. Key Features of Manual Forming for Taped Axials (Horizontal) – MAP 301 H High-Speed Output: Delivers an output capacity of up to 18,000 pieces per hour, enabling fast and efficient production. Precision H-Shape Lead Forming: Forms components into a consistent vertical U-shape, ideal for densely populated circuit boards. Manual Crank Operation: Manual operation via crank handle provides enhanced control and accuracy without relying on electricity. Supports Lead Diameters Up to 1.37mm: Accommodates various component sizes, making it highly adaptable to different production requirements. Compact Machine Design: Its compact footprint (250 X 250 X 200 mm) saves space on the production floor. Rugged Industrial Build: Built with durable materials for vibration-free operation and long-term stability in industrial conditions. Quick Changeover Capability: Allows fast pitch and leg length adjustments, significantly reducing downtime during component changeovers. Low Maintenance Requirement: Designed with simplicity in mind, requiring minimal maintenance while maintaining high performance. Why Choose Manual Forming for Taped Axials (Horizontal) – MAP 301 H? The MAP 301 H offers the perfect balance of precision, control, and productivity. Its manual crank operation provides the operator with full control, allowing for fine-tuning and customization during forming. Built with a compact, heavy-duty frame, it supports small-to-mid-scale operations that demand consistency and reliability. Whether you’re handling dense PCBs or varied lead sizes, this machine is engineered to perform. Perfect for small spaces and mobile workstations Eliminates need for electrical setup Ideal for continuous use in industrial environments Easy to operate, adjust, and maintain Designed by Estovir Technologies for long-term value Applications of Manual Forming for Taped Axials (Horizontal) – MAP 301 H MAP 301 H is widely used in manufacturing environments that require Horizontal lead forming: Electronics and PCB manufacturing lines Automotive electronic assembly units Industrial component forming and processing setups Consumer electronics and LED-based systems Component packaging and reshaping facilities Product Type Compatibility: Axial leaded components in taped form Automatic Grade: Manual (non-electric, fully mechanical)

Digital Display Lead-Free Soldering Station 60W The Digital Soldering Station 60W by Estovir Technologies ensures precision and efficiency in electronics repair and PCB assembly. Designed for durability and accuracy, it features advanced temperature control, rapid ceramic heating, and an easy-to-read LED display. Ideal for DIY electronics projects and professional use. Specifications: • Model: SS60W • Weight: 5 kg • Input Voltage: 220V AC ±10% 50Hz • Power Consumption: 60W (Max.) • Temperature Control Range: 150°C to 450°C (302°F to 842°F) • Output Voltage: 28V AC • Temperature Stability: ±1°C (Static) • Display: 7-Segment LED Display • Max. Surrounding Temperature: 40°C • Calibration Method: Digital Calibration • Calibration Temperature Range: 50°C to -50°C (122°F to -58°F) • Ground Impedance: < 2Ω • Ground Voltage: < 2mV • Heating Element: Ceramic Heating Core Product Features: • 7-Segment LED Display: Displays temperature clearly for easy monitoring. • Efficient Heating: Ceramic heating core ensures fast heat-up times and stable operation. • Precision Control: Uses PID power control and MCU-based temperature regulation for accuracy. • Durable Construction: High-temperature braided material enhances longevity and performance. • User-Friendly Display: Temperature shown in Celsius for operator convenience. • Rapid Calibration: Computerized Temperature Calibration corrects discrepancies quickly.

ESD Stool Description: The ESD Stool by Estovir Technologies is specifically designed to discharge electrostatic charge (ESD), ensuring a safe and controlled environment in sensitive workplaces. Built with a durable steel pipe frame, this stool offers exceptional stability and longevity. The ESD plastic seat provides both comfort and effective static dissipation, making it an essential choice for laboratories, cleanrooms, and electronic manufacturing units. Specifications: Product Name: ESD Stool Dimensions: 310 x 310 x 580 mm Weight: 2 kg Color: Black Manufacturer: Estovir Technologies Uses: 1. Laboratories 2. Cleanrooms 3. Electronic Manufacturing Facilities 4. PCB Assembly Units 5. Static-Sensitive Workstations Enhance workplace safety and efficiency with the ESD Stool by Estovir Technologies – the perfect seating solution for static-free environments.

The MAP 860 Manual Cut & Bend Machine for Taped Axial Components is engineered to deliver precision, efficiency, and reliability for electronics manufacturing environments. Designed by Estovir Technologies, the MAP 860 offers superior handling of taped axial components, optimizing production workflows while ensuring consistent component preparation. Key Features: 1. Precision Cutting & Bending: • High-accuracy blade system ensuring uniform cutting lengths. • Adjustable bending angles for tailored component shaping. 2. Ergonomic Design: • User-friendly manual operation reducing operator fatigue. • Compact footprint suitable for diverse workstation setups. 3. Versatile Compatibility: • Supports a wide range of taped axial upto lead Ø 0.8 mm softwire. • Adjustable guides for quick adaptation to varying tape widths. 4. Robust Construction: • Industrial-grade materials for enhanced durability and longevity. • Low-maintenance design with easy access to critical components. 5. Enhanced Throughput: • Streamlined manual operation for higher processing speeds. • Consistent output quality, minimizing rework and waste.

Motorised Free Flow Manual Insertion Coveyor (FMC 3 Channel) Product Details: Color : White Width : 20 Millimeter (mm) Weight : 5-6 Kilograms (kg) Height : 15 Millimeter (mm) Length : 6 Foot (ft)
