Pneumatic Wire Stripping Machine PWZ 310 Stroke Length 100 mm Wire Stripping Cap. Max 15.0 mm Power 220 V AC, 50 Hz Air Pressure 3-7 Kg/cm sq Output Power 49-115 Kg Air Cylinder Dia 50.0 mm Dimensions (mm) L-480 W-330 H-280 Weight 25 Kg

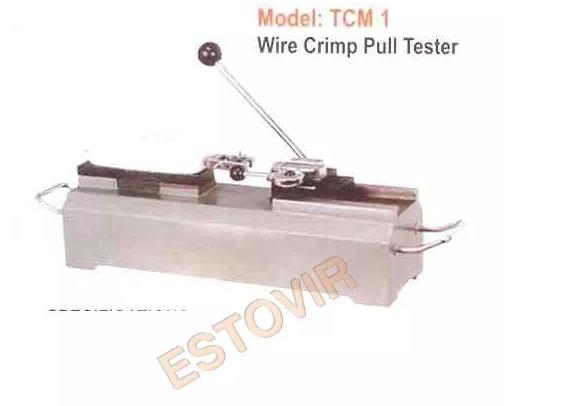

We are highly regarded across the industry as one of the trustworthy manufacturers and exporters of Wire Crimp Pull Tester. These testers are basically manual or motorized equipments that help in applying tension to a wire with the help of crimped-on terminals. Optimally durable and reliable, our testers precisely manufactured by keeping in mind the norms and standards of quality. Moreover, we make available our Wire Crimp Pull Tester for the respected clients within prompt timings and at competitive prices. Features: Optimum performance Easy to mount Precise integration

Automatic Wire Stripping cum Twisting Machine FEATURES & SPECIFICATIONS : Suitable for round cables Twists the strands of multi strand wires Fast change over for different wire diameter By changing collets Easy adjustment of strip length Nick free stripping as the tool does not touch the conductor Wire Diameter 1.2mm to 3.5mm Stripping Length 3.0mm to 25.0mm Collet Sizes Available From 1.4 to 6.0mm in steps of 0.1 mm Dimensions L-250 W-130 H-180 mm Weight 4 Kg Power 220V AC, 50 Hz, 50W Standard Accessories Collets 4 nos Spare Spring : 5 nos Spare Tool Bit : 1 no. Tool Kit

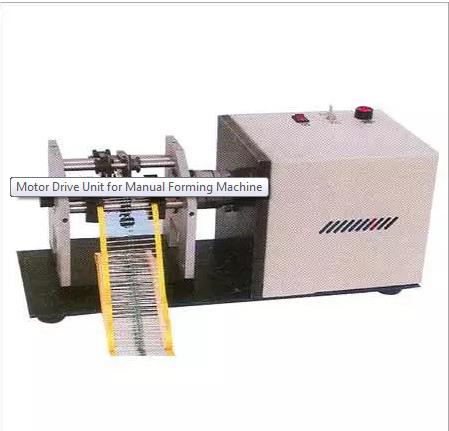

Motor Drive Unit for Manual Forming Machine Technical Specifications Output 14000 pcs/hr Power 220V AC, 50Hz Dimensions L-450, W-160, H-155mm Weight 12 kg

• Fast back design • Double acting air cylinder • Should be used with FRL so as to reduce internalwear of Cylinder • Durable and extended service life • Unique design to achieve accurate stripping • Adjustable stroke length and wire diameter Dimension 300X200X280 Power 220 V AC 50 Hz Stroke 20 mm Wire Stripping Length 1-20 mm Air Pressure 3-7 kg/cm2 Air Cylinder Dia 20 mm Weight 18 kg Approx

Automatic Cut & Bend Machine for Taped Axials Specifications Output 14000 pcs/hr Power 220V AC, 50 Hz Dimensions L-330, W-160, H-155 mm Weight 10 Kg

Manual De Taping Machine for Taped Radials Technical Specifications Output 10000-18000 pcs/hr Dimensions L-3300, W-160, H-155mm Weight 3 kg

Owing to our untiring efforts and dedication, we are capable of manufacturing and exporting a huge stock of Automatic IC Forming Machine. We manufacture these machines in compliance with the set international standards of quality and durability. Owing to their reliable and fast operations, these machines find their extensive applications in various academic institutions and research laboratories. Convenient to use and maintain, the stock of Automatic IC Forming Machine is delivered to clients’ end at highly discounted prices. Features: Safe and reliable High operational fluency Easy to operate and maintain Technical Specifications Output 30 second/standard IC tube Power 220V AC, 50Hz Dimensions L-1250, W-200, H-200mm Weight 12 kg

Multi Function Rework Station
