FEATURES & SPECIFICATIONS : For fluxing and Pre heating PCB's before soldering Carrier supplied compatible with Model DIP 905 Manual carrier movement on conveyor rails Digital Temperature controller for pre-heater General Dimensions in mm : L-775 W-525 H-375 Weight : 20 Kg Flux Bath Capacity : 4.0 ltrs Foam Width : 14” Foam Height : 10mm Flux Bath & Air Knife Air Consumption : 40 cfm at 30psi Pre-Heater Power Supply : 220 V AC, 50 Hz, 1.6 KW Standard Accessories PCB Carrier : 1 No Utilities Power Connection : 15 Amp Power Point Air Supply Compressed Air with FR

Wave Soldering Machine WSM 300D FEATURES :- GENERAL-  Available in Lead Free Version  Choice of Single or Dual Wave  Independent Controllers  Power Efficient Design Solder Bath –  High Grade Rohs Solder Pot  Solder pump driven by AC 3 ø Motor  Wave Height Control through VFD  PID controller for accurate temperature control  Interval sensor with Digital Timer PRE-HEATER-  Ceramic Glass top for high efficiency IR transfer  PID controller for 2 stage accurate temperature control FOAM FLUXER WITH AIR KNIFE-  High Grade construction with air knife  Special 2-micron Foaming Tube  Interval sensor with Digital Timer  Fitted with Air filter, regulator & indicator  External air supply required CONVEYOR-  Chain Type Conveyor  High Grade aluminium profile  Conveyor driven by AC 3 ø Motor  Conveyor speed Control through VFD  Step less angle adjustment

FEATURES & SPECIFICATIONS : Suitable for Cutting and Stripping operation Twisting option available in Model AWS 220 T Can feed & cut two wires High Speed and accuracy Cutting Length 0.1 to 9999mm Stripping Length 0.1 to 99 mm (As per wire material) Twisting Length 0.1 to 99 mm (As per wire material) Wire Diameter AWG 16 to 32 Power 220 V AC, 50 Hz, 200W Dimensions L-570mm W- 380mm H-440mm Weight 40 Kg Productivity Wire Length 100mm - 8420pcs/hr, 500mm-5380pcs/hr, 1000mm-3720pcs/hr

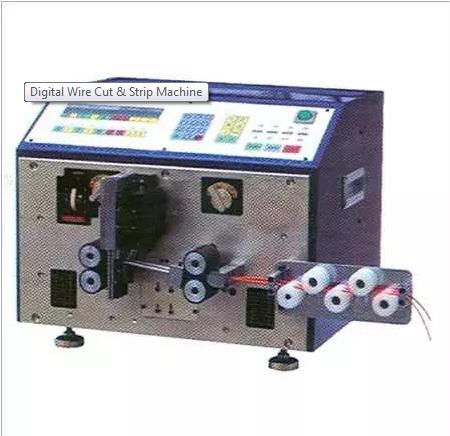

Digital Wire Cut Cum Strip Machine Feature & Specifications Suitable for Cutting and Stripping Operation Twisting Option available in Model AWS 220 T Can feed & cut two wires High Speed and accuracy Cutting Length 0.1 to 9999mm Stripping Length 0.1 to 99mm(As per wire material) Twisting Length 0.1 to 99 mm (As per wire material) Wire Diameter AWG 16 to 32 Power 220V AC, 50 Hz, 200W Dimensions L-570mm W-380mm H-440mm Weight 40 Kg Productivity Wire Length 100mm - 8420pcs/hr, 500mm - 5380pcs/hr, 1000mm-3720pcs/hr

We are the Manufacture of Digital Display Lead Free Soldering in Gurgaon.

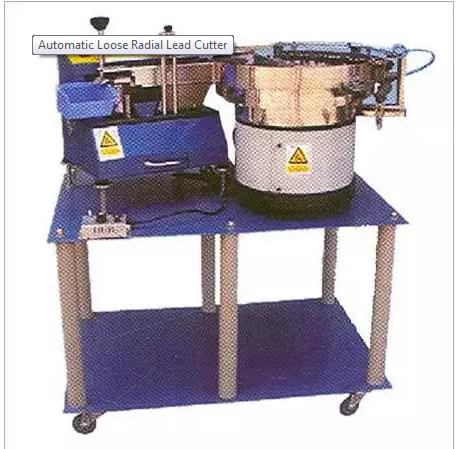

Since our inception, our firm is capable of manufacturing and exporting a powerful range of Automatic Loose Radial Lead Cutter. Long lasting in finish, our machines are valued as the ideal options for cutting various loose leads that considered as extra during installation. Our clients can acquire the array of Automatic Loose Radial Lead Cutters from us in varied specifications as to meet their particular packaging needs. Features: Fast and accurate packaging Easy to operate Controlled functions Technical Specifications Output 100-250 pcs/min Power 220V AC, 50Hz Dimensions L-1100, W-650, H-1050mm Weight 145 kg

PCB Leading Cutting MC Model D (mm) D (mm) T (mm) Ao LC TC 200 200 70 3.5 18o to 25o LC TC 250 250 70 3.5 18o to 25o

We are the largest manufacture of Digital Sleeve Cutting Machine in Gurgaon.

Our ESD PCB Storage Trolley is designed for electronics manufacturing, assembly lines, and R&D laboratories to ensure safe, efficient, and anti-static handling of printed circuit boards (PCBs). Built using high-quality stainless steel (SS) pipes and conductive PCB panels, these trolleys provide exceptional durability, corrosion resistance, and sleek aesthetics. KEY FEATURES • Portable & Expandable – Quick assembly and dismantling for flexible workspaces. • Robust & Durable Build – Corrosion-resistant stainless steel ensures long-term reliability. • High Storage Capacity – Holds up to 300 PCBs in multiple slots. • Anti-Static Protection – Conductive castors and chains minimize ESD risks. • Heat Resistant – Withstands temperatures up to 150°C. • Smooth Mobility – 100mm conductive rubber wheels for effortless movement. • Ergonomic & Sleek Design – Efficient, space-saving, and professional aesthetics Surface Resistance: 10⁴ – 10⁹ Ω Main Material: SS 304 and Conductive PP Plate Ambient Temperature: Max. 60°C Tube Thickness: 0.9mm ± 8C
