Automatic Dip-Soldering Machine Features & Specifications Digital Temperature Controller for Solder Bath Electronic Timer for setting dwell (solder) time Easy mechanical adjustments for depth setting Versatile PCB Carrier for fixing multiple PCB's Bath Size 14” x 14” 18” x 14” Solder Capacity 35 Kg 45 Kg Power Supply 220 V AC, 50Hz 220 V AC, 50Hz Heater Power 3.2 KW 4.0 KW Heat up Time 35 35 min Bath Depth 50 50mm Dimensions 690 x 460 x 360mm 790 x 460 x 360 Weight(without solder) 45 Kg 50Kg. Standard Accessories PCB Carrier – 1 no PCB Carrier - 1 no Scrapper 1 no Scrapper 1 no L/N Key Kit-1 no L/N Key Kit - 1 no

Automatic Loose Radial Lead Cutter – ARP 366 by Estovir Technologies The ARP 366 Automatic Loose Radial Lead Cutter by Estovir Technologies is a high-performance machine engineered for capacitor and loose radial component processing. Designed for mass production environments, it automates the trimming of radial component leads with remarkable precision. With an impressive output capacity of 2500–4000 pcs/hr, the ARP 366 boosts productivity while maintaining accuracy and reliability. Built with a sturdy industrial-grade frame, this 145 kg unit is ideal for factory floor integration in large-scale electronics manufacturing. Technical Specfication Model: ARP 366 Component Types: Capacitors, LED & Loose Radial Components Component Body Diameter: 3–15 mm Component Height: 3–18 mm Lead Diameter: Ø0.4 – Ø1.0 mm Output Capacity: 2500–4000 pcs/hr Bowel Feeder Diameter: Ø 380 mm Air Pressure: 30 PSI Power Supply: 220V AC, 50 Hz Dimensions: 830 × 550 × 1100 mm Weight: 145 Kg Components Forming Specification: A (Component Body Diameter): 3–15 mm H (Component Height): 3–18 mm W (Lead Diameter): Ø 0.4 – Ø1.0 mm Key Features of Automatic Loose Radial Lead Cutter – ARP 366 High-Speed Cutting Consistent output of 2500–4000 pcs/hr. Maintains precision without slowing down production. Wide Compatibility Handles body diameters of 3–15 mm and height of 3–18 mm. Supports lead diameters from Ø0.4 – Ø1.0 mm. Precision Mechanism Ensures uniform, damage-free cuts. Optimized for delicate components like capacitors. Heavy-Duty Design Industrial-grade structure for continuous use. Withstands long production cycles without performance drop. Compact & Efficient Integration Small footprint (830 × 550 × 1100 mm) saves space. Easy relocation and setup on existing production lines. Advanced Bowl Feeder System Ø 380 mm feeder bowl ensures stable feeding. Reduces downtime by automating component flow. User-Friendly Operation Equipped with a simple control panel. Quick adjustments with minimal operator training. Applications of Automatic Loose Radial Lead Cutter – ARP 366 Capacitor and loose radial component processing in mass production. PCB and electronics manufacturing lines requiring precise trimming. Consumer electronics component preparation and lead cutting. Industrial electronic assembly units with continuous operations. Automated capacitor packaging and sorting facilities. Automated capacitor packaging facilities Why Choose Automatic Loose Radial Lead Cutter – ARP 366 High-speed cutting with 2500-4000pcs/hrs output. Precise, uniform cuts without component damage. Heavy-duty design for continuous industrial use. Compact footprint for easy production line integration. User-friendly controls for quick setup and operation. Trusted by global electronics manufacturers.

Automatic Loose Radial Lead Cutter with bowl feeder SPECIFICATIONS : Output Power 220V AC, 50 Hz Dimensions L-1100 W-650 H-1050 mm Weight 145 Kg

Automatic Cut Bend & Kink Machine for Taped Axials Technical Specifications Output 110 pcs/min Power 220V AC, 50Hz Dimensions L-1050, W-600, H-650mm Weight 115 kg

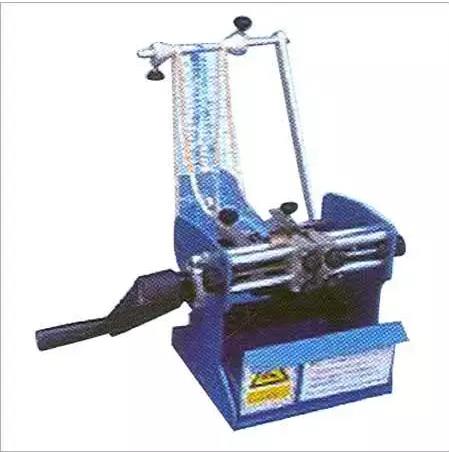

Manual Forming for Taped Axials (Horizontal Vertical) Technical Specifications Output 10000-18000 pcs/hr Dimensions L-250, W-250, H-200mm Weight 5 kg

Automatic Dip-Soldering Machine Features & Specifications Digital Temperature Controller for Solder Bath Electronic Timer for setting dwell (solder) time Easy mechanical adjustments for depth setting Versatile PCB Carrier for fixing multiple PCB's Bath Size 14” x 14” 18” x 14” Solder Capacity 35 Kg 45 Kg Power Supply 220 V AC, 50Hz 220 V AC, 50Hz Heater Power 3.2 KW 4.0 KW Heat up Time 35 35 min Bath Depth 50 50mm Dimensions 690 x 460 x 360mm 790 x 460 x 360 Weight(without solder) 45 Kg 50Kg. Standard Accessories PCB Carrier – 1 no PCB Carrier - 1 no Scrapper 1 no Scrapper 1 no L/N Key Kit-1 no L/N Key Kit - 1 no

Our respected clients can avail the series of Automatic Jumper Forming Machine that is cautiously assembled by making use of upgraded components and materials. These machines are reliable for producing jumpers used in various electrical applications. Clients appreciate the entire stock of Automatic Jumper Forming Machine due to its reliable usage and easy operations. In addition, we make available the array of machines at discounted prices. Features: Unmatched performance Modular design Easy installation Technical Specifications Output 7500 pcs/hr Power 220V AC, 50Hz Dimensions L-320, W-300, H-450m

We are specialized in the industry by manufacturing and supplying a wide range of Wave Soldering Machine. These are especially assembled for high mass and volume manufacturing in industry. Offered range of Wave Soldering Machine is developed in compliance with defined international standards of quality and durability. In addition to this, we stringently inspect the entire series on the parameters of service life and functionality. Features: Consumes less floor space Long functional life Convenient operation Technical Specifications: Features Model WSM 200 (Single Wave) WSM 300 S (Single Wave) WSM 300D (Dual Wave) General Power Supply 220V AC, 50 Hz 1 Ph, 20A 440V AC, 50 Hz 3 Ph, 27A 440V AC, 50 Hz 3 Ph, 42A Dimensions(With Vonv. Length) L-2900 W-850 H-1100 mm L-3500 W-900 H-1800 mm L-3500 W-900 H-1800 mm Weight 180 Kg 320 Kg 380 Kg Construction Table Top1 Floor Model Floor Model SOLDER BATH Wave Width 200 mm 300mm 300mm Solder Bath Capacity 95 Kg 115 115 x 2 = 230Kg Max. Wave Height 0-8mm 0-8mm 0-8mm Warm up Time. 60min 70min 70min Solder Bath Power 2.4Kw 3.0 Kw 3.0 x 2=6.0Kw FLUXER Flux Capacity 3 Ltr 4 Ltr 4 Ltr Air Consumption 3.5 cfm(30 PSI) 4.0cfm(30 PSI) 4.0cfm(30 PSI) CONVEYOR Conveyor Speer 0-2.5 M/min 0-2.5 M/min 0-2.5 M/min Conveyor Angle 5,6,7 degree in Steps 4-10 degree step - less 4-10 degree step - less PRE-HEATER Pre Heater Length 800 mm 900 mm 900 mm Pre Heater Power 2.0 KW 3.0 KW 3.0 KW

Automatic De-Taping Machine for Taped Radials – UAP 850 R High-Speed, Precise & Reliable De-Taping Solution The Automatic De-Taping Machine for Taped Radials – UAP 850 R by Estovir Technologies is an advanced motorized solution designed for fast and accurate cutting of taped radial components. As the upgraded version of the MAP 860 R, this de-taping machine delivers superior speed, consistency, and efficiency for high-volume electronics and PCB manufacturing. Technical Specification: Model: UAP 850 R Output Capacity: Up to 10,000 pcs/hr Lead Diameter: Ø 0.4 mm – Ø 0.8 mm (soft wire) Power Source: 220V AC, 50 Hz Operation Type: Motorized / Automatic Dimensions: 370 mm × 160 mm × 205 mm Weight: 8 kg Component Forming Specification A (Lead Body Length): 3.5 – 40 mm B (Lead Length): 3.6 – 15 mm W (Lead Wire Diameter): Ø 0.4 – Ø 0.8 mm Key Features of UAP 850 R Automatic De-Taping Machine Motorized Automatic Operation – Minimizes manual intervention for reliable, consistent output. High-Speed Performance – Processes up to 10,000 components per hour, ideal for large-scale manufacturing. Precision Cutting Mechanism – Handles soft wire leads up to 0.8 mm with clean and uniform cuts. Compact & Space-Saving Design – Dimensions: 370 × 160 × 205 mm, perfect for small workspaces. Energy Efficient – Runs on less than 100 W power consumption. Low Maintenance & Long Life – Built with industrial-grade durability for extended use. Applications of the Automatic De-Taping Machine The Automatic De-Taping Machine for Taped Radials – UAP 850 R is versatile and widely used across industries where precision and high-speed output are critical: Electronics manufacturing – De-taping resistors, capacitors, and other radial components. Automotive electronics – Ensures accurate preparation of large-volume components. Consumer electronics assembly – Handles small, delicate taped parts with precision. PCB manufacturing – Streamlines taped component processing. Appliance & device production – Ideal for bulk taped radial leads. Why Choose Estovir Technologies' UAP 850 R? Engineered for Speed & Accuracy – Consistent results with every cycle. Adaptable & Space-Saving – Compact size with adjustable speed control. Reliable & Energy-Efficient – Consumes minimal power while delivering maximum output. Built for Durability – Industrial-grade construction with minimal maintenance requirements. If your production demands speed, precision, and reliability, the Automatic De-Taping Machine for Taped Radials – UAP 850 R is the perfect solution. With its compact size, high output capacity, and low energy usage, this machine significantly improves productivity while maintaining long-term dependability. Upgrade your assembly line with the UAP 850 R from Estovir Technologies – where precision meets productivity.
