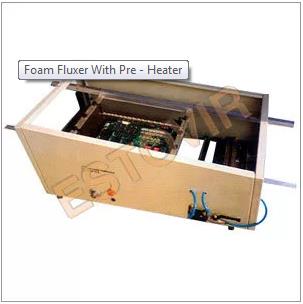

Foam Fluxer With Pre – Heater For fluxing and pre heating the PCB before Dip Soldering. The foam fluxer applies a uniform layer of flux to the PCB through a foaming tube. The air knife smoothens up the flux, and removes the axcess flux. The pre heater activates the flux, and prepares the assembly for soldering. Carrier supplied compatible with Model DIP 905 Foam Fluxer with plastic foaming tube. Digital temperature controller for pre heater. Independent Flow Control valve for air knife and fluxer. One touch pneumatic fittings for external air supply. Manual carrier movement on conveyor rails. General Dimensions L-775 W-525 H-375 Weight 20 kg Flux Bath & Air Knife Flux Bath capacity 4.0ltrs Foam width 14 Foam Height 10mm Air Consumption 20cfm at 30psi Pre Heater Power supply 220 V AC, 50Hz, 1.6 KW Standard Accessories PCB Carrier 1 No Utilities Power Connection 15 Amp Power Point Air supply Compressed Air with FR

Product Description For solving the purpose of various industrial applications, we are providing to our esteemed customers a large array of Motorised Free Flow Insertion Conveyor. All these conveyors are valued as the ideal assembly line solutions that allow the pallets to move in line in a forward direction and further separated with the help of separators. Highly operational and reliable, our range of Motorised Free Flow Insertion Conveyor is delivered to the clients within stipulated time frames. Features: Enable easy moving Consistent functioning Saves time and labor Further Details: Model CPI 400 Width adjustment to accommodate 25mm to 400mm PCB''s Extended pin chain with plastic rollers for PCB transport Specially designed aluminum profile for jerk free transport Driven by high quality induction motor and reduction gear Speed adjustment by variable frequency drive Detachable Bins for component storage Industrial florescent lighting and instructions display board

Throughout the years, we have been serving our esteemed customers a large stock of Loose Radial Lead Cutter. We assemble the offered equipment to ensure easy and excellent cutting of leads for installation purpose. Our cutters are well integrated with powerful and supreme quality of materials sourced from reliable market vendors. The entire line of Loose Radial Lead Cutter is adjustable in terms of cutting variable size leads. Features: User friendly design Integrated with adjustable frames Require low maintenance Technical Specifications Power 220V AC, 50Hz Dimensions L-500, W-400, H-450mm Weight 30 kg

Automatic Cut Bend & Kink Machine for Taped Axials Technical Specifications Output 110 pcs/min Power 220V AC, 50Hz Dimensions L-1050, W-600, H-650mm Weight 115 kg

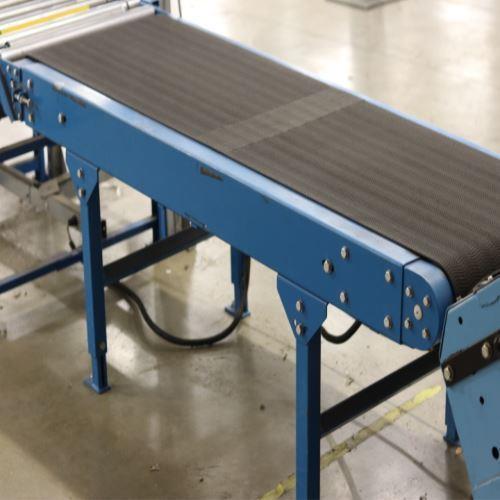

Product Details: Length 1-10 feet, 10-20 feet Material Aluminium Material Handling Capacity 1-50 kg per feet, 50-100 kg per feet Type Flexible Conveyors Innovation is our forte and we strive to design and develop a precision engineered range of Flat Belt Conveyor With Working Table. This precision engineered array of belt conveyors is best suited for handling cartoons, bags, sorting & picking component range, filing, labeling, inspection, packaging and wrapping tasks. The offered products are available at market leading prices. Features: Longer working life Easy mobility of material High tensile strength
