Our ESD PCB Storage Trolley is designed for electronics manufacturing, assembly lines, and R&D laboratories to ensure safe, efficient, and anti-static handling of printed circuit boards (PCBs). Built using high-quality stainless steel (SS) pipes and conductive PCB panels, these trolleys provide exceptional durability, corrosion resistance, and sleek aesthetics. KEY FEATURES • Portable & Expandable – Quick assembly and dismantling for flexible workspaces. • Robust & Durable Build – Corrosion-resistant stainless steel ensures long-term reliability. • High Storage Capacity – Holds up to 300 PCBs in multiple slots. • Anti-Static Protection – Conductive castors and chains minimize ESD risks. • Heat Resistant – Withstands temperatures up to 150°C. • Smooth Mobility – 100mm conductive rubber wheels for effortless movement. • Ergonomic & Sleek Design – Efficient, space-saving, and professional aesthetics Surface Resistance: 10⁴ – 10⁹ Ω Main Material: SS 304 and Conductive PP Plate Ambient Temperature: Max. 60°C Tube Thickness: 0.9mm ± 8C

Our ESD PCB Storage Trolley is designed for electronics manufacturing, assembly lines, and R&D laboratories to ensure safe, efficient, and anti-static handling of printed circuit boards (PCBs). Built using high-quality stainless steel (SS) pipes and conductive PCB panels, these trolleys provide exceptional durability, corrosion resistance, and sleek aesthetics. KEY FEATURES • Portable & Expandable – Quick assembly and dismantling for flexible workspaces. • Robust & Durable Build – Corrosion-resistant stainless steel ensures long-term reliability. • High Storage Capacity – Holds up to 300 PCBs in multiple slots. • Anti-Static Protection – Conductive castors and chains minimize ESD risks. • Heat Resistant – Withstands temperatures up to 150°C. • Smooth Mobility – 100mm conductive rubber wheels for effortless movement. • Ergonomic & Sleek Design – Efficient, space-saving, and professional aesthetics Surface Resistance: 10⁴ – 10⁹ Ω Main Material: SS 304 and Conductive PP Plate Ambient Temperature: Max. 60°C Tube Thickness: 0.9mm ± 8C

Description: The EMS 3040 MP Manual Solder Paste & Glue Printer is a high-precision, flexible solution designed for the application of solder paste and glue on various types of printed circuit boards (PCBs). It features a honeycomb base, similar to those found in semi-automatic solder paste printers, ensuring enhanced stability and precise operation. This printer supports both single and double-sided PCBs, making it versatile for a range of applications. The stencil movement mechanism is counterbalanced for smooth operation, and the printing platform is highly adjustable, with fine-tuned control over the X-axis, Y-axis, and theta angle for accurate positioning. Built with superior materials, the EMS 3040 MP is durable and designed to last in demanding environments. Specifications: • Base Type: Honeycomb base (similar to semi-automatic solder paste printers) • Adjustability: High precision and flexible adjustments for different board types • PCB Compatibility: Can process double-sided PCBs • Stencil Movement: Up and down with counterbalance • Platform Adjustments: Precise adjustments for X-axis, Y-axis, and theta angle • Material: Made of superior materials for durability • Dimensions: 560 x 390 x 350 mm • Platform Size: 300 x 400 mm • PCB Size: 250 x 350 mm • PCB Thickness: 0-100 mm • PCB Tuning Range: Front/Side ± 10 mm • Platform Height: 100 mm • Repeatability: ±0.01 mm for high precision printing • Positioning Mode: Side/Reference hole positioning for accurate placement • Weight: Approx. 30 kg • Category: SMT Machines (Surface Mount Technology) Key Features : • Precision: High precision solder paste and glue printing with repeatability of ±0.01 mm. • Adjustability: Fine adjustments in X-axis, Y-axis, and theta angle for flexible board handling. • Dual-Sided PCB Support: Capability to handle double-sided PCBs. • Durability: Constructed with superior materials for long-lasting performance. • Compact Design: Efficient design with a footprint of 560 x 390 x 350 mm. • Easy Setup: Simple and quick adjustments for different board sizes and configurations. • Counterbalance Stencil Movement: Ensures smooth and consistent stencil movement. • Precision Platform: Allows accurate tuning for optimal paste application. This machine is ideal for SMT manufacturing lines looking for a manual solder paste printer that combines high precision with flexibility for various PCB types and sizes.

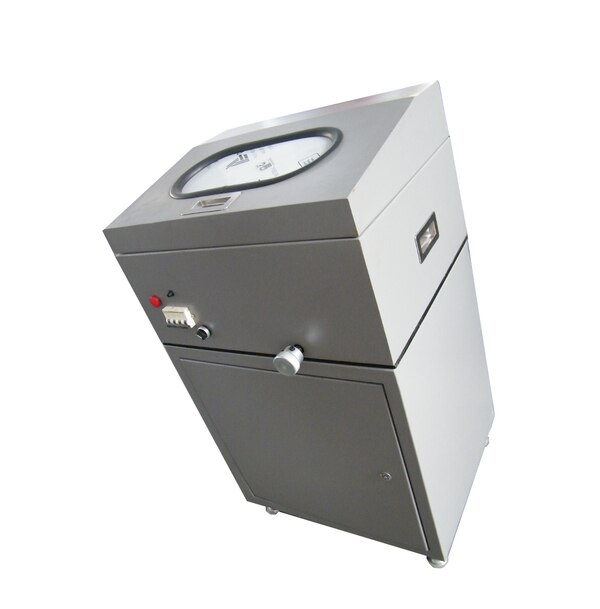

FEATURES & SPECIFICATIONS : Blade cutter grinder is a grinding equipment for tungsten steel blades of circuit board cutting machine. Complete enclosed design, grinding dust to be discharged and collected. Use of high precision parts, Diamond grinding wheel, good grinding consistency. Adjustable grinding angle, smooth speed, low noise and high efficiency Angle of sharpening 18° - 25° Dimension of blade Max. Ø 250 Speed of blade revolving 2500 RPM Grinding Wheel Type Diamond Wheel Power supply AC 220V, 50Hz Weight 125 KG.

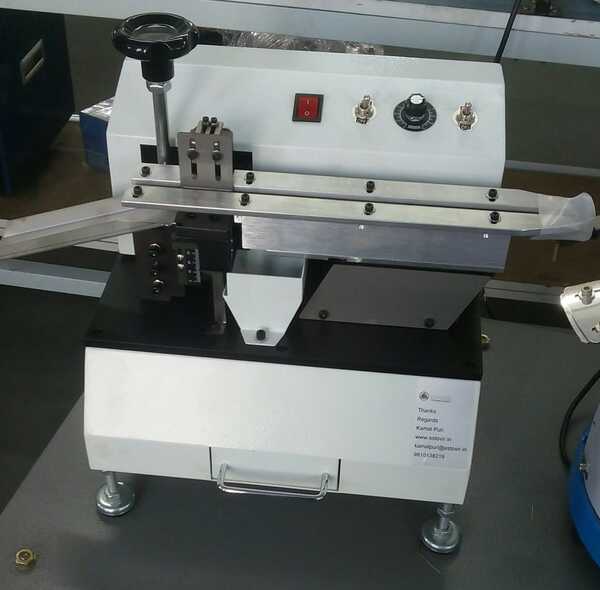

Component Forming Machine Manufacturer Loose Radial Lead Cutter With Bowl Feeder ARP 366 Minimum Order Quantity 1 Unit Usage/Application Automotive Industry Model Name/Number ARP 366 Brand Estovir Material Aluminium Material Overbending (Degrees) 90 degree Power Source Electric Surface Polished

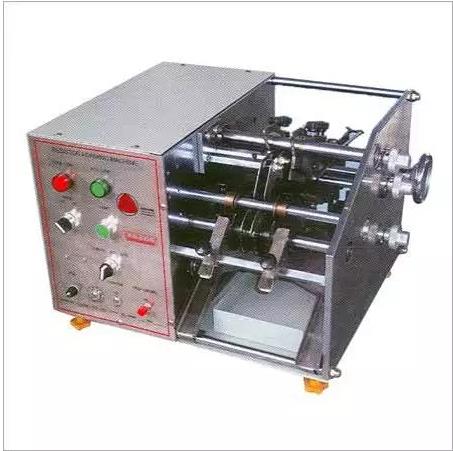

Automatic Cut Bend & Kink Machine for Taped Axials Technical Specifications Output 110 pcs/min Power 220V AC, 50Hz Dimensions L-1050, W-600, H-650mm Weight 115 kg

Wire Stripping Cum Twisting Machine Model AWZ 460 For stripping the insulation of round cables and twisting the strands (of multi strand wires), simultaneously Inserting the wire in the collect and withdrawing it completes the operation Simple and fast change over from one wire diameter to another is done by changing the collect according to the wire diameter Easy adjustment of stripping length Nick free stripping as the tool does not touch the conductor Special grade tool steel blade High quality motor, rated for continues &uninterrupted operation Dimension (l x w x h) 250 x 130 x 180 mm Weight 4.0 Kg Power 220V AC, 50Hz, 50 W Wire Diameter 1.2 mm to 3.5 mm Stripping Length 3.0 mm to 25.0 Collect Size available From 1.4 to 6.0 mm in step of 0.1 mm Standard Accessories Collets : 4 no Spare Sprin : 5 no Spare Toold : Bit 1 no Tool Kit

We are specialized in the industry by manufacturing and supplying a wide range of Wave Soldering Machine. These are especially assembled for high mass and volume manufacturing in industry. Offered range of Wave Soldering Machine is developed in compliance with defined international standards of quality and durability. In addition to this, we stringently inspect the entire series on the parameters of service life and functionality. Features: Consumes less floor space Long functional life Convenient operation Technical Specifications: Features Model WSM 200 (Single Wave) WSM 300 S (Single Wave) WSM 300D (Dual Wave) General Power Supply 220V AC, 50 Hz 1 Ph, 20A 440V AC, 50 Hz 3 Ph, 27A 440V AC, 50 Hz 3 Ph, 42A Dimensions(With Vonv. Length) L-2900 W-850 H-1100 mm L-3500 W-900 H-1800 mm L-3500 W-900 H-1800 mm Weight 180 Kg 320 Kg 380 Kg Construction Table Top1 Floor Model Floor Model SOLDER BATH Wave Width 200 mm 300mm 300mm Solder Bath Capacity 95 Kg 115 115 x 2 = 230Kg Max. Wave Height 0-8mm 0-8mm 0-8mm Warm up Time. 60min 70min 70min Solder Bath Power 2.4Kw 3.0 Kw 3.0 x 2=6.0Kw FLUXER Flux Capacity 3 Ltr 4 Ltr 4 Ltr Air Consumption 3.5 cfm(30 PSI) 4.0cfm(30 PSI) 4.0cfm(30 PSI) CONVEYOR Conveyor Speer 0-2.5 M/min 0-2.5 M/min 0-2.5 M/min Conveyor Angle 5,6,7 degree in Steps 4-10 degree step - less 4-10 degree step - less PRE-HEATER Pre Heater Length 800 mm 900 mm 900 mm Pre Heater Power 2.0 KW 3.0 KW 3.0 KW

Since our inception, our firm is capable of manufacturing and exporting a powerful range of Automatic Loose Radial Lead Cutter. Long lasting in finish, our machines are valued as the ideal options for cutting various loose leads that considered as extra during installation. Our clients can acquire the array of Automatic Loose Radial Lead Cutters from us in varied specifications as to meet their particular packaging needs. Features: Fast and accurate packaging Easy to operate Controlled functions Technical Specifications Output 100-250 pcs/min Power 220V AC, 50Hz Dimensions L-1100, W-650, H-1050mm Weight 145 kg
