FEATURES & SPECIFICATIONS : Blade cutter grinder is a grinding equipment for tungsten steel blades of circuit board cutting machine. Complete enclosed design, grinding dust to be discharged and collected. Use of high precision parts, Diamond grinding wheel, good grinding consistency. Adjustable grinding angle, smooth speed, low noise and high efficiency Angle of sharpening 18° - 25° Dimension of blade Max. Ø 250 Speed of blade revolving 2500 RPM Grinding Wheel Type Diamond Wheel Power supply AC 220V, 50Hz Weight 125 KG.

Banking on rich industrial experiences, we are indulged in manufacturing and supplying a broad series of Universal Manual Pre Former. Our machines eliminate the risk as these are integrated by incorporating quality assured and reliable materials. All our equipments are suitable for tooling of various radial and loose axial components. The offered series of Universal Manual Pre Former is reliable to use and can be availed in different capacities and specifications. Features: High productivity Unbeatable operational efficiency Fast and reliable Further Details: Manual operation Versatile machine with variety of tool option Suitable for loose axial and radial components Easy adjustments Hardened steel tooling Ideal for low to medium volume production Technical Specifications Dimensions L-165, W-105, H-100mm Weight 1.2 Kg

Foam Fluxer With Pre – Heater For fluxing and pre heating the PCB before Dip Soldering. The foam fluxer applies a uniform layer of flux to the PCB through a foaming tube. The air knife smoothens up the flux, and removes the axcess flux. The pre heater activates the flux, and prepares the assembly for soldering. Carrier supplied compatible with Model DIP 905 Foam Fluxer with plastic foaming tube. Digital temperature controller for pre heater. Independent Flow Control valve for air knife and fluxer. One touch pneumatic fittings for external air supply. Manual carrier movement on conveyor rails. General Dimensions L-775 W-525 H-375 Weight 20 kg Flux Bath & Air Knife Flux Bath capacity 4.0ltrs Foam width 14 Foam Height 10mm Air Consumption 20cfm at 30psi Pre Heater Power supply 220 V AC, 50Hz, 1.6 KW Standard Accessories PCB Carrier 1 No Utilities Power Connection 15 Amp Power Point Air supply Compressed Air with FR

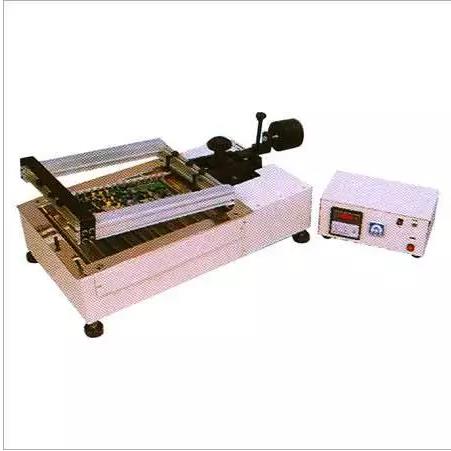

Automatic Dip-Soldering Machine Features & Specifications Digital Temperature Controller for Solder Bath Electronic Timer for setting dwell (solder) time Easy mechanical adjustments for depth setting Versatile PCB Carrier for fixing multiple PCB's Bath Size 14” x 14” 18” x 14” Solder Capacity 35 Kg 45 Kg Power Supply 220 V AC, 50Hz 220 V AC, 50Hz Heater Power 3.2 KW 4.0 KW Heat up Time 35 35 min Bath Depth 50 50mm Dimensions 690 x 460 x 360mm 790 x 460 x 360 Weight(without solder) 45 Kg 50Kg. Standard Accessories PCB Carrier – 1 no PCB Carrier - 1 no Scrapper 1 no Scrapper 1 no L/N Key Kit-1 no L/N Key Kit - 1 no

Our respected clients can avail the series of Automatic Jumper Forming Machine that is cautiously assembled by making use of upgraded components and materials. These machines are reliable for producing jumpers used in various electrical applications. Clients appreciate the entire stock of Automatic Jumper Forming Machine due to its reliable usage and easy operations. In addition, we make available the array of machines at discounted prices. Features: Unmatched performance Modular design Easy installation Technical Specifications Output 7500 pcs/hr Power 220V AC, 50Hz Dimensions L-320, W-300, H-450m

Wire Stripping Cum Twisting Machine Model AWZ 460 For stripping the insulation of round cables and twisting the strands (of multi strand wires), simultaneously Inserting the wire in the collect and withdrawing it completes the operation Simple and fast change over from one wire diameter to another is done by changing the collect according to the wire diameter Easy adjustment of stripping length Nick free stripping as the tool does not touch the conductor Special grade tool steel blade High quality motor, rated for continues &uninterrupted operation Dimension (l x w x h) 250 x 130 x 180 mm Weight 4.0 Kg Power 220V AC, 50Hz, 50 W Wire Diameter 1.2 mm to 3.5 mm Stripping Length 3.0 mm to 25.0 Collect Size available From 1.4 to 6.0 mm in step of 0.1 mm Standard Accessories Collets : 4 no Spare Sprin : 5 no Spare Toold : Bit 1 no Tool Kit

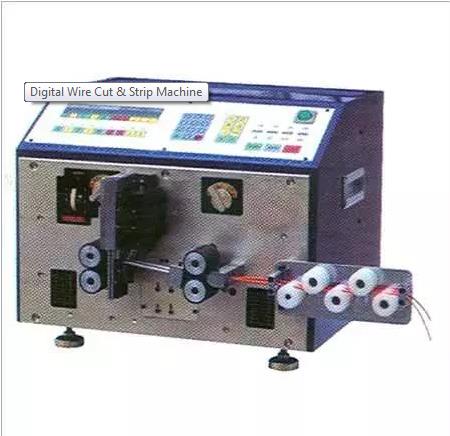

Digital Wire Cut & Strip & Twist Machine Features & Specifications Suitable for Cutting and Stripping operation Twisting option available in Model AWS 220 T Can feed & cut two wires High Speed and accuracy Cutting Length 0.1 to 9999mm Stripping Length 0.1 to 99 mm (As per wire material) Twisting Length 0.1 to 99 mm (As per wire material) Wire Diameter AWG 16 to 32 Power 220V AC, 50 Hz, 200W Dimensions L-570mm W-380mm H-440mm Weight 40 Kg Productivity Wire Length 100mm – 8420pcs/hr, 500mm – 5380pcs/hr, 1000mm – 3720pcs/hr
