Name: Manual Forming for Taped Axials (Horizontal) – MAP 301 H
Price: 19800 INR
Availability: instock

Preforming Machines

Manual Forming for Taped Axials (Vertical) – MAP 301 V

INR 19800

Send Message

Preforming Machines

Manual Forming for Taped Axials (Horizontal) – MAP 301 H

INR 19800

Send Message

Preforming machine

Manual Forming for Taped Axials Horizontal MAP 301H

Manual Forming for Taped Axials Horizontal MAP 301H Output 10000-18000 pcs/hr Dimensions L-250 W-250 H-200 mm Weight 5 Kg SPECIFICATIONS A 3.5-40 B 3.6-15 C 1.2 min D 1.5-8 W 0.35-1 P A+2C H A+B+

Send Message

Foam Fluxer with Pre-heater

Foam Fluxer with Pre-heater Features & Specifications For fluxing and pre heating PCB's before soldering Carrier supplied compatible with Model DIP 905 Manual carrier movement on conveyor rails Digital Temperature controller for pre-heater General Dimensions in mm L-775 W-525 H-375 Weight 20 Kg Flux Bath & Air Knife Flux Bath Capacity 4.0 ltrs Foam Width 14” Foam Height 10mm Air Consumption 40 cfm at 30 psi Pre-Heater Power Supply 220V AC, 50 Hz, 1.6 KW Standard Accessories PCB Carrier 1 No Utilities Power Connection 15 Amp Power Point Air Supply Compressed Air with FR

Send Message

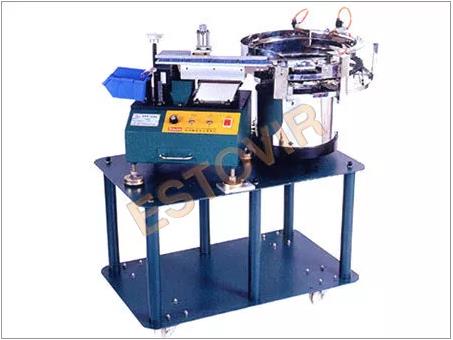

Automatic Loose Radial Lead Cutting M/C

Automatic Loose Radial Lead Cutting M/C Model: C-301A SPECIFICATIONS 1. Power: 2. Dimension: 3. Weight: 4. Efficiency: 5. Min. Leg Length 6. Component Type AC 220V 50HZ L1100 x W650 x H1050mm 145kg 100~180pcs/min 3.0mm Electrolytic Caps Dia 3.0 to 10.0mm LED, Crystal etc. Dia 3.0 to 5.0mm
