Manual Forming for Taped Axials (Horizontal) – MAP 301 H by Estovir Technologies Estovir Technologies introduces the MAP 301 H—a compact, efficient machine designed for manual forming of taped axial components into a vertical U-shape. The unit is ideal for dense PCB assemblies where horizontal mounting is essential. It is manually operated through a crank, ensuring complete control and precise lead formation. The MAP 301 H is best suited for medium-volume production across electronics, automotive, and assembly industries. Key Features of Manual Forming for Taped Axials (Horizontal) – MAP 301 H High-Speed Output: Delivers an output capacity of up to 18,000 pieces per hour, enabling fast and efficient production. Precision H-Shape Lead Forming: Forms components into a consistent vertical U-shape, ideal for densely populated circuit boards. Manual Crank Operation: Manual operation via crank handle provides enhanced control and accuracy without relying on electricity. Supports Lead Diameters Up to 1.37mm: Accommodates various component sizes, making it highly adaptable to different production requirements. Compact Machine Design: Its compact footprint (250 X 250 X 200 mm) saves space on the production floor. Rugged Industrial Build: Built with durable materials for vibration-free operation and long-term stability in industrial conditions. Quick Changeover Capability: Allows fast pitch and leg length adjustments, significantly reducing downtime during component changeovers. Low Maintenance Requirement: Designed with simplicity in mind, requiring minimal maintenance while maintaining high performance. Why Choose Manual Forming for Taped Axials (Horizontal) – MAP 301 H? The MAP 301 H offers the perfect balance of precision, control, and productivity. Its manual crank operation provides the operator with full control, allowing for fine-tuning and customization during forming. Built with a compact, heavy-duty frame, it supports small-to-mid-scale operations that demand consistency and reliability. Whether you’re handling dense PCBs or varied lead sizes, this machine is engineered to perform. Perfect for small spaces and mobile workstations Eliminates need for electrical setup Ideal for continuous use in industrial environments Easy to operate, adjust, and maintain Designed by Estovir Technologies for long-term value Applications of Manual Forming for Taped Axials (Horizontal) – MAP 301 H MAP 301 H is widely used in manufacturing environments that require Horizontal lead forming: Electronics and PCB manufacturing lines Automotive electronic assembly units Industrial component forming and processing setups Consumer electronics and LED-based systems Component packaging and reshaping facilities Product Type Compatibility: Axial leaded components in taped form Automatic Grade: Manual (non-electric, fully mechanical)

FEATURES & SPECIFICATIONS : Suitable for Cutting and Stripping operation Twisting option available in Model AWS 220 T Can feed & cut two wires High Speed and accuracy Cutting Length 0.1 to 9999mm Stripping Length 0.1 to 99 mm (As per wire material) Twisting Length 0.1 to 99 mm (As per wire material) Wire Diameter AWG 16 to 32 Power 220 V AC, 50 Hz, 200W Dimensions L-570mm W- 380mm H-440mm Weight 40 Kg Productivity Wire Length 100mm - 8420pcs/hr, 500mm-5380pcs/hr, 1000mm-3720pcs/hr

We are the Manufacture of Digital Display Lead Free Soldering in Gurgaon.

PCB Leading Cutting MC Model D (mm) D (mm) T (mm) Ao LC TC 200 200 70 3.5 18o to 25o LC TC 250 250 70 3.5 18o to 25o

Manual Forming for Taped Axials (Vertical) – MAP 301 V by Estovir Technologies Estovir Technologies introduces the MAP 301 V—a compact, efficient machine designed for manual forming of taped axial components into a vertical V-shape. The unit is ideal for dense PCB assemblies where vertical mounting is essential. It is manually operated through a crank, ensuring complete control and precise lead formation. The MAP 301 V is best suited for medium-volume production across electronics, automotive, and assembly industries. Technical Specification: Model: MAP 301 V Operation Type: Manual Forming Type: Vertical V-Shape Bend Lead Diameter: Ø 0.4 mm to Ø 1.37 mm (soft wire) Component Power: 3A & 5A Diode Output Capacity: 10,000 – 18,000 pcs/hr Dimensions: 250 × 250 × 200 mm Weight: 5 kg Component Forming Parameters: A (Lead Length) 4–18 mm B (Lead Spacing from Body) 5–10 mm C (Body Gap (Min. distance between component body and bend) Minimum 3 mm D (Component Body Diameter) 5–8 mm W (Lead Wire Diameter) 0.35–1 mm P (Pitch Between Leads) 5–13.5 mm H (Overall Height) A + B + C Key Features of Manual Forming for Taped Axials (Vertical) – MAP 301 V High-Speed Output: Delivers an output capacity of up to 18,000 pieces per hour, enabling fast and efficient production. Precision V-Shape Lead Forming: Forms components into a consistent vertical V-shape, ideal for densely populated circuit boards. Manual Crank Operation: Manual operation via crank handle provides enhanced control and accuracy without relying on electricity. Supports Lead Diameters Up to 1.37mm: Accommodates various component sizes, making it highly adaptable to different production requirements. Compact Machine Design: Its compact footprint (190 mm × 175 mm × 190 mm) saves space on the production floor. Rugged Industrial Build: Built with durable materials for vibration-free operation and long-term stability in industrial conditions. Quick Changeover Capability: Allows fast pitch and leg length adjustments, significantly reducing downtime during component changeovers. Low Maintenance Requirement: Designed with simplicity in mind, requiring minimal maintenance while maintaining high performance.

Description: The EMS 3040 MP Manual Solder Paste & Glue Printer is a high-precision, flexible solution designed for the application of solder paste and glue on various types of printed circuit boards (PCBs). It features a honeycomb base, similar to those found in semi-automatic solder paste printers, ensuring enhanced stability and precise operation. This printer supports both single and double-sided PCBs, making it versatile for a range of applications. The stencil movement mechanism is counterbalanced for smooth operation, and the printing platform is highly adjustable, with fine-tuned control over the X-axis, Y-axis, and theta angle for accurate positioning. Built with superior materials, the EMS 3040 MP is durable and designed to last in demanding environments. Specifications: • Base Type: Honeycomb base (similar to semi-automatic solder paste printers) • Adjustability: High precision and flexible adjustments for different board types • PCB Compatibility: Can process double-sided PCBs • Stencil Movement: Up and down with counterbalance • Platform Adjustments: Precise adjustments for X-axis, Y-axis, and theta angle • Material: Made of superior materials for durability • Dimensions: 560 x 390 x 350 mm • Platform Size: 300 x 400 mm • PCB Size: 250 x 350 mm • PCB Thickness: 0-100 mm • PCB Tuning Range: Front/Side ± 10 mm • Platform Height: 100 mm • Repeatability: ±0.01 mm for high precision printing • Positioning Mode: Side/Reference hole positioning for accurate placement • Weight: Approx. 30 kg • Category: SMT Machines (Surface Mount Technology) Key Features : • Precision: High precision solder paste and glue printing with repeatability of ±0.01 mm. • Adjustability: Fine adjustments in X-axis, Y-axis, and theta angle for flexible board handling. • Dual-Sided PCB Support: Capability to handle double-sided PCBs. • Durability: Constructed with superior materials for long-lasting performance. • Compact Design: Efficient design with a footprint of 560 x 390 x 350 mm. • Easy Setup: Simple and quick adjustments for different board sizes and configurations. • Counterbalance Stencil Movement: Ensures smooth and consistent stencil movement. • Precision Platform: Allows accurate tuning for optimal paste application. This machine is ideal for SMT manufacturing lines looking for a manual solder paste printer that combines high precision with flexibility for various PCB types and sizes.

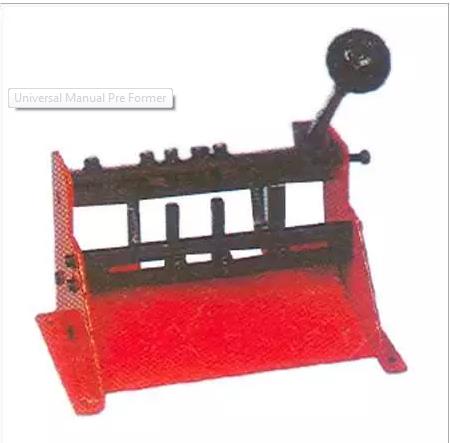

Banking on rich industrial experiences, we are indulged in manufacturing and supplying a broad series of Universal Manual Pre Former. Our machines eliminate the risk as these are integrated by incorporating quality assured and reliable materials. All our equipments are suitable for tooling of various radial and loose axial components. The offered series of Universal Manual Pre Former is reliable to use and can be availed in different capacities and specifications. Features: High productivity Unbeatable operational efficiency Fast and reliable Further Details: Manual operation Versatile machine with variety of tool option Suitable for loose axial and radial components Easy adjustments Hardened steel tooling Ideal for low to medium volume production Technical Specifications Dimensions L-165, W-105, H-100mm Weight 1.2 Kg
